Speed Control Cable - SVT: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dust cover from the throttle body.

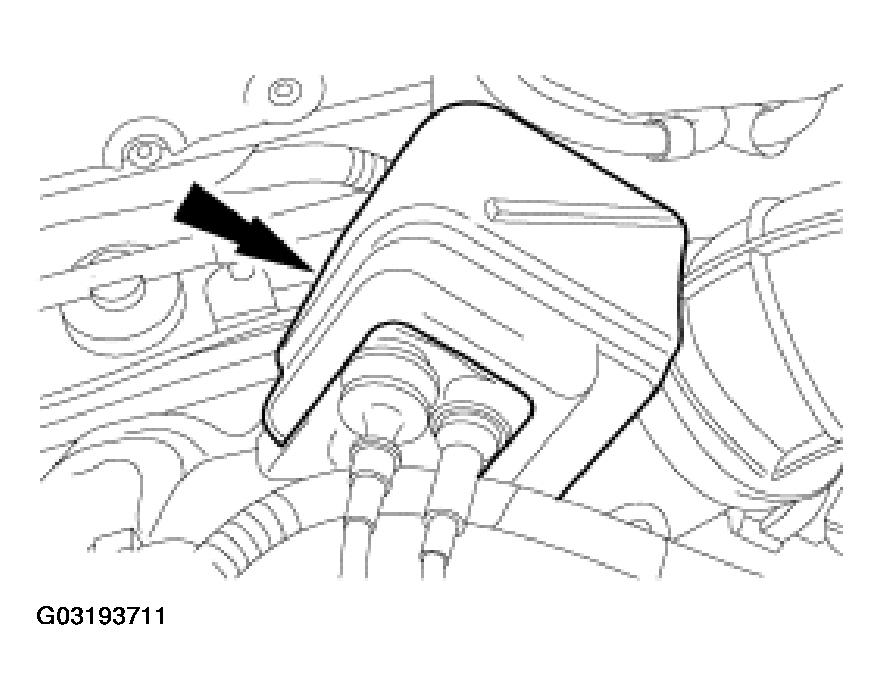

Fig 1: Removing Dust Cover From Throttle Body
Courtesy of FORD MOTOR CO.
Remove the speed control cable.
1. Disconnect the inner cable from the throttle body.
2. Detach the speed control cable from the throttle body.

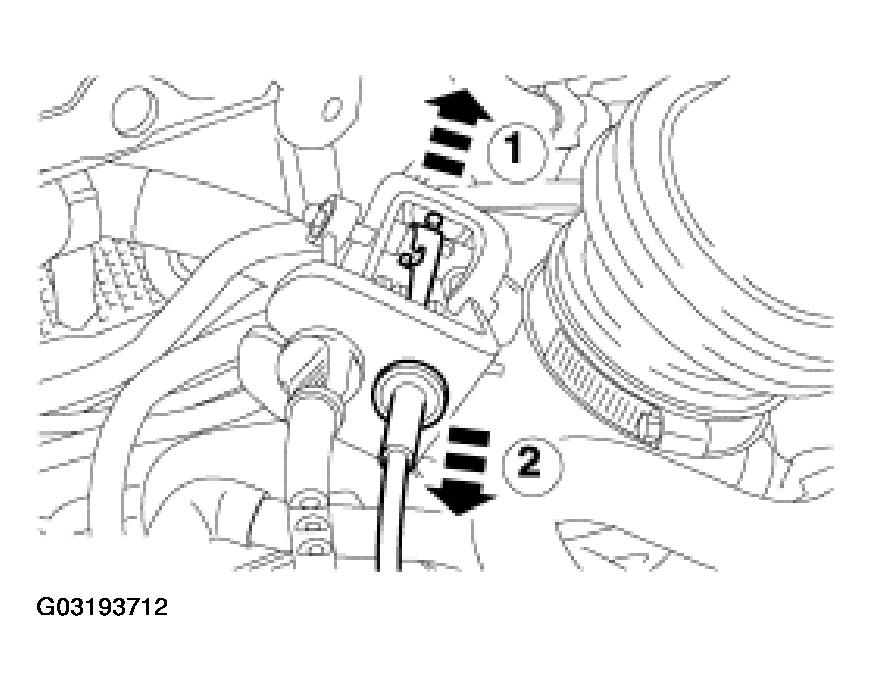

Fig 2: Removing Speed Control Cable
Courtesy of FORD MOTOR CO.
Remove the speed control cable from the clip.
Remove the speed control actuator cable cover.

Fig 3: Removing Speed Control Actuator Cable Cover
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable from the speed control actuator pulley.

Fig 4: Disconnecting Speed Control Actuator Pulley
Courtesy of FORD MOTOR CO.
