Connecting Rod - Piston Pin Side Clearance

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
    • If out of specification, install new components as necessary.

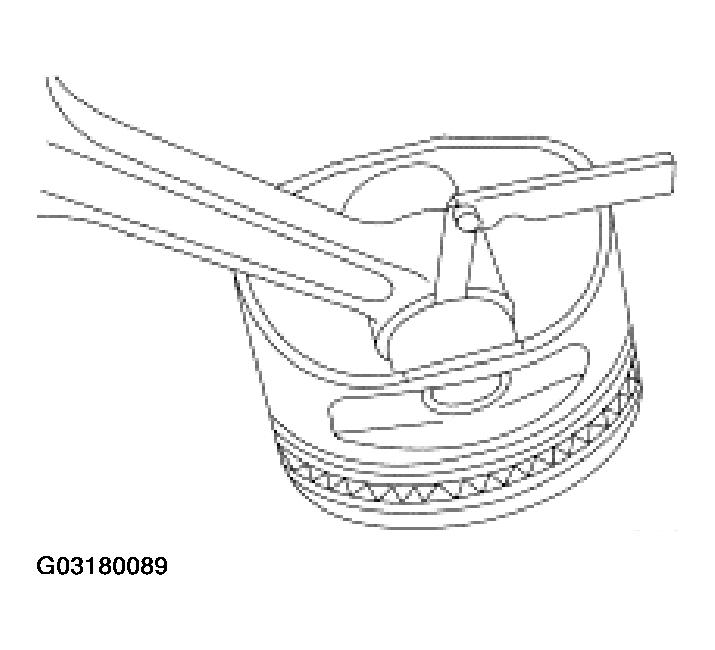

    Fig 1: Measuring Clearance Between Connecting Rod And Piston
    G03180089Courtesy of FORD MOTOR CO.
