Speed Control Deactivator Switch - With Stability Assist

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not press the pedal when removing or installing the speed control deactivator switch, as the switch will be damaged.

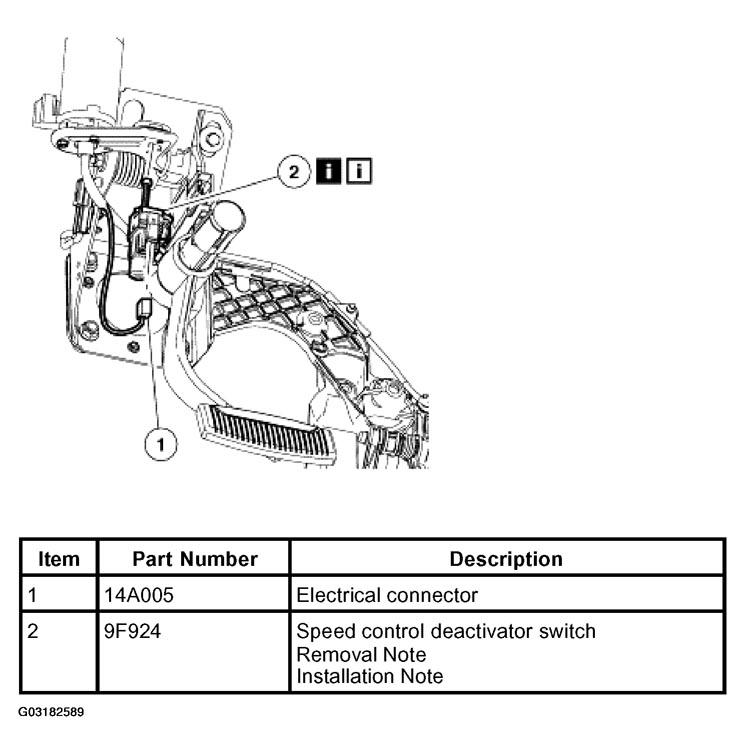

    Fig 1: Removing Speed Control Deactivator Switch
    G03182589Courtesy of FORD MOTOR CO.
  1. Remove the parts in the order indicated in the following illustration and table.
  2. To install, reverse the removal procedure.
