Connecting Rod - Bushing Diameter

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
- Refer to the appropriate ENGINE MECHANICAL article for the procedure.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE MECHANICAL article for the procedure.

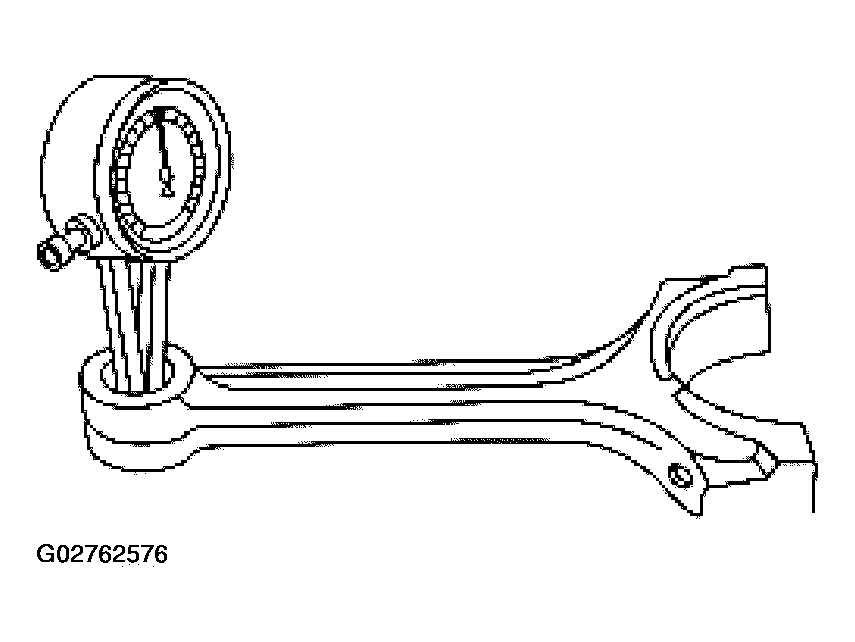

Fig 1: Measuring Inner Diameter Of Connecting Rod Bushing
Courtesy of FORD MOTOR CO.
