Audio Unit: Removal
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

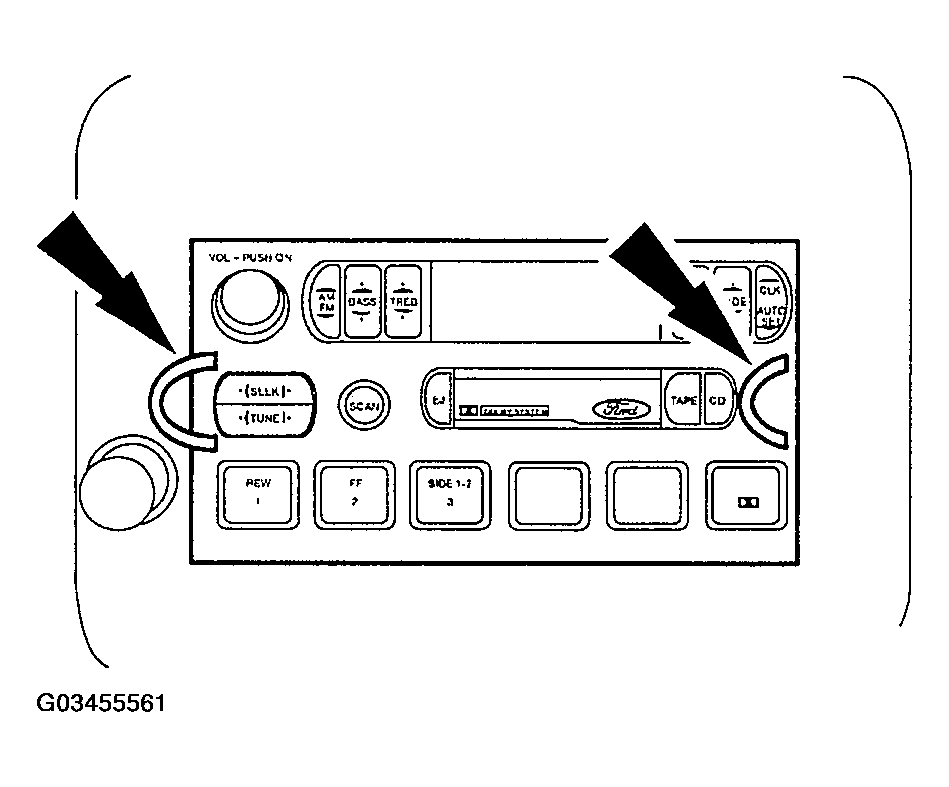

- Insert the special tool.
- Remove the audio unit.

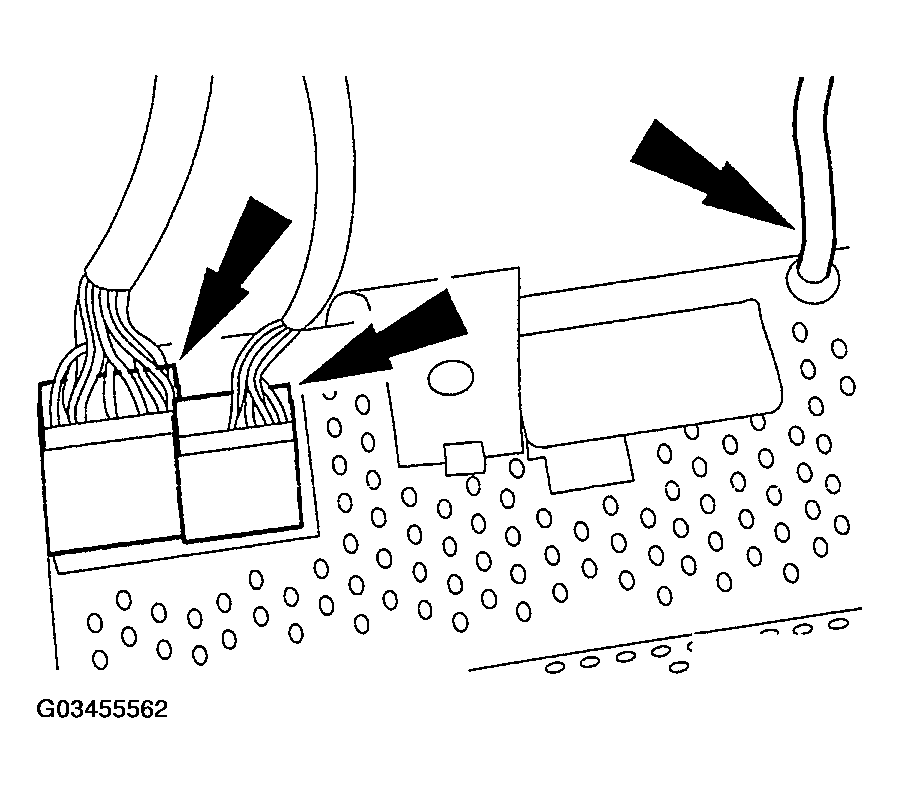

- Disconnect the electrical connectors and the antenna lead-in cable.
CAUTION:
Do not use excessive force when inserting the radio removal tool because it will cause damage to the audio unit or the retaining clips making removal difficult.
