Window operating switch, driver side front (multiple), without rear power windows

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

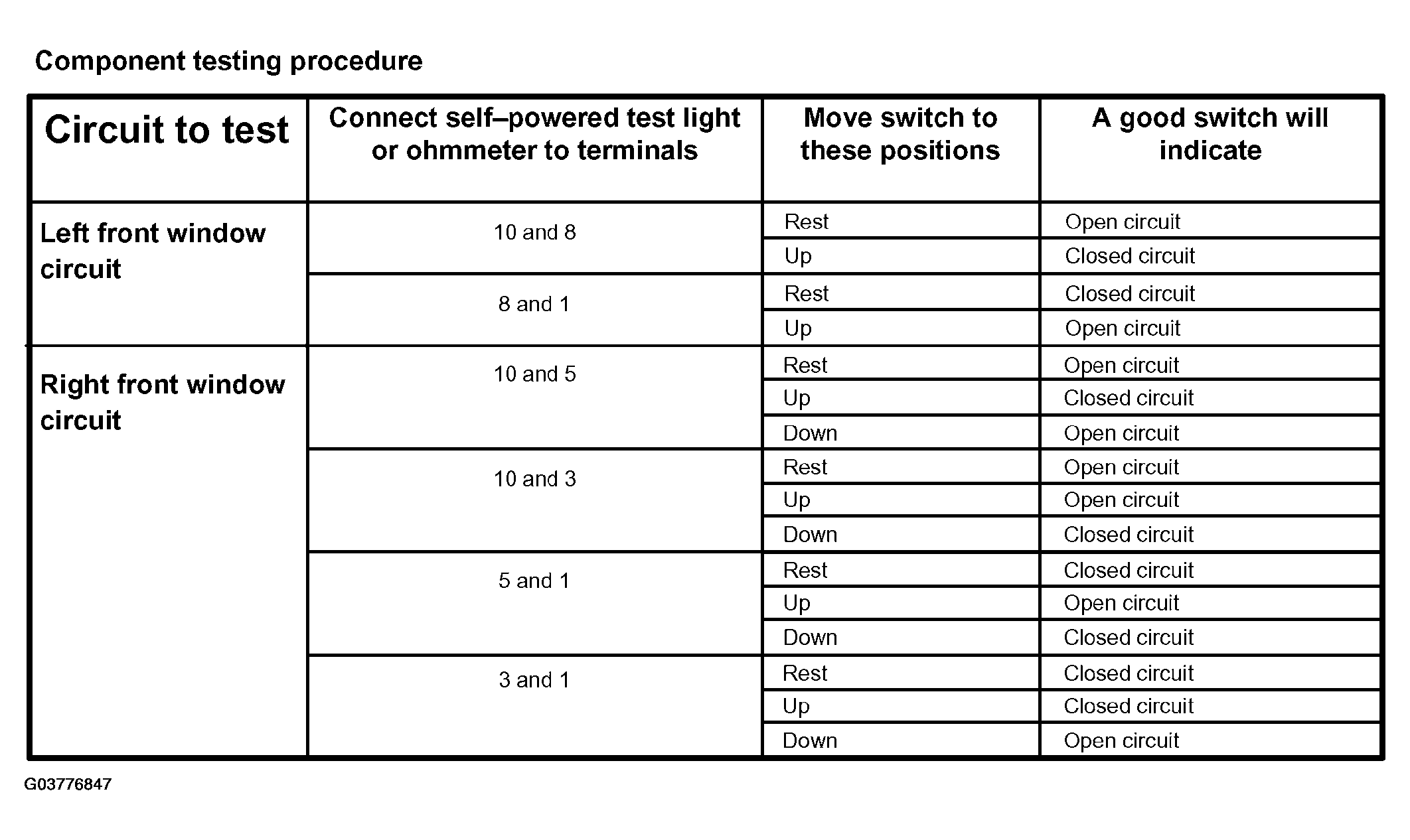

Fig 1: Testing Window Operating Switch, Driver Side Front (Multiple), Without Rear Power Windows (4 Of 5)

Courtesy of FORD MOTOR CO.

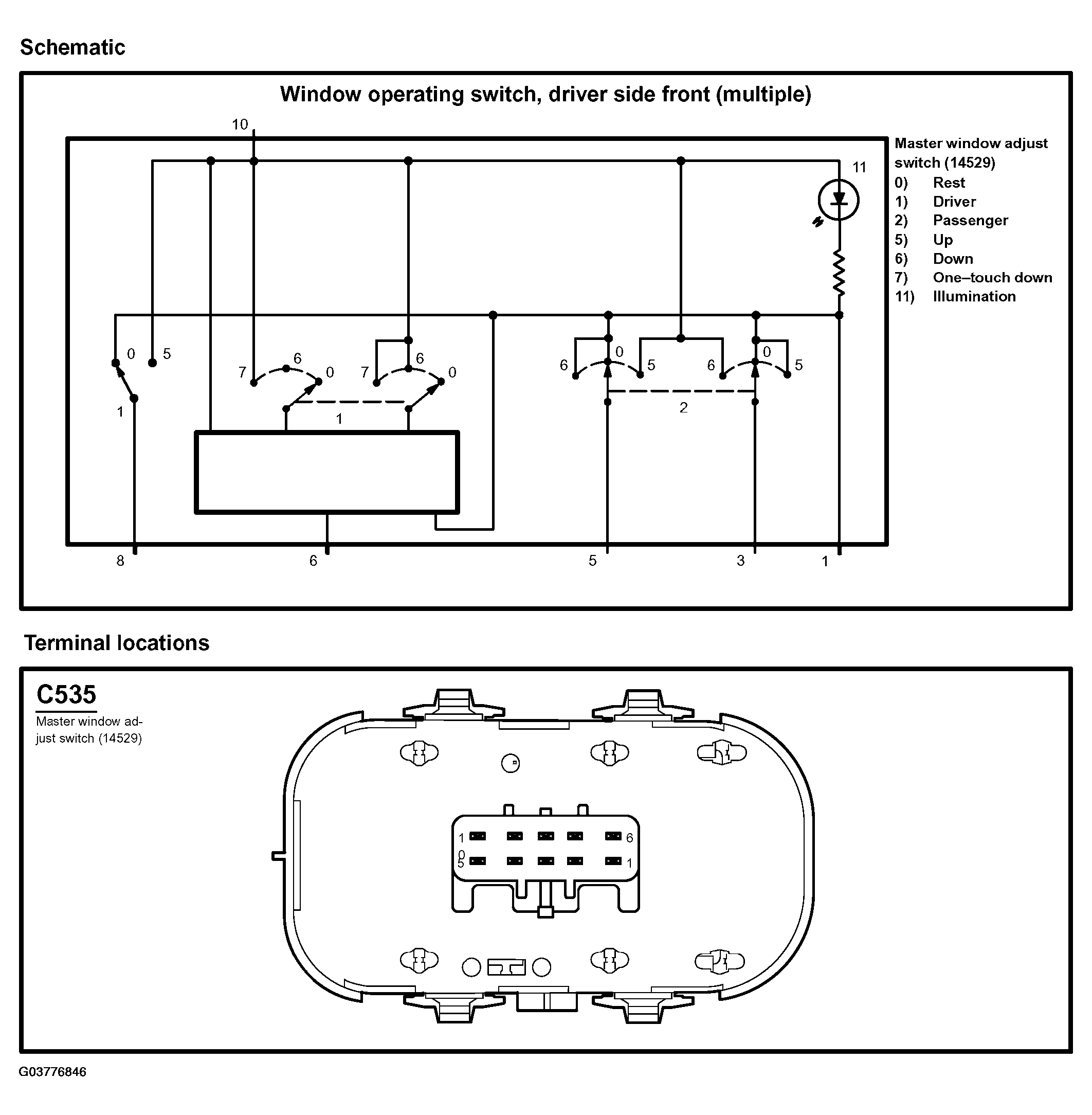

Fig 1: Testing Window Operating Switch, Driver Side Front (Multiple), Without Rear Power Windows (5 Of 5)

Courtesy of FORD MOTOR CO.
