Piston Pin Diameter

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Measure the piston pin diameter in 2 directions at the points shown in Fig 1. Verify the diameter is within specification.
- Refer to appropriate ENGINE article for the procedure.
- If out of specification, install new components as necessary. Refer to appropriate ENGINE article for the procedure.

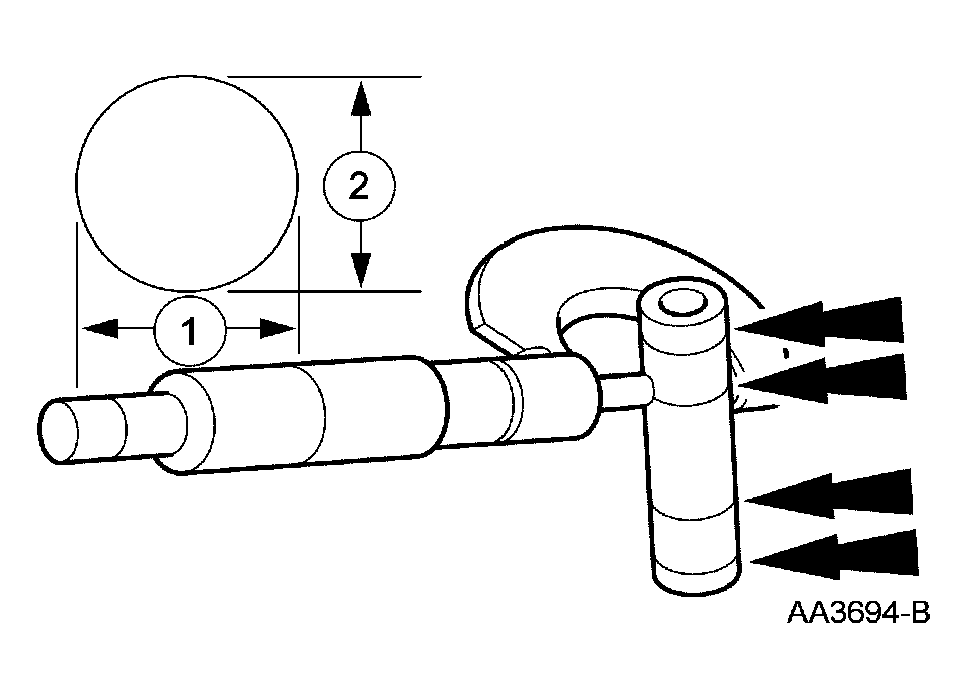

  Fig 1: Measuring Piston Pin Diameter
  Courtesy of FORD MOTOR CO.
