Control Components: Notes
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
The manual climate control system heats or cools (if equipped with A/C) the vehicle interior depending on the function selector position and the temperature selected. Function selector position determines heating or cooling (if equipped with A/C) and air distribution. The temperature blend control setting determines air temperature.

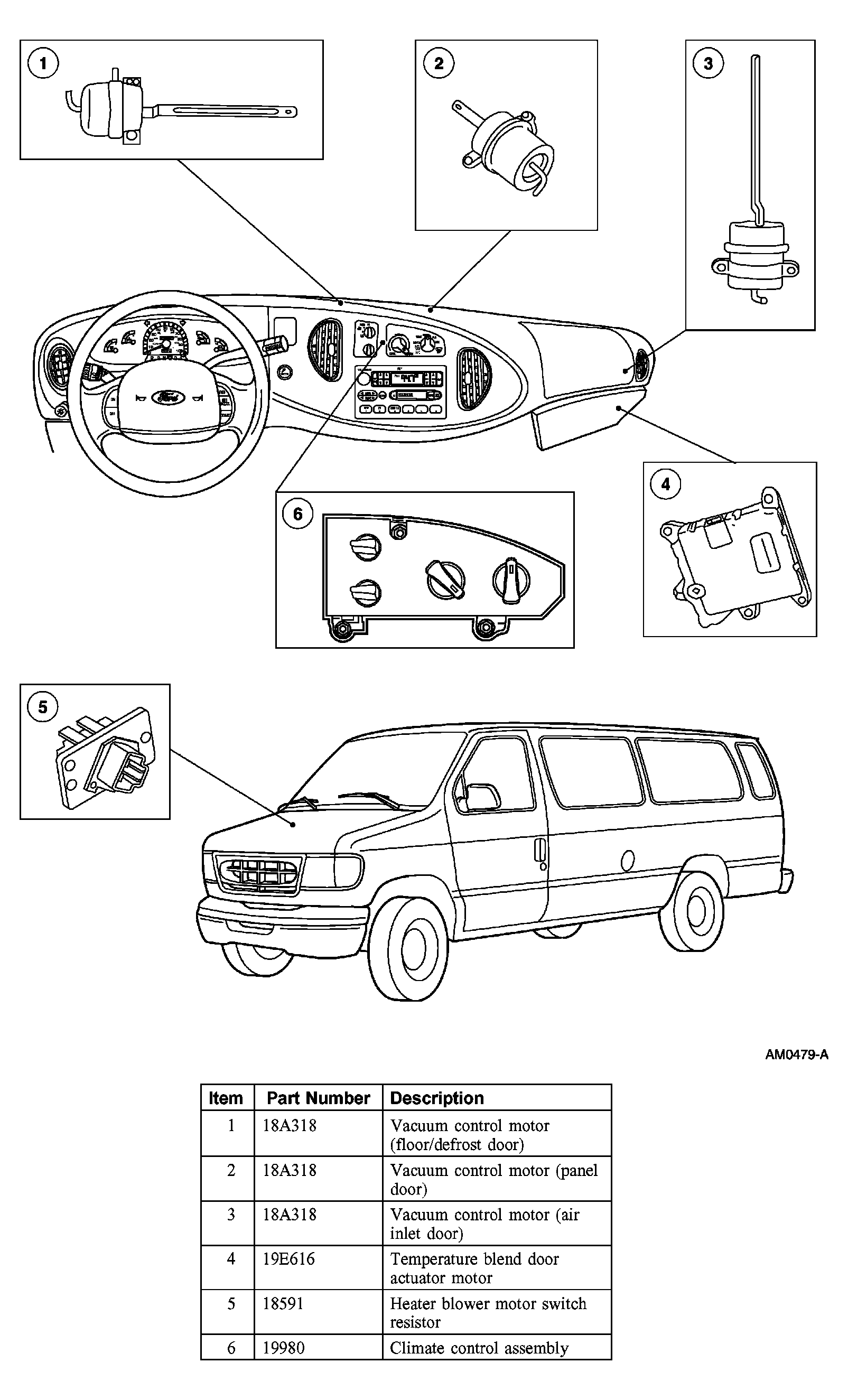

The manual climate control components are used to:
- select air inlet source (outside or recirculated).
- select blower motor speed.
- select discharge air temperature (temperature blend).
- select discharge air location (defrost, panel, floor).
- select A/C compressor clutch operation (if equipped with A/C).
