Lower Control Arm: Installation

To install, reverse removal procedure. On Escort, DO NOT tighten pivot bolts until vehicle is lowered and at operating level. Tighten stabilizer bar link bushing nuts so that .67-.75" (17-19 mm) of thread is exposed. See Fig 3 . Install NEW nuts and bolts. On Escort, apply Threadlock 262 onto lower ball joint nut and pinch bolt threads. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

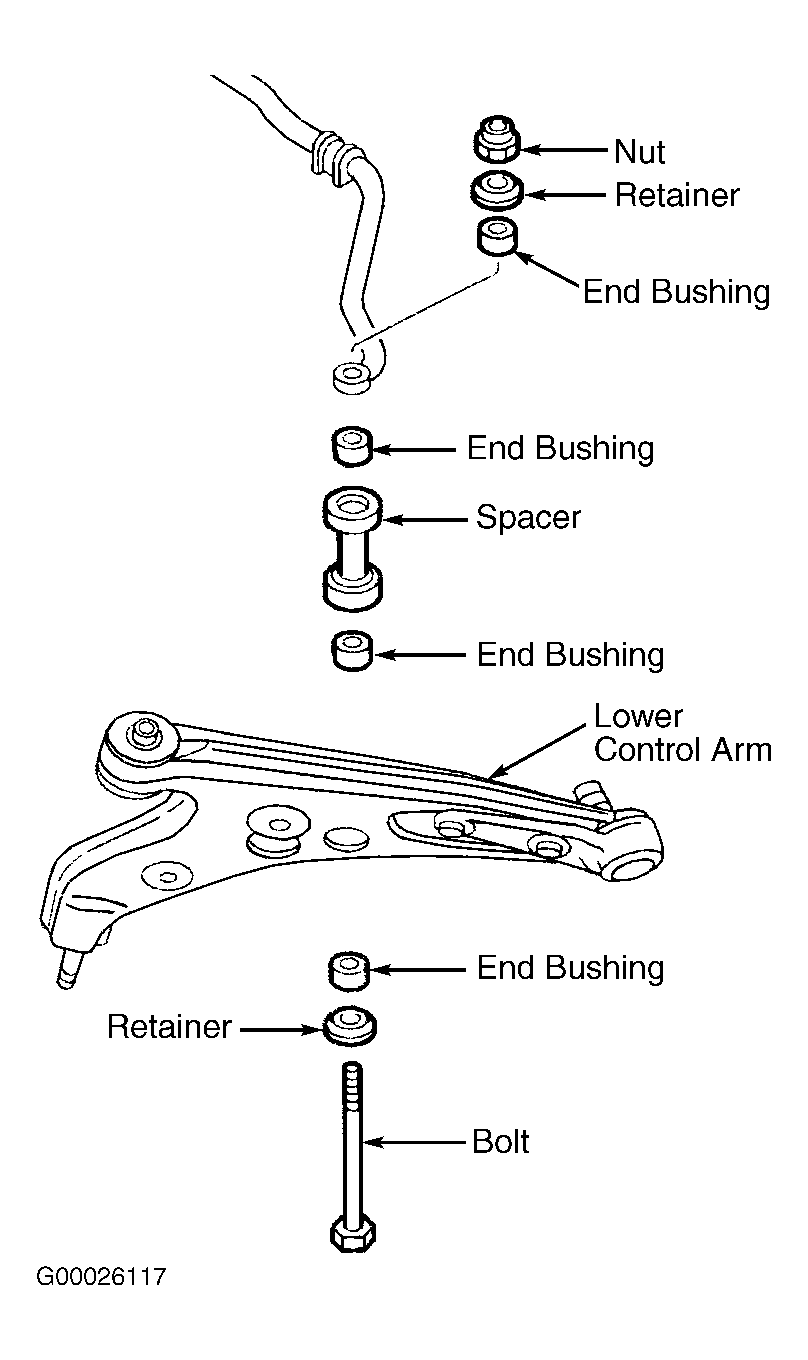

Fig 1: Exploded View Of Stabilizer Bar Link Bushing Assembly (Escort)
G00026117Courtesy of FORD MOTOR CO.

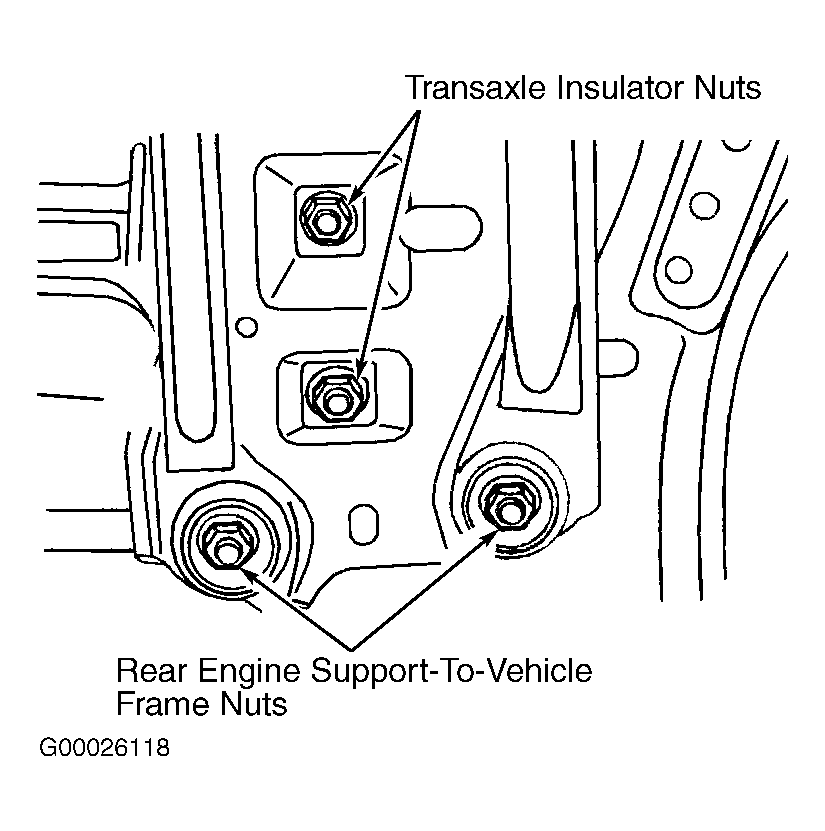

Fig 2: Identifying Transaxle Insulator Nuts & Rear Engine Support Nuts (Escort)
G00026118Courtesy of FORD MOTOR CO.

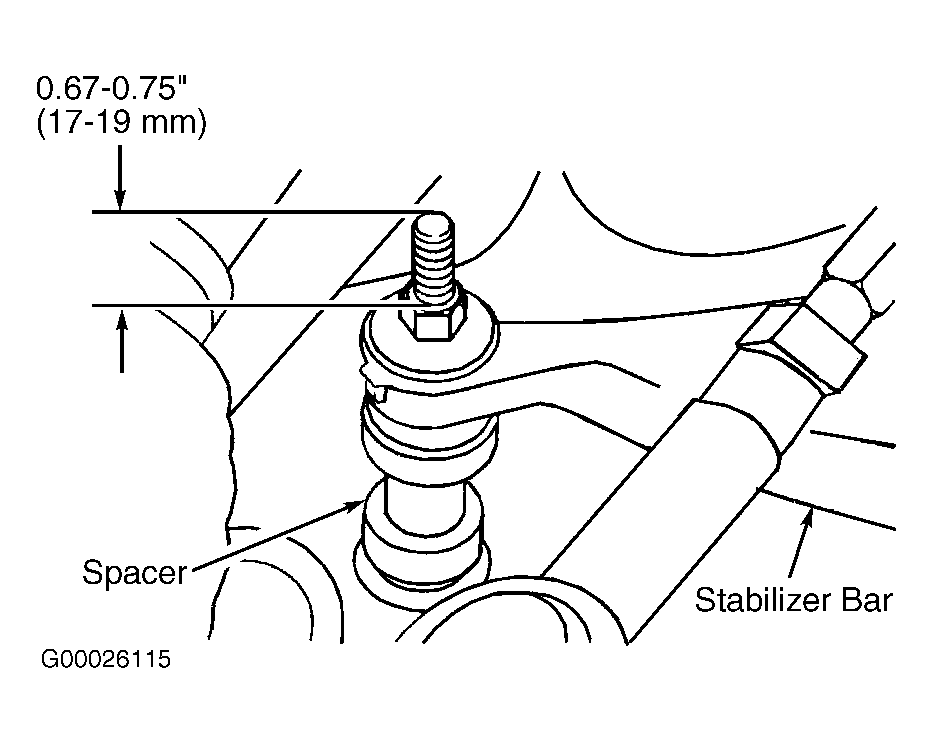

Fig 3: Installing Stabilizer Bar Link Bushing Assembly (Escort)
G00026115Courtesy of FORD MOTOR CO.
