System Precheck

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

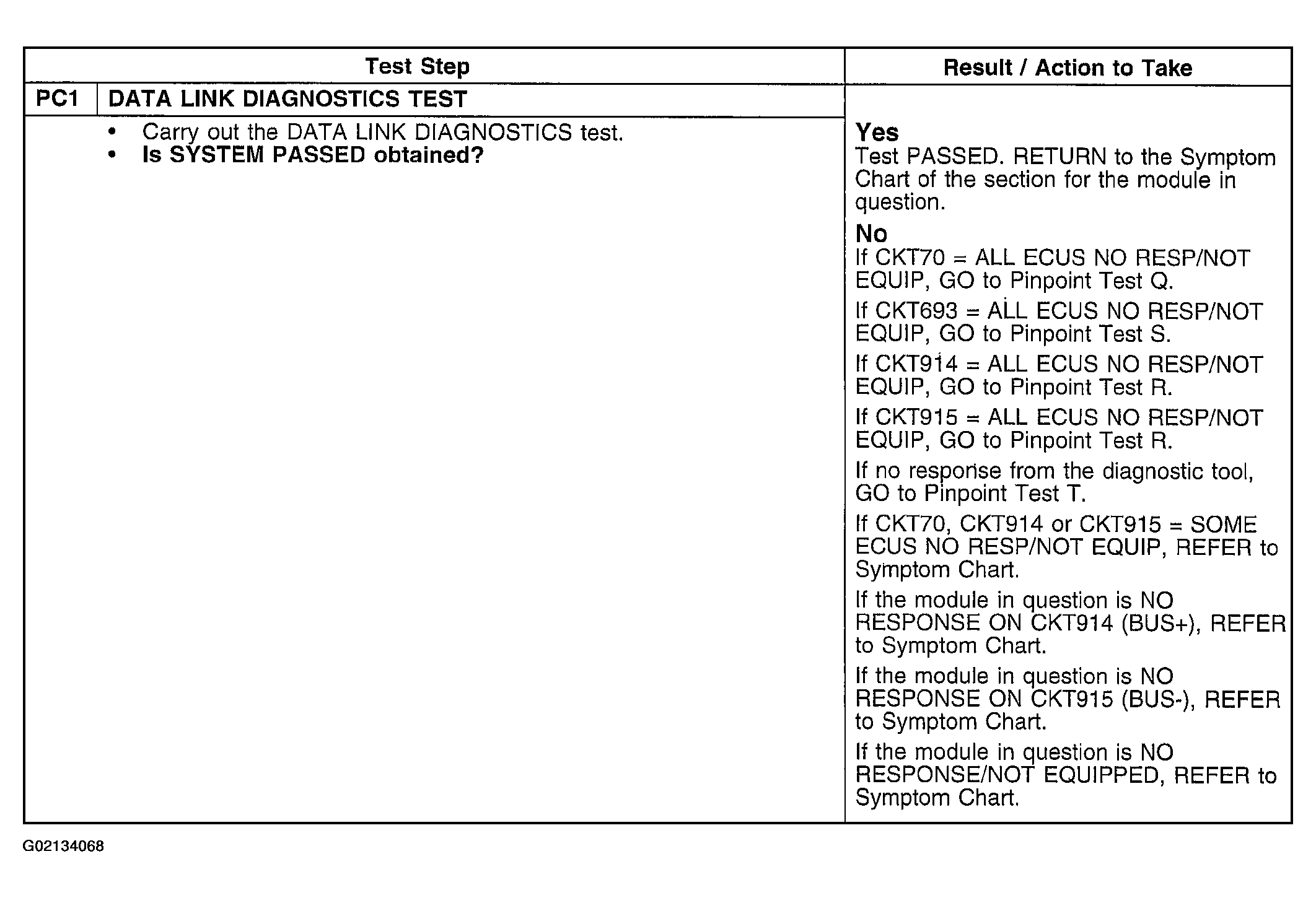

Fig 1: Pinpoint Test PC: Run The Data Link Diagnostics Network Test
G02134068Courtesy of FORD MOTOR CO.
