Transmission Internal Components-Disassembled View

Transmission Internal Components-Disassembled View

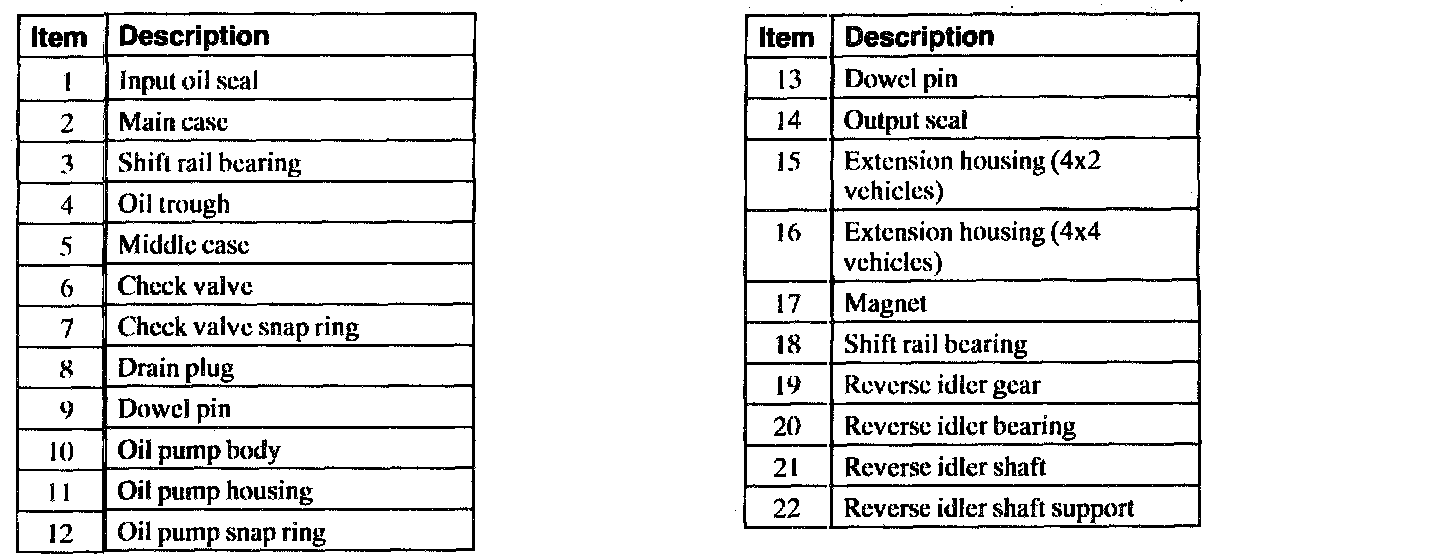

Part 1 of 4

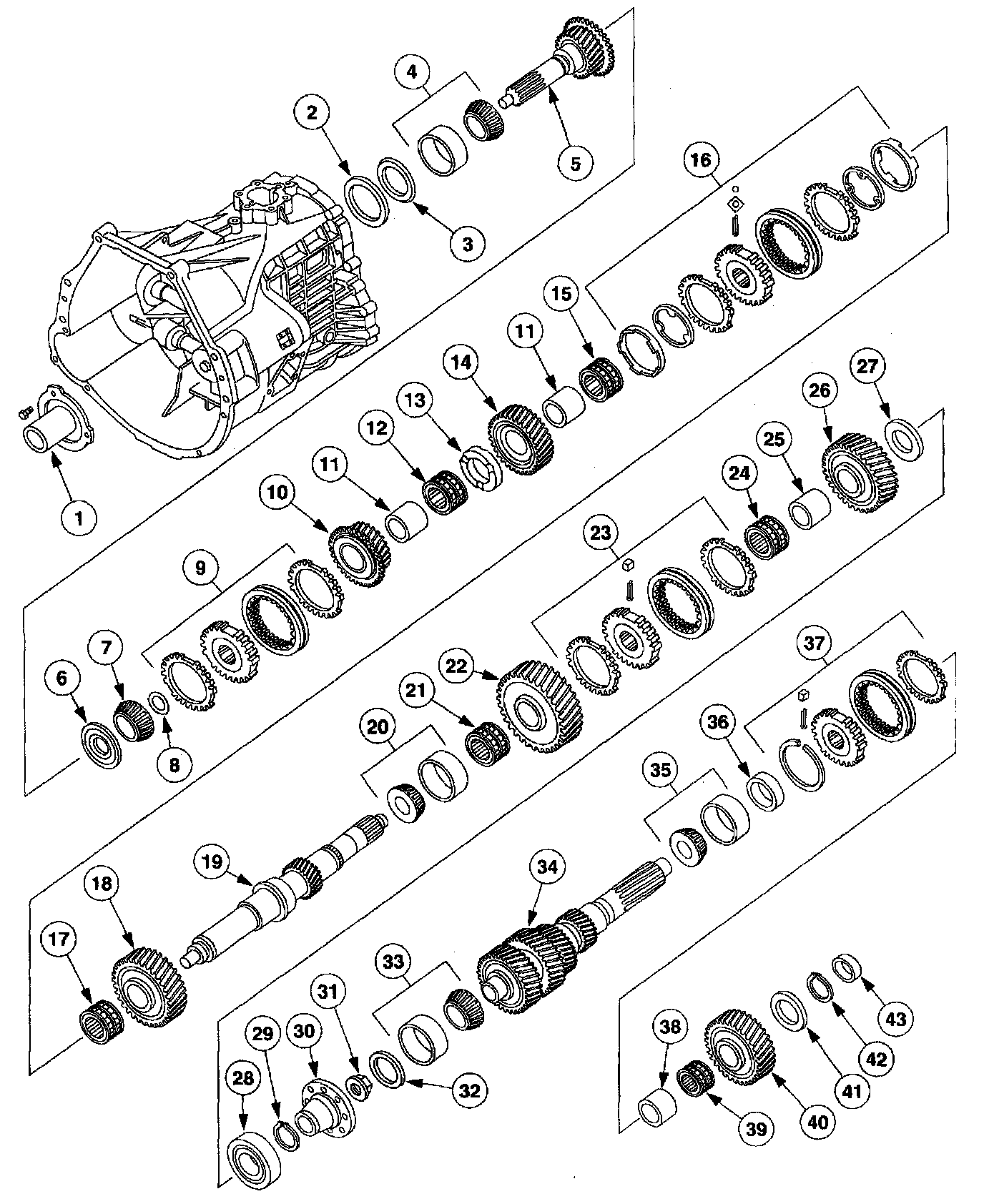

Part 2 of 4

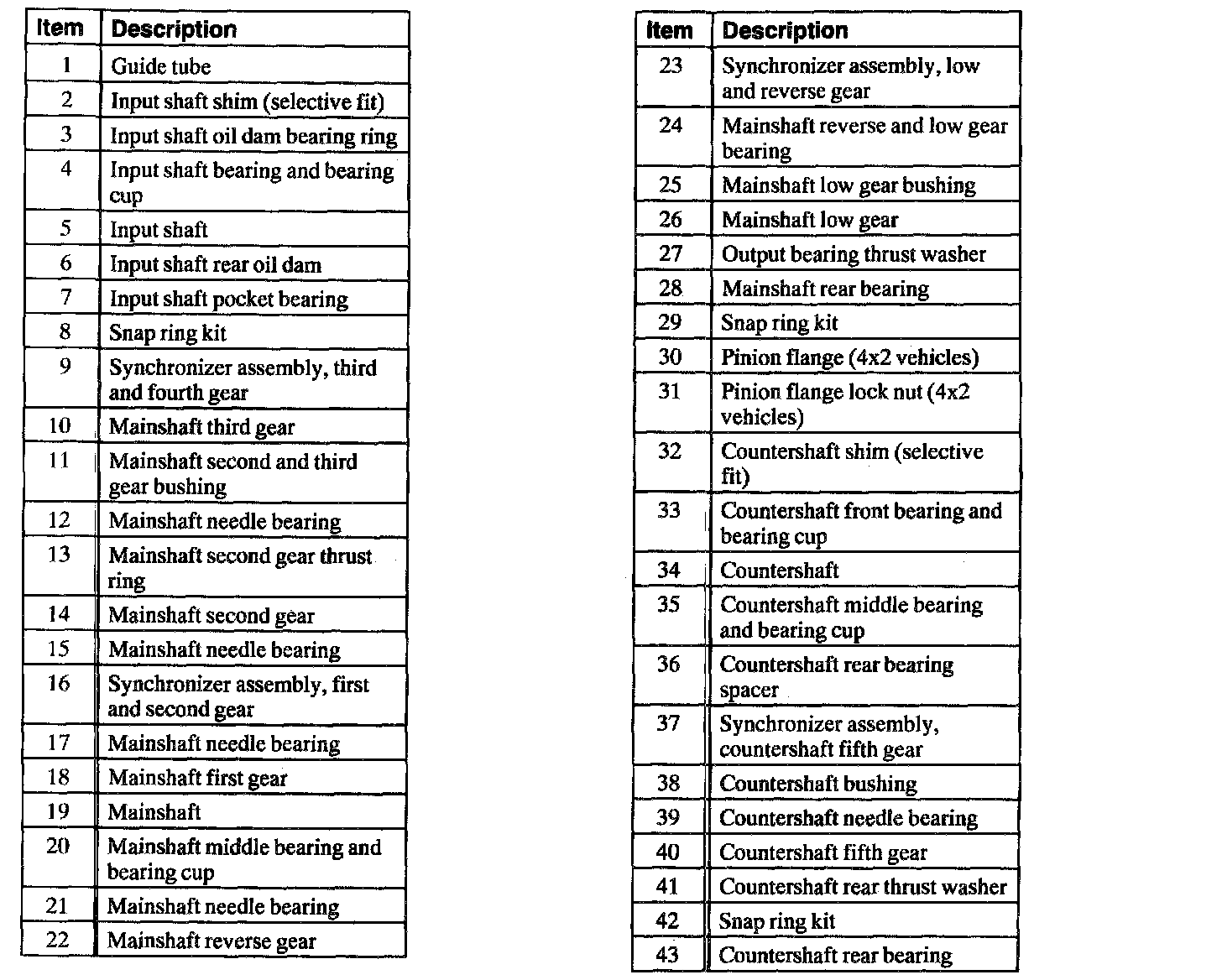

Part 3 of 4

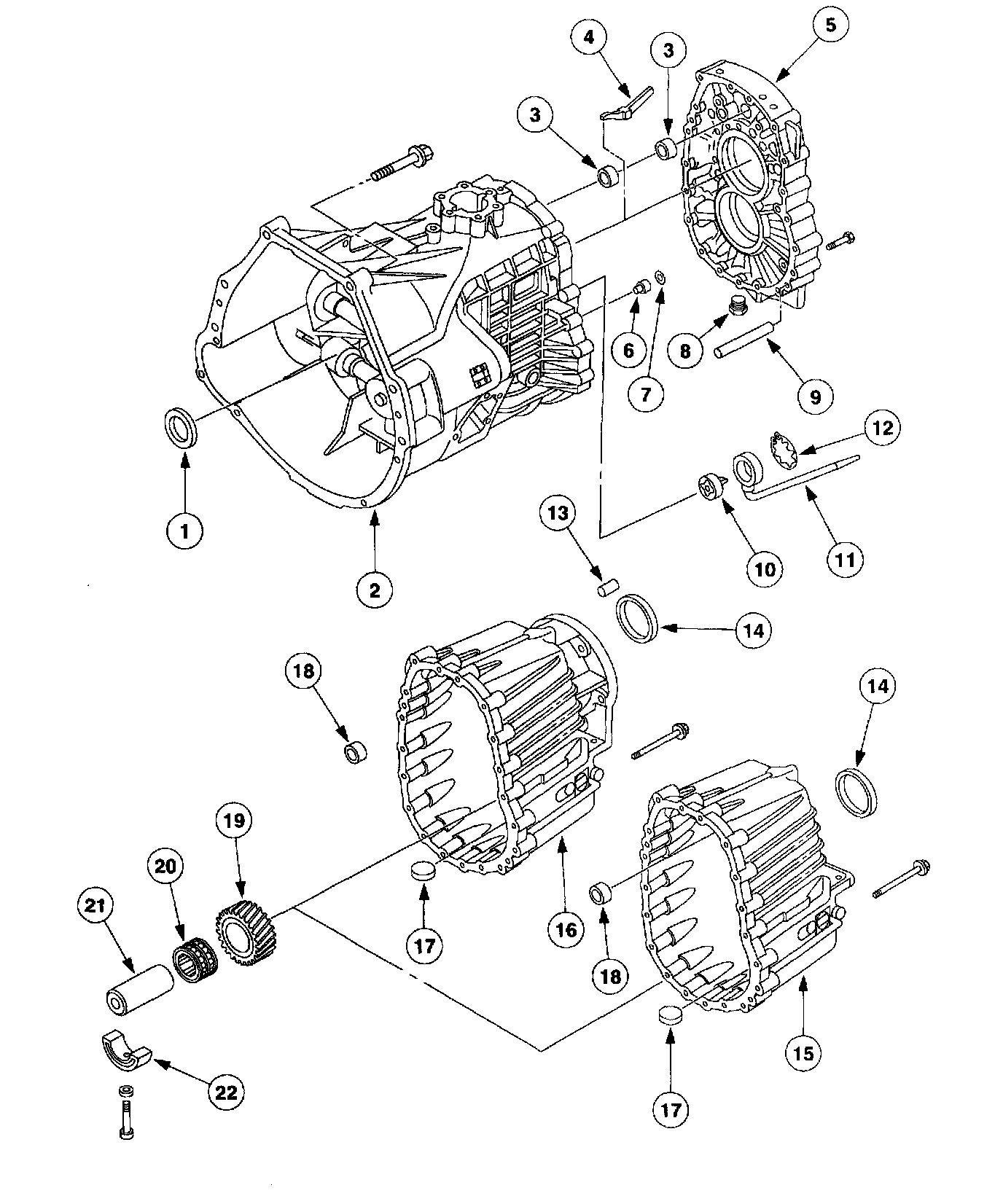

Part 4 of 4
