Component Tests

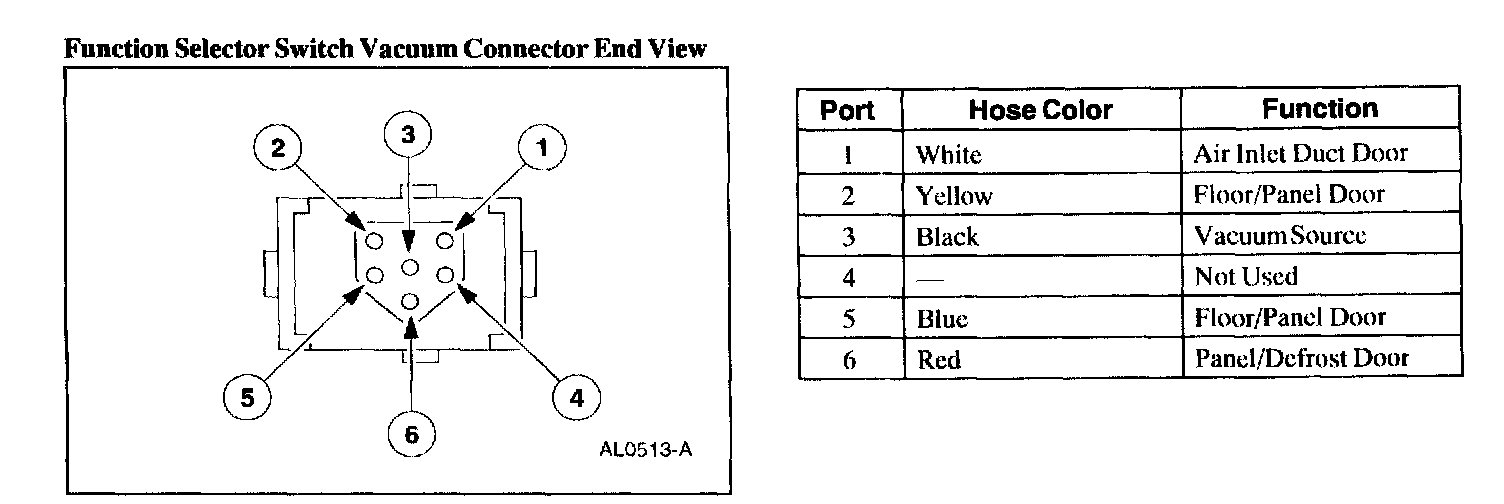

Function Selector Switch Vacuum Connector End View:

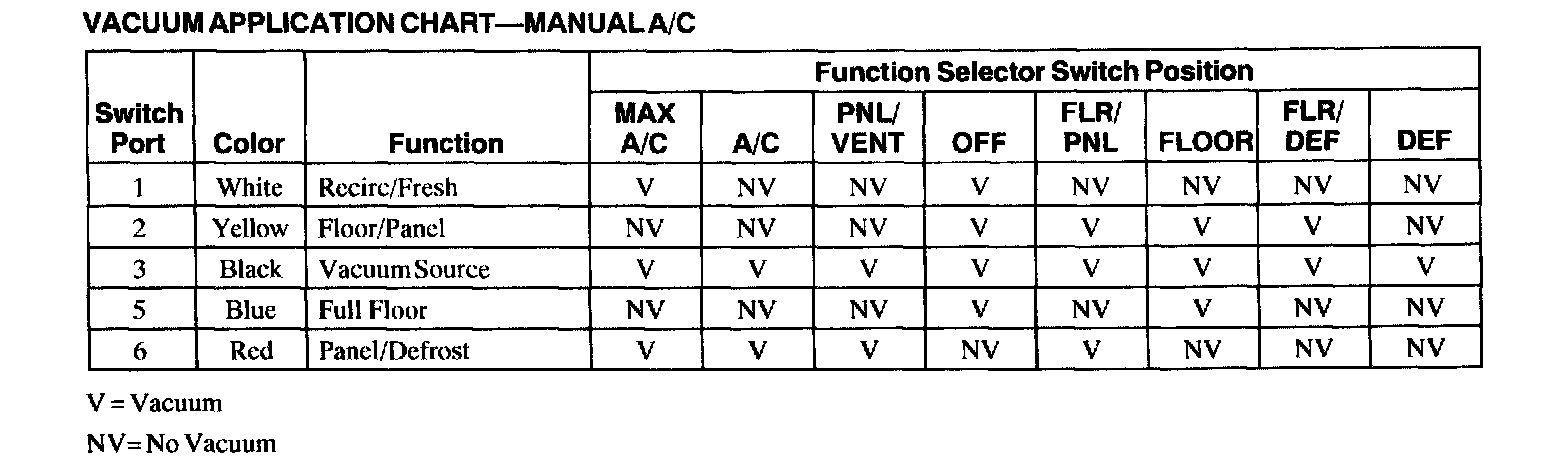

Vacuum Application Chart - Manual A/C:
