Test H: Fuel Control

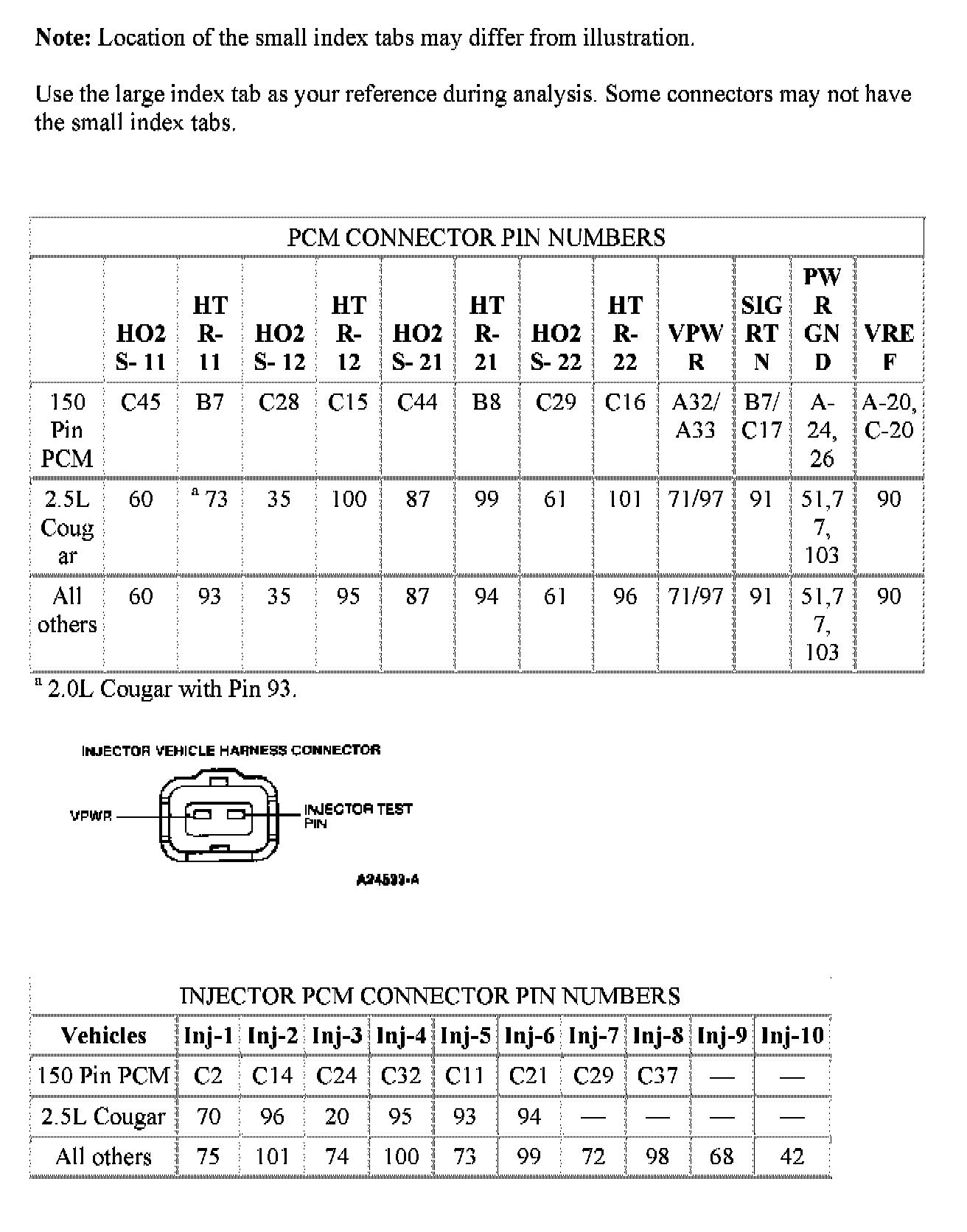

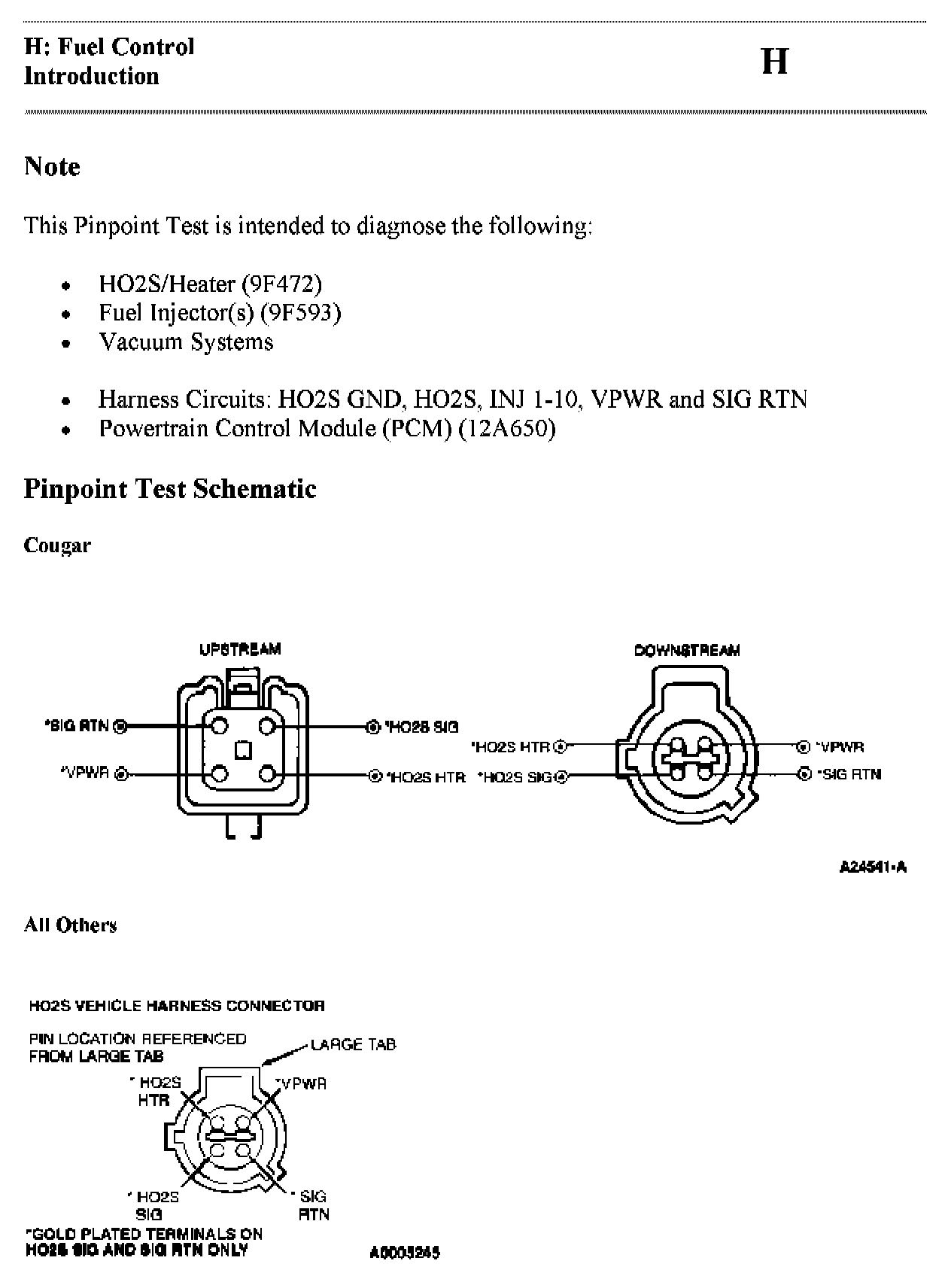

H INTRODUCTION:

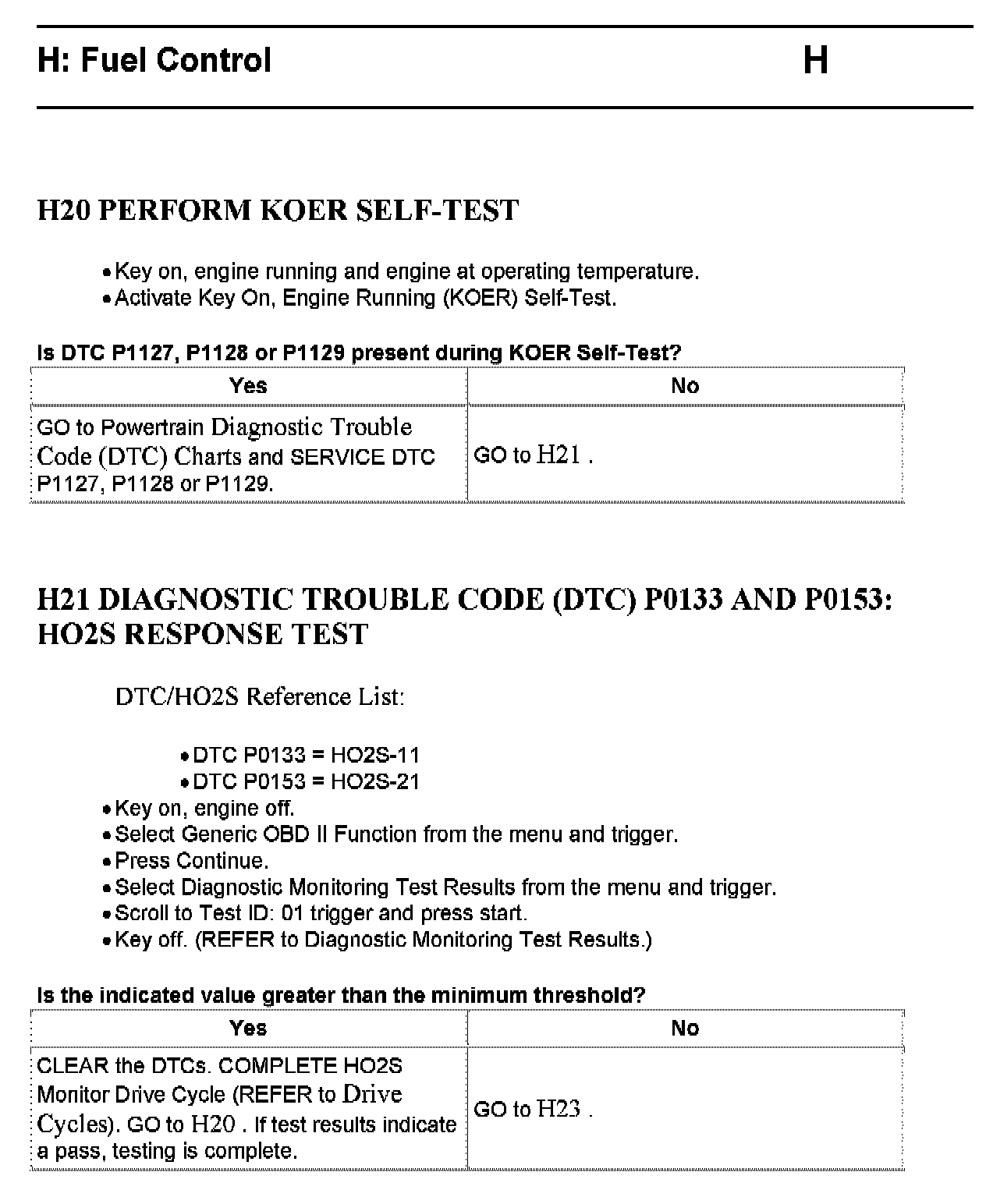

H20 - H21:

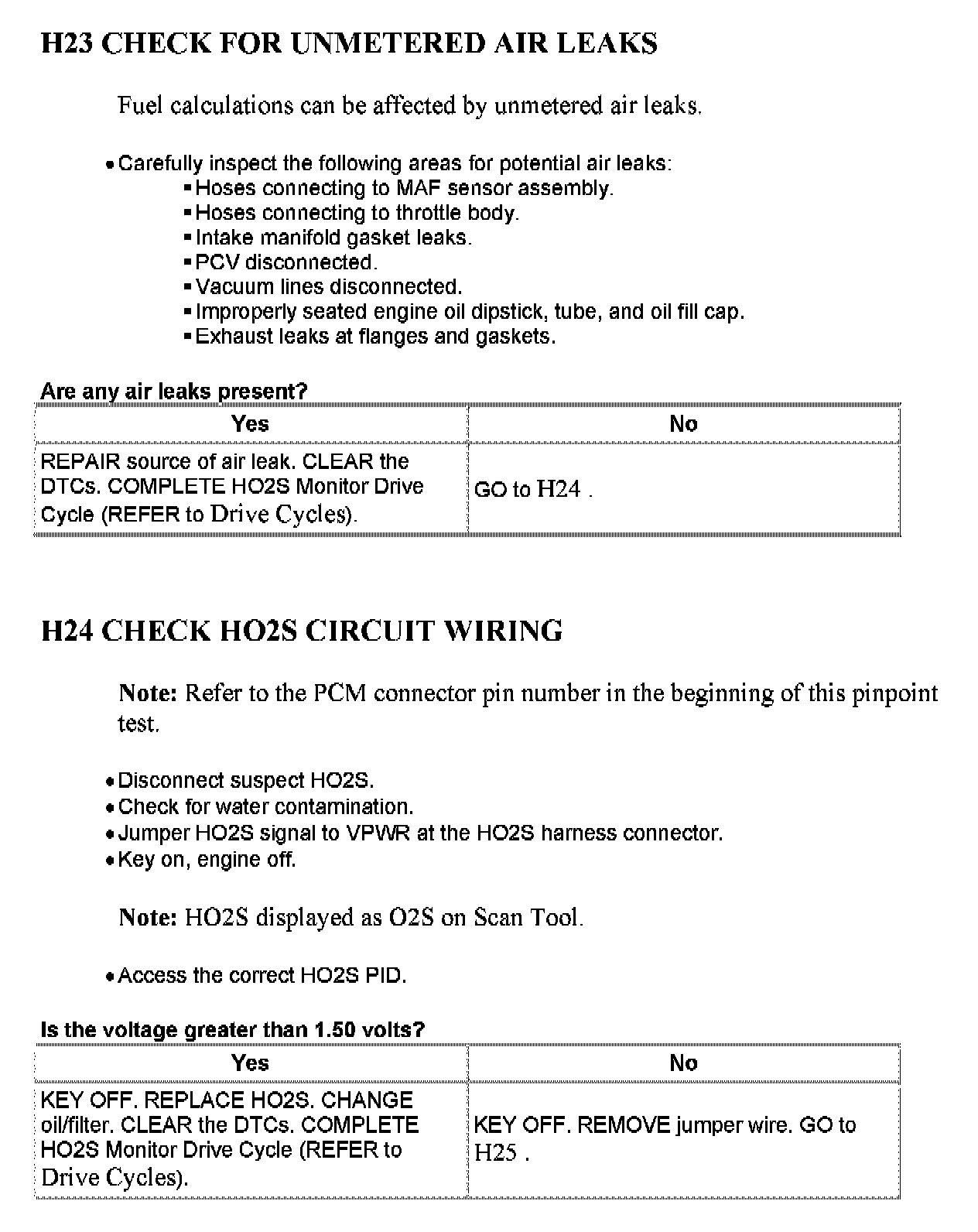

H23 - H24:

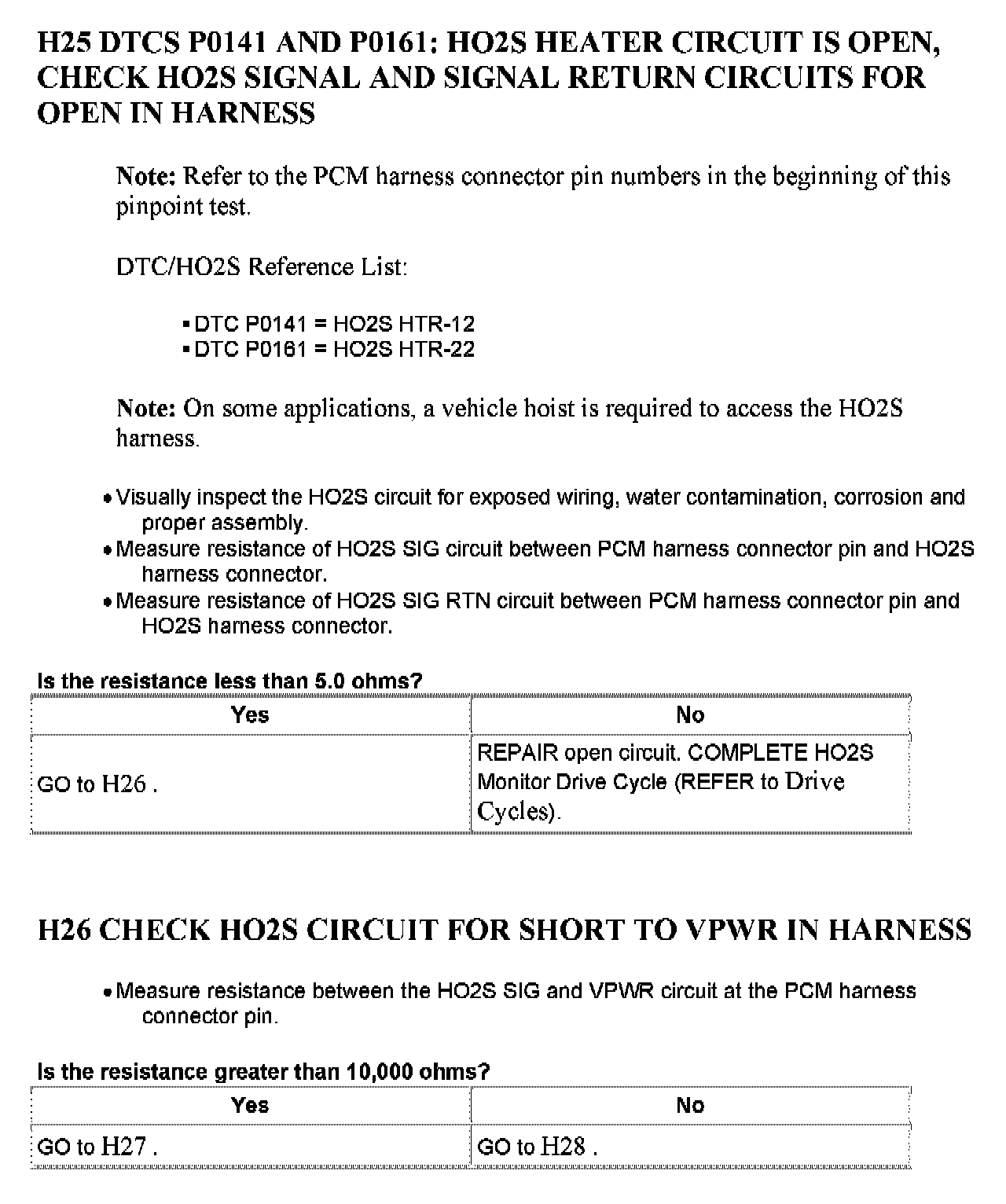

H25 - H26:

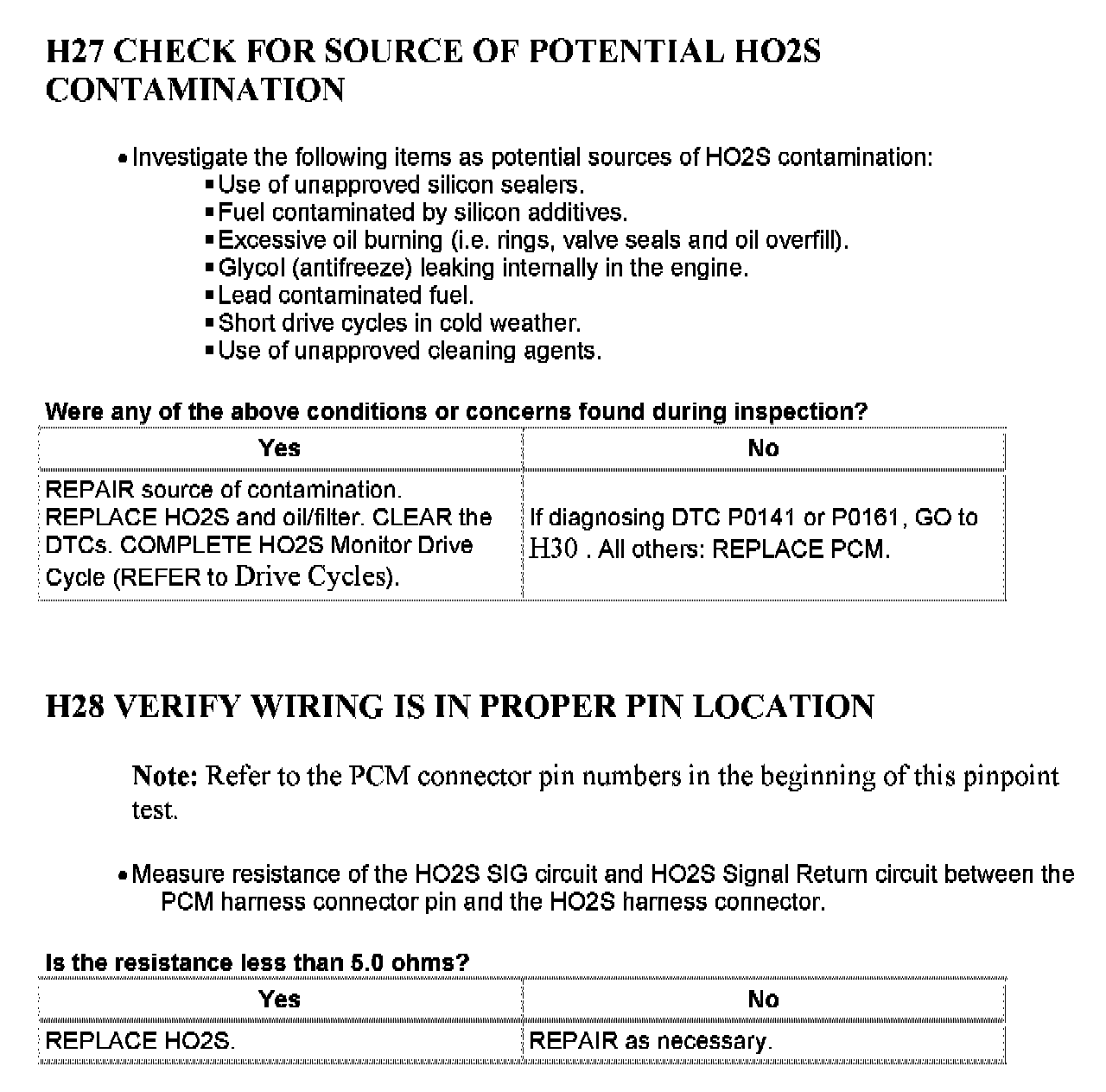

H27 - H28:

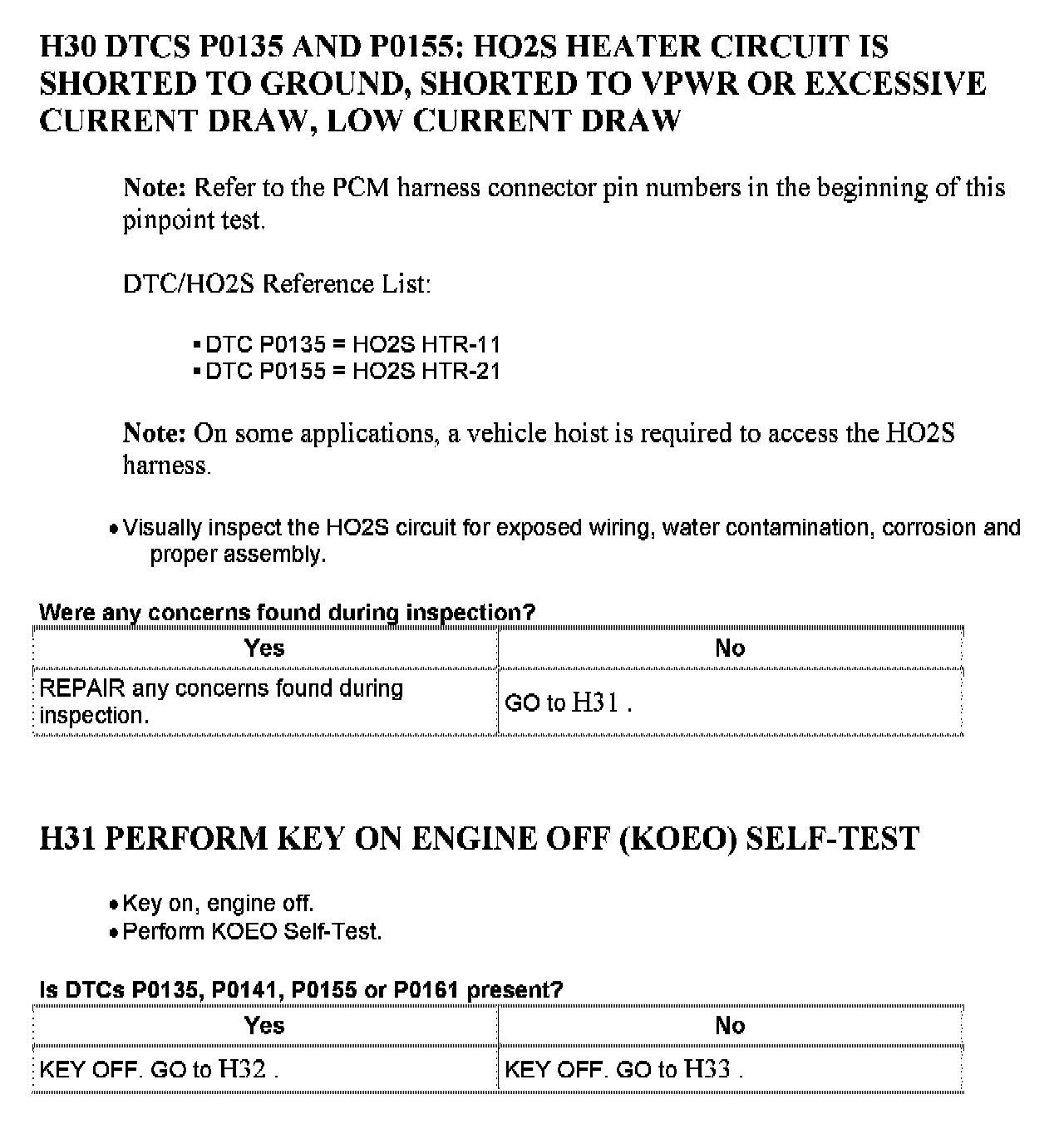

H30 - H31:

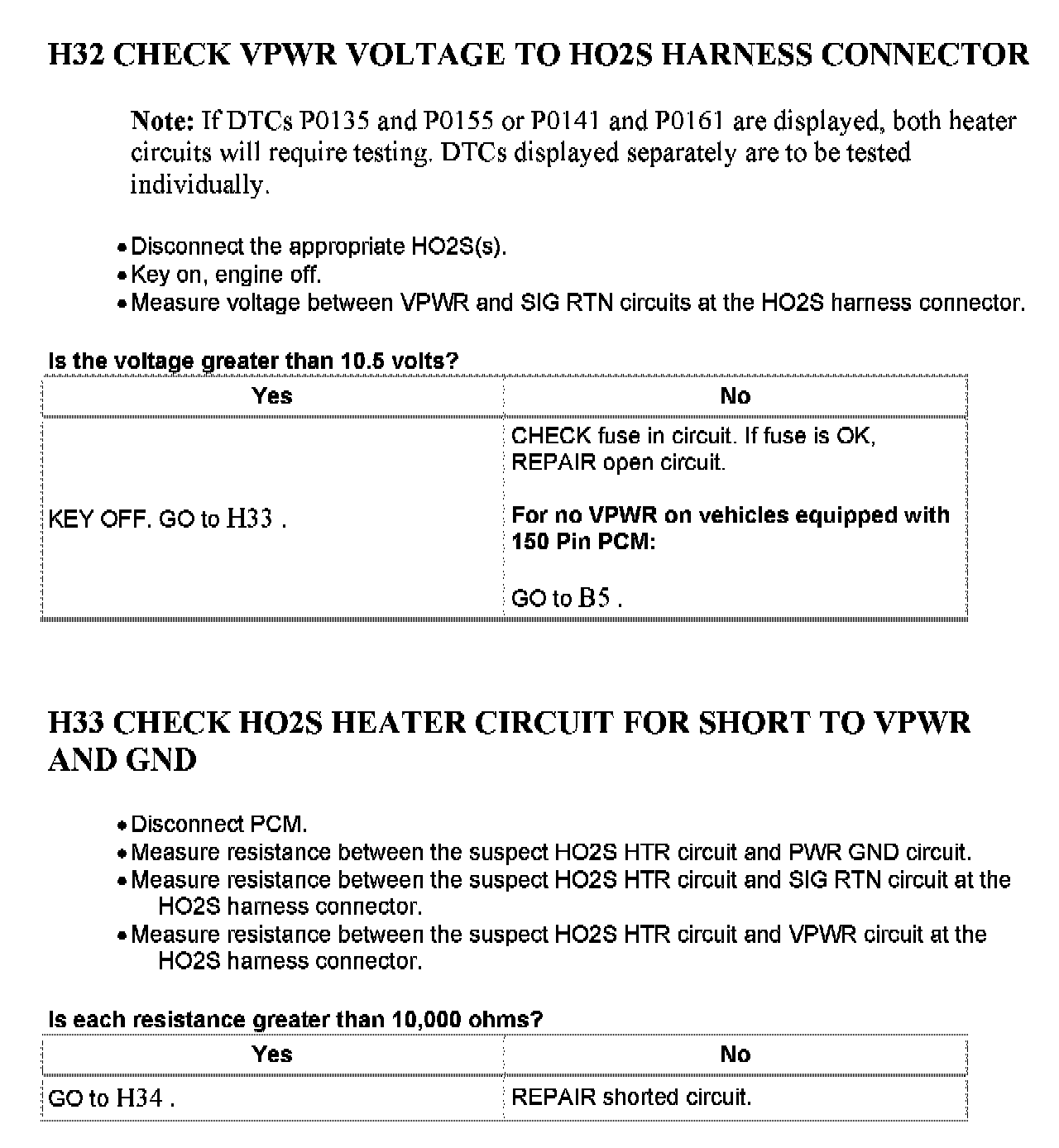

H32 - H33:

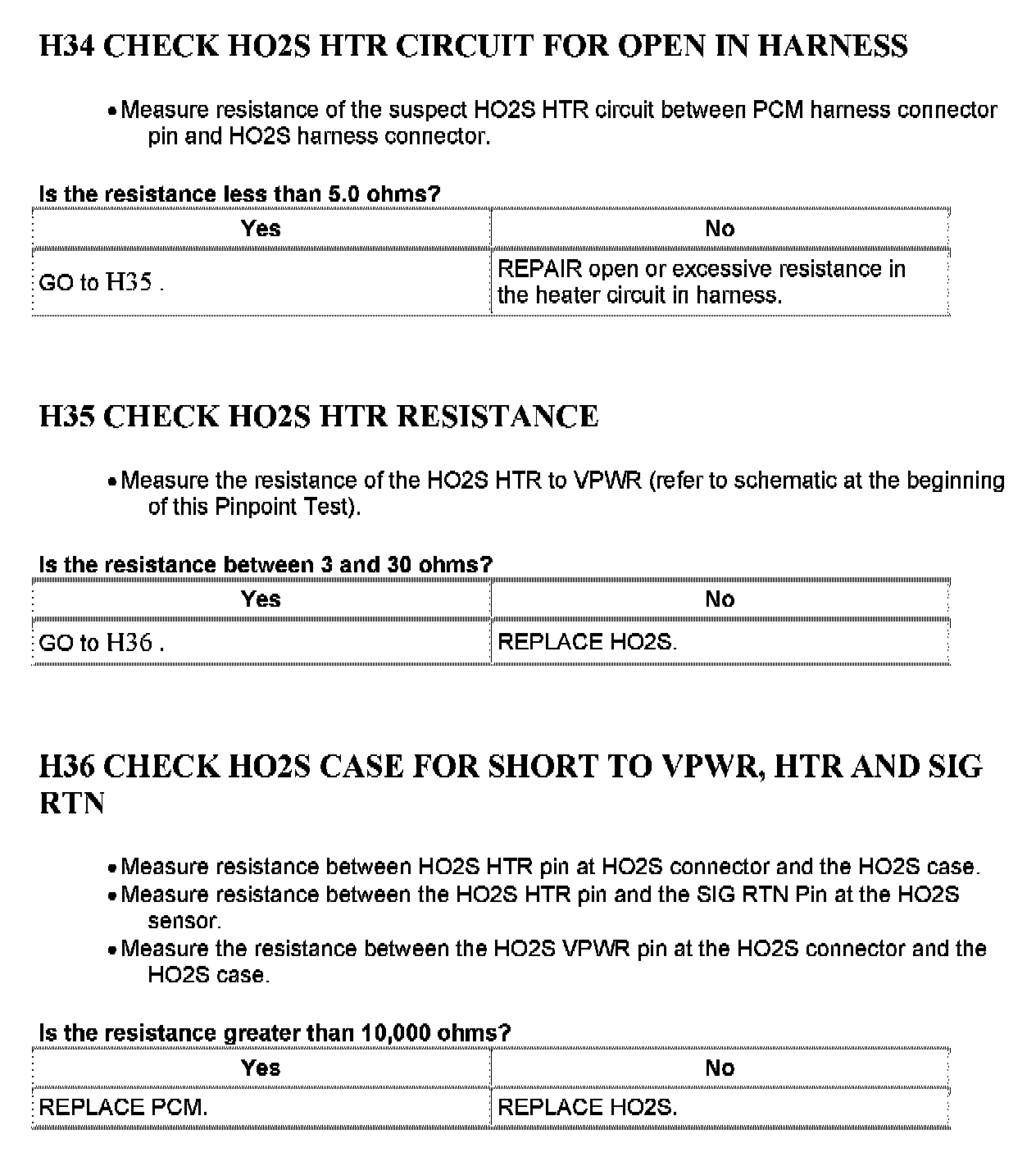

H34 - H36:

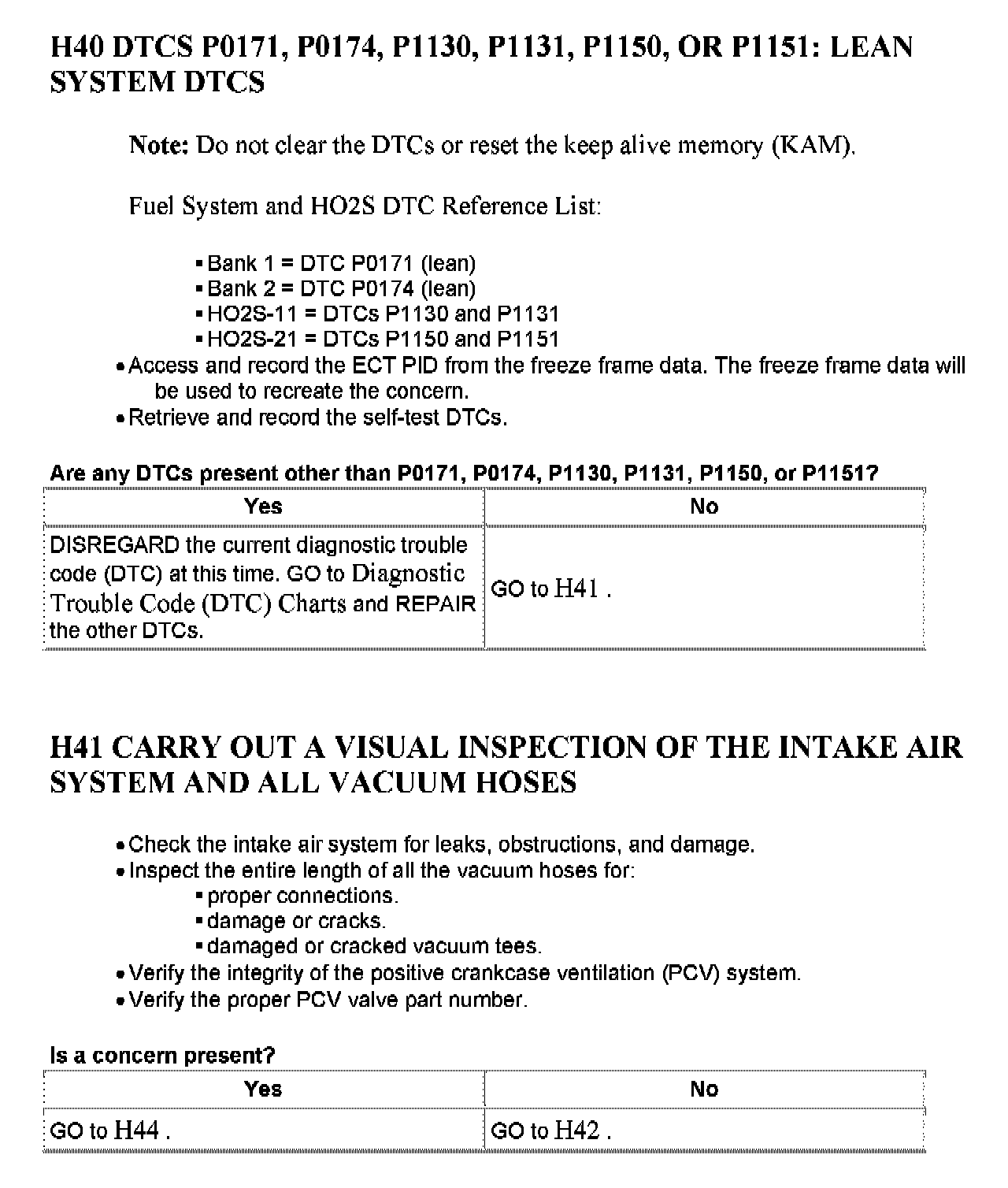

H40 - H41:

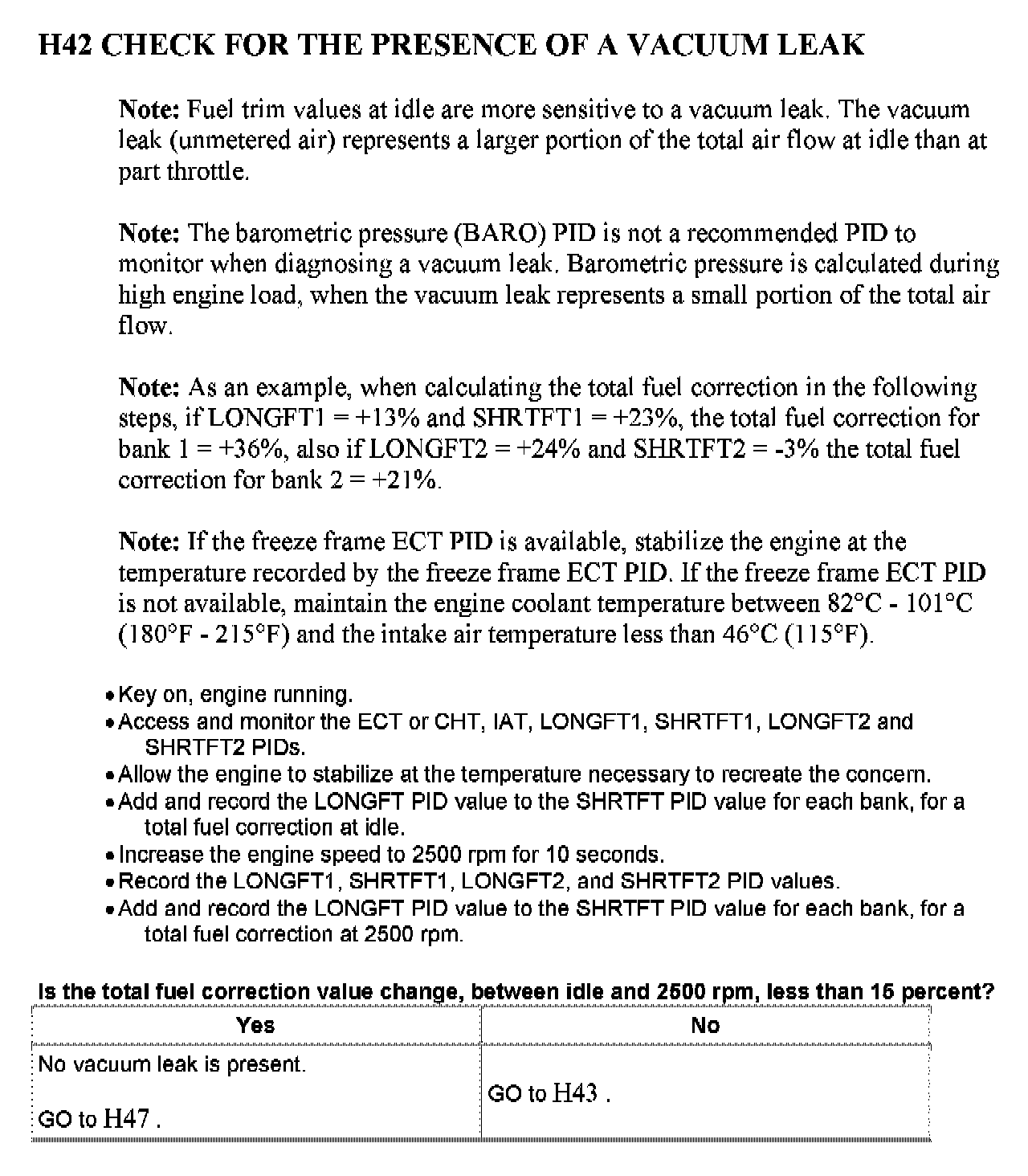

H42:

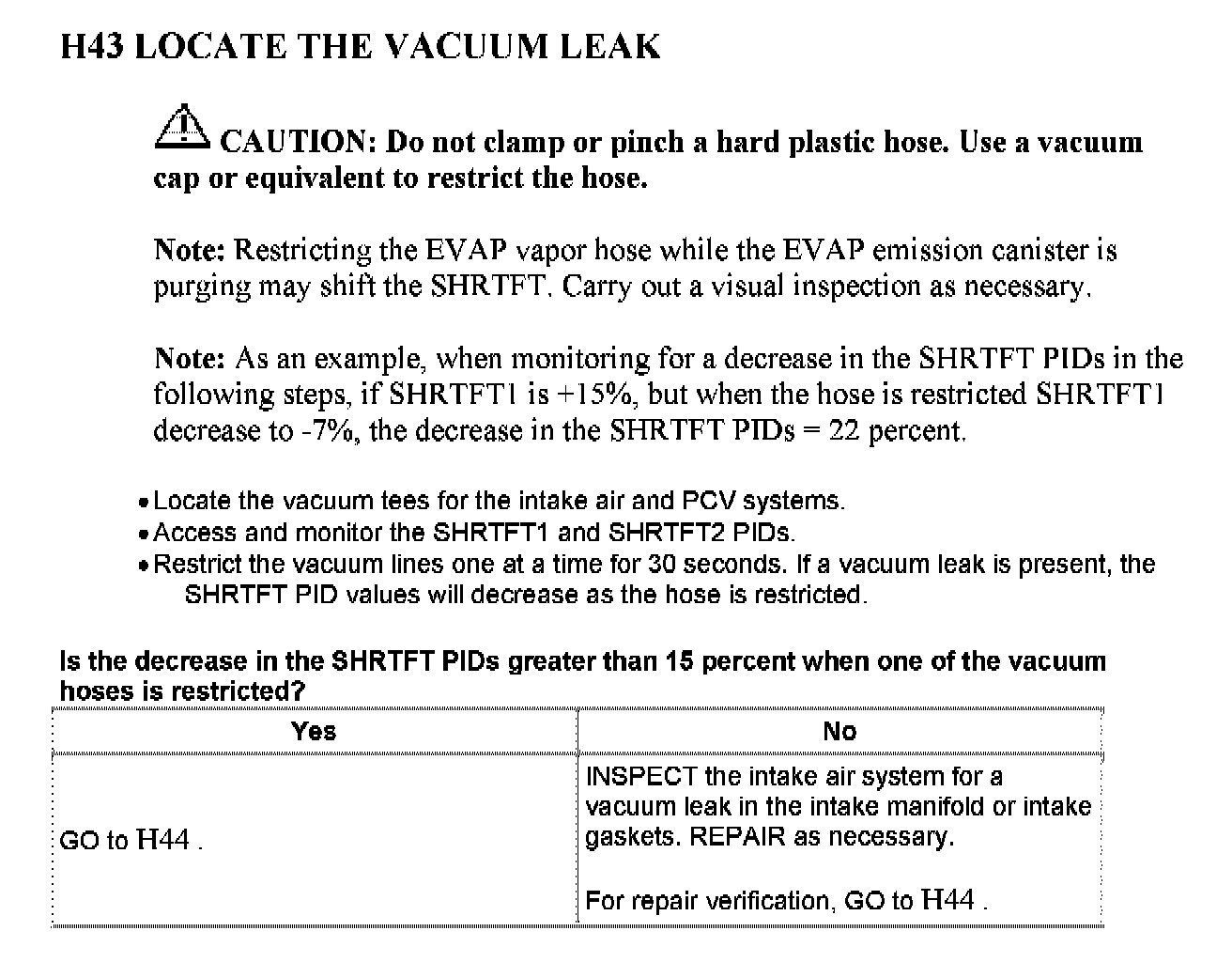

H43:

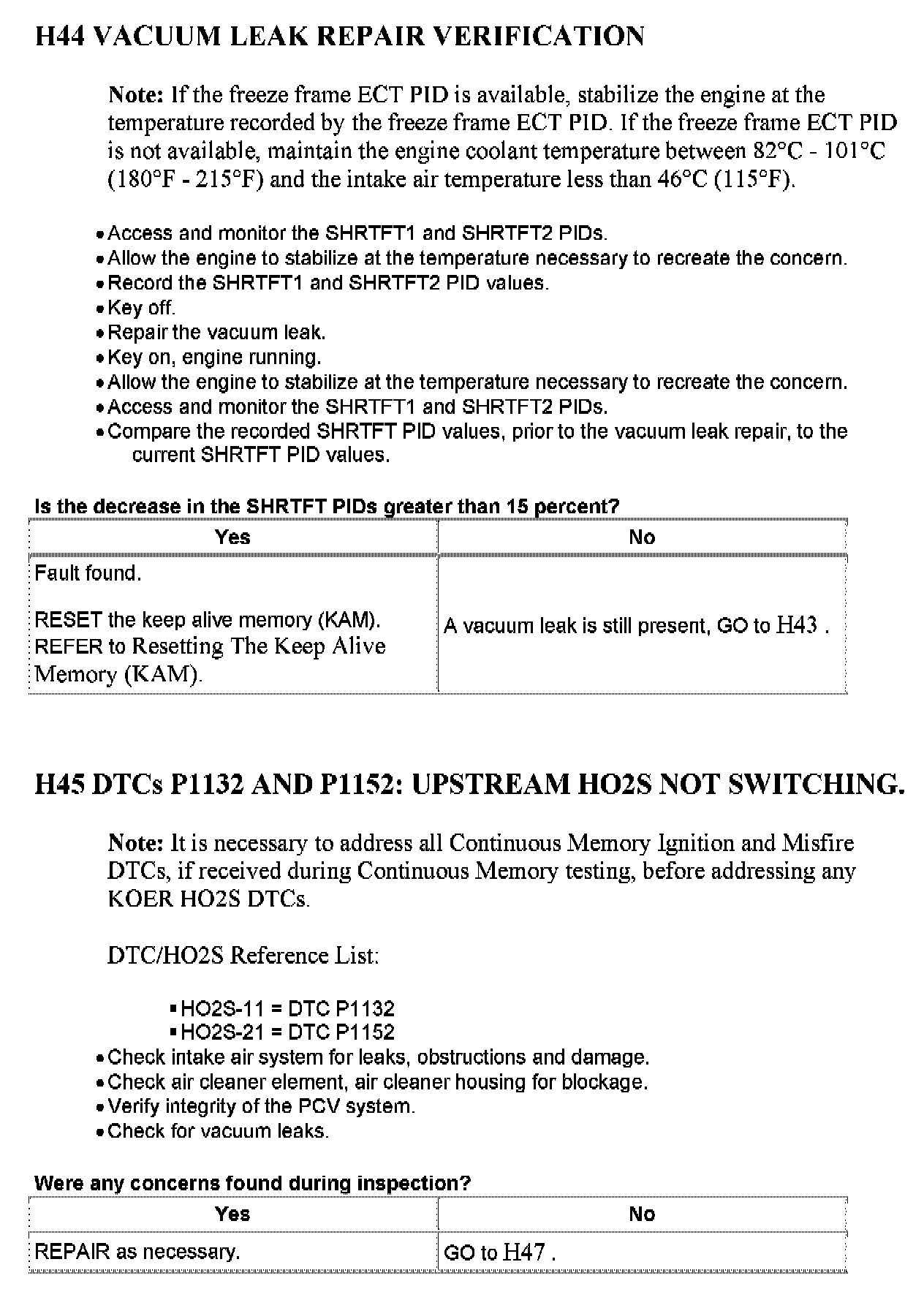

H44 - H45:

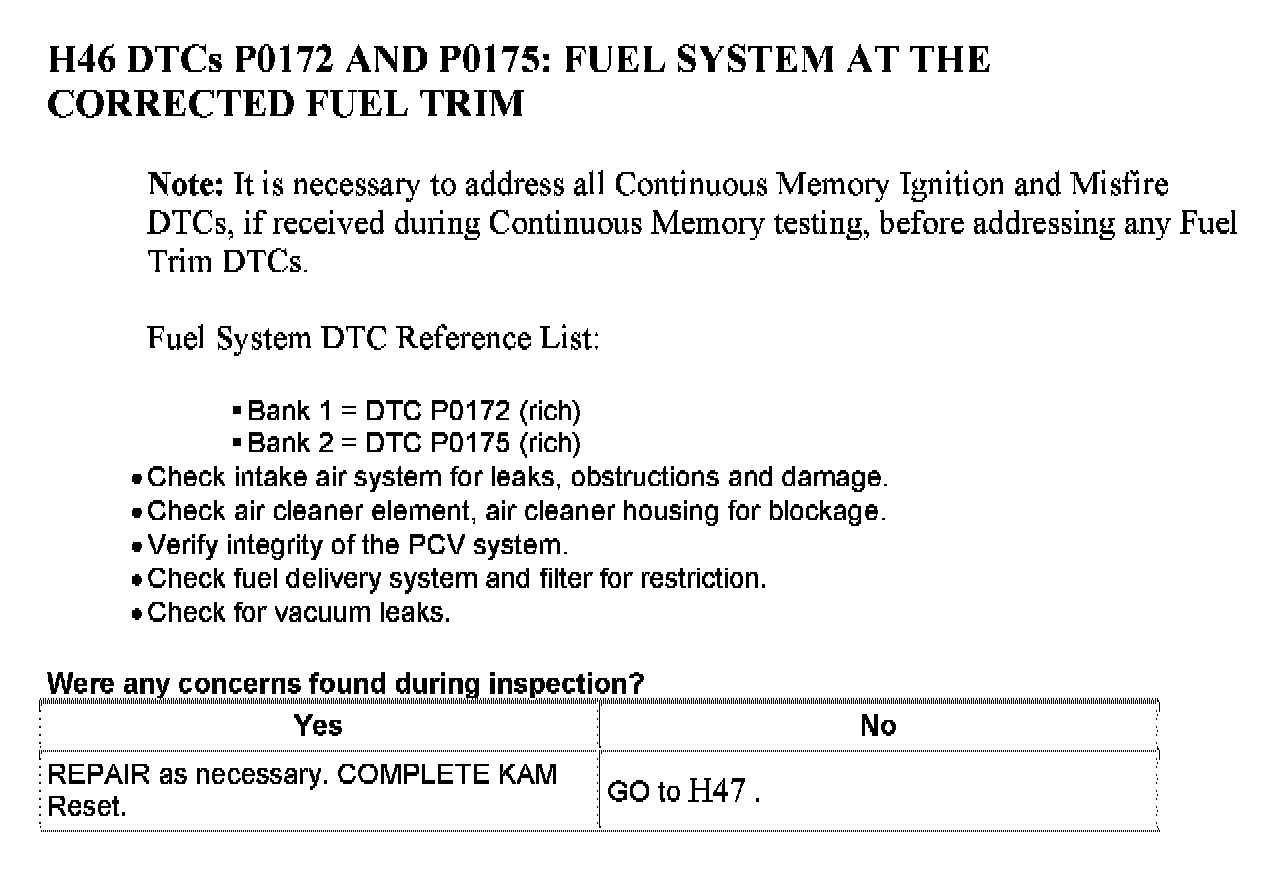

H46:

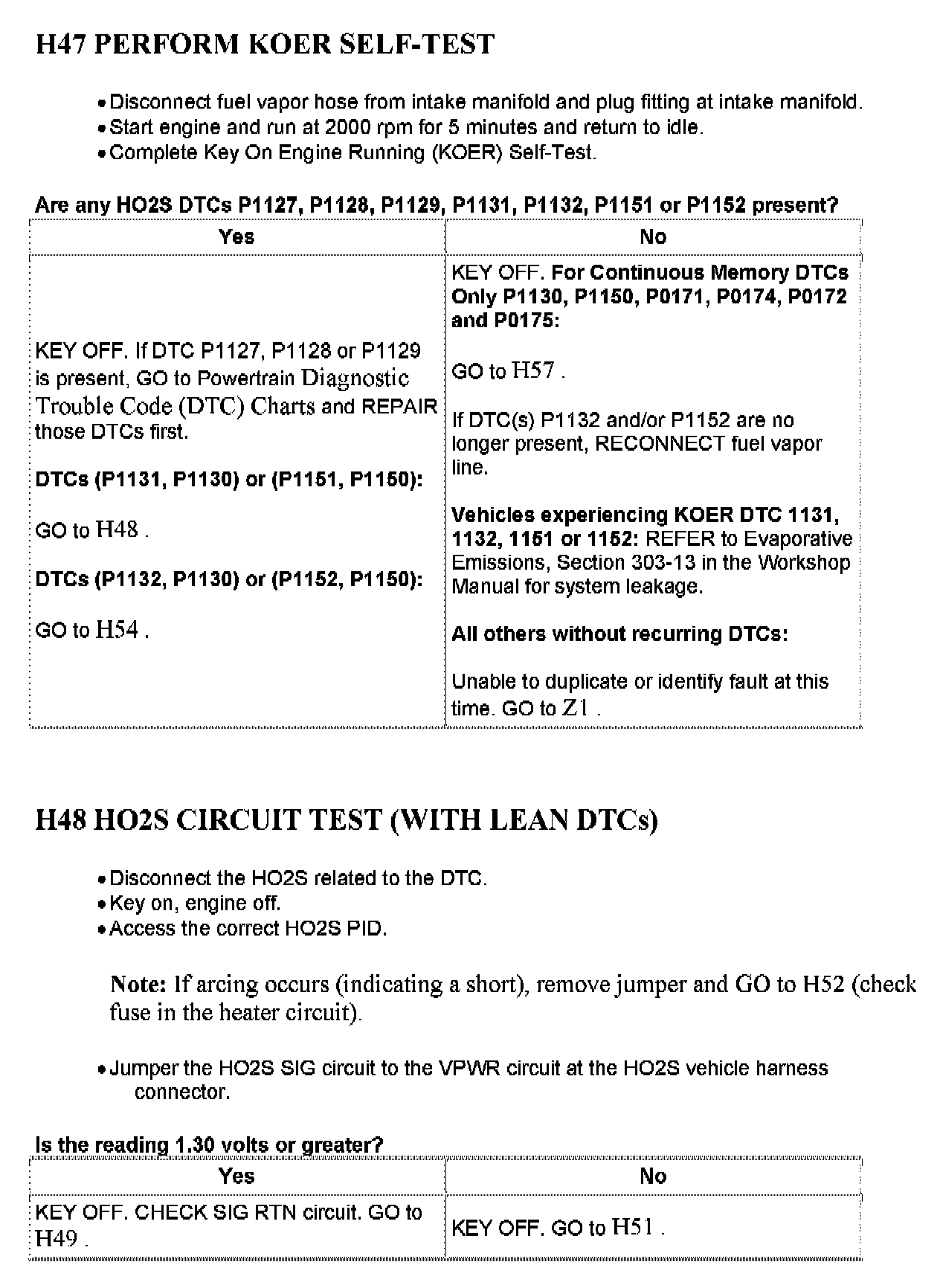

H47 - H48:

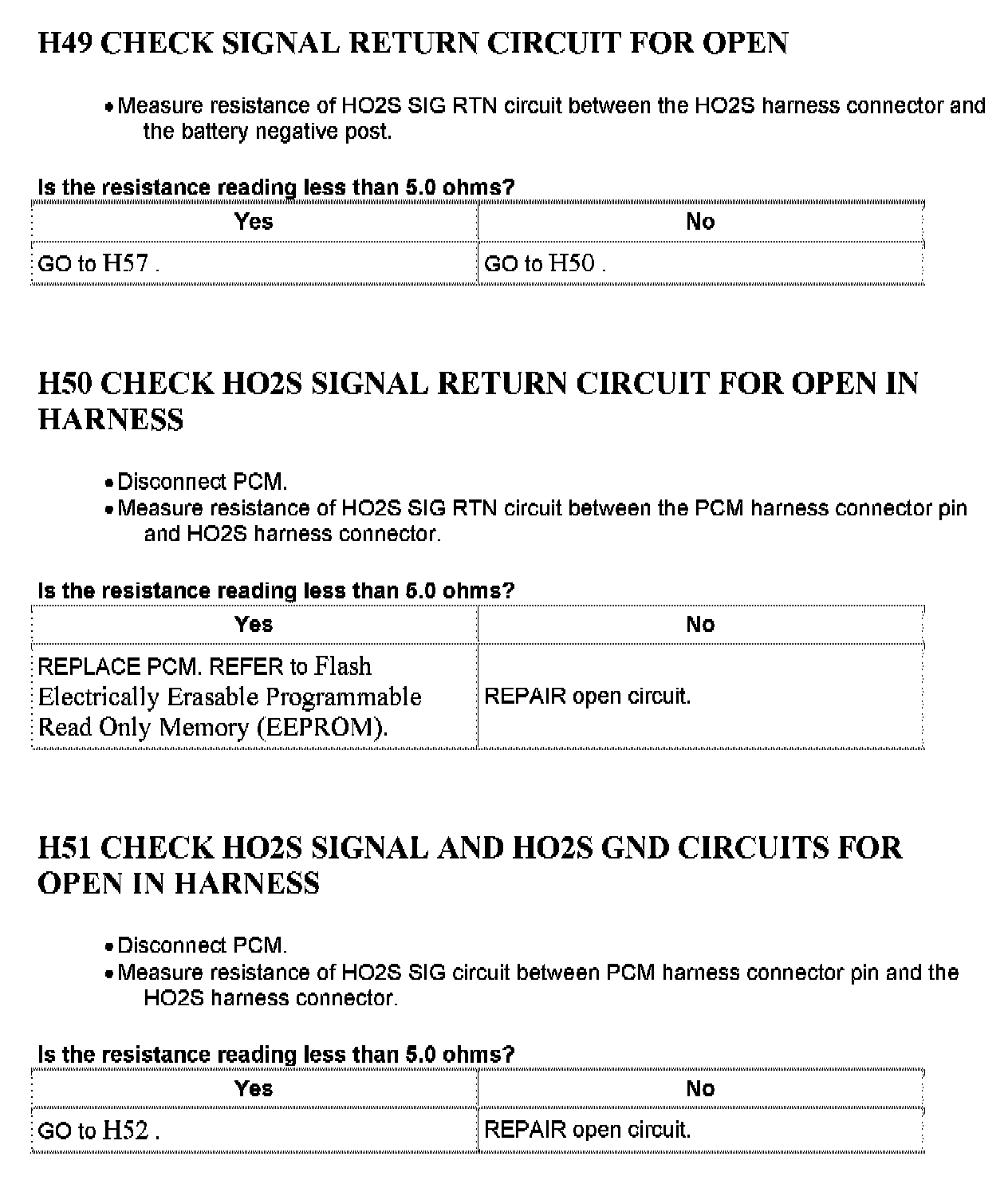

H49 - H51:

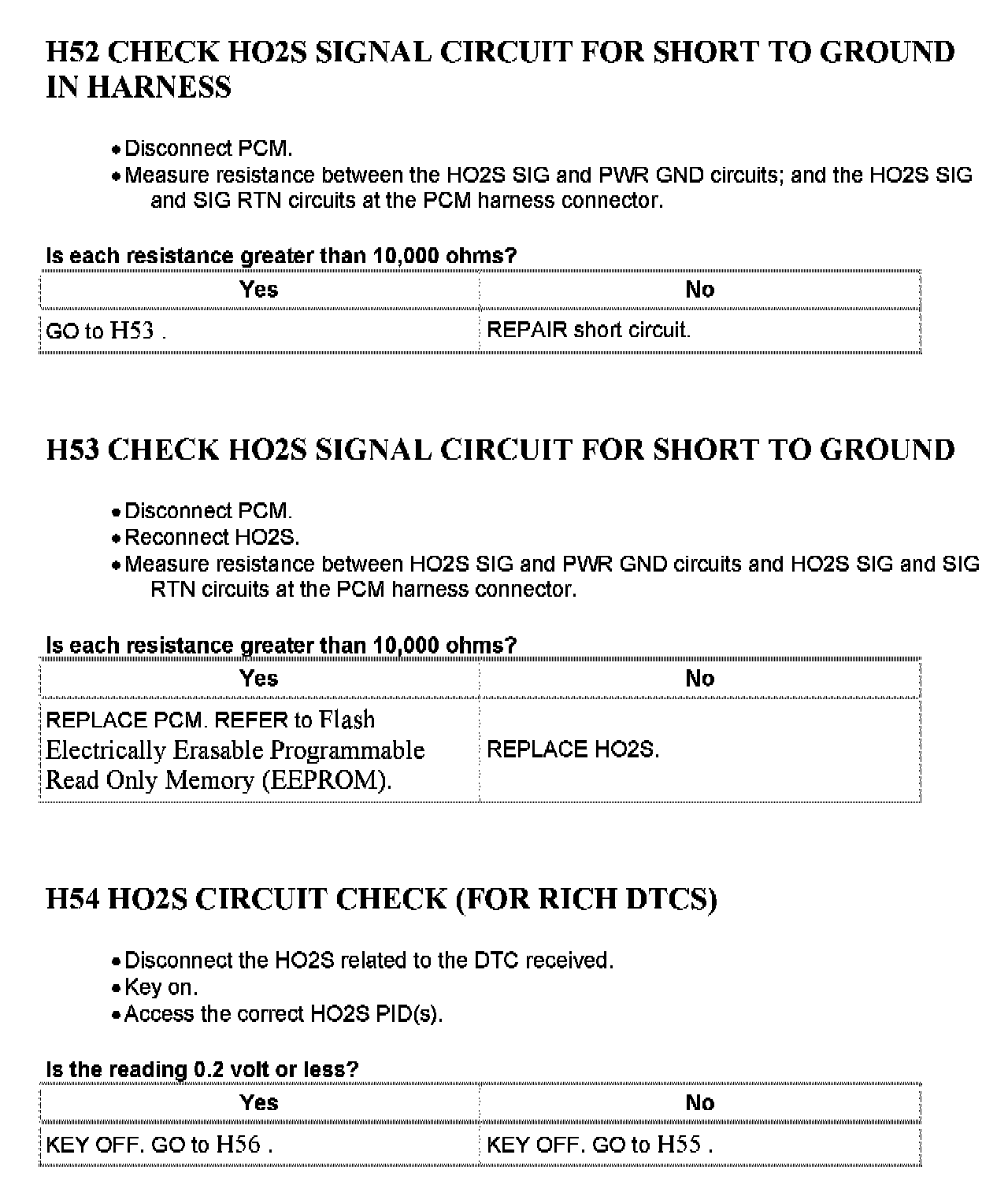

H52 - H54:

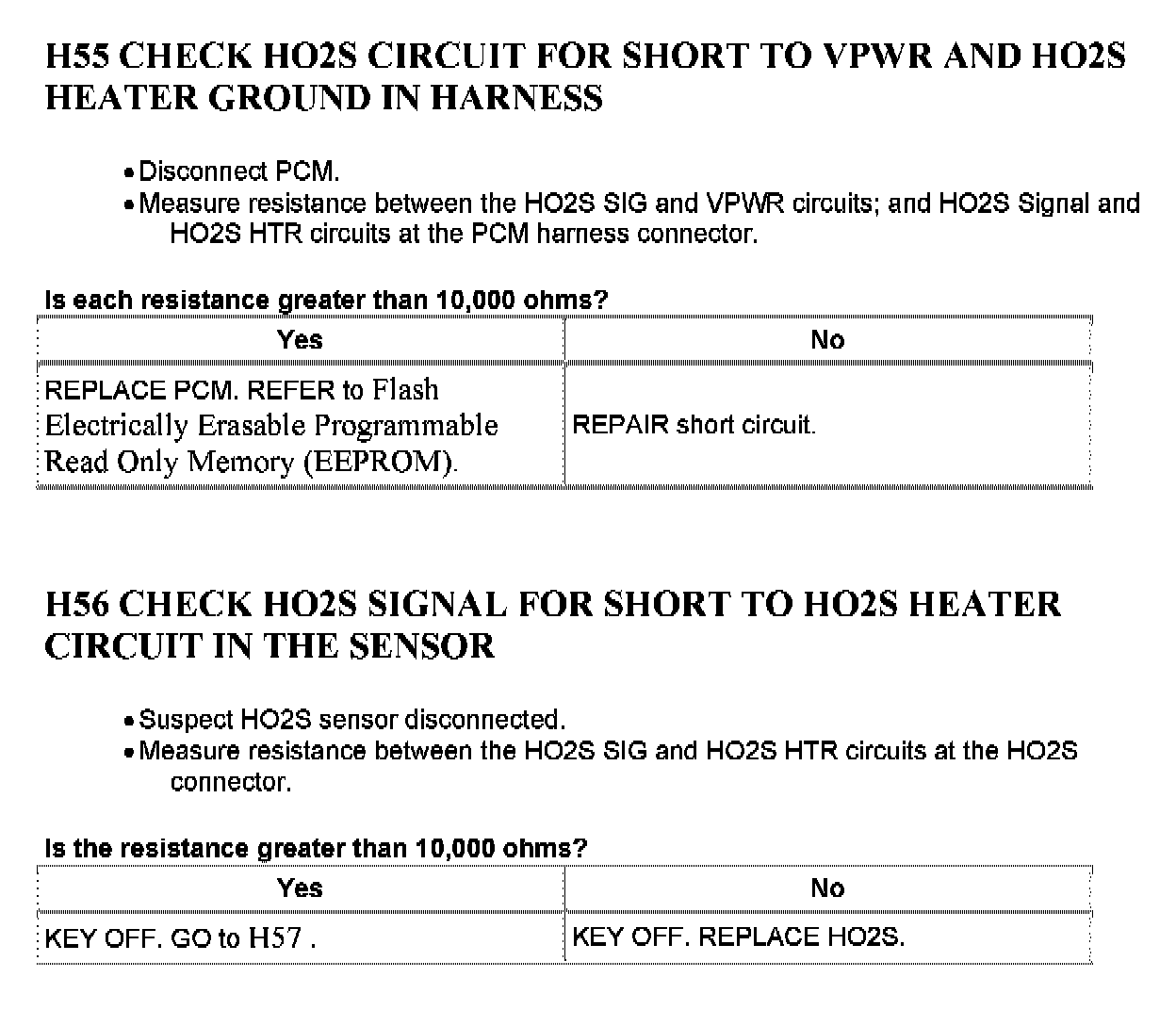

H55 - H56:

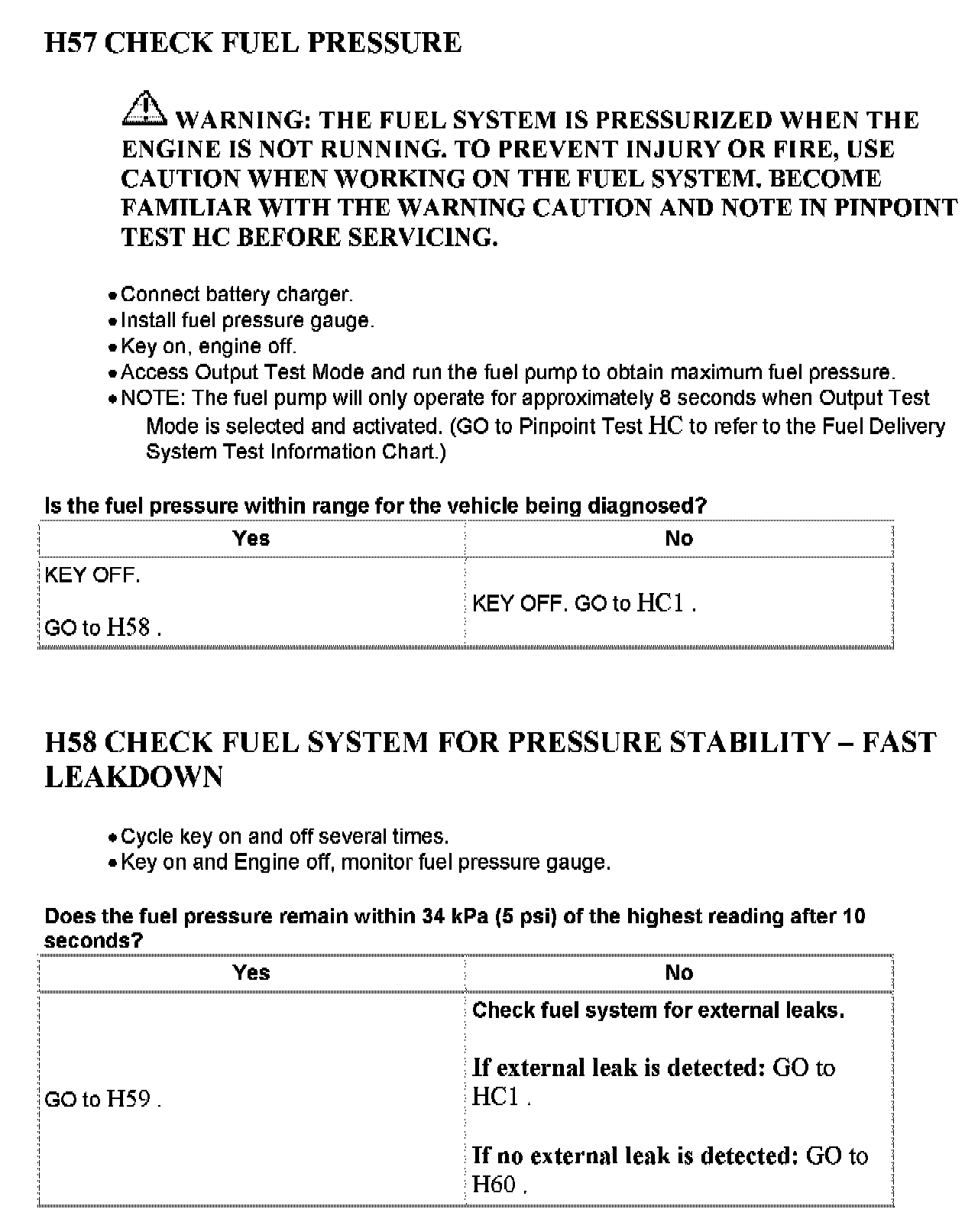

H57 - H58:

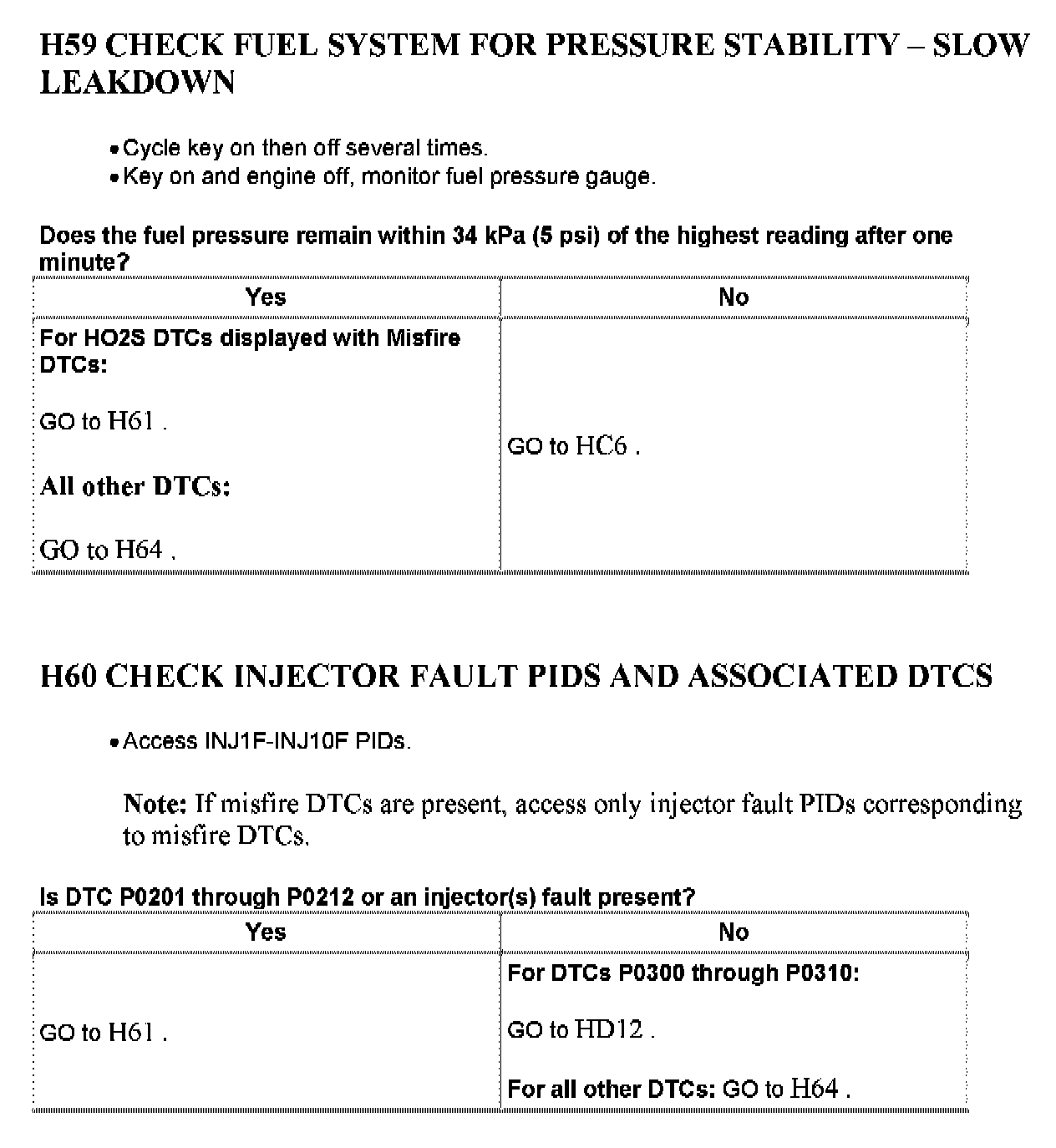

H59 - H60:

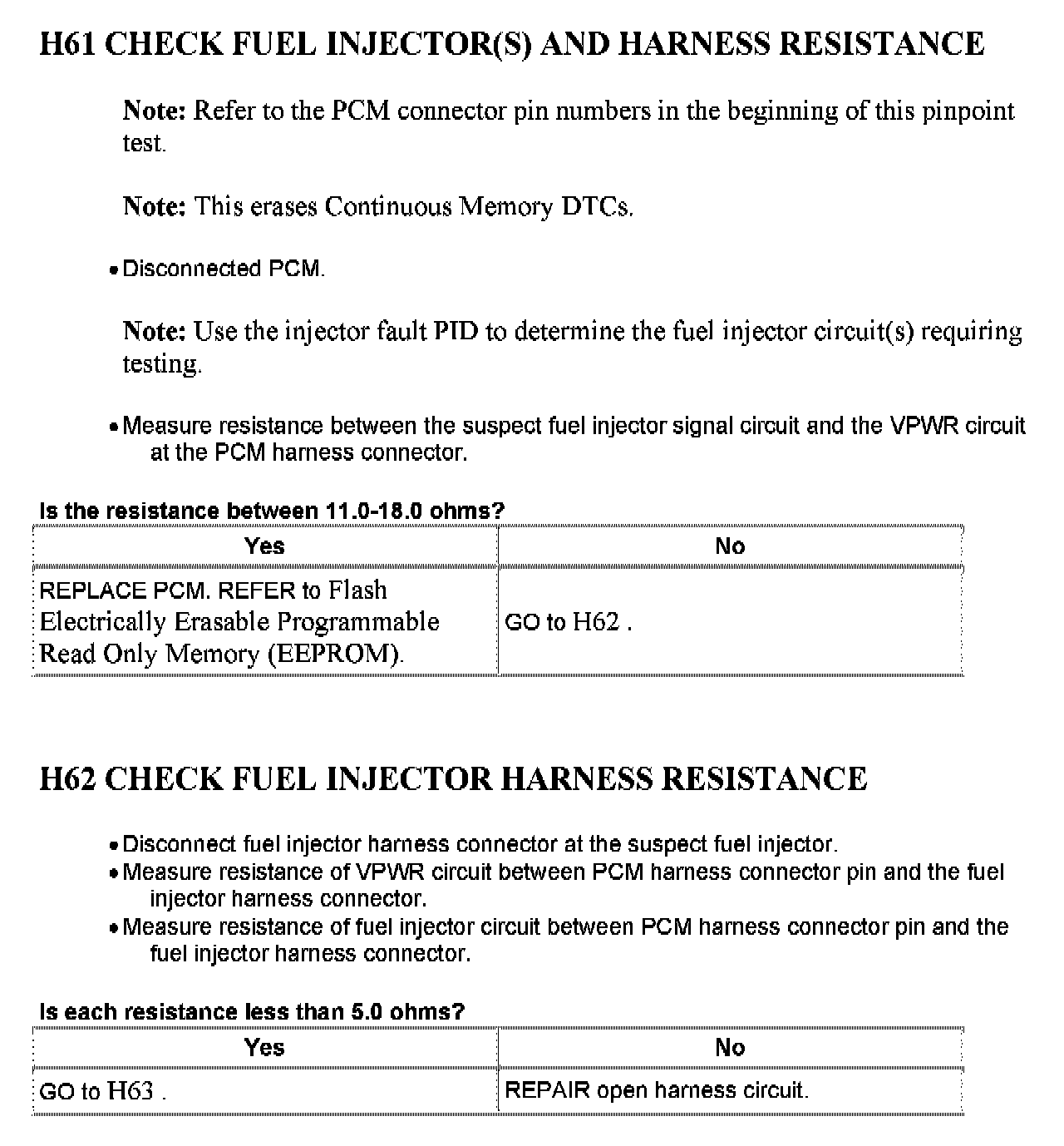

H61 - H62:

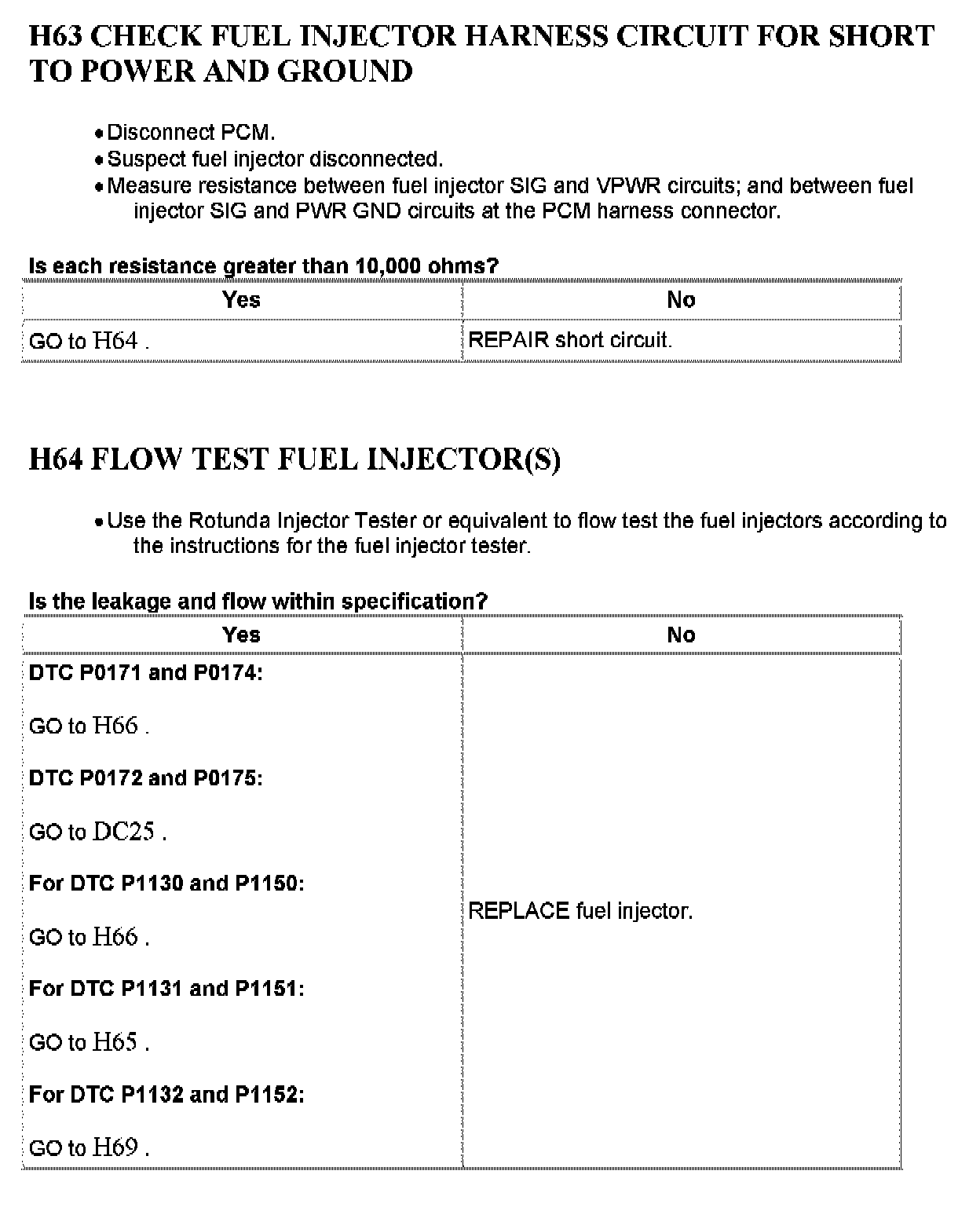

H63 - H64:

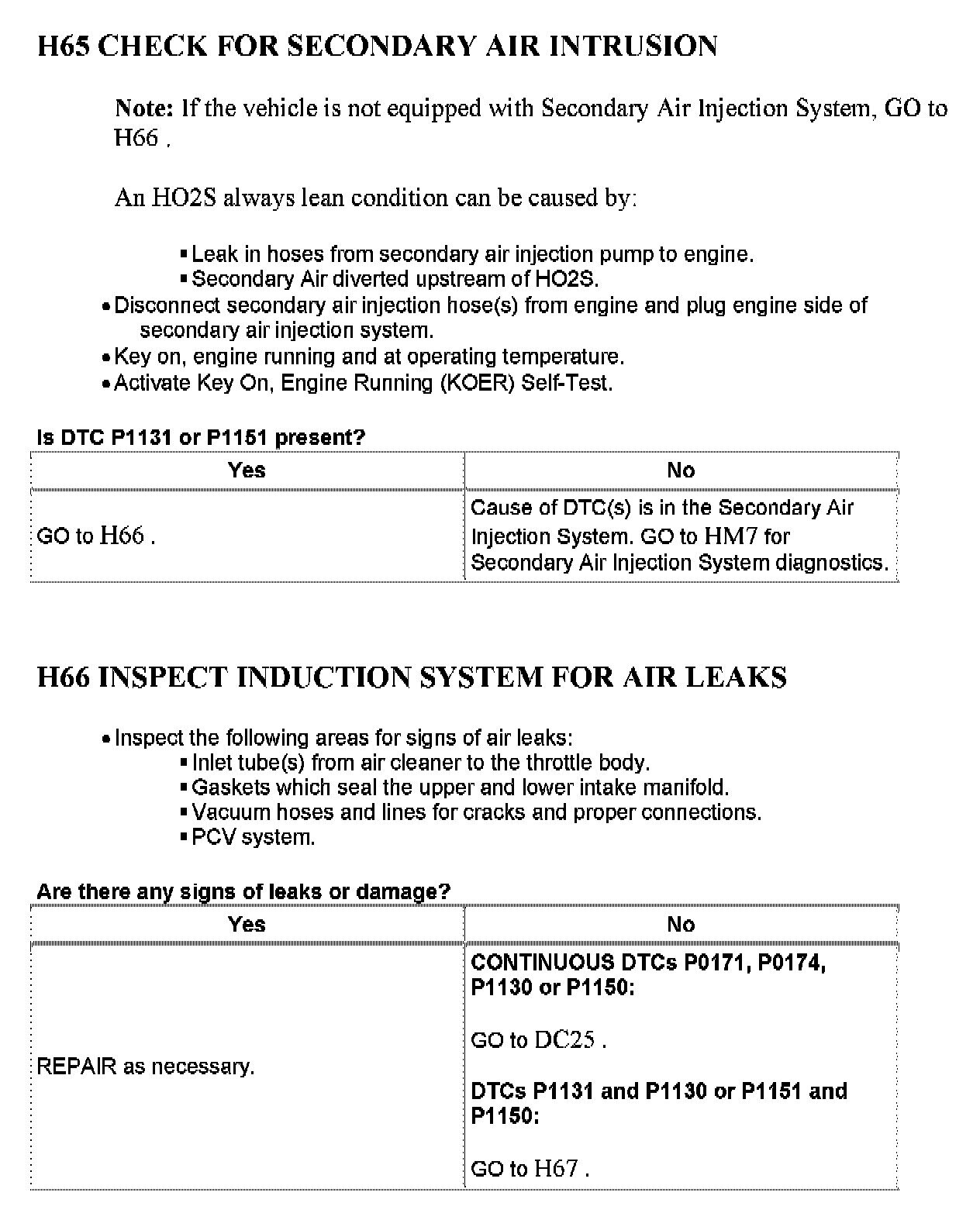

H65 - H66:

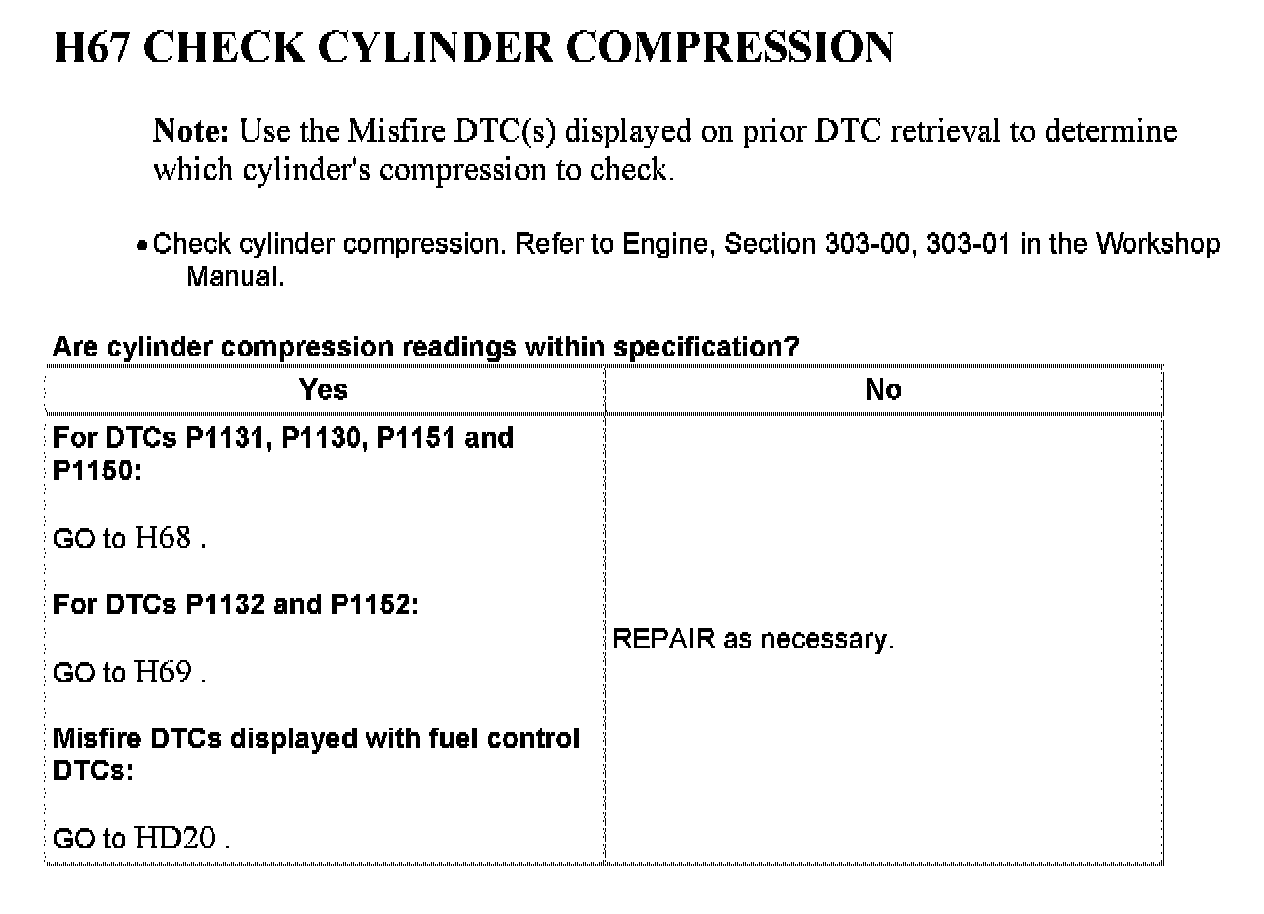

H67:

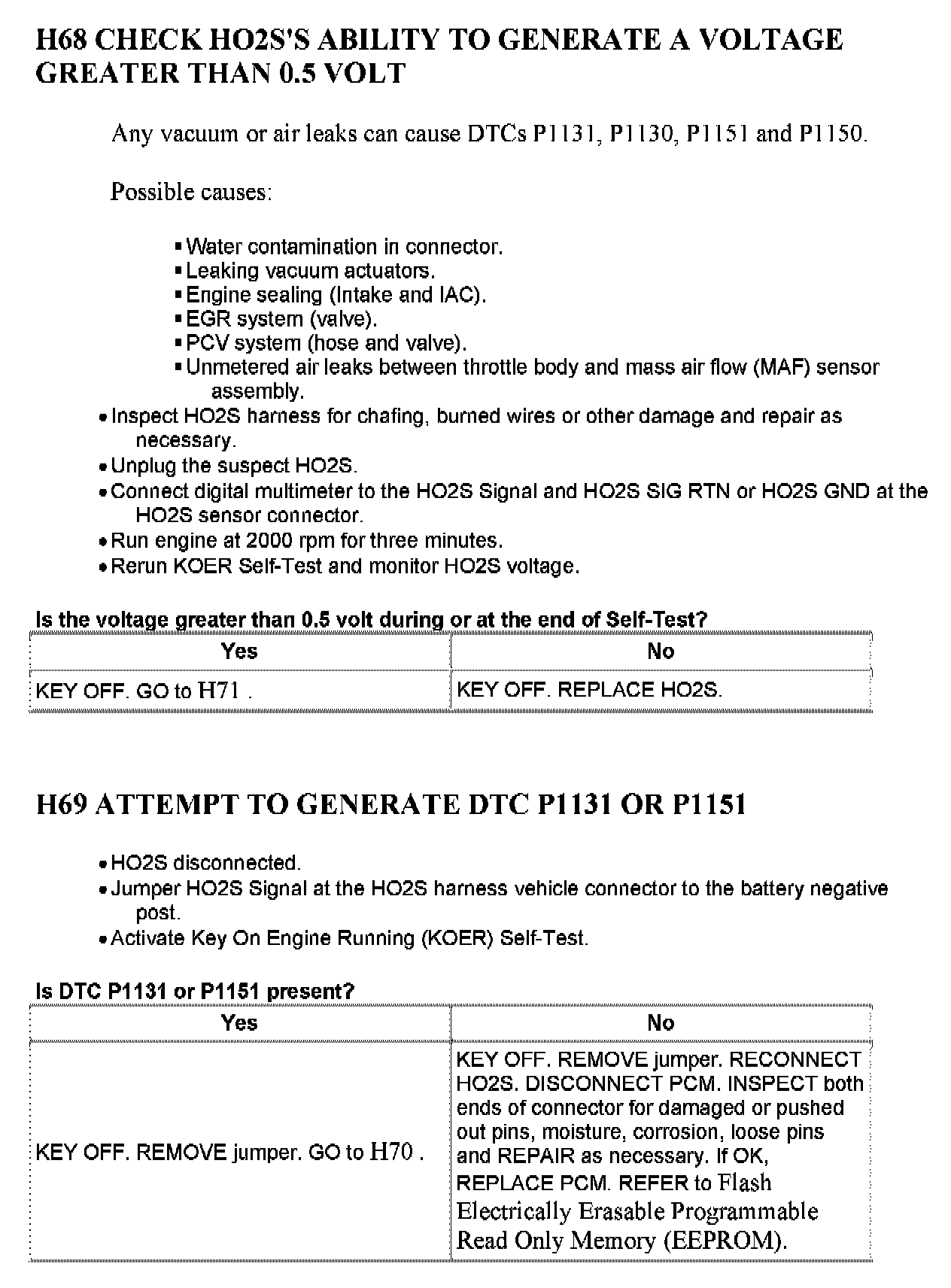

H68 - H69:

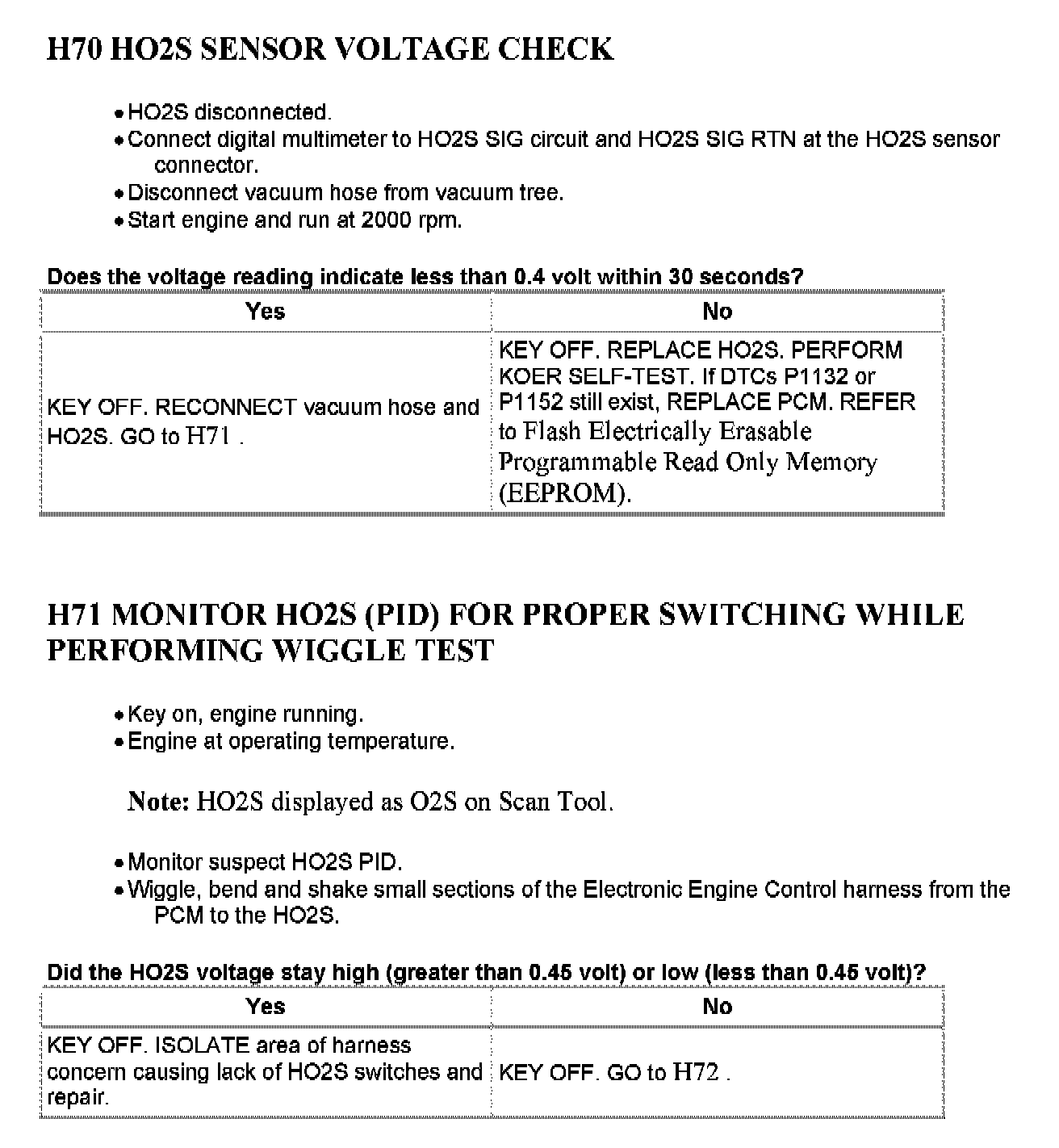

H70 - H71:

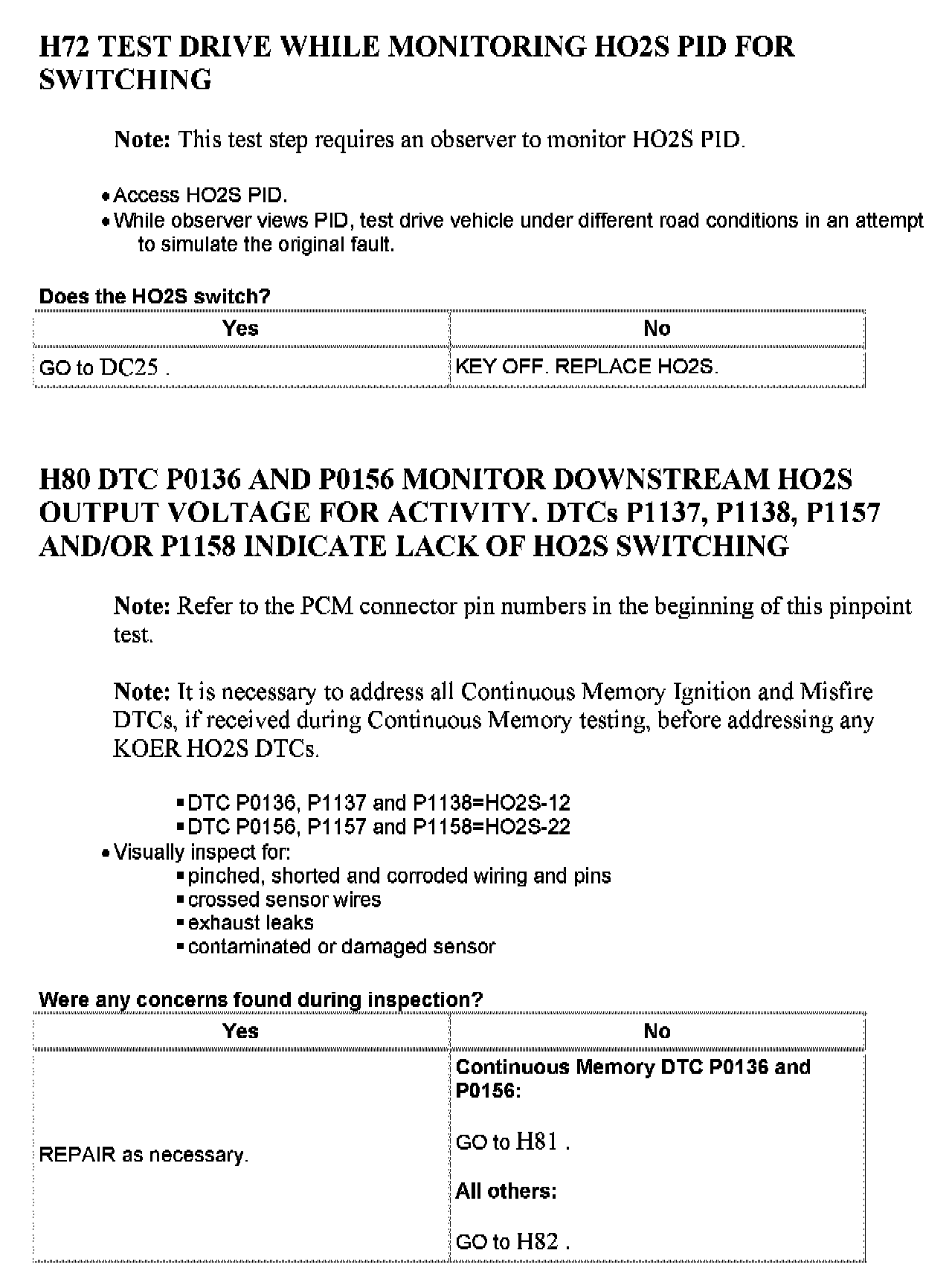

H72 - H80:

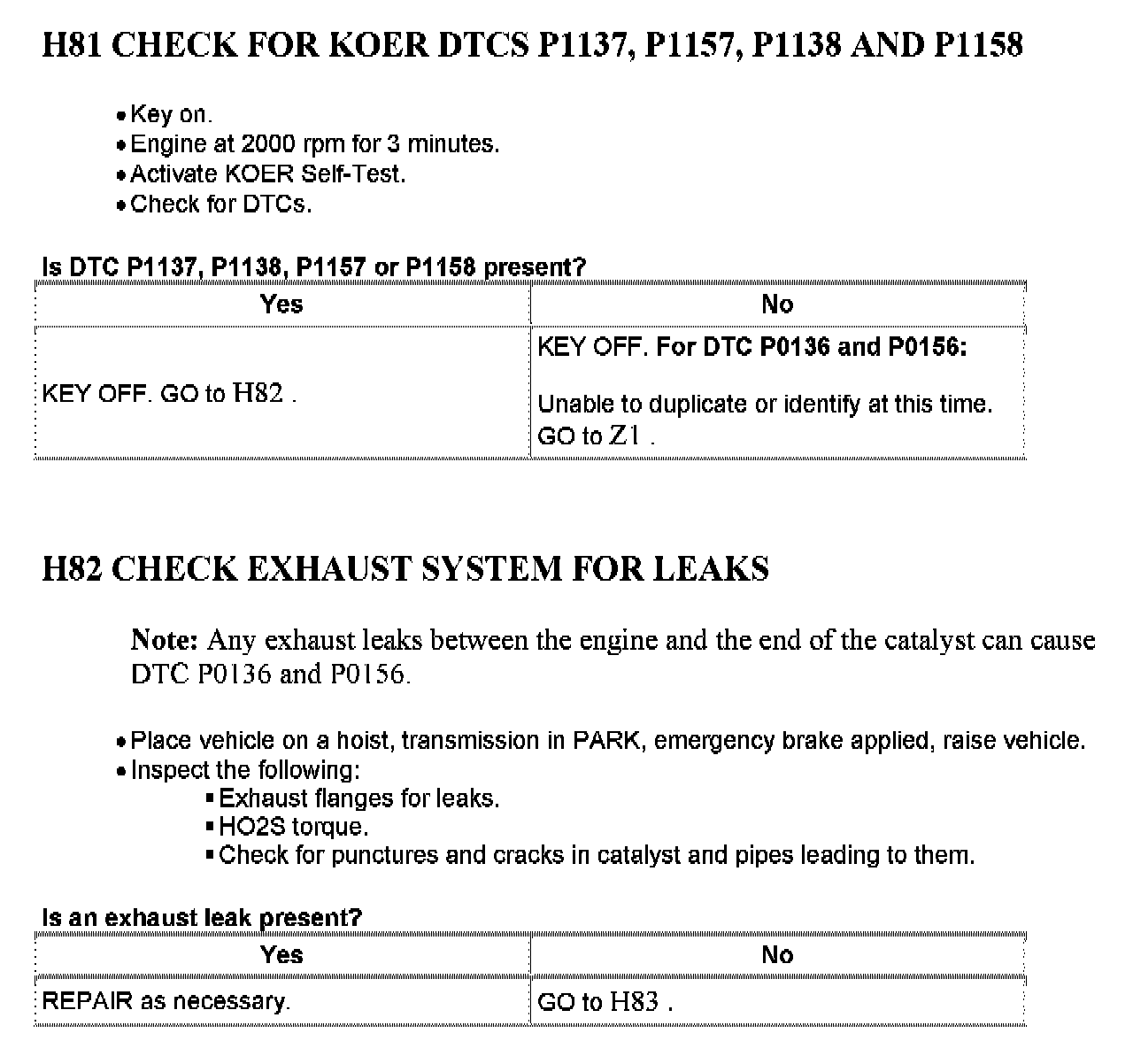

H81 - H82:

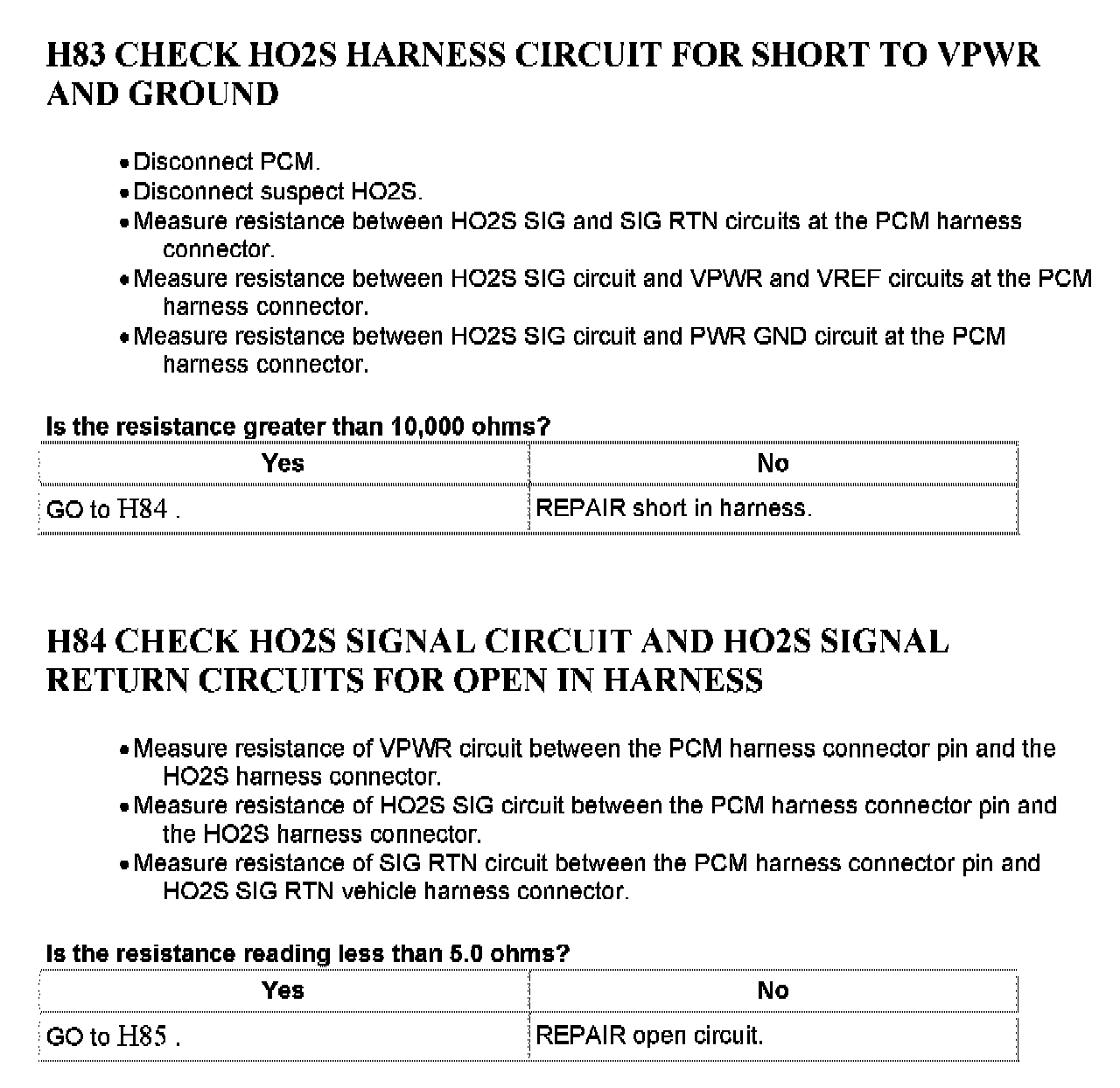

H83 - H84:

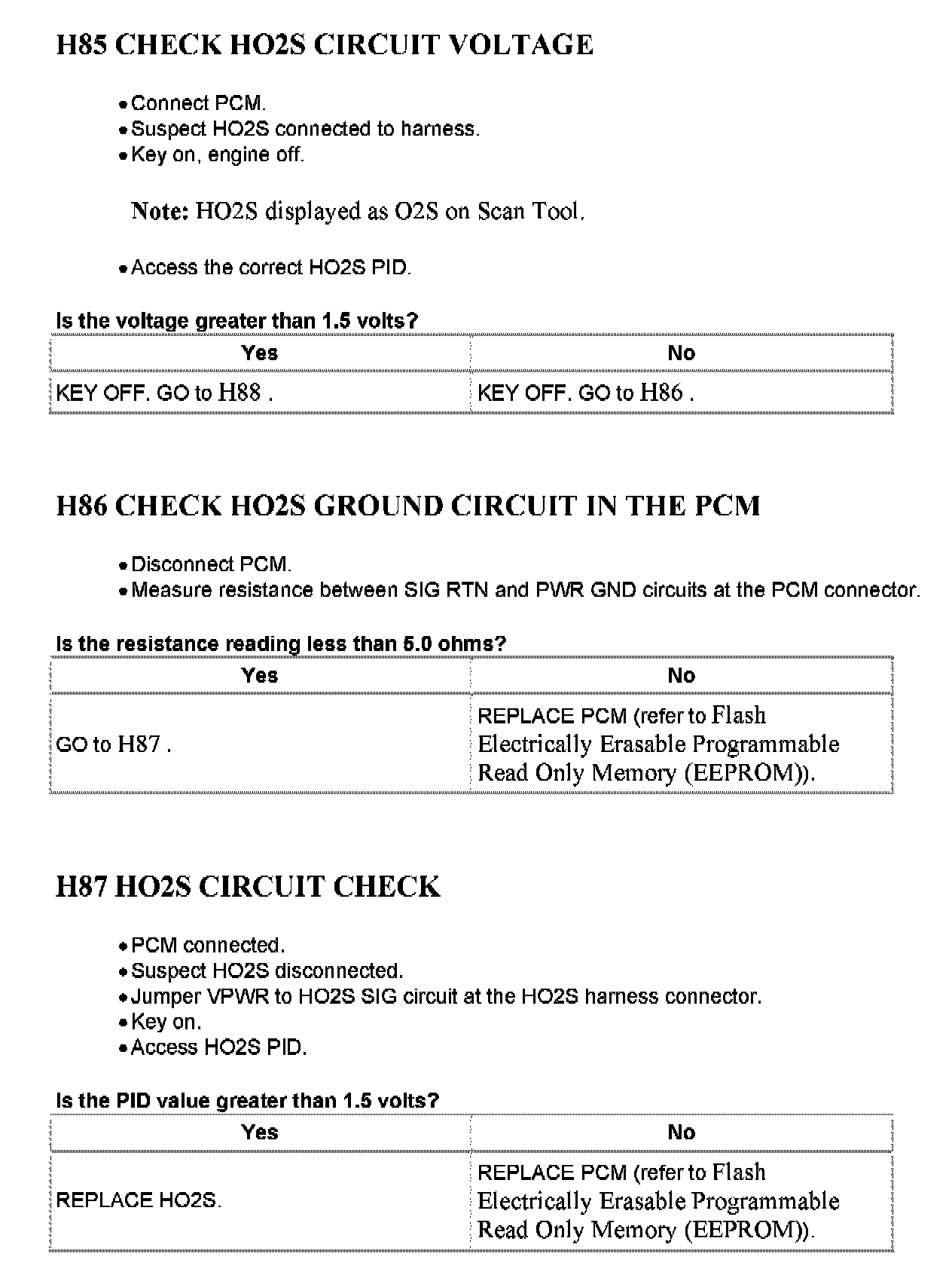

H85 - H87:

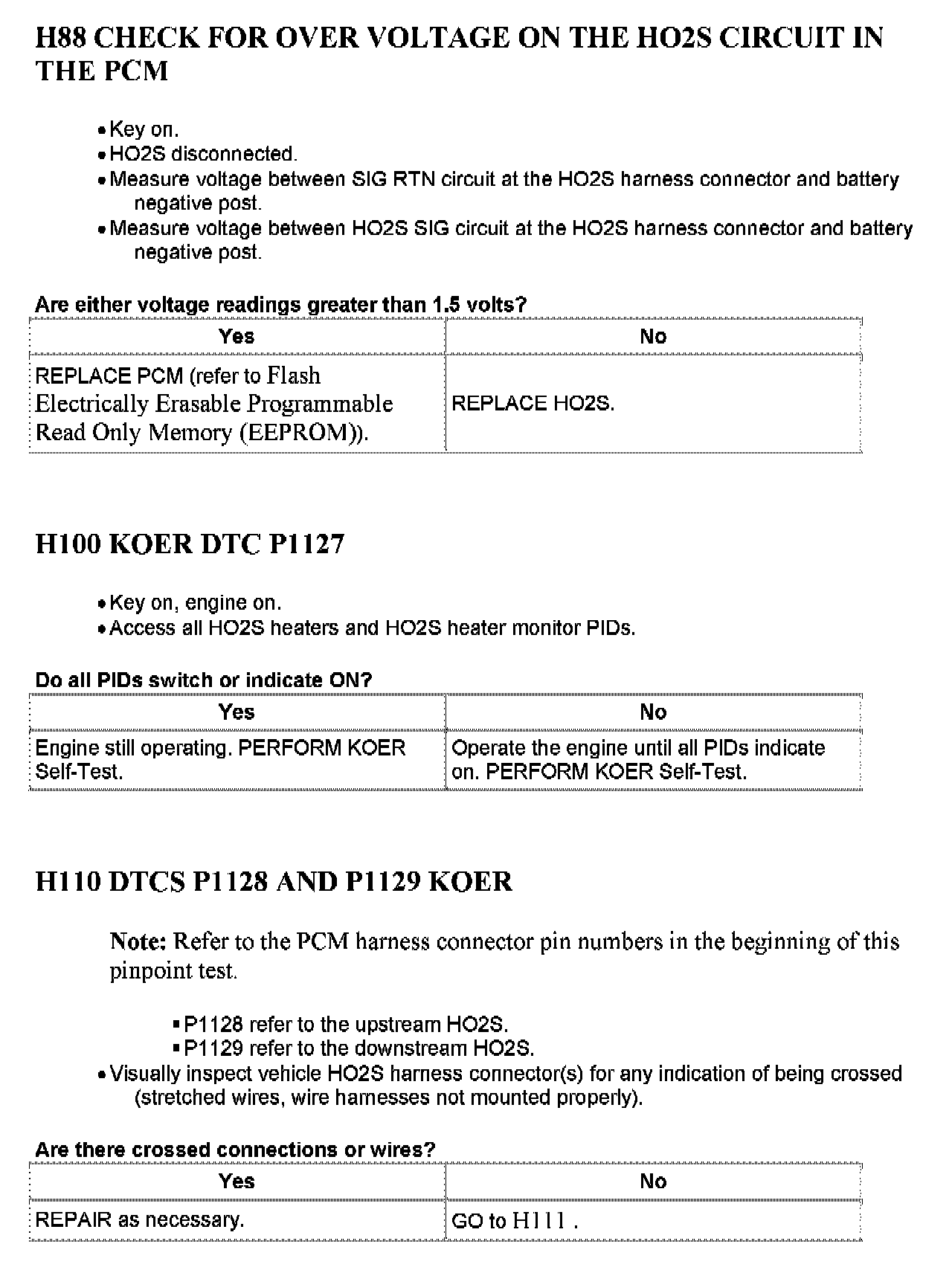

H88 - H110:

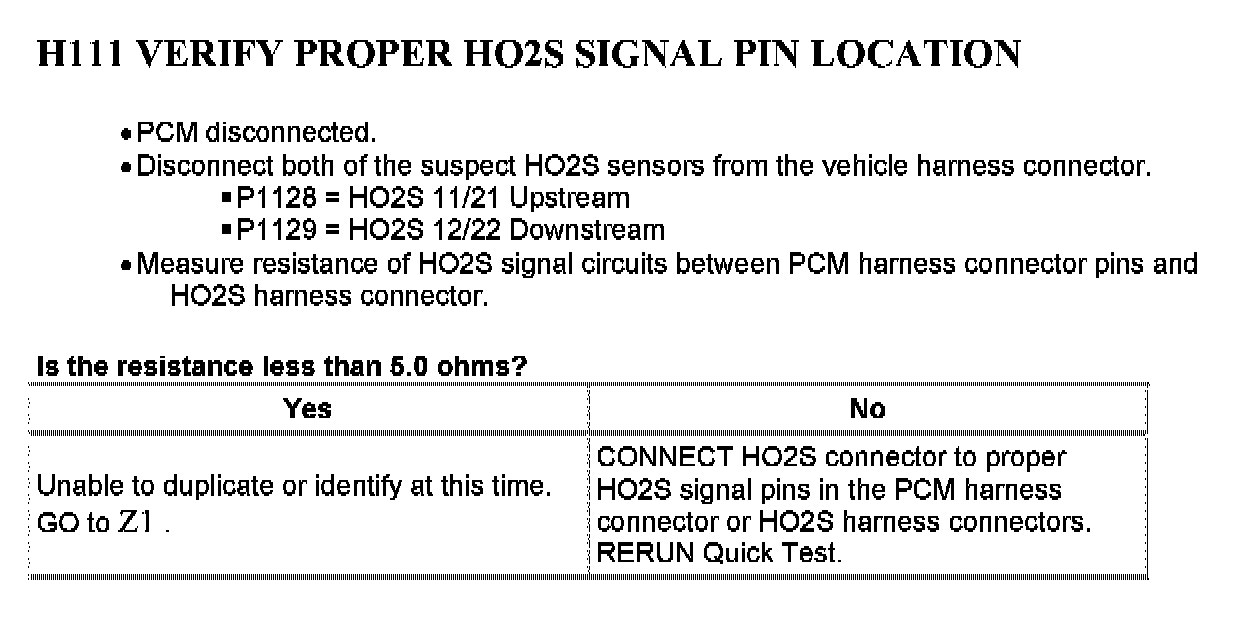

H111:
