Tests DP: Vehicle Speed Sensor/Transfer Case Speed Sensor

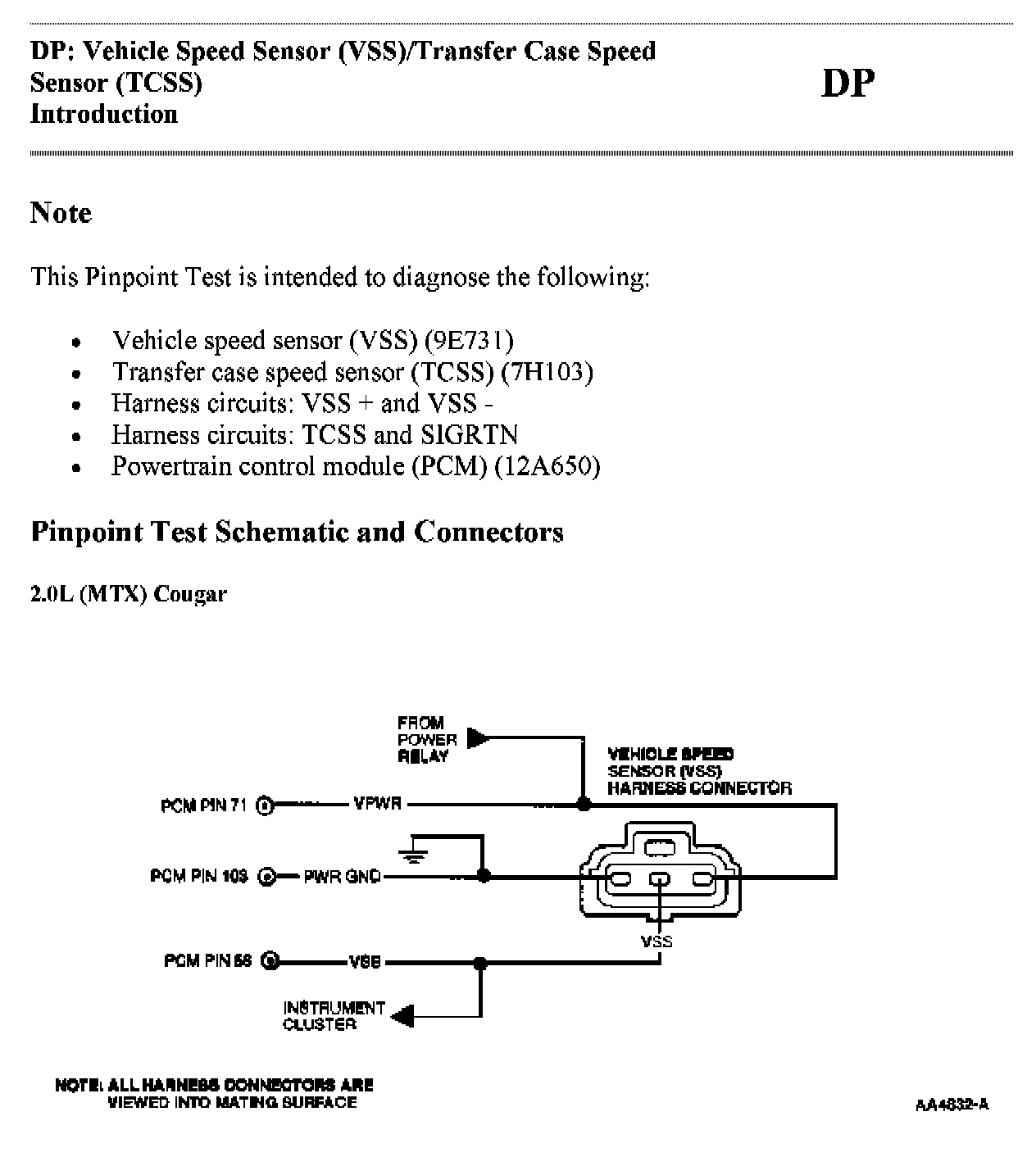

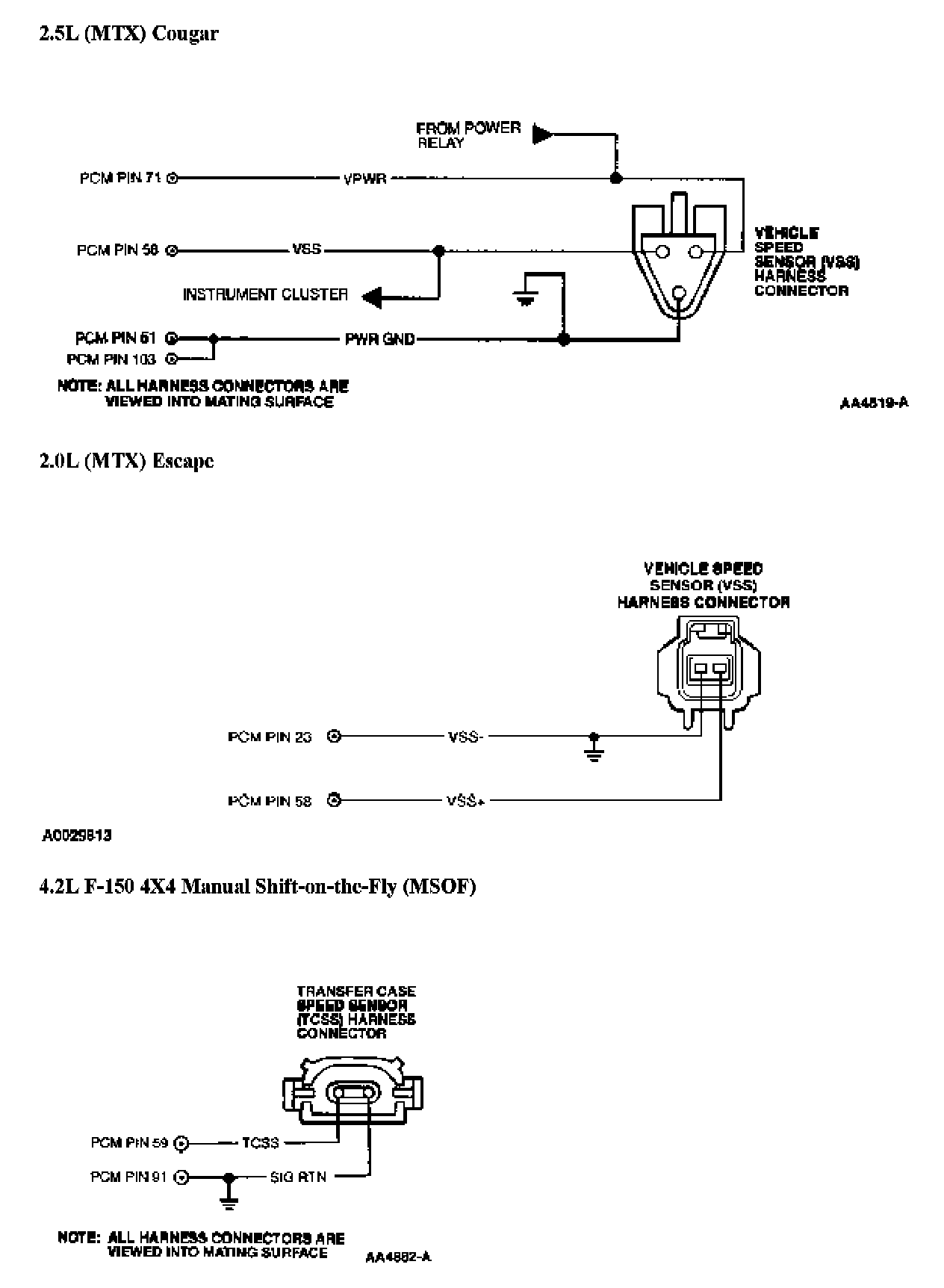

DP INTRODUCTION:

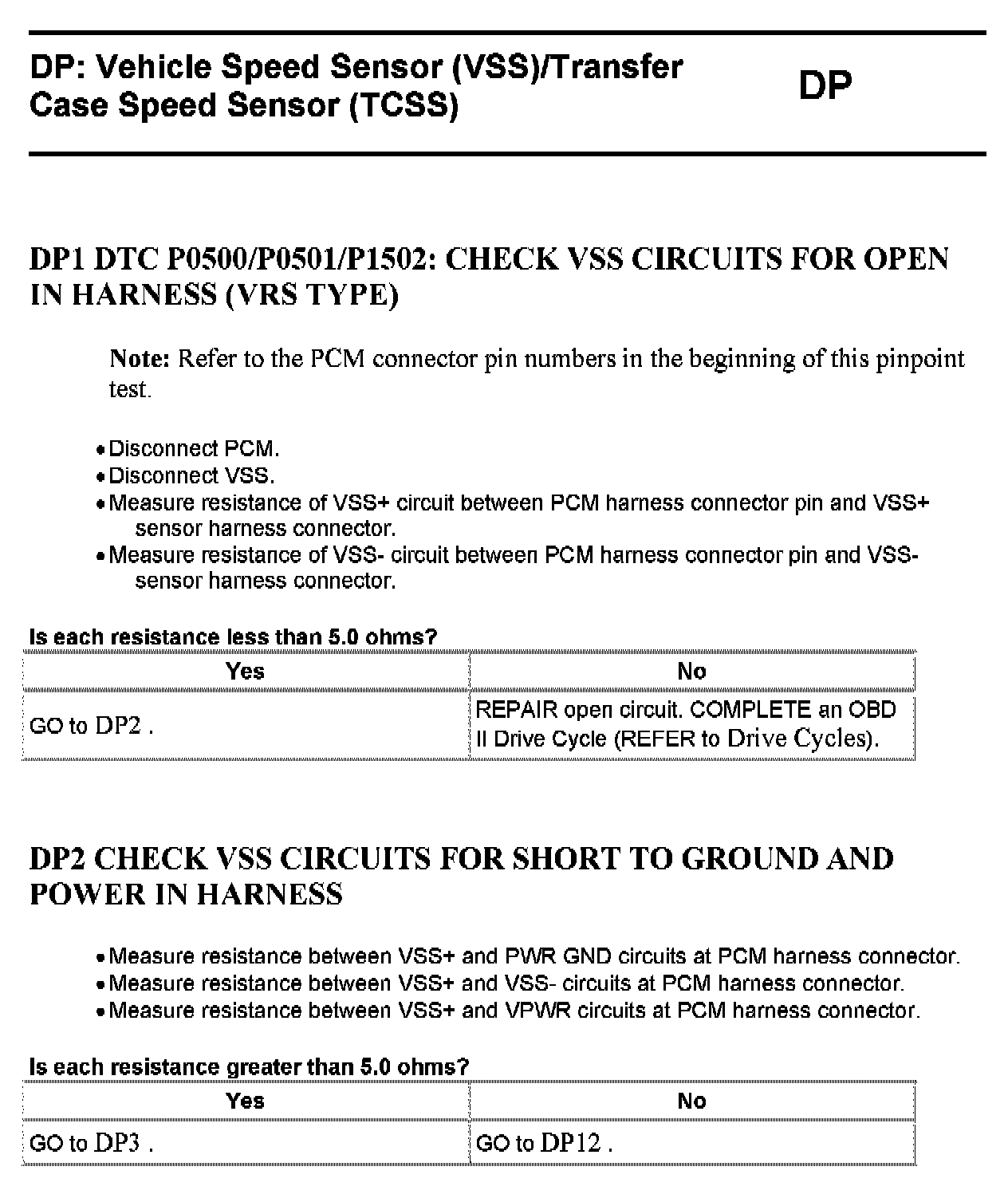

DP1 - DP2:

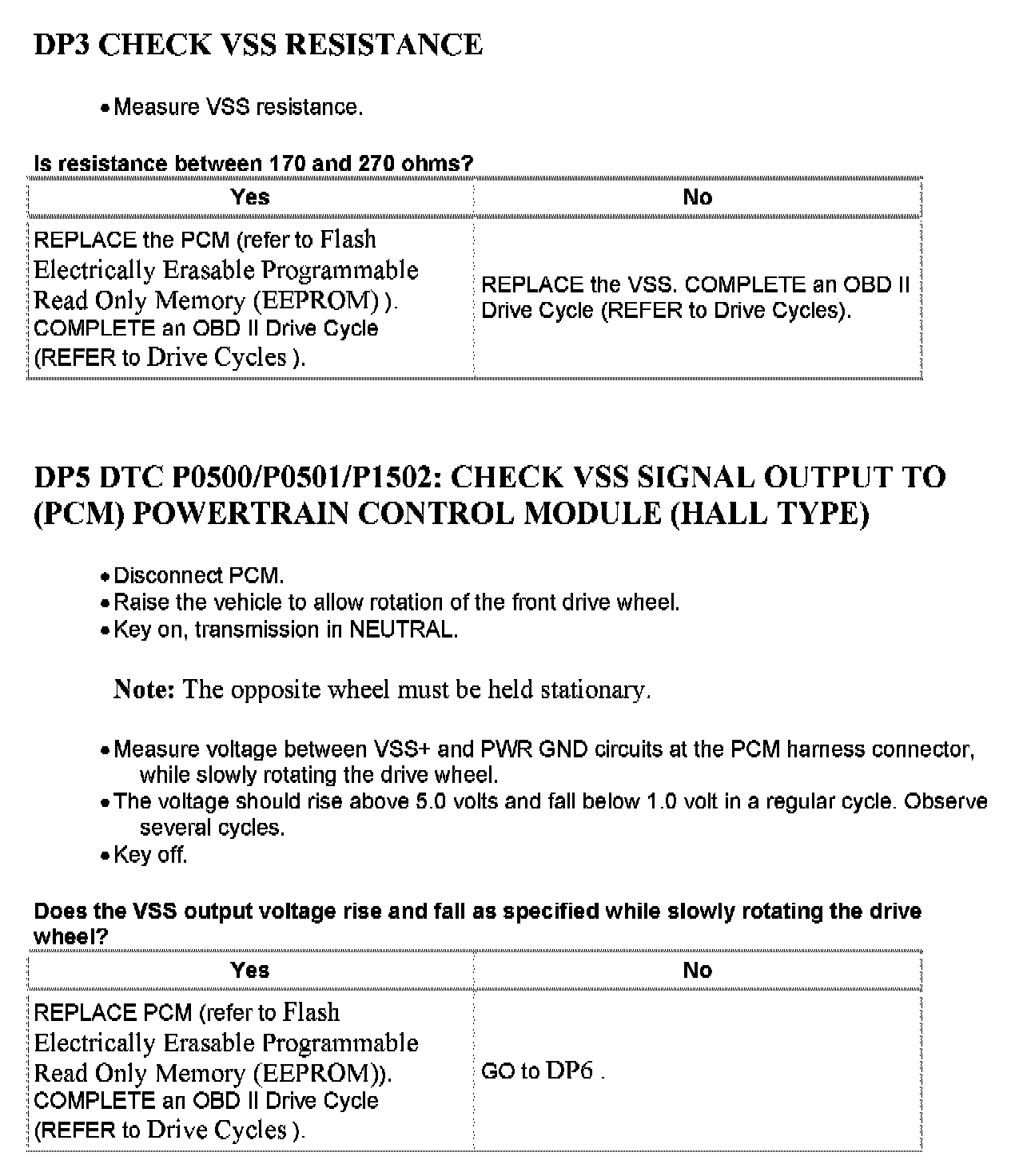

DP3 - DP5:

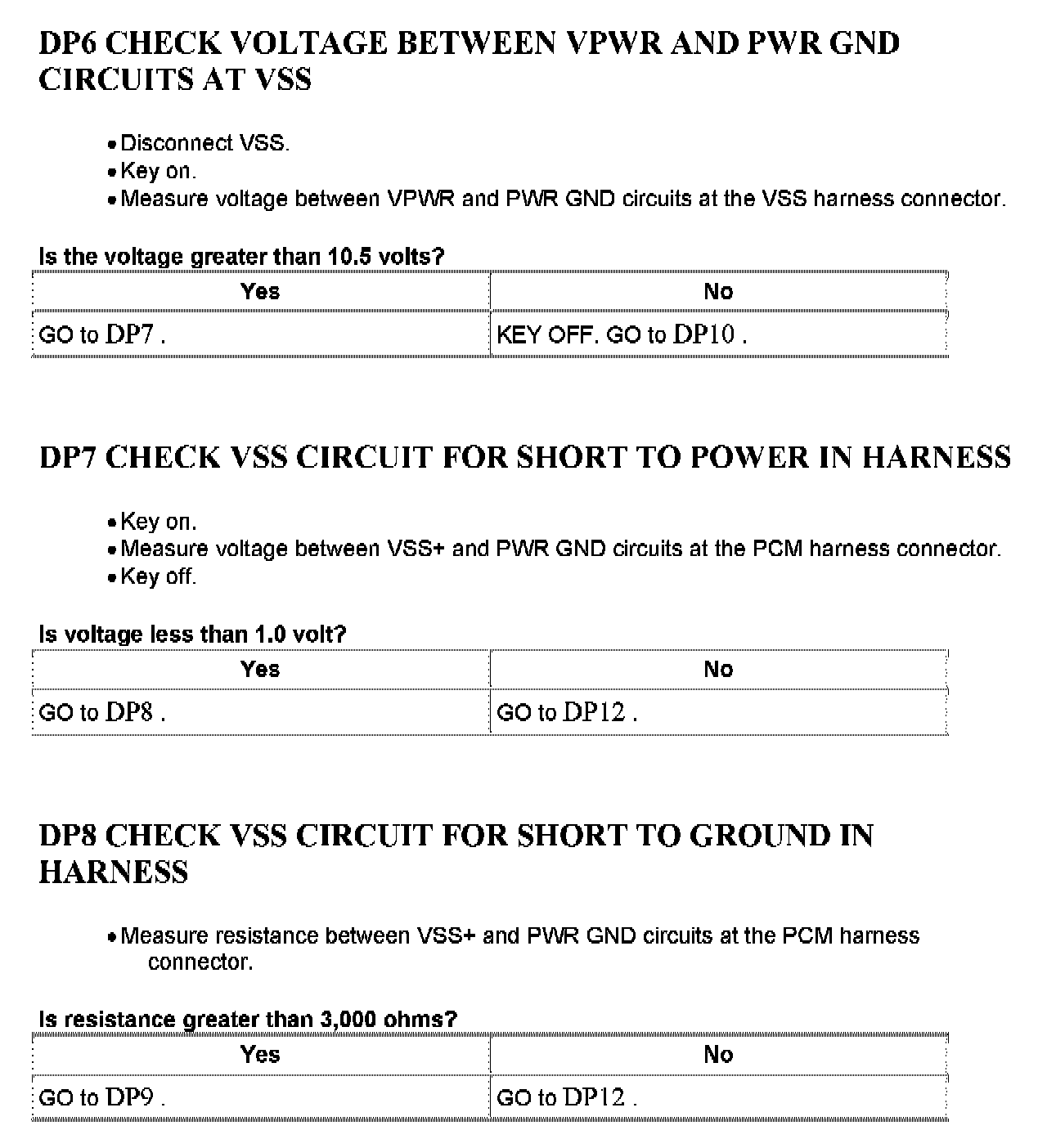

DP6 - DP8:

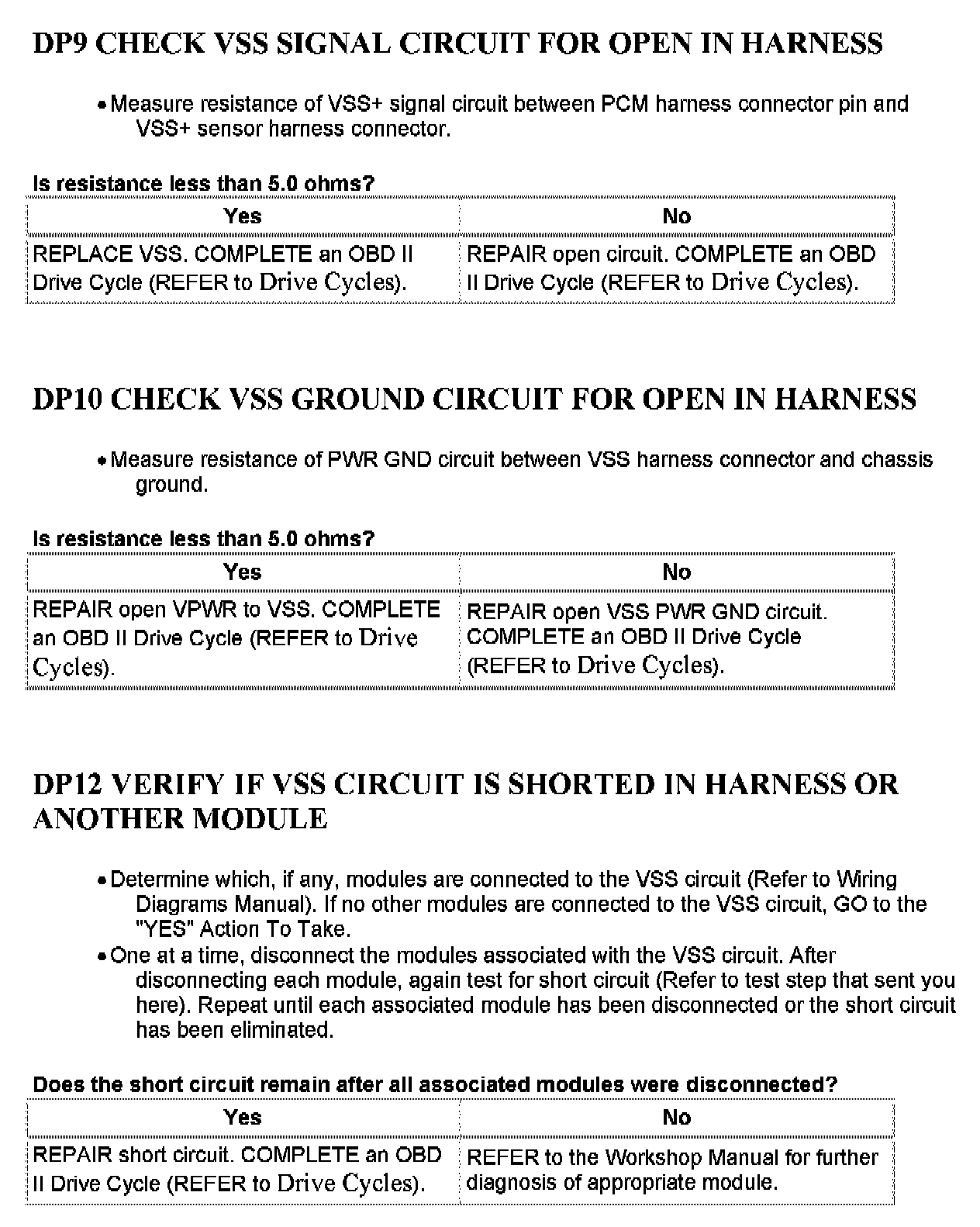

DP9 - DP12:

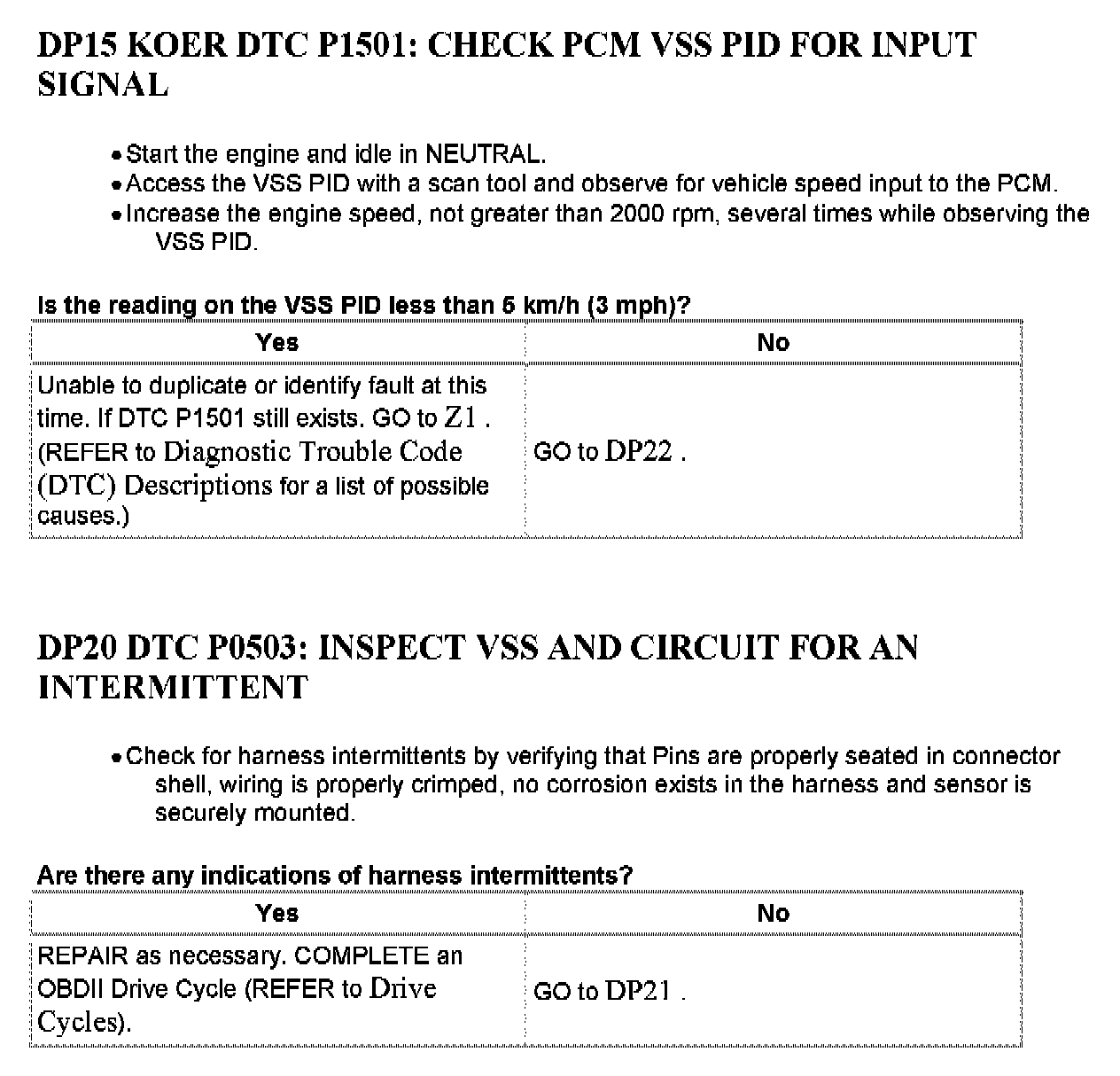

DP15 - DP20:

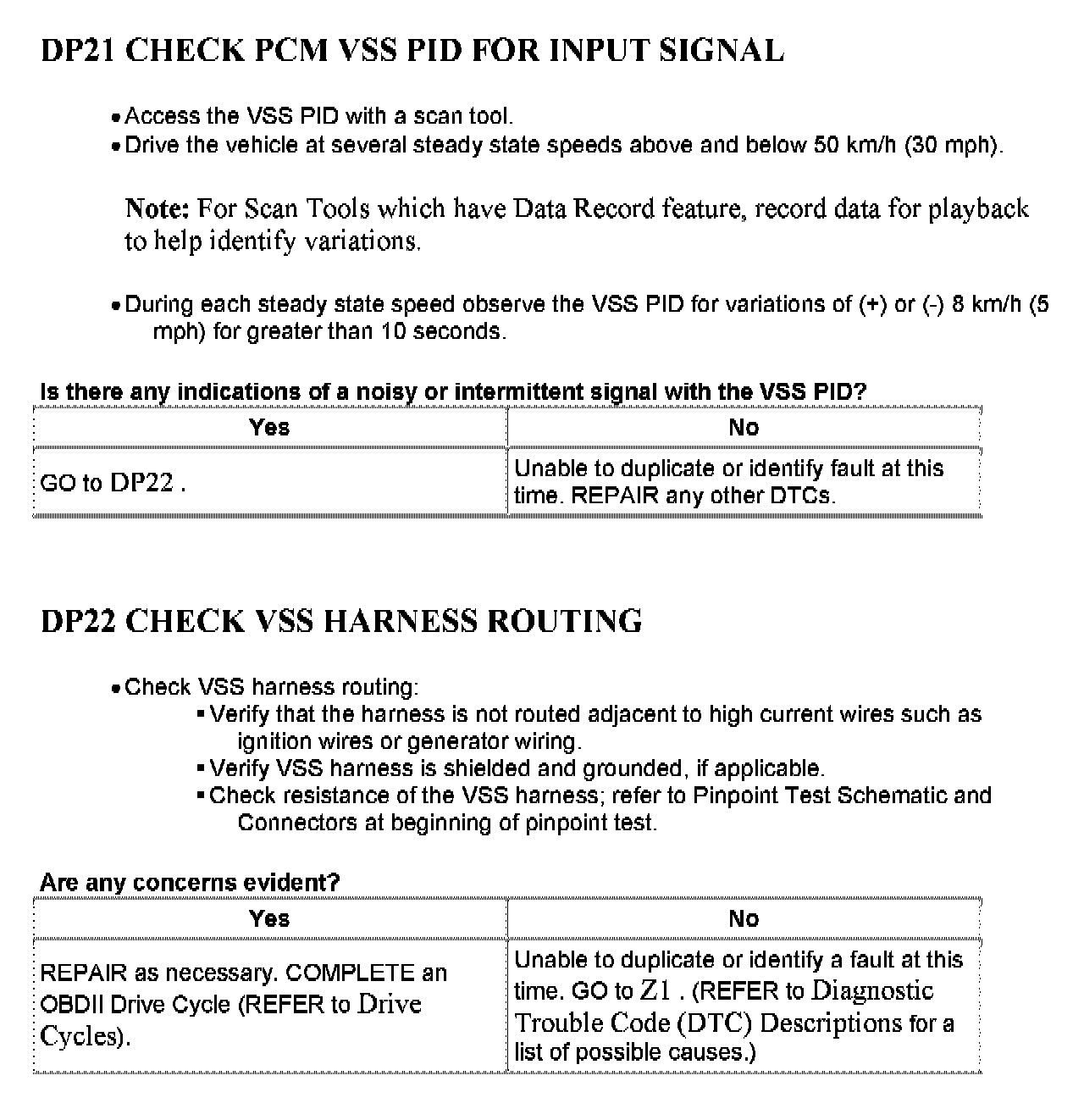

DP21 - DP22:

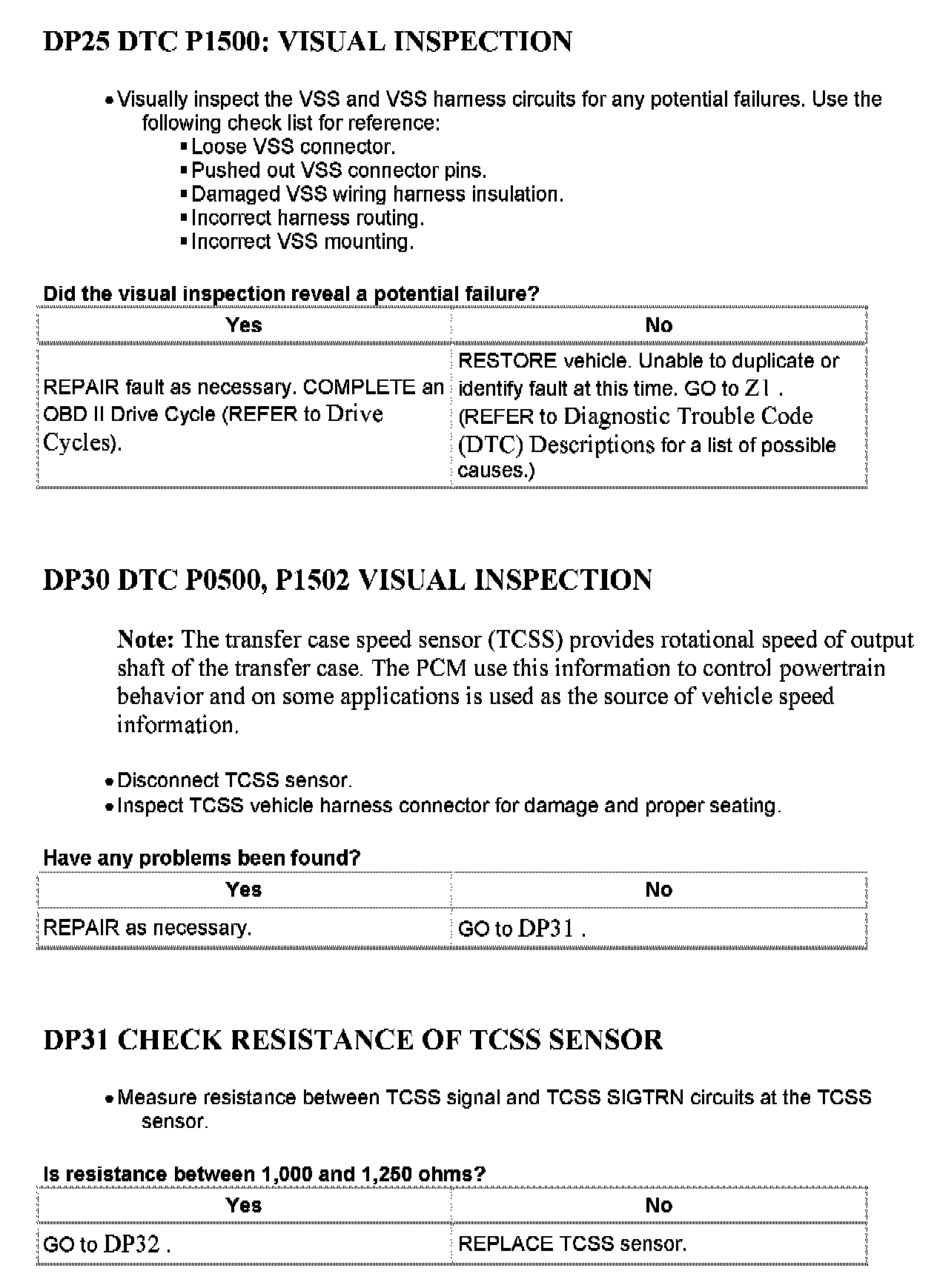

DP25 - DP31:

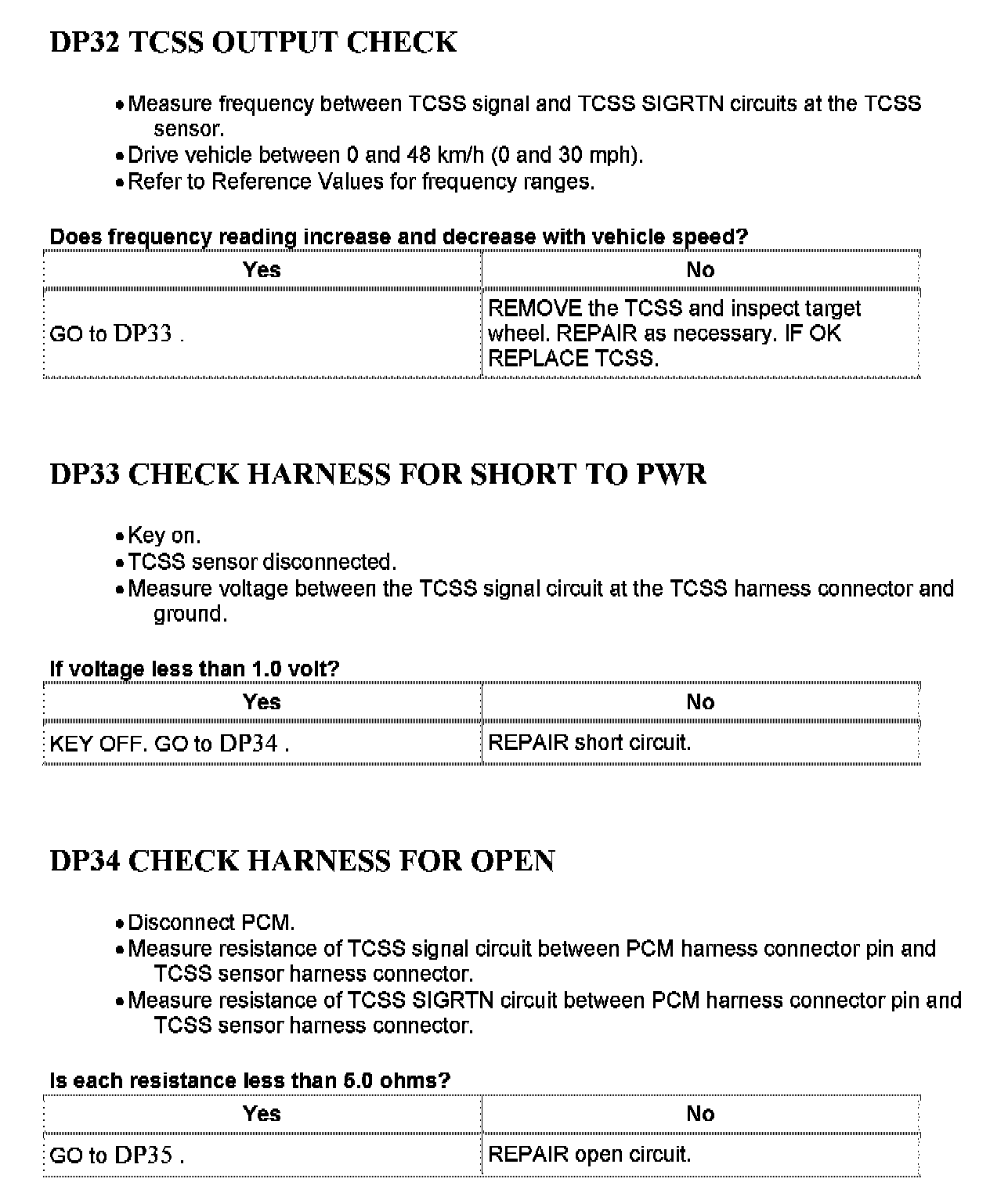

DP32 - DP34:

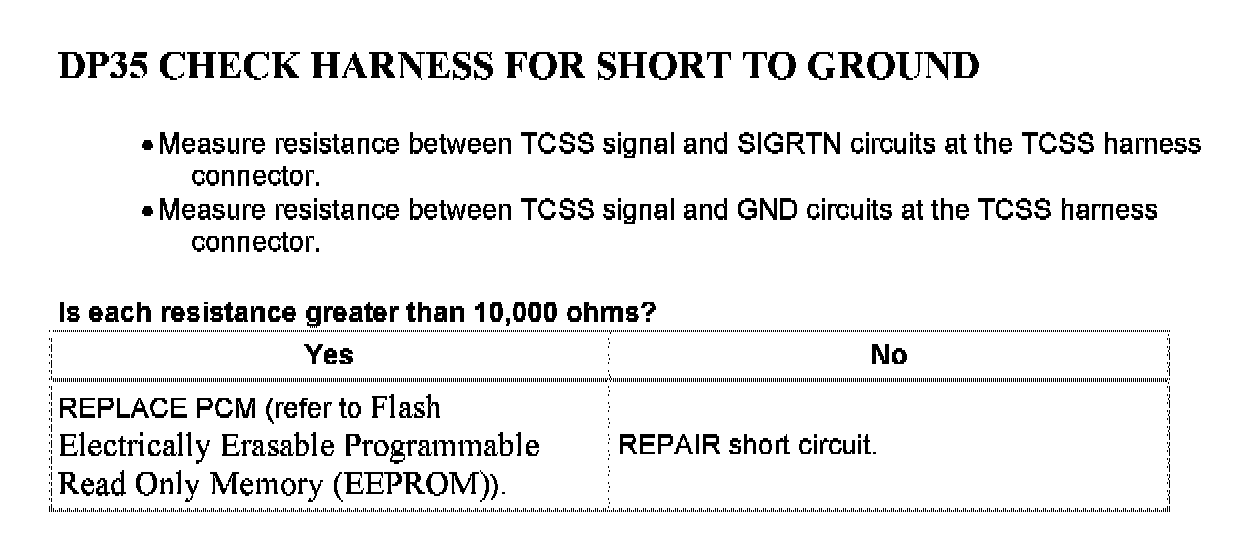

DP35:
