Connecting Rod Bolt/Nut

NOTE: Be sure to tighten the bolts in two stages.

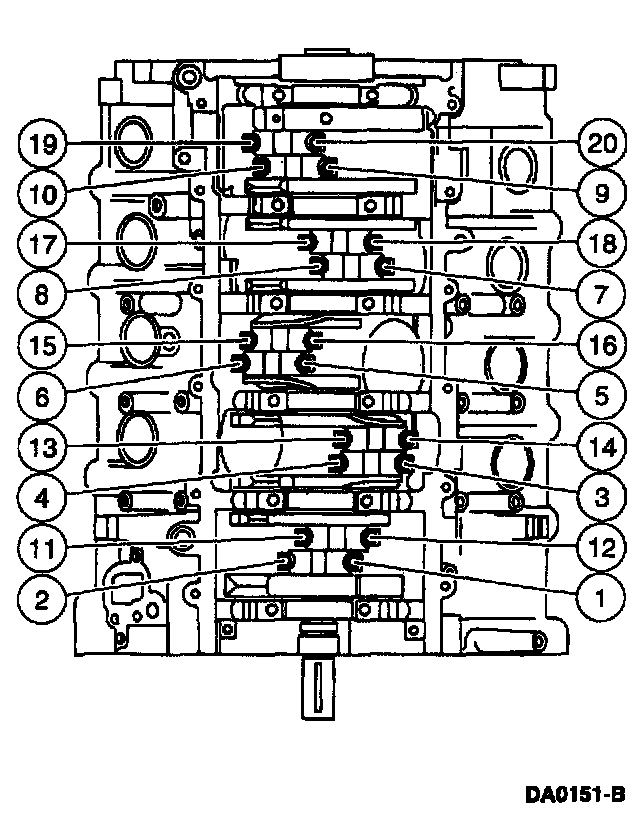

Tighten the connecting rod bolts in the sequence shown.
^ Stage 1: Tighten to 43 Nm (32 ft. lbs.).
^ Stage 2: Tighten an additional 90 - 120 degrees.
