Computers and Control Systems: Locations

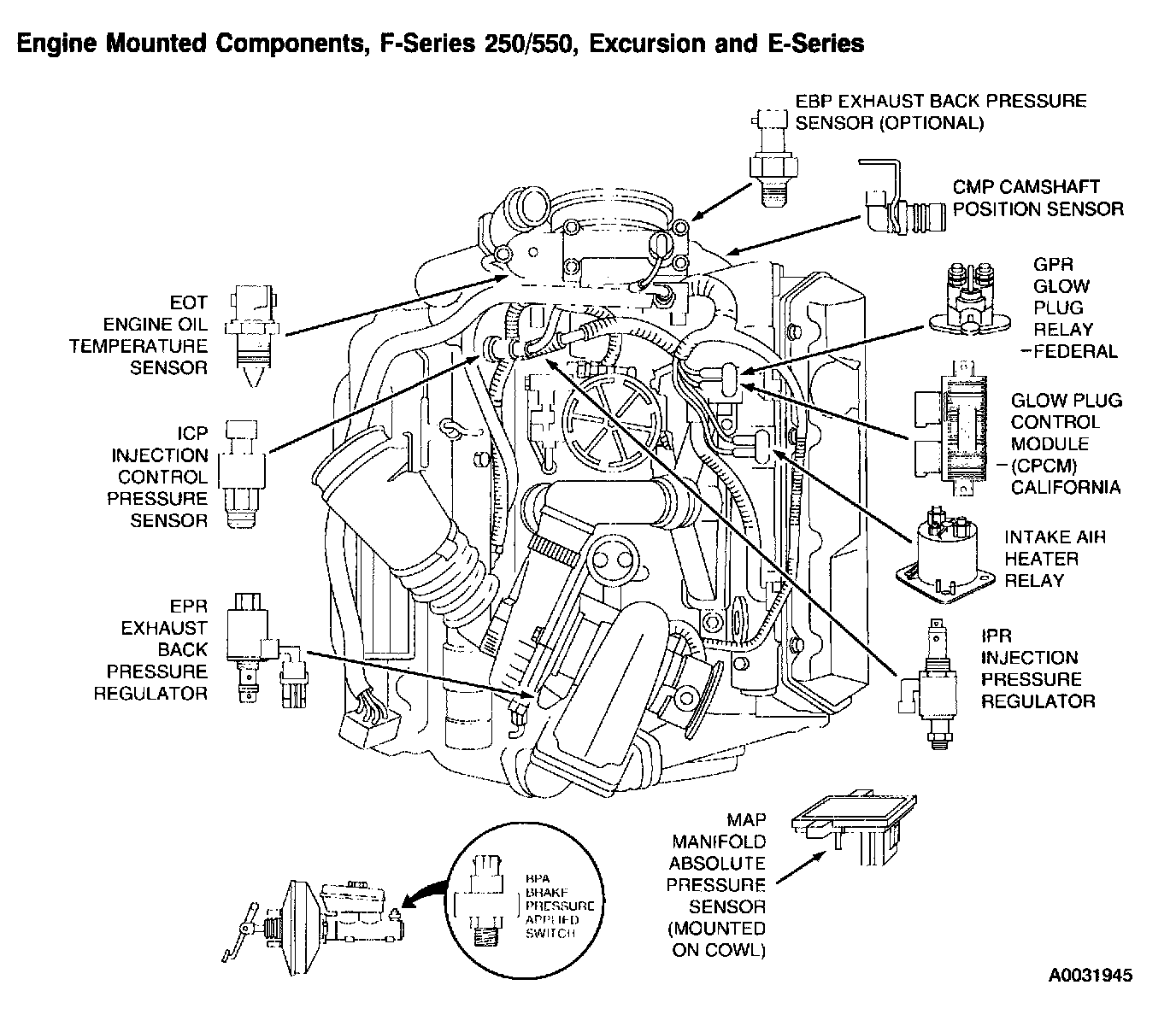

Engine Mounted Components, F-Series 250/550, Excursion and E-Series:

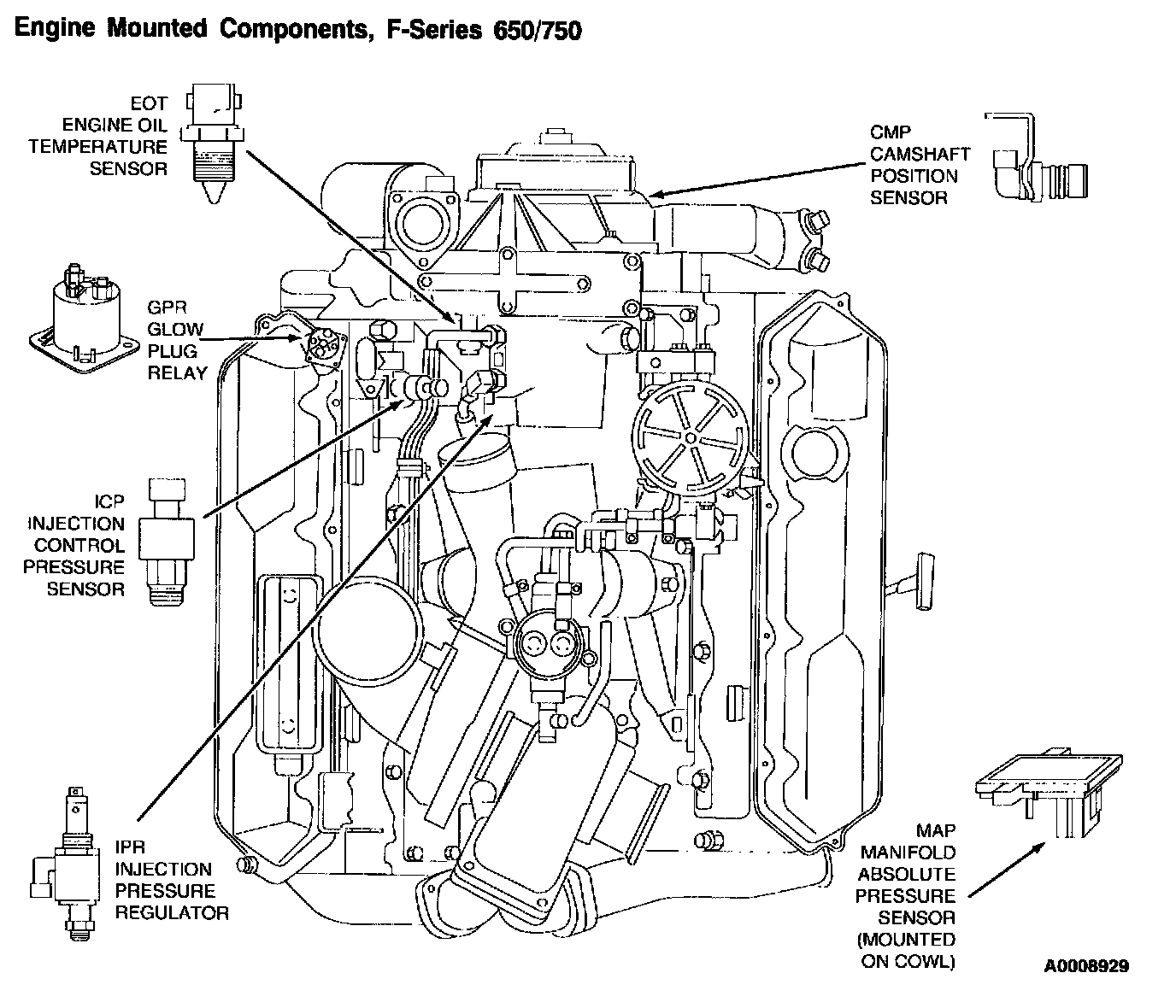

Engine Mounted Components, F-Series 650/750:

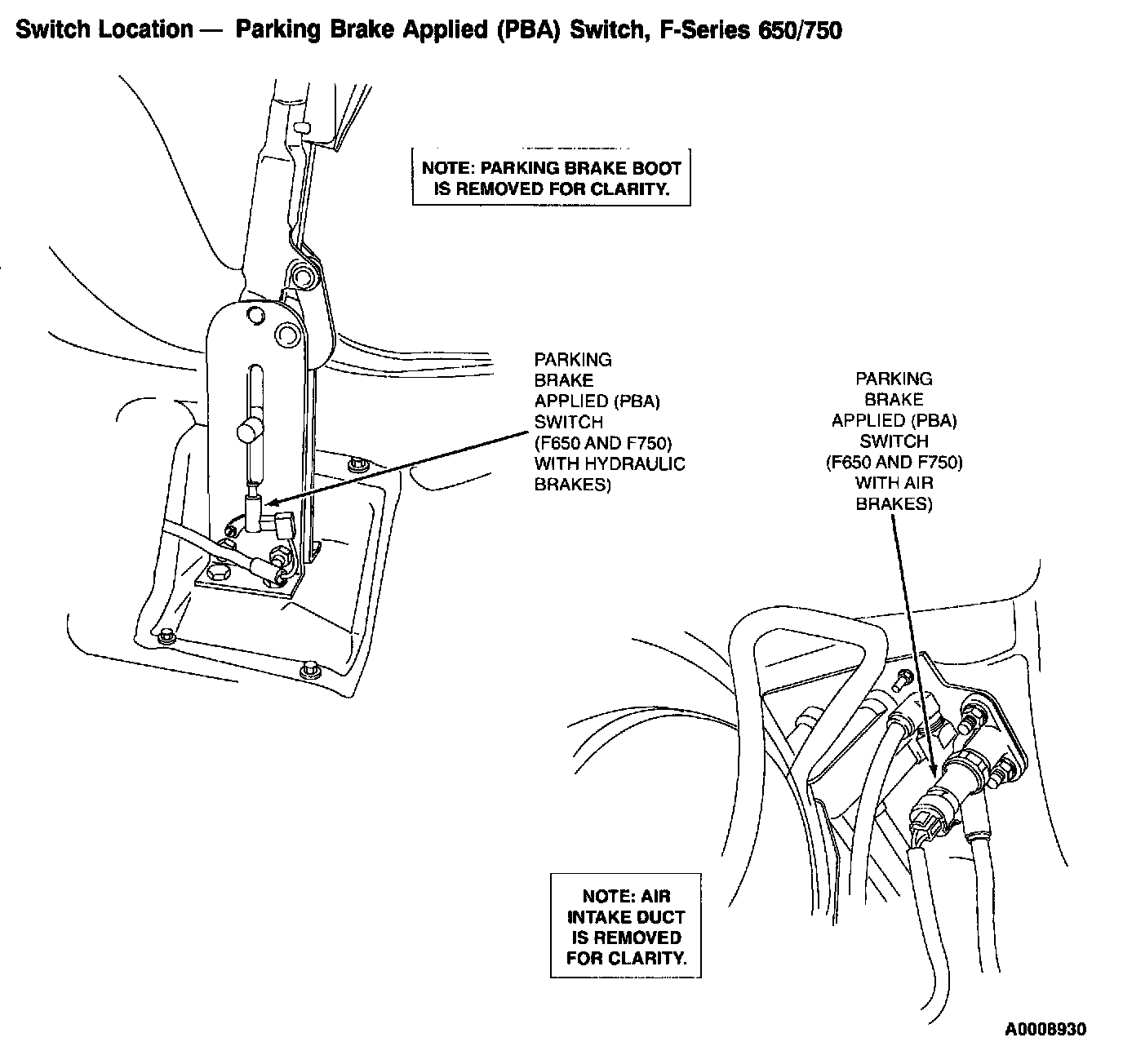

Switch Location:

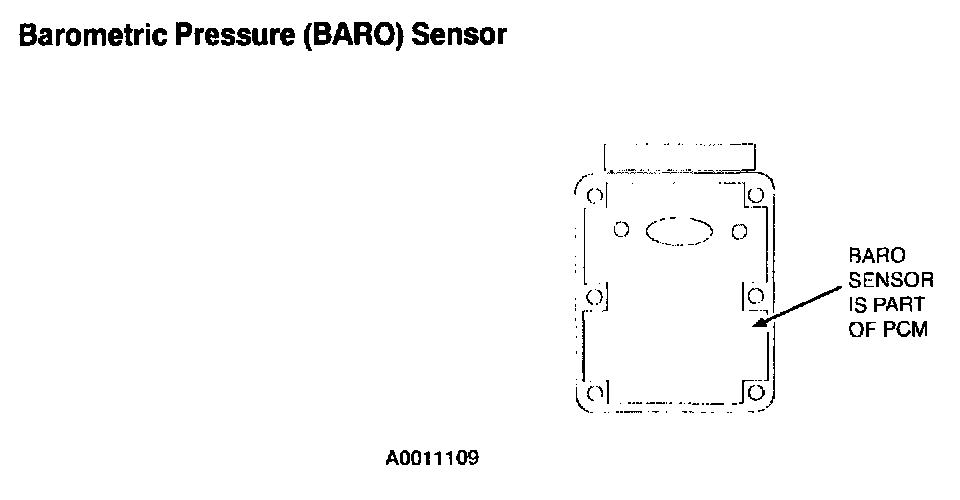

Barometric Pressure (BARO) Sensor:

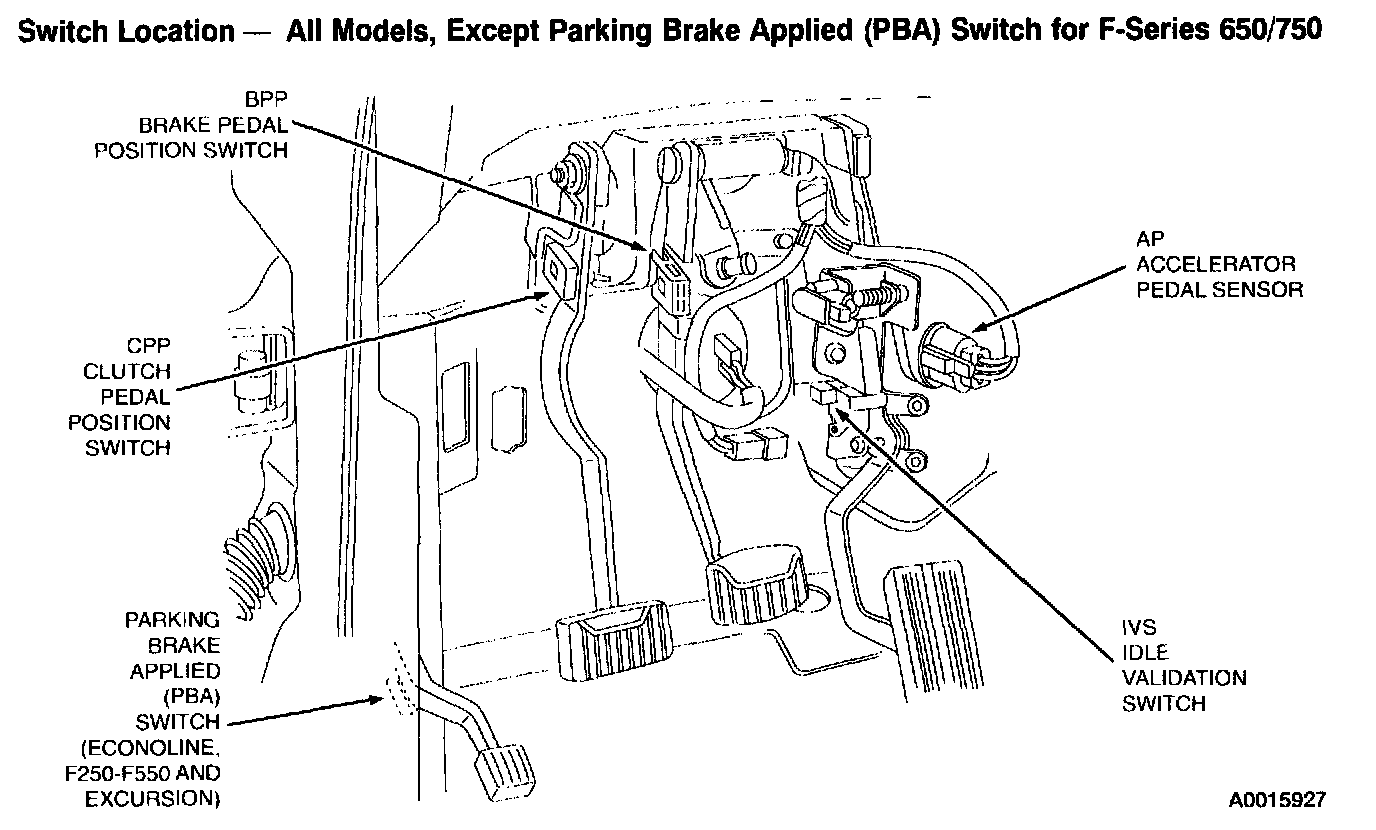

Switch Location:

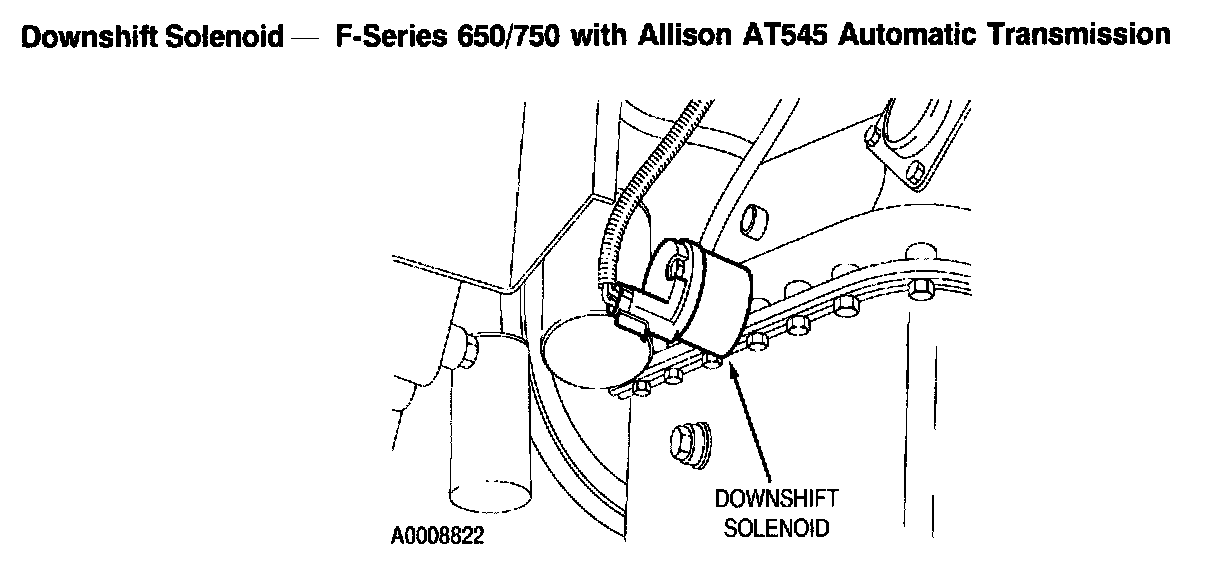

Downshift Solenoid:

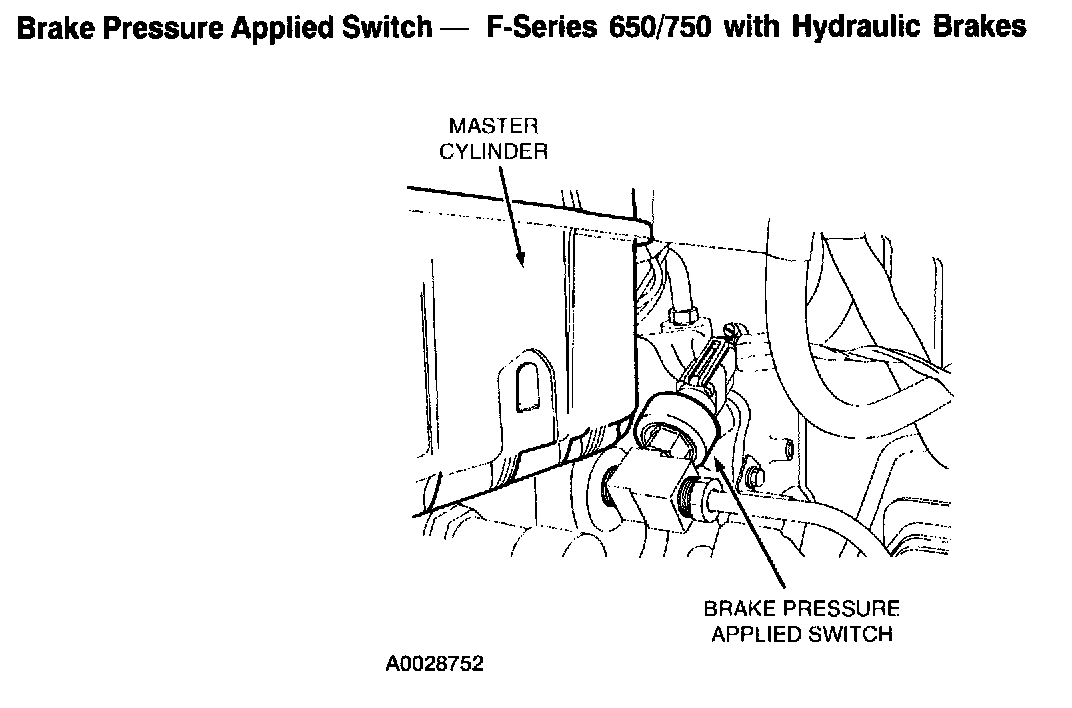

Brake Pressure Applied Switch:

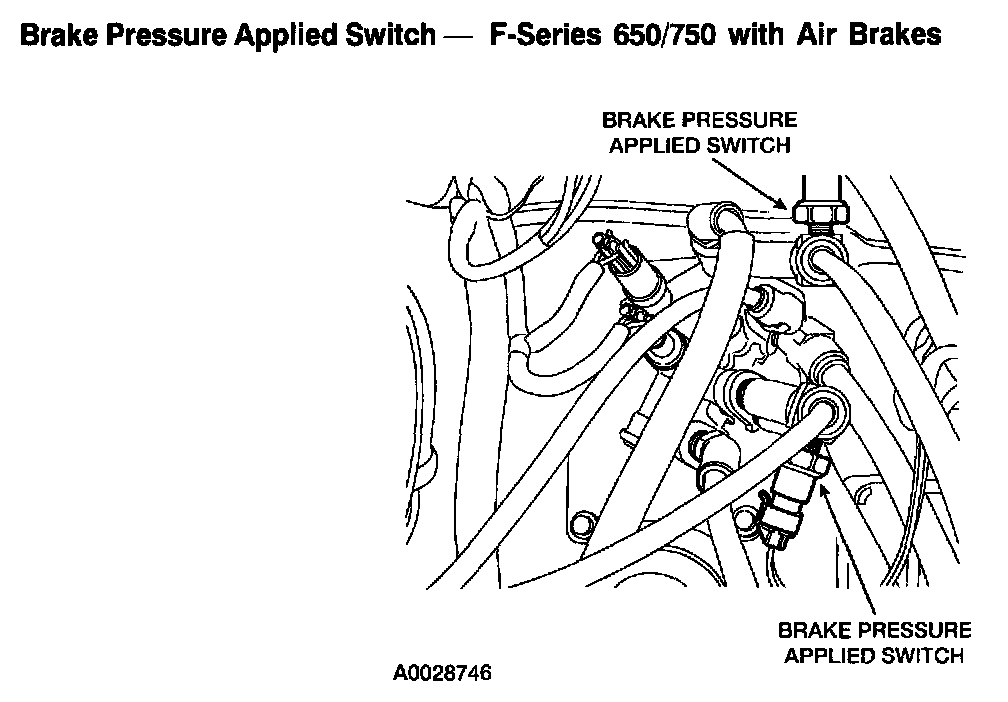

Brake Pressure Applied Switch:

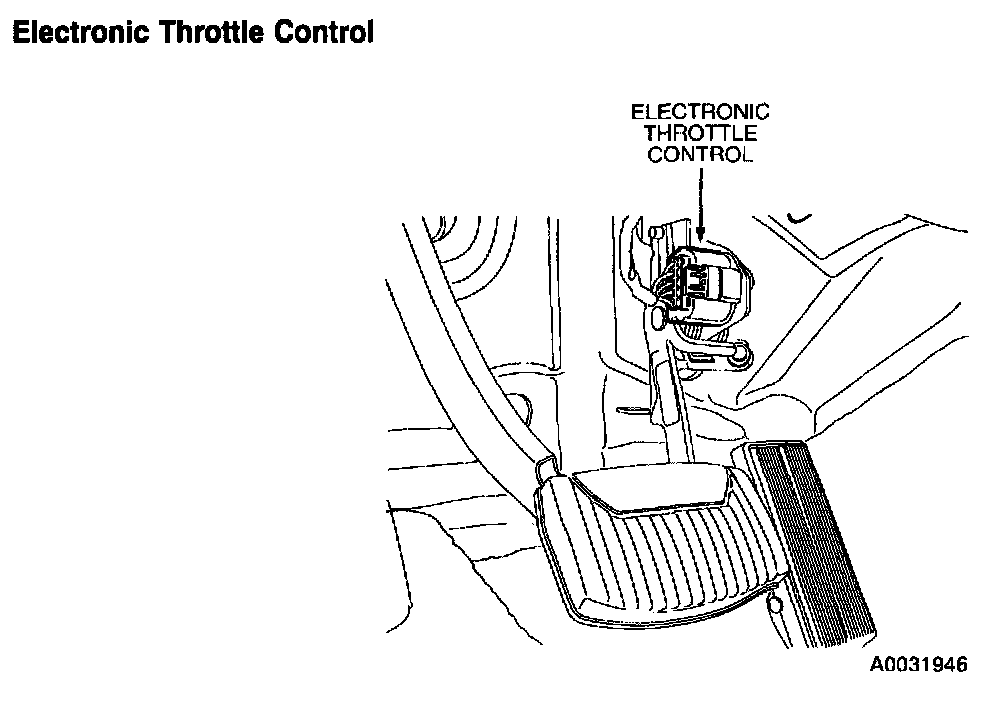

Electronic Throttle Control:

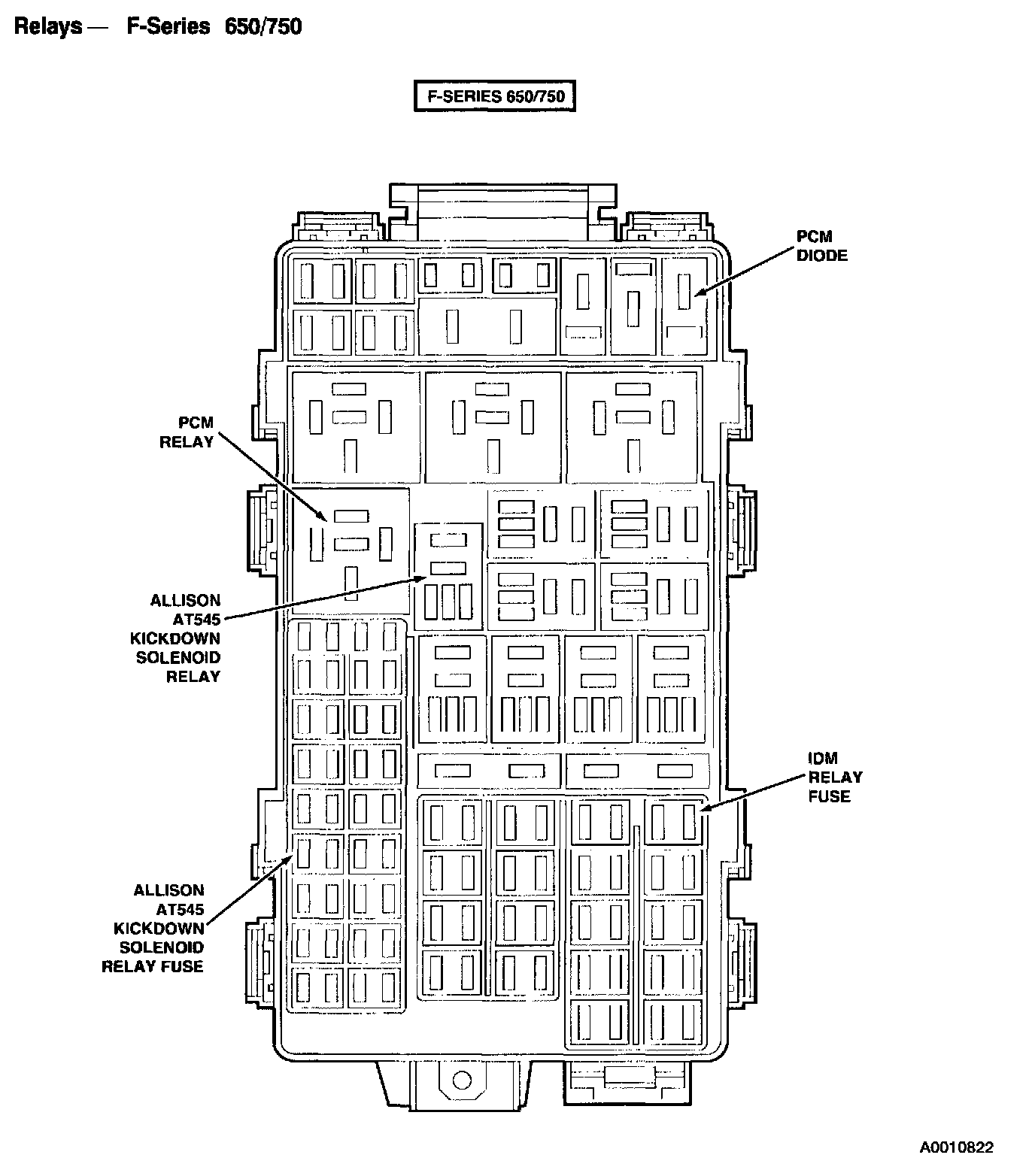

Relays:

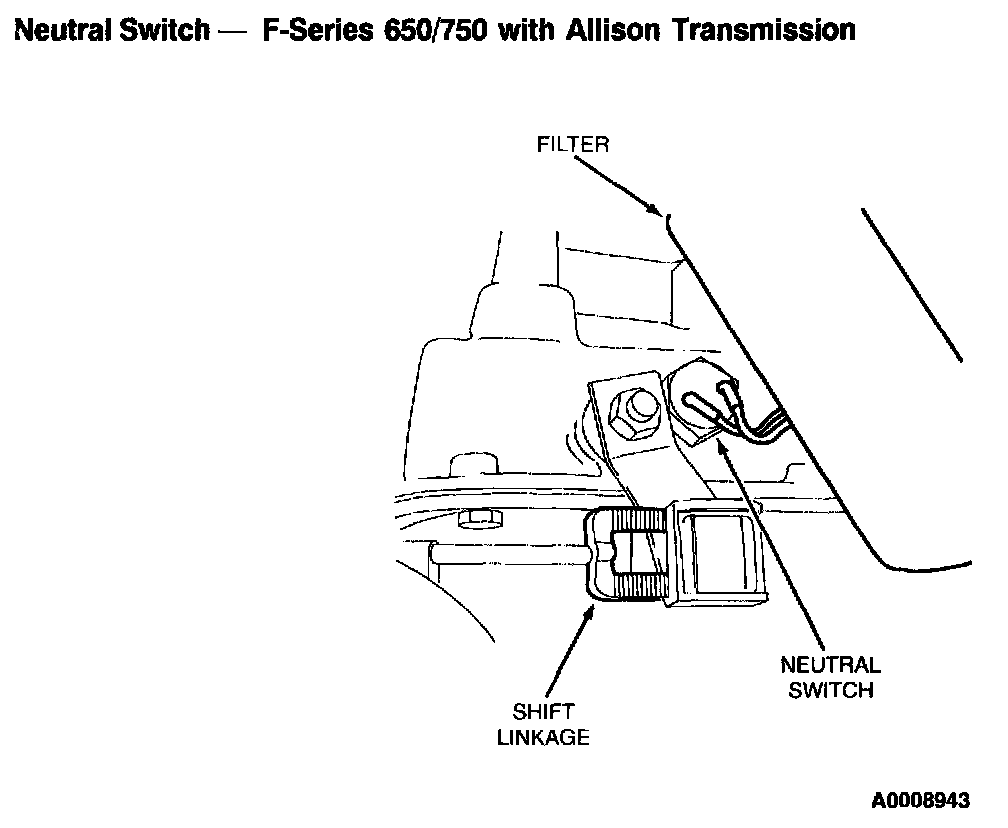

Neutral Switch:

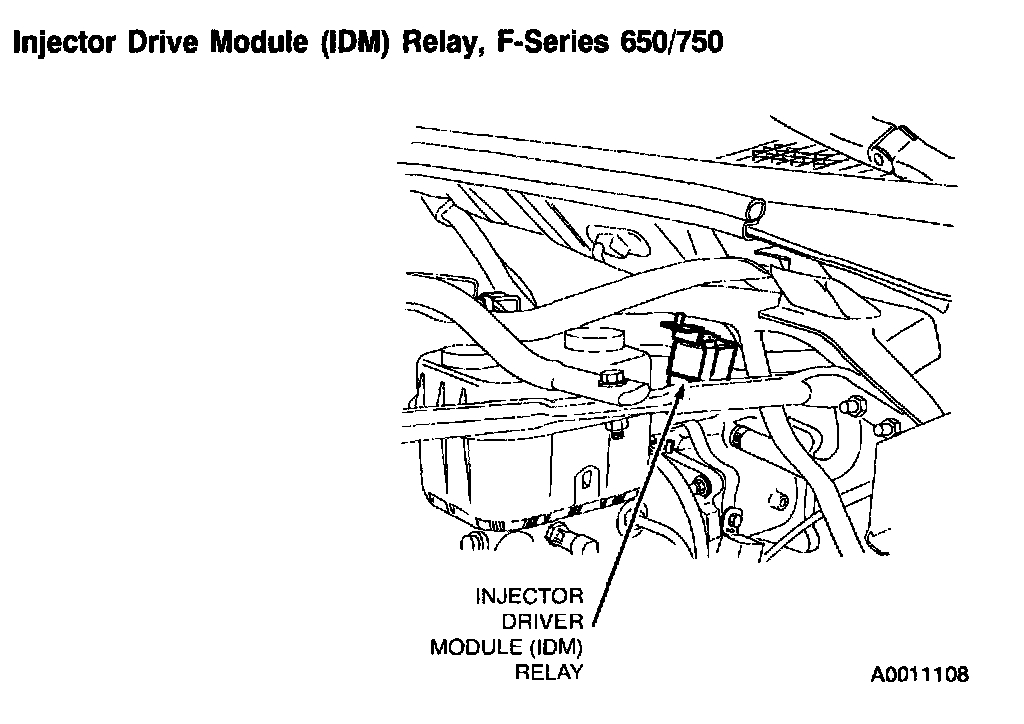

Injector Drive Module (IDM) Relay:

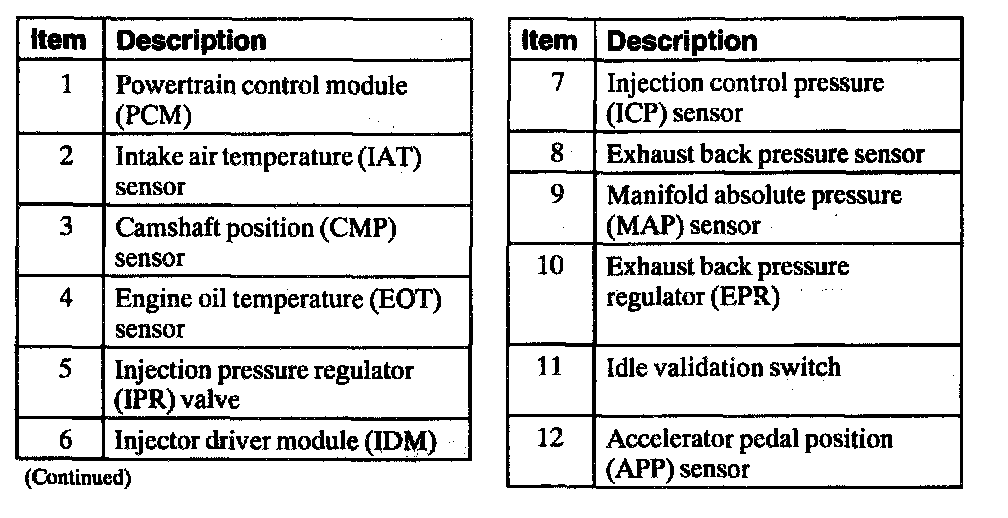

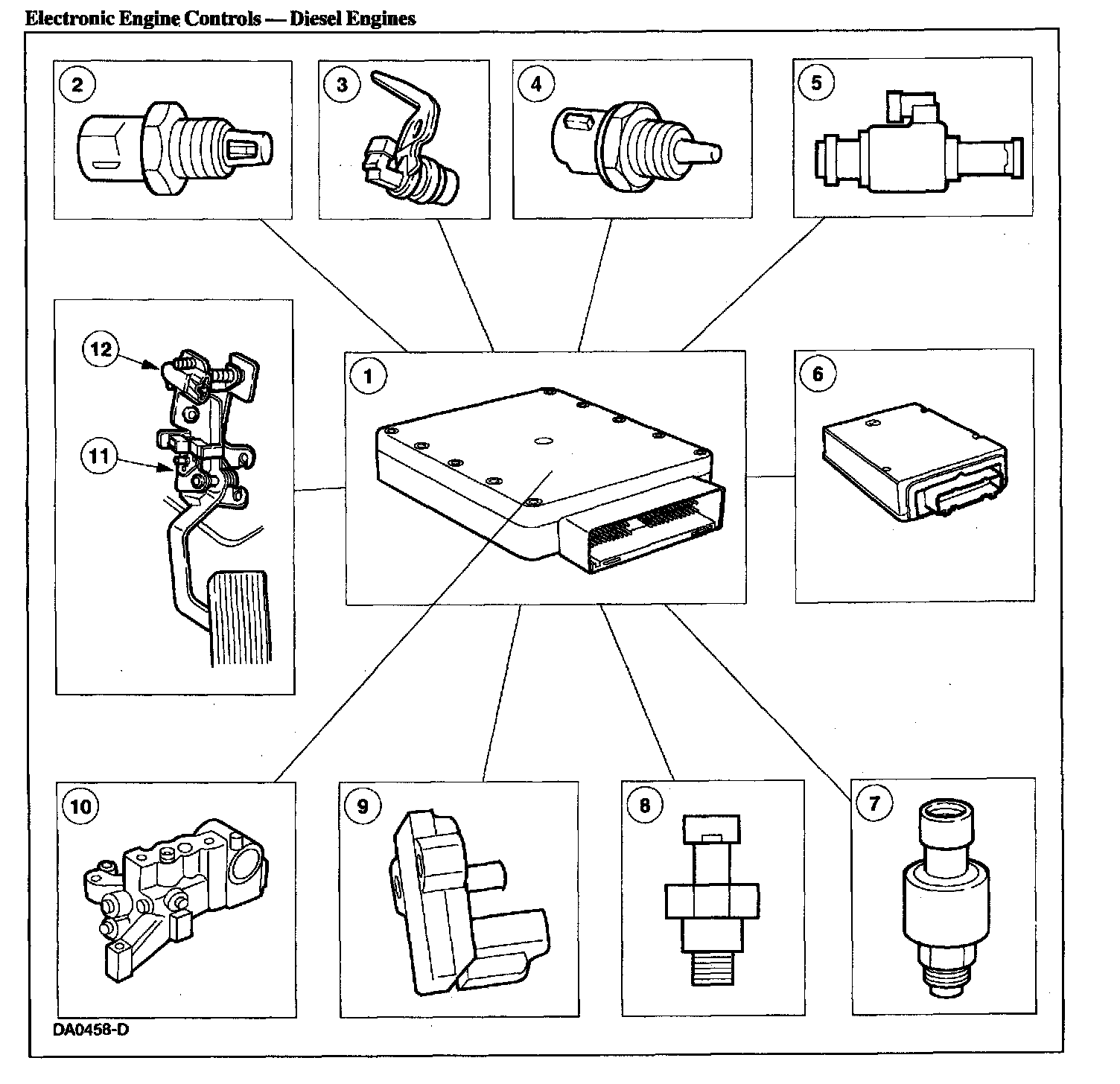

Electronic Engine Controls, Part 1:

Electronic Engine Controls, Part 2:
