Component Location

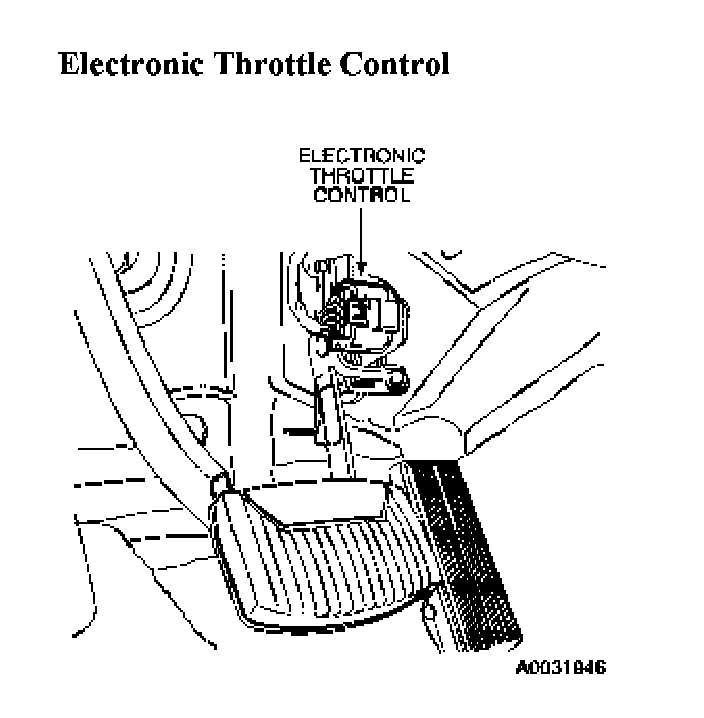

Component Location 1 Of 8:

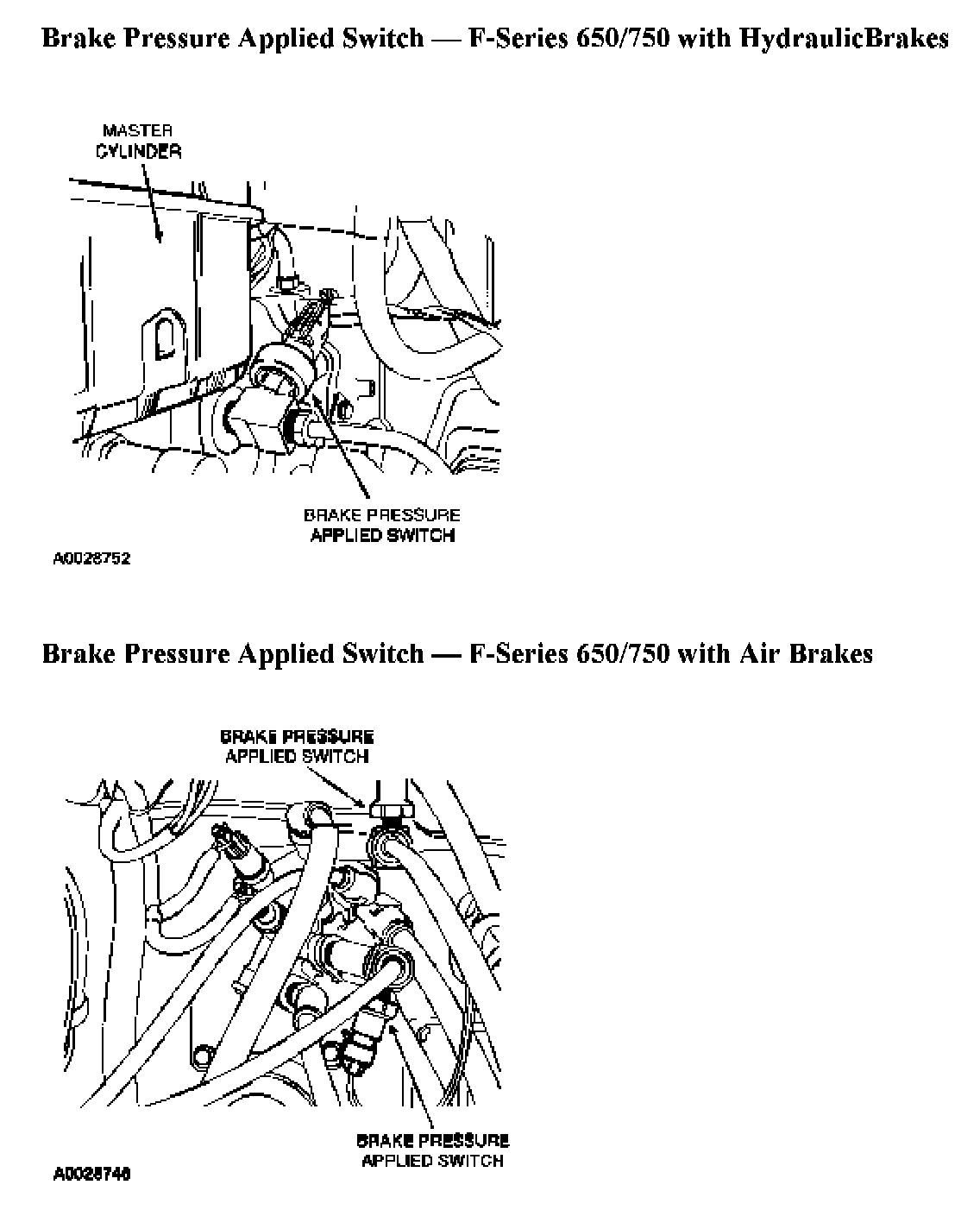

Component Location 2 Of 8:

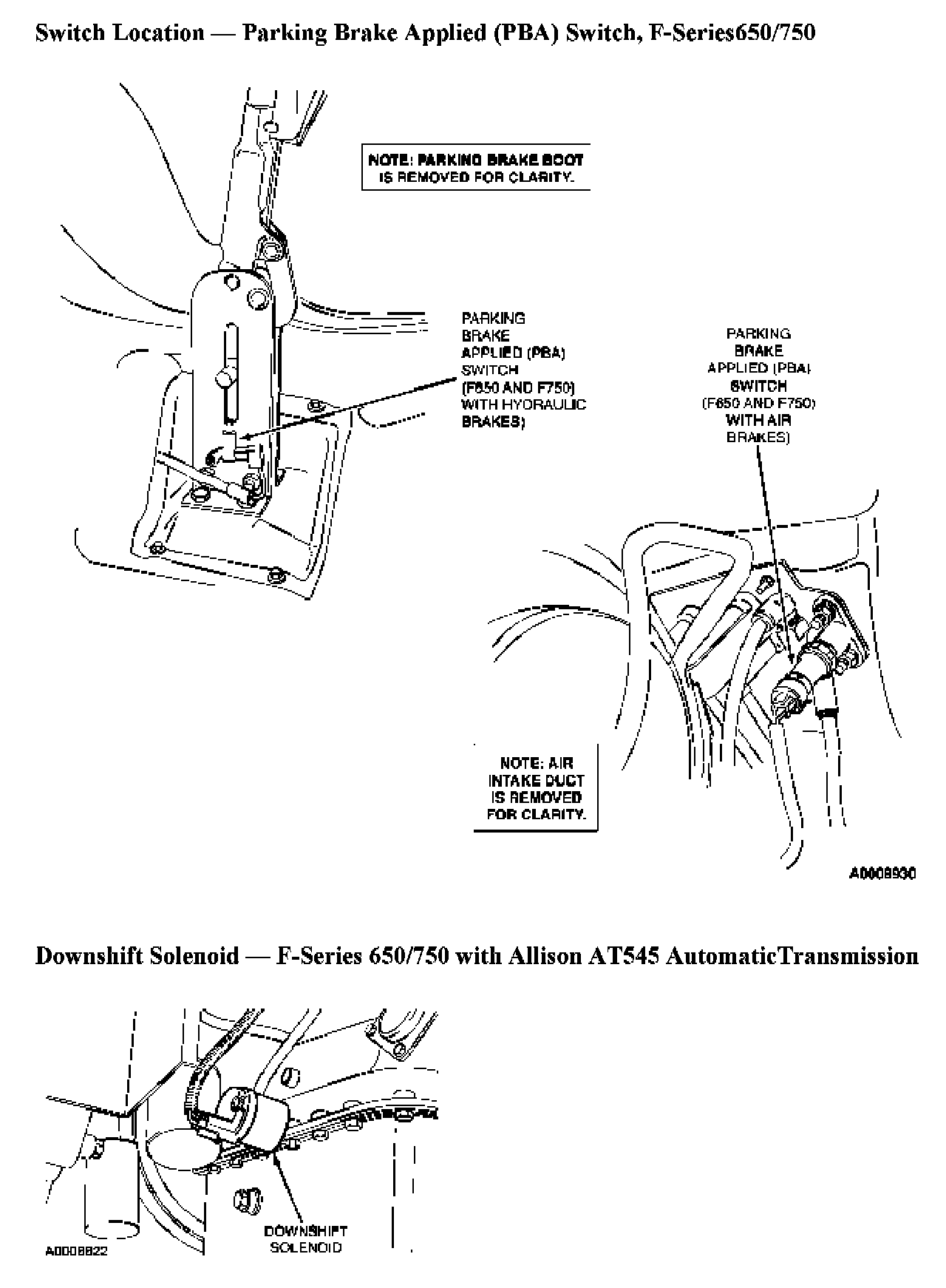

Component Location 3 Of 8:

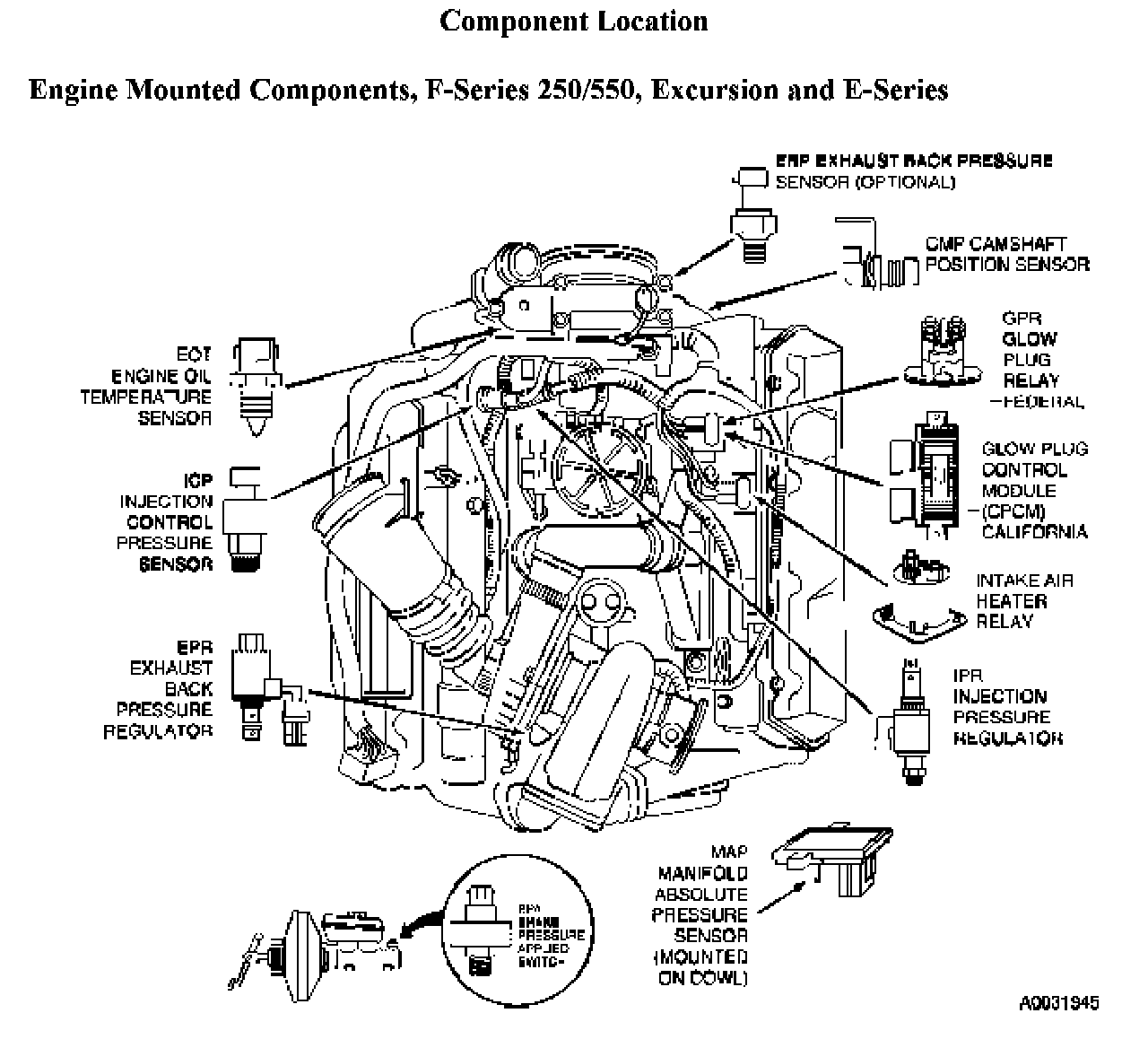

Component Location 4 Of 8:

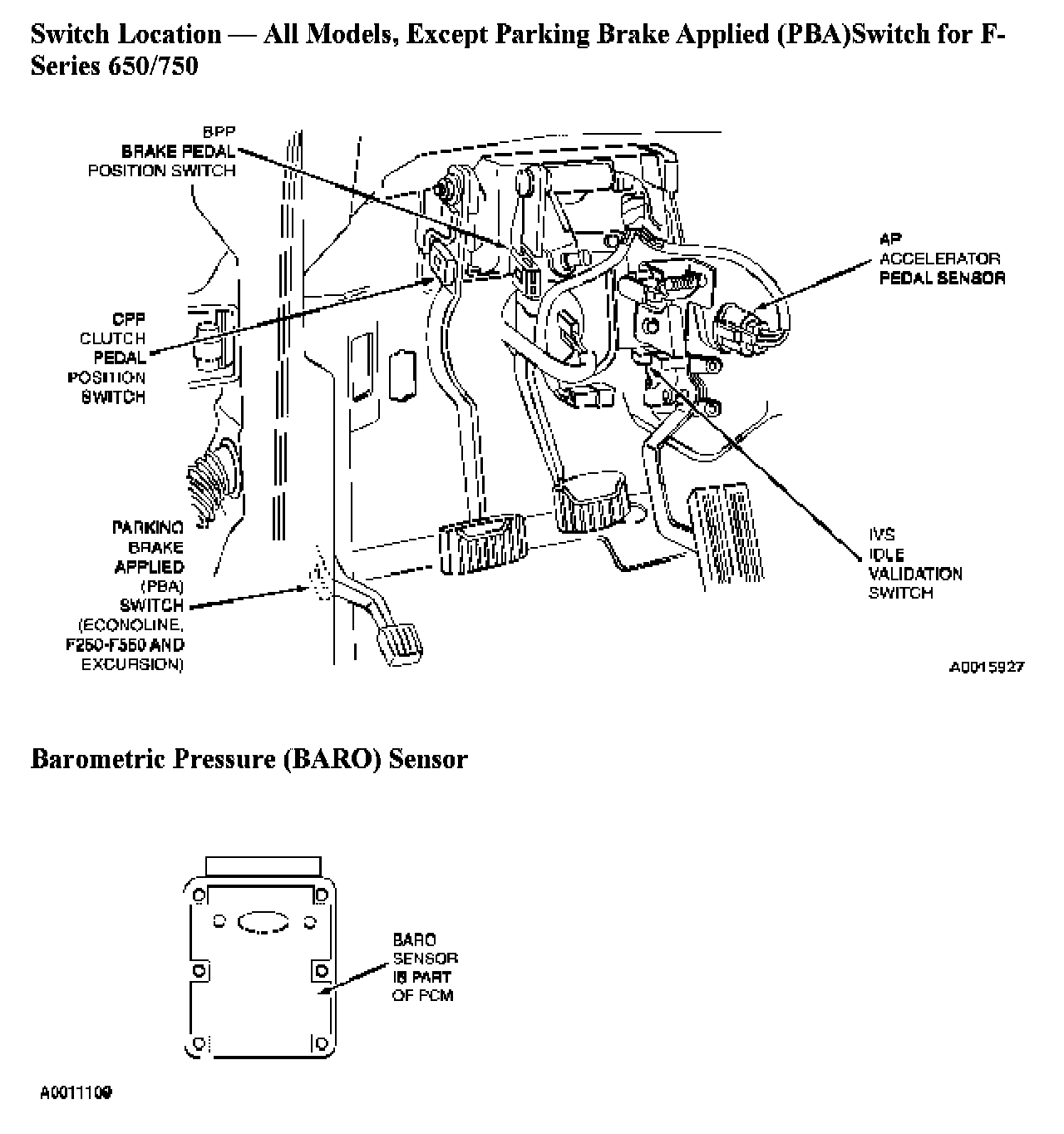

Component Location 5 Of 8:

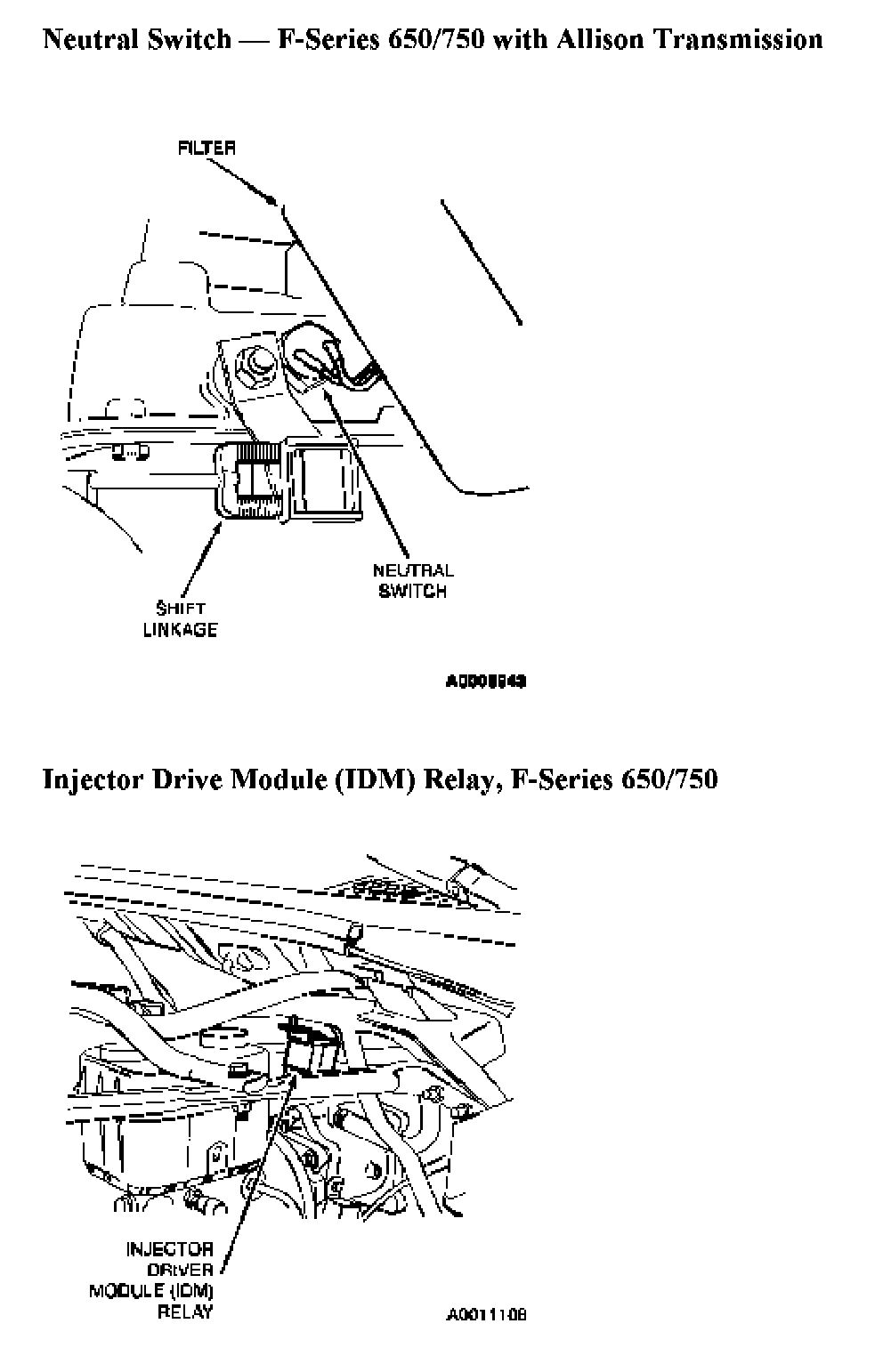

Component Location 6 Of 8:

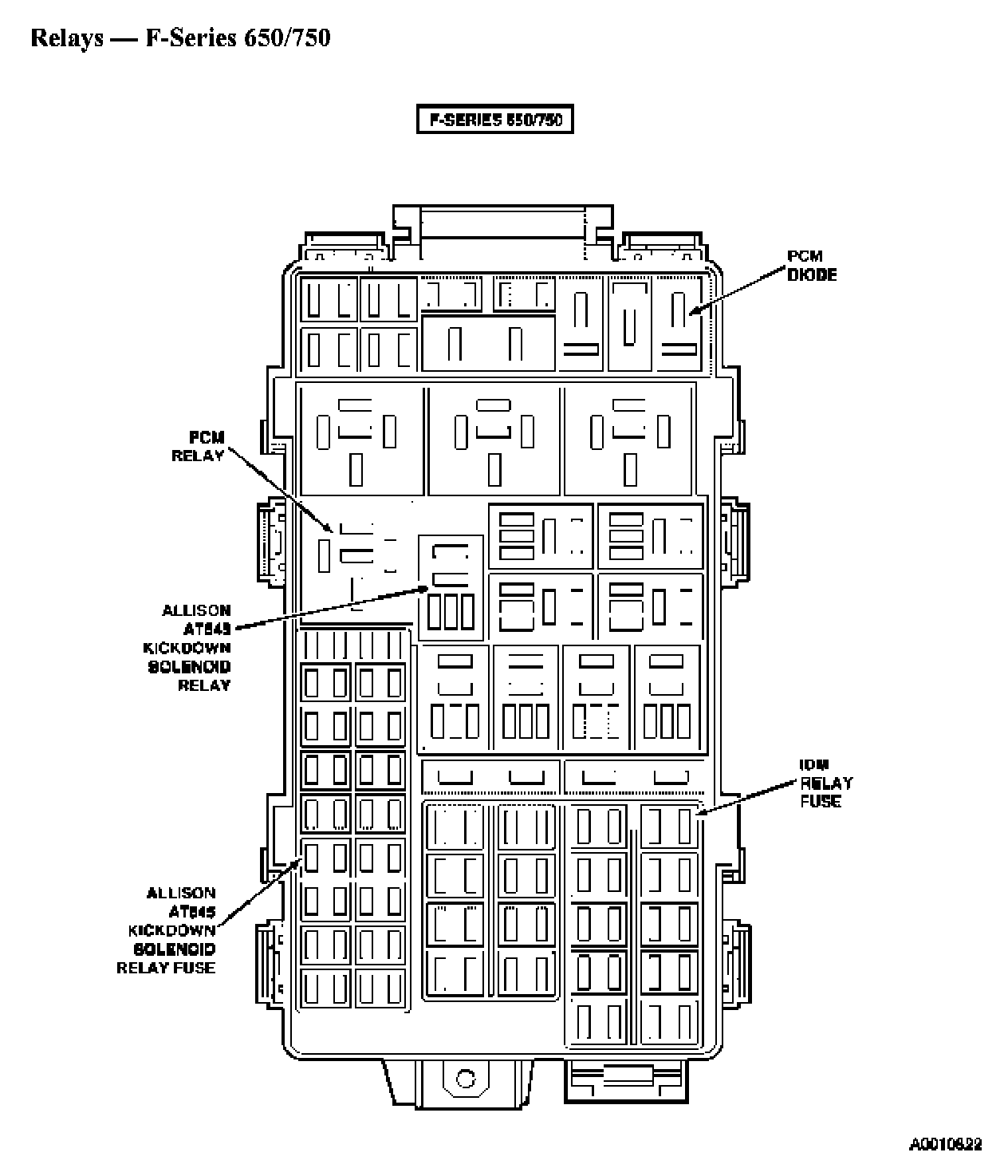

Component Location 7 Of 8:

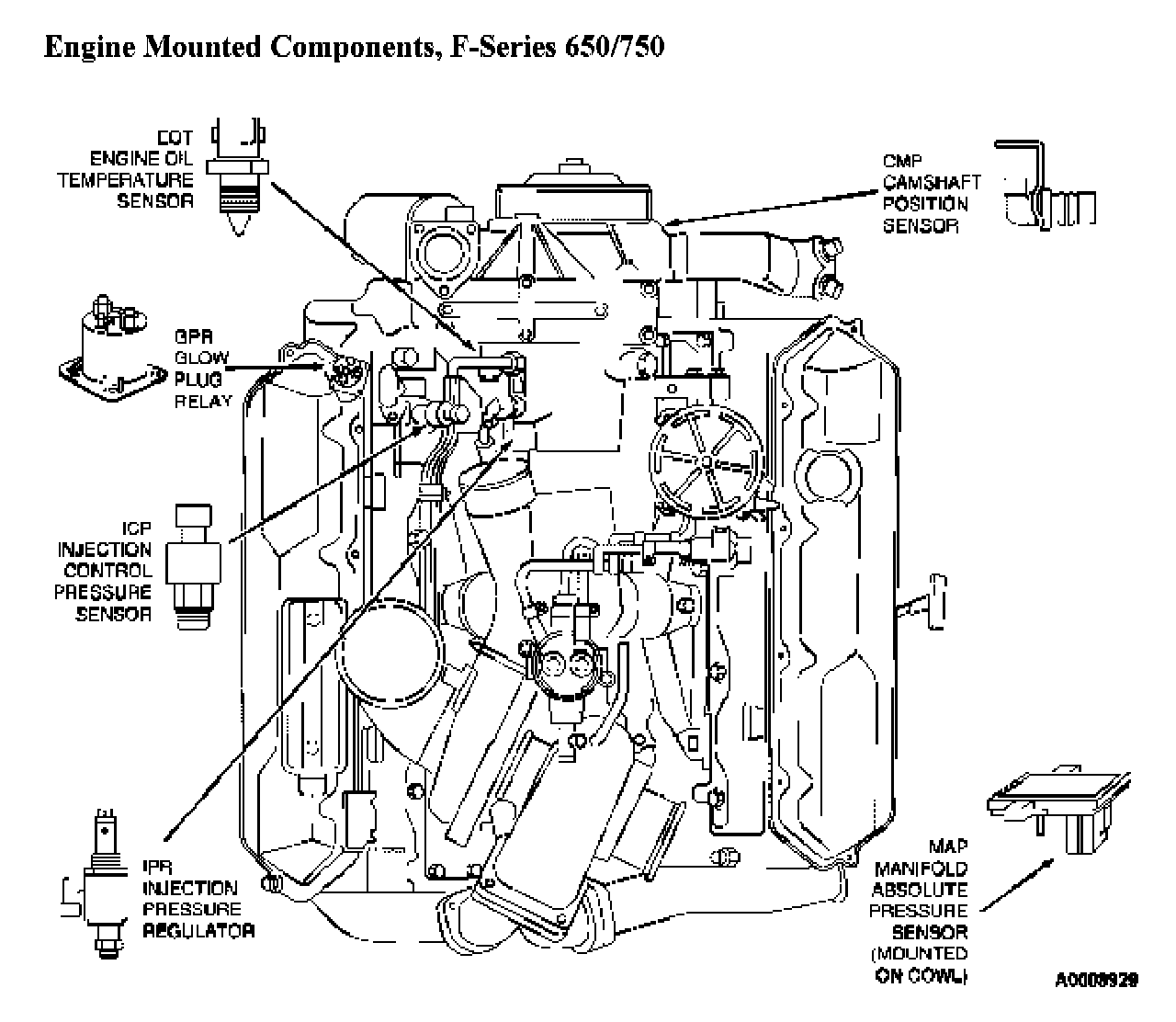

Component Location 8 Of 8:
