Torque Specifications

Torque Specifications

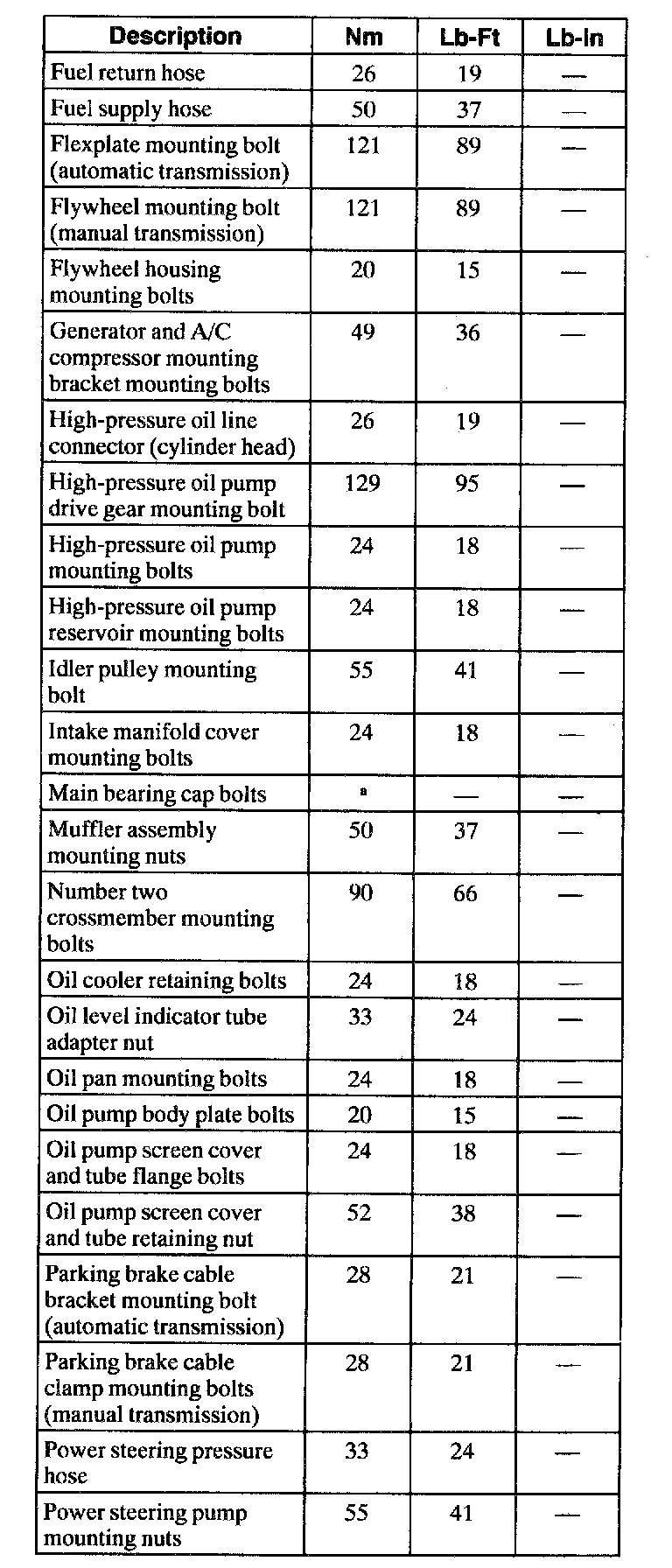

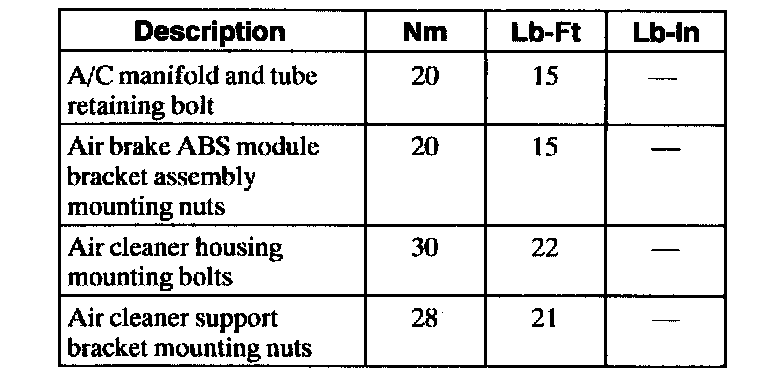

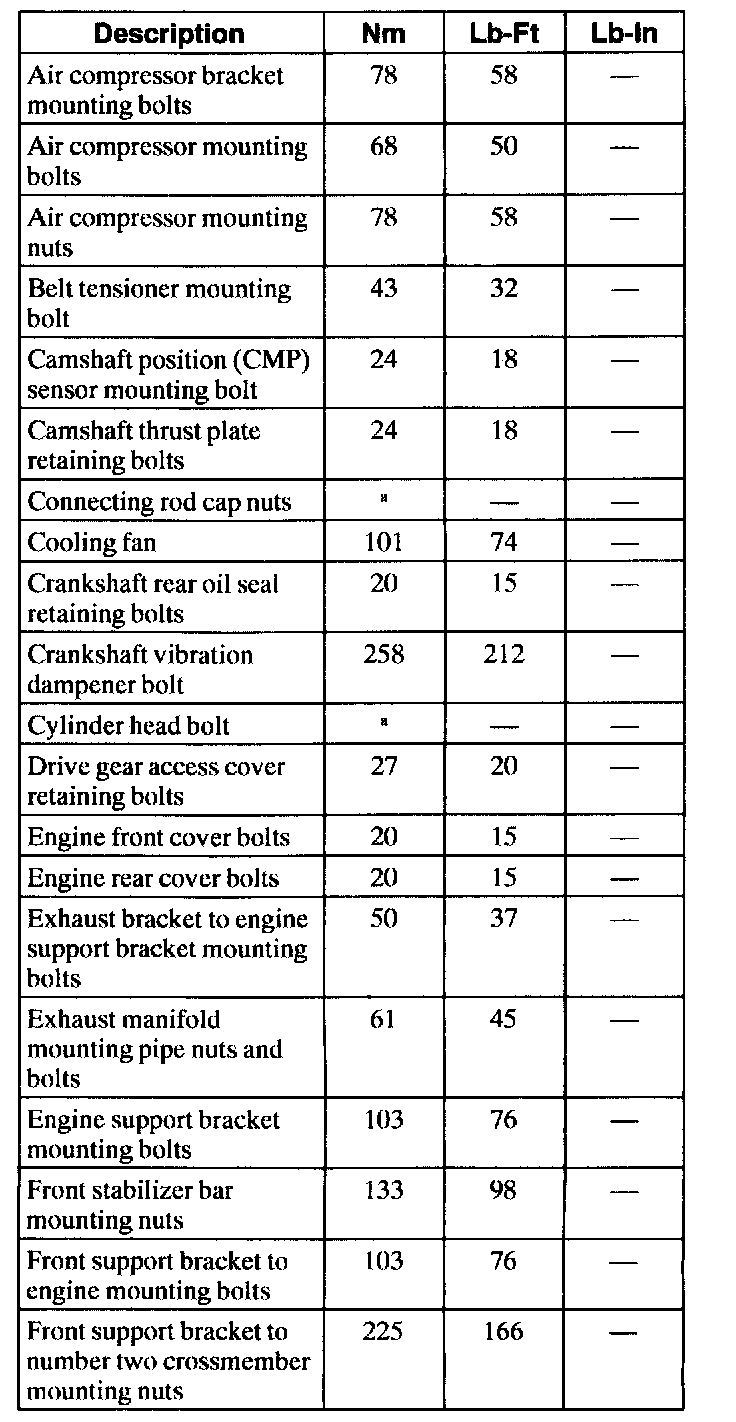

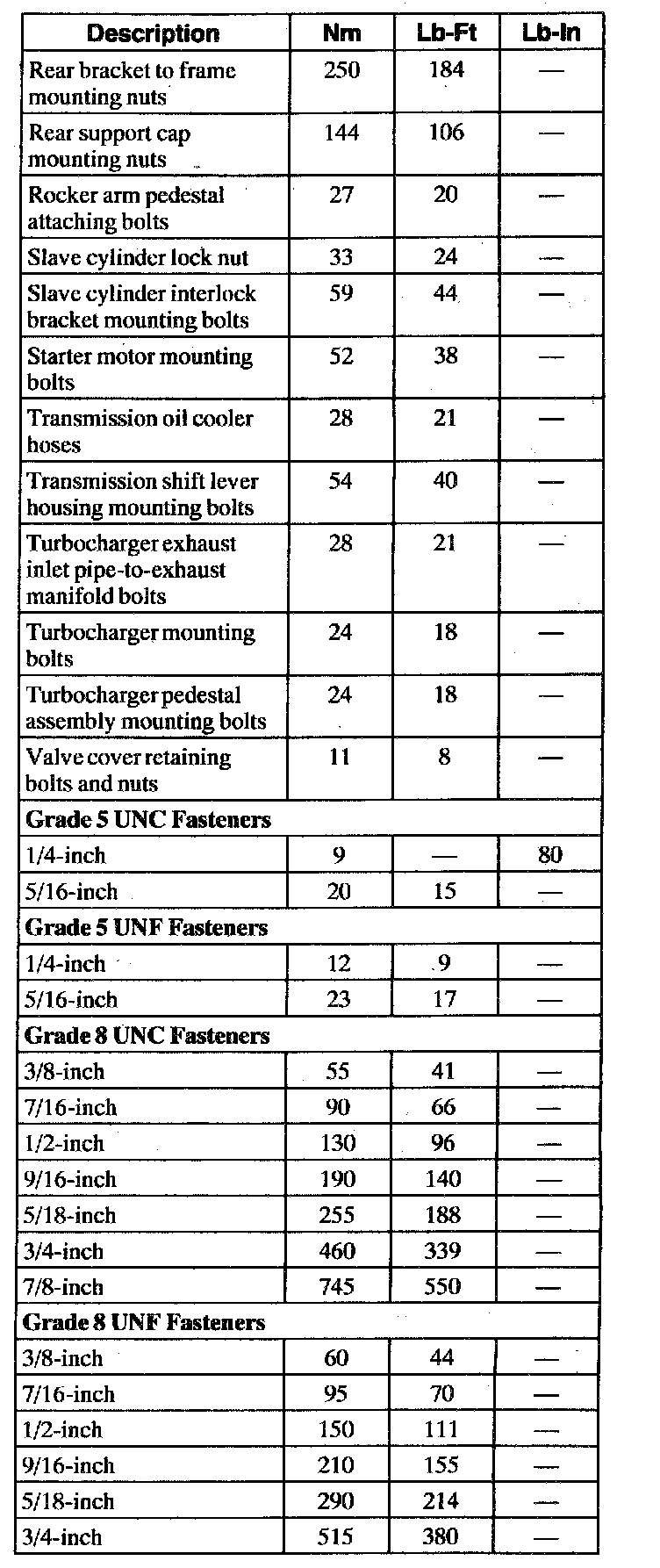

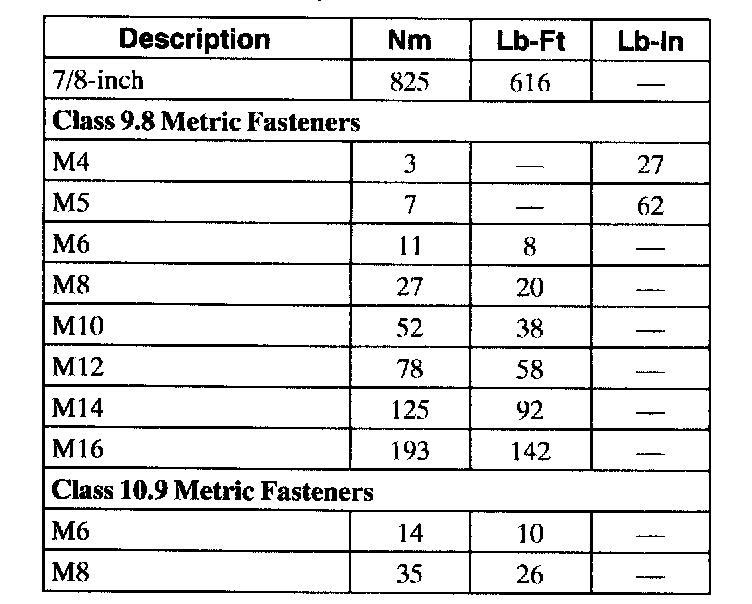

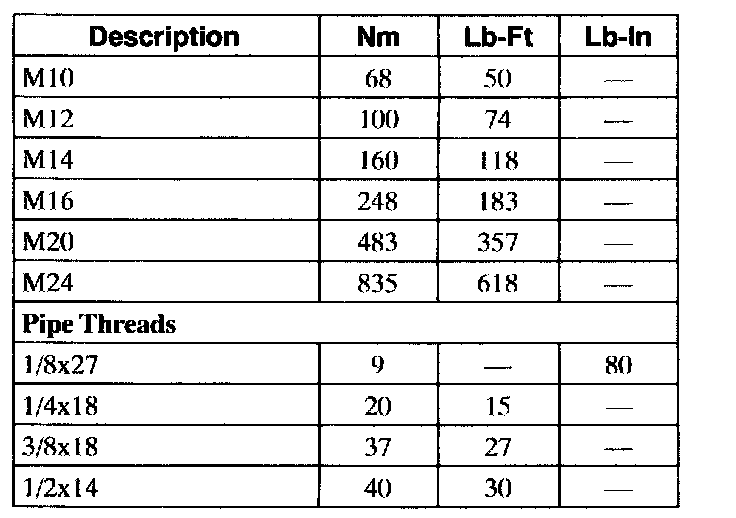

Part 1 of 6





Part 2 of 6





Part 3 of 6





Part 4 of 6





Part 5 of 6





Part 6 of 6

Footnotes:

a - Refer to the applicable service and repair procedure for tightening specification and/or sequence.
