Tests DB: Engine Fuel Temperature (EFT) Sensor

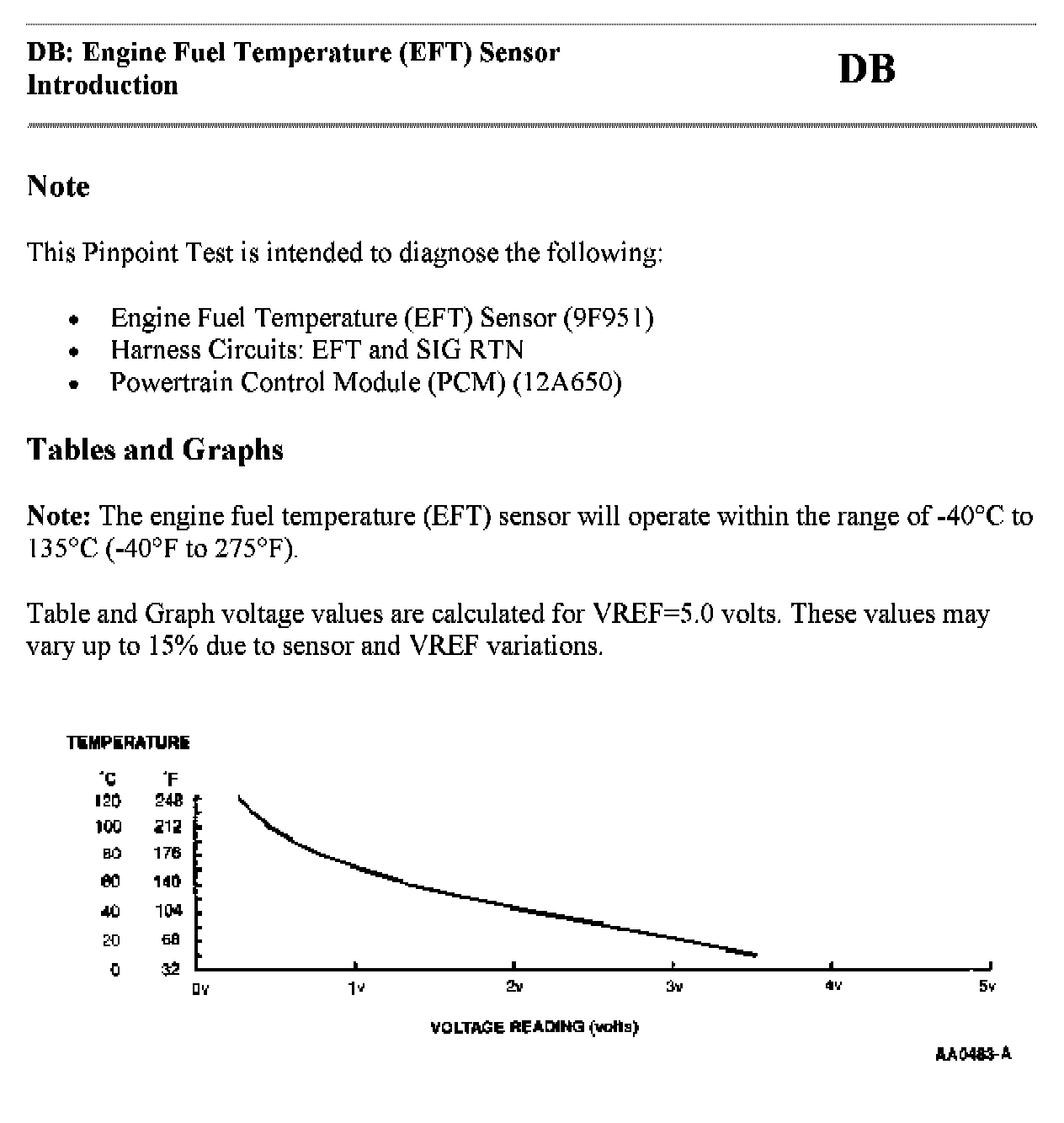

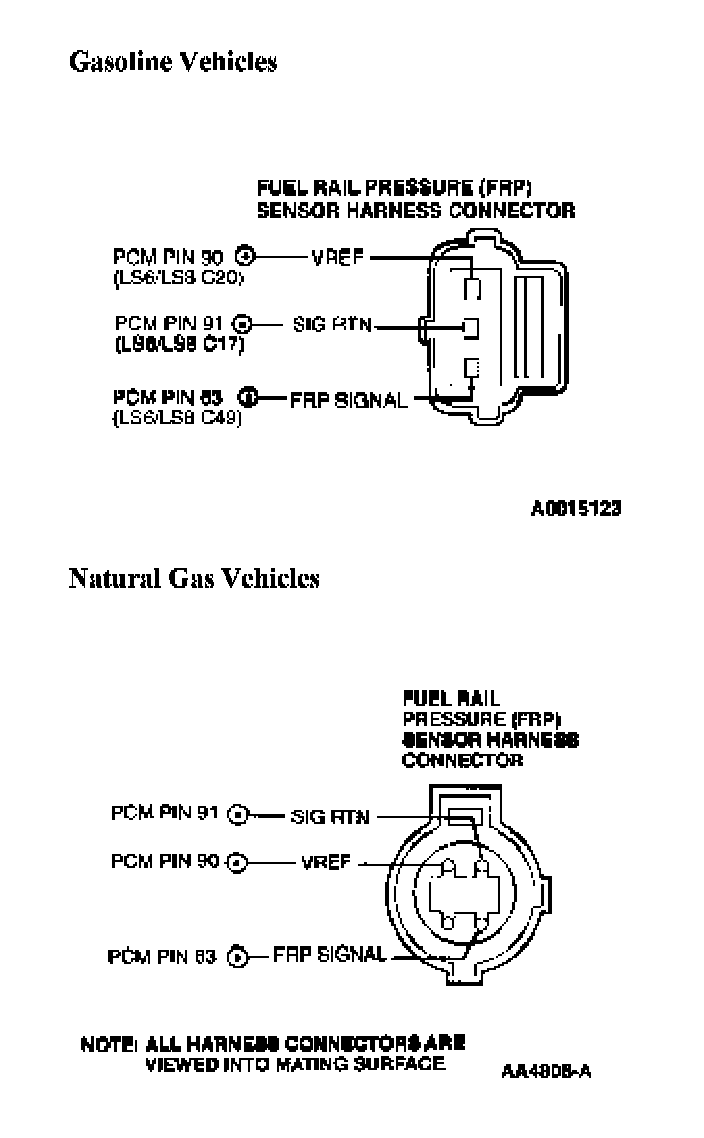

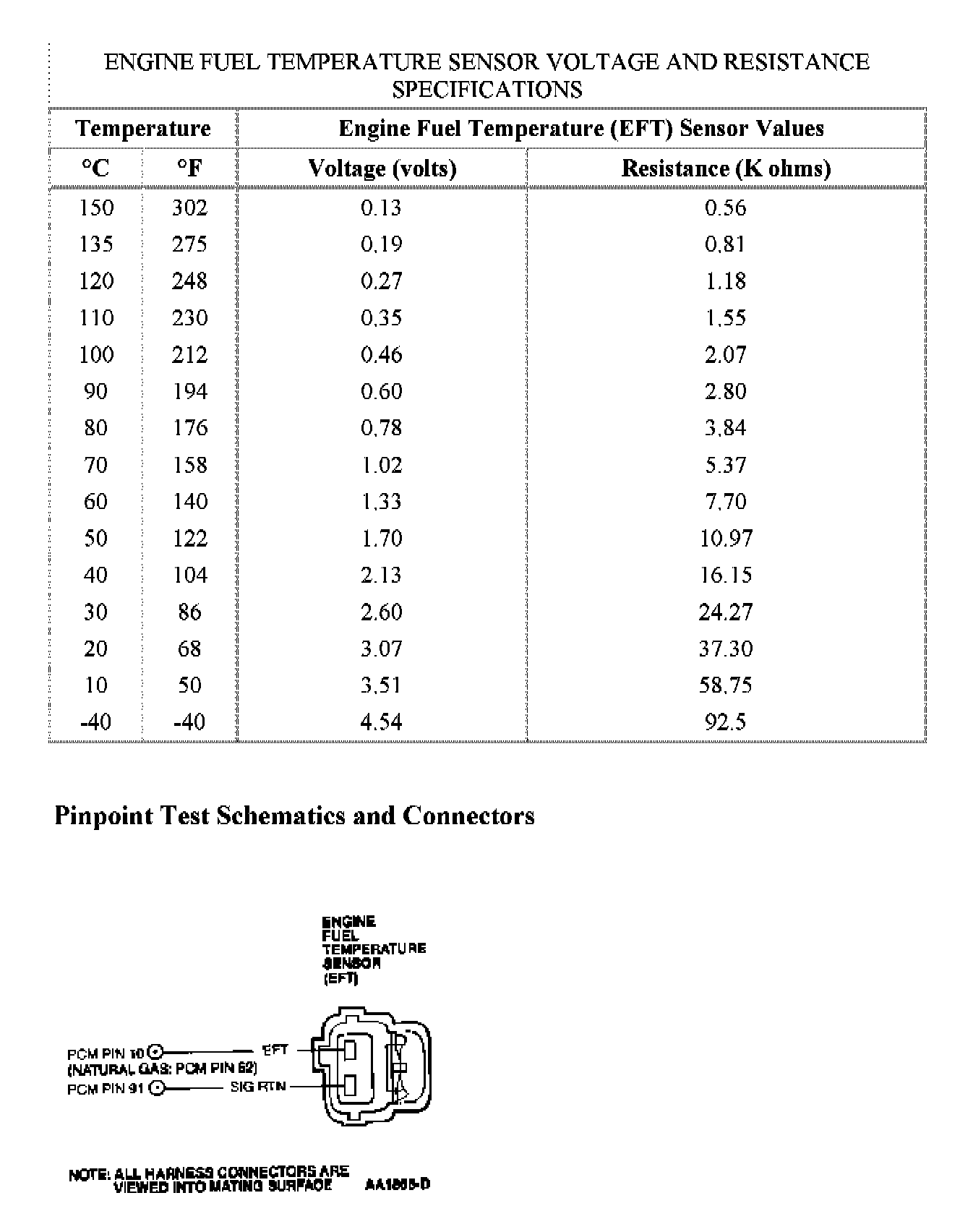

DB INTRODUCTION:

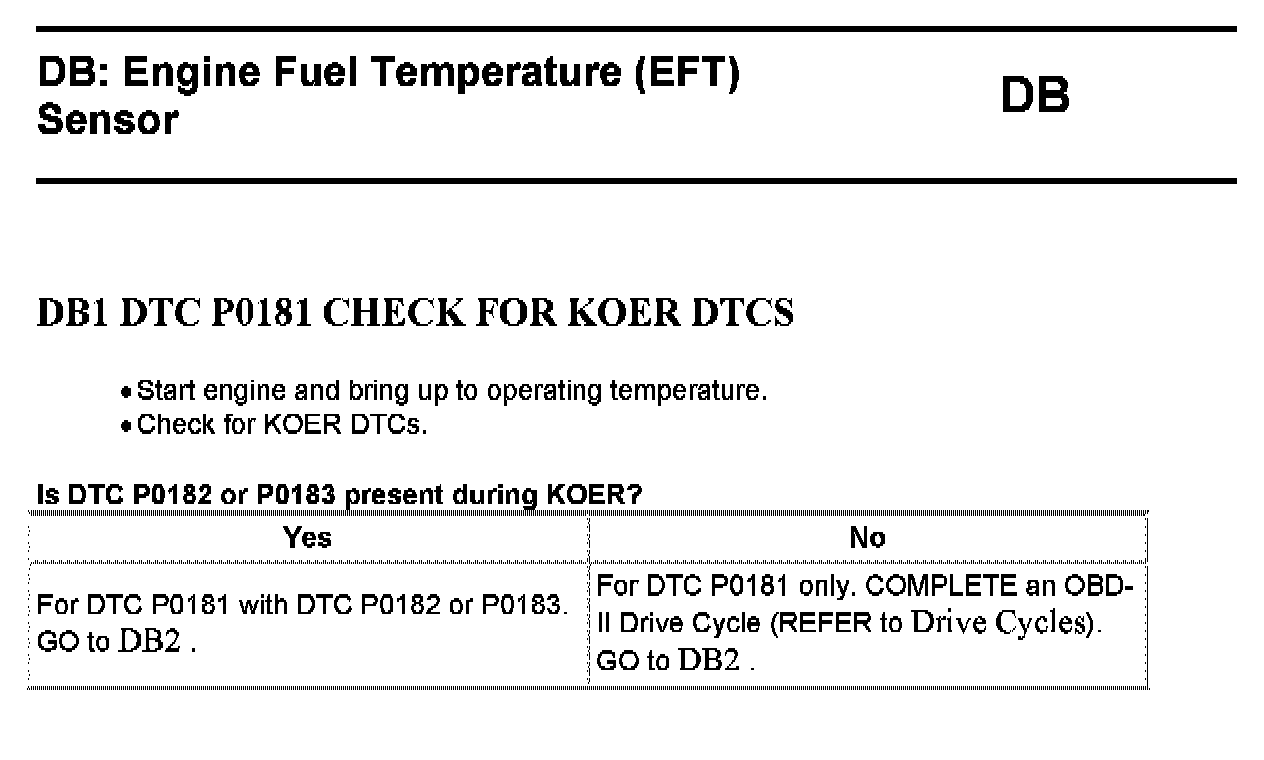

DB1:

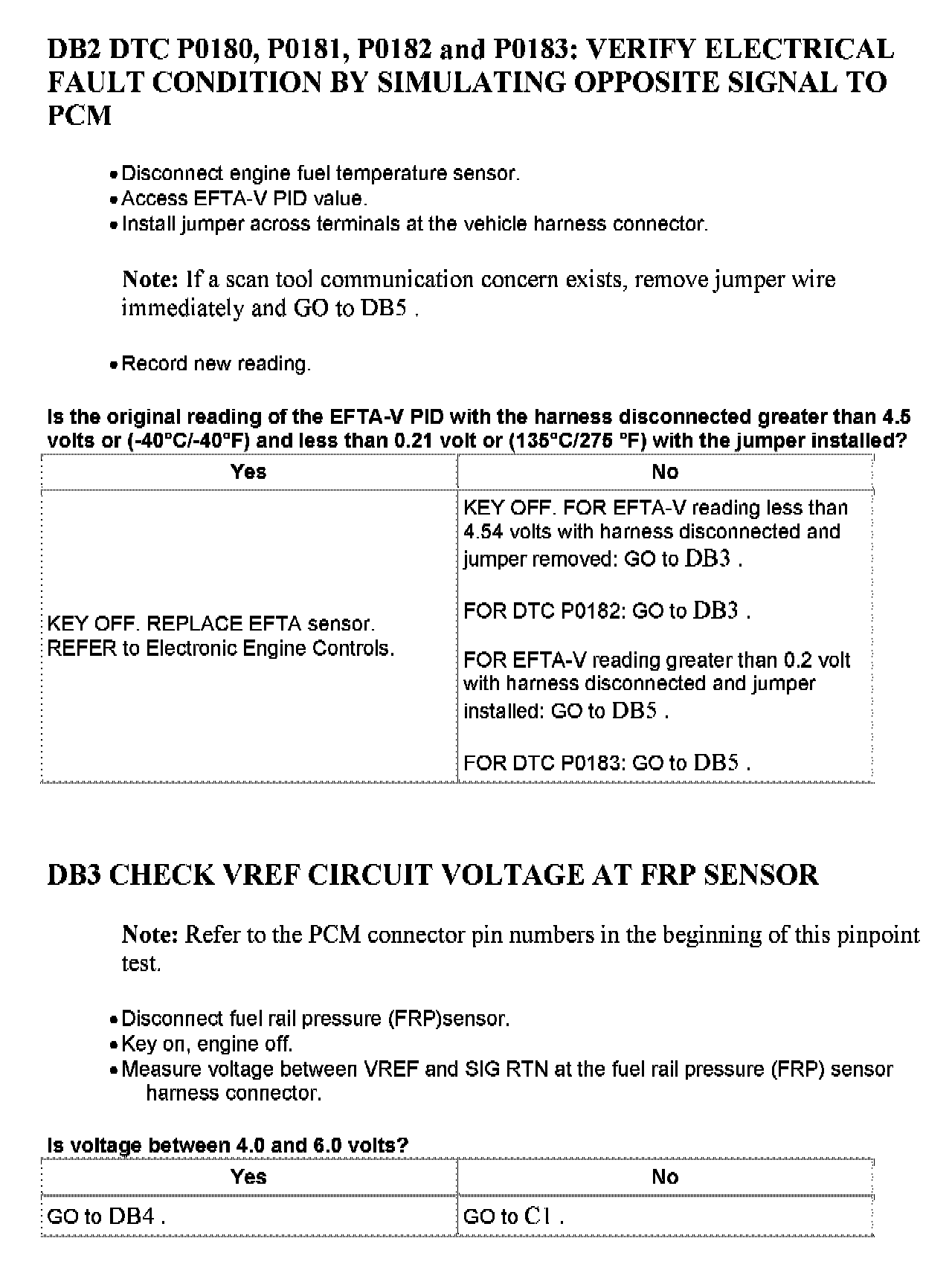

DB2 - DB3:

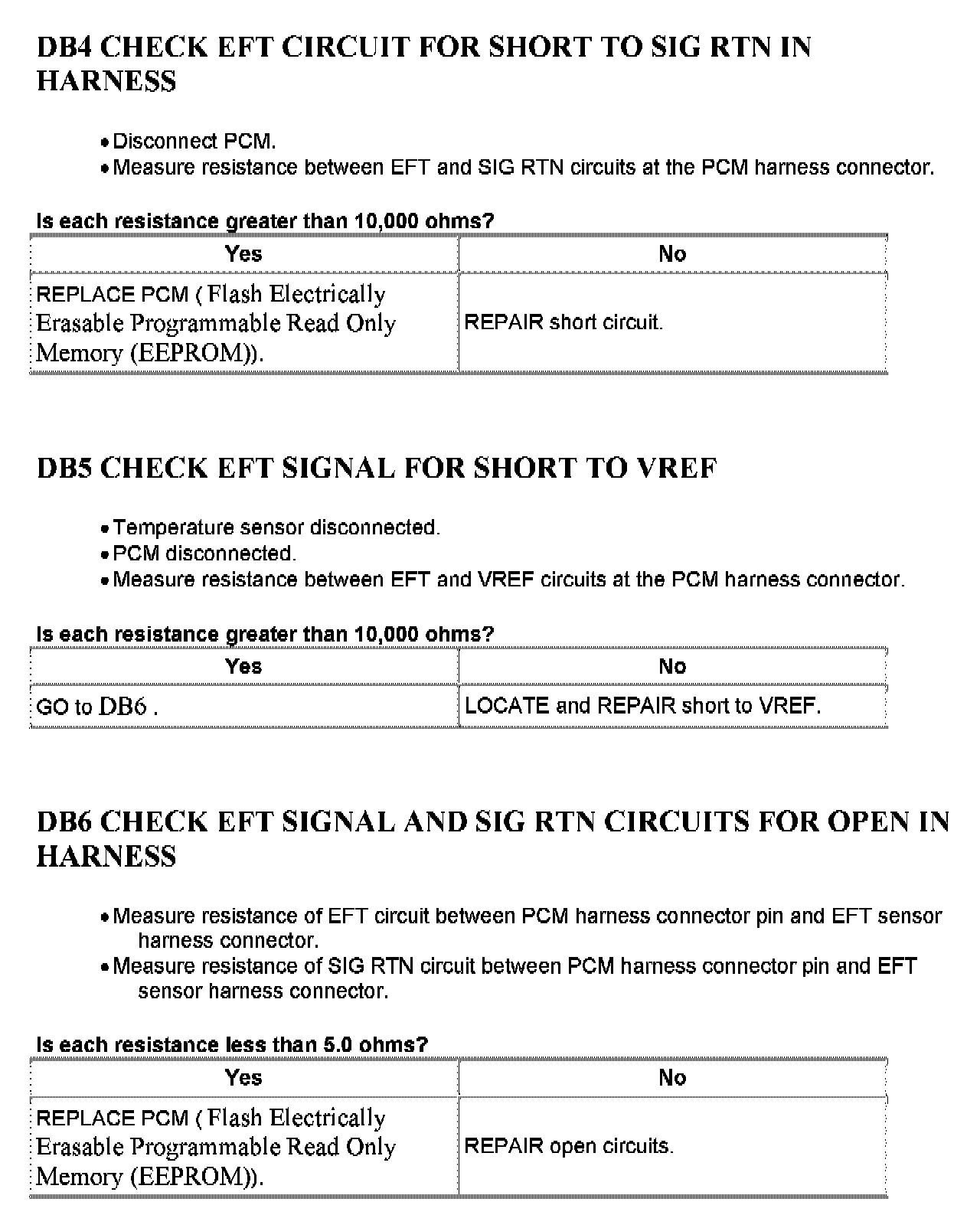

DB4 - DB6:

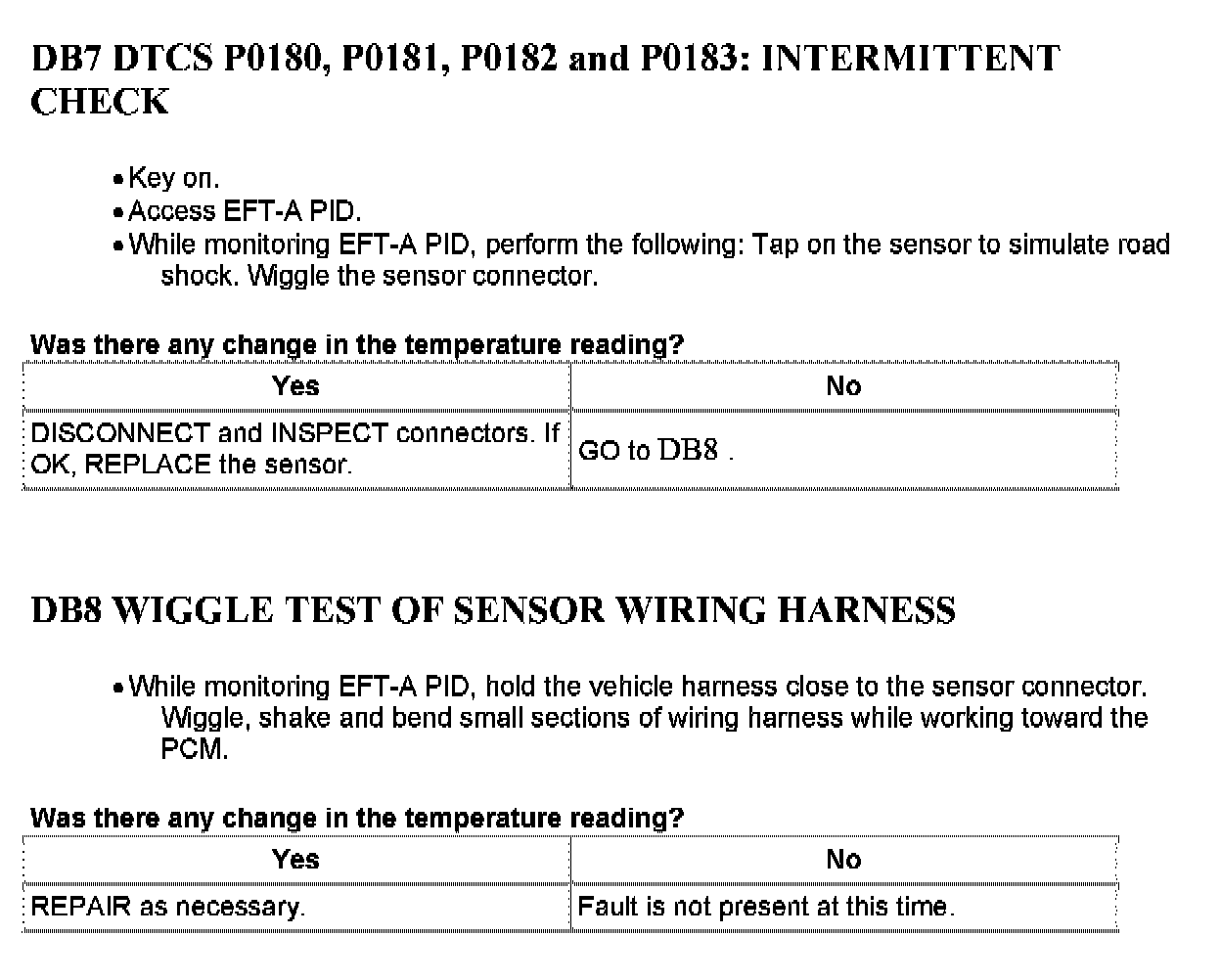

DB7 - DB8:
