Tests DH: Throttle Position (TP) Sensor

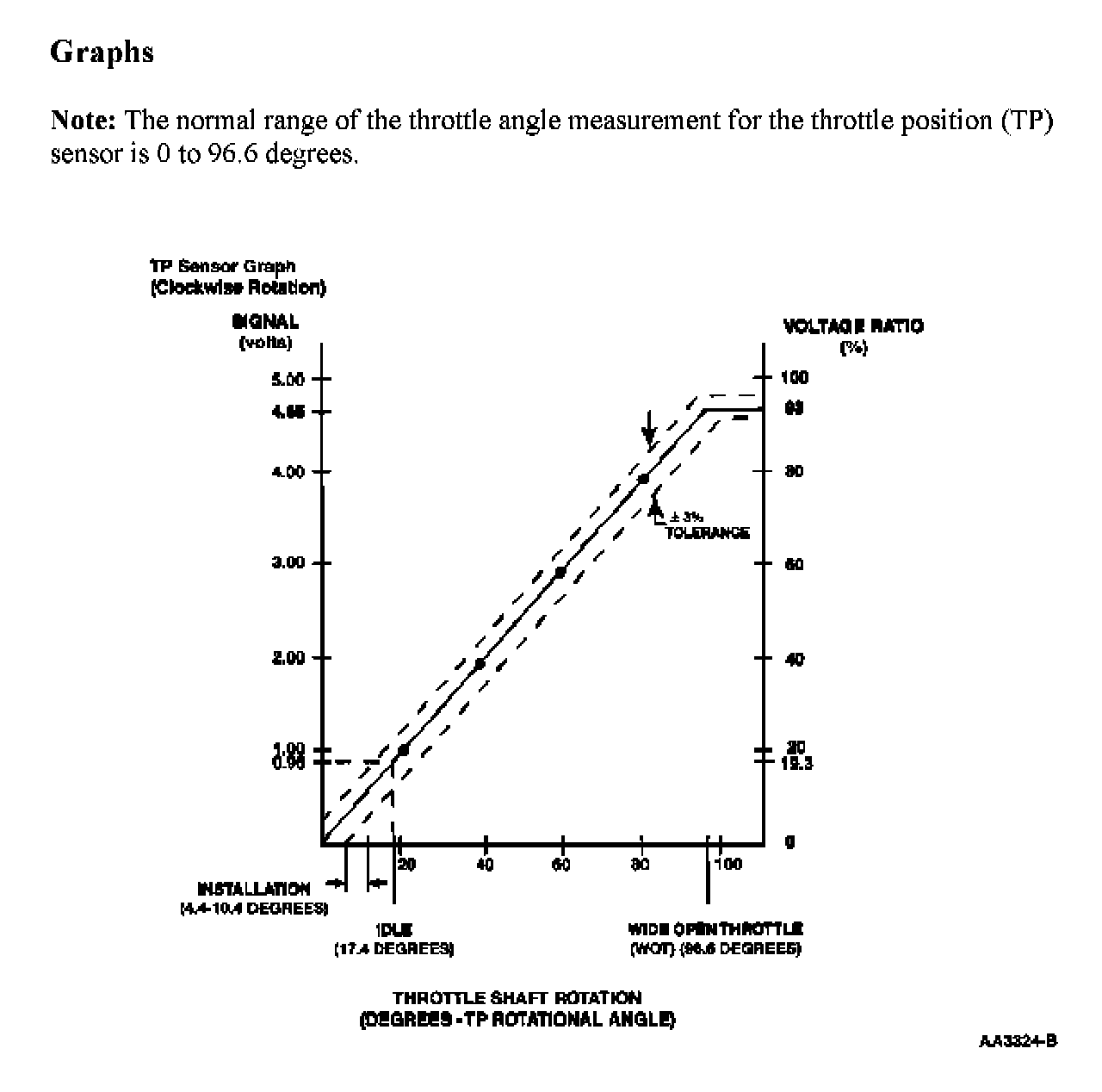

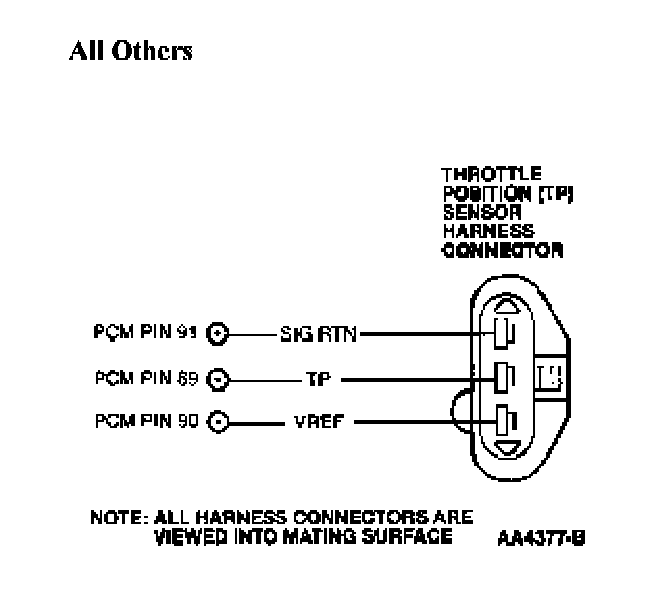

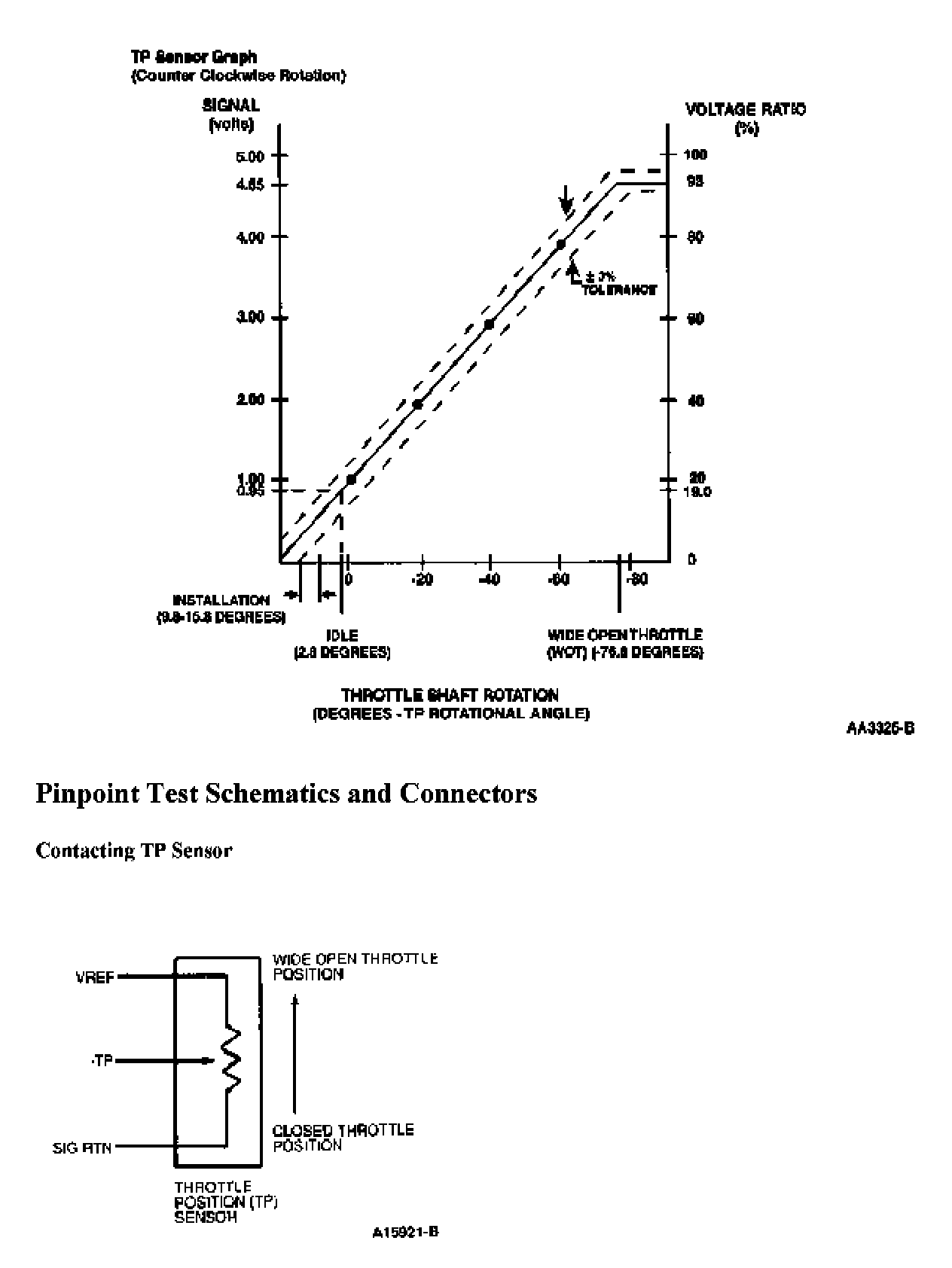

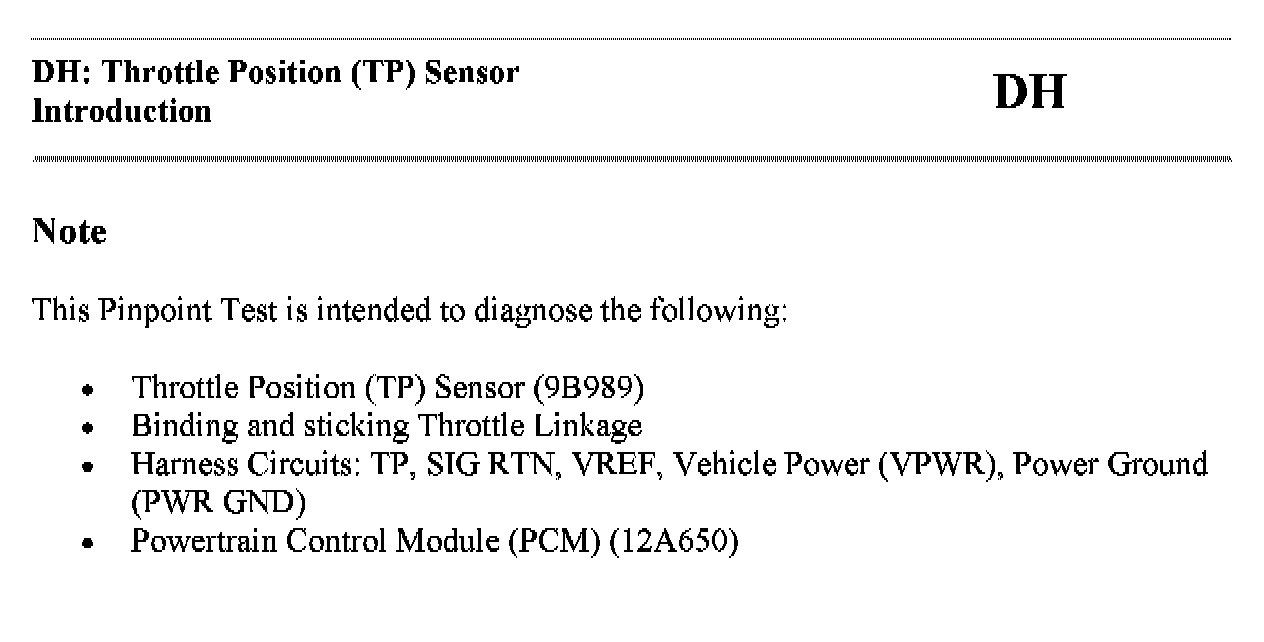

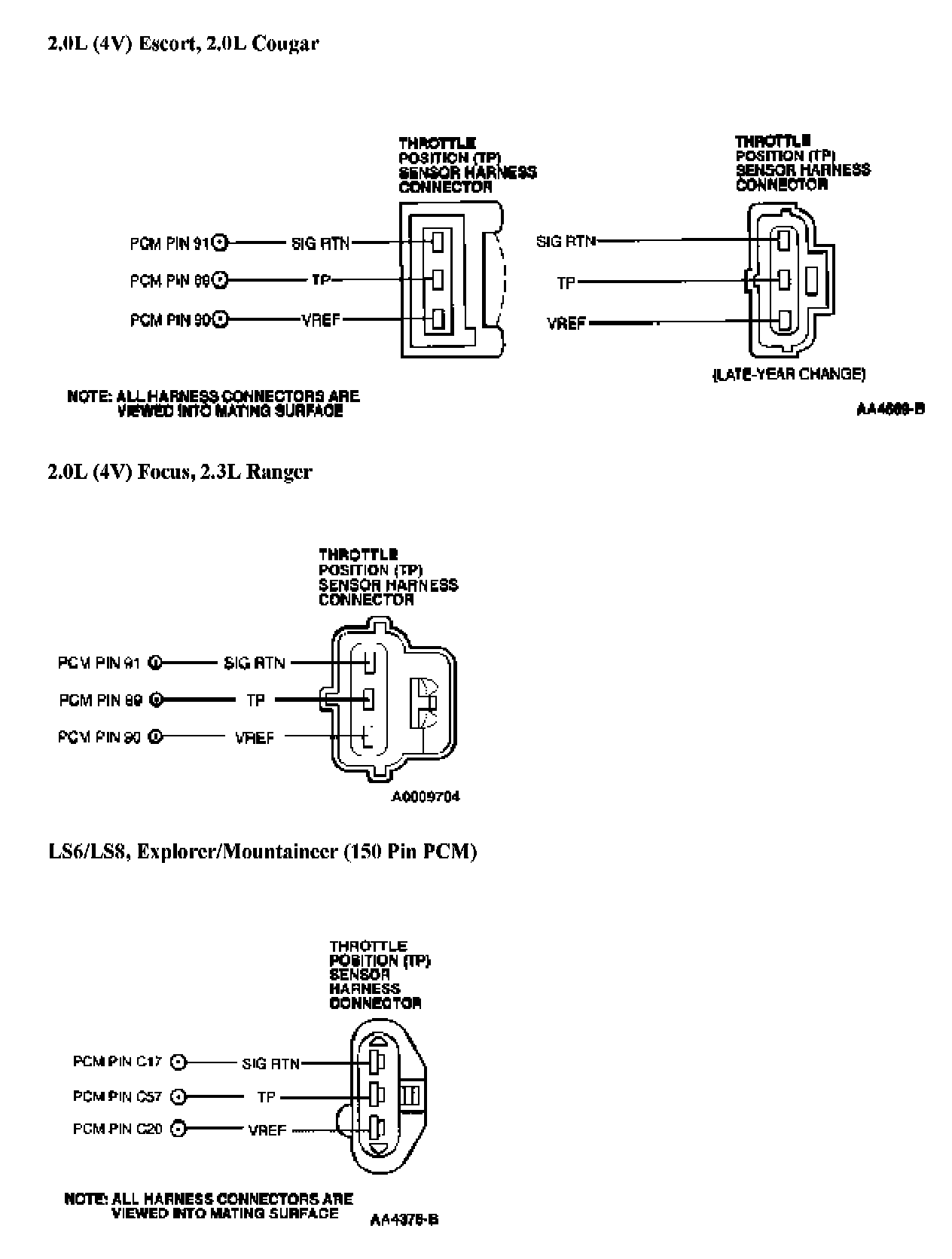

DH INTRODUCTION:

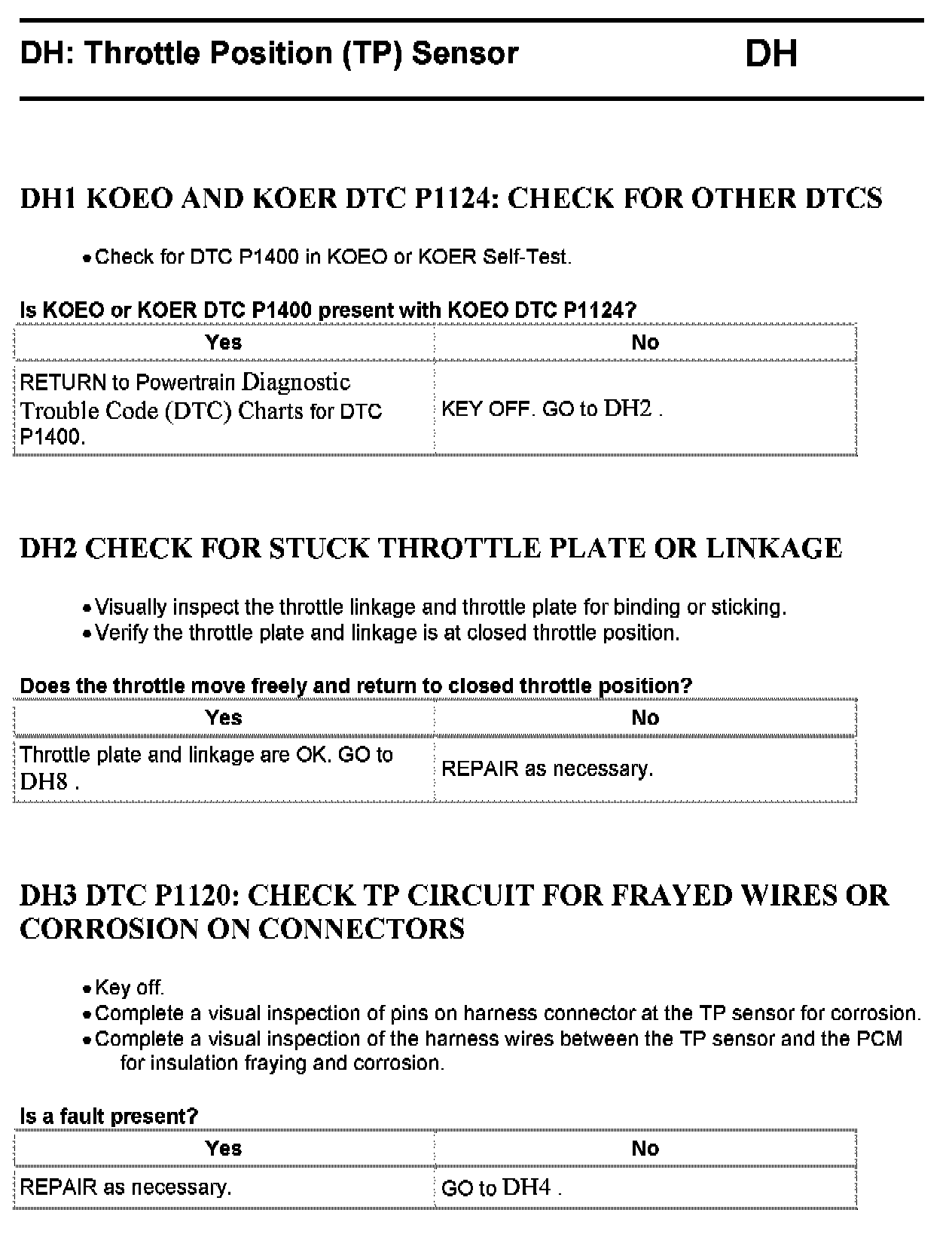

DH1 - DH3:

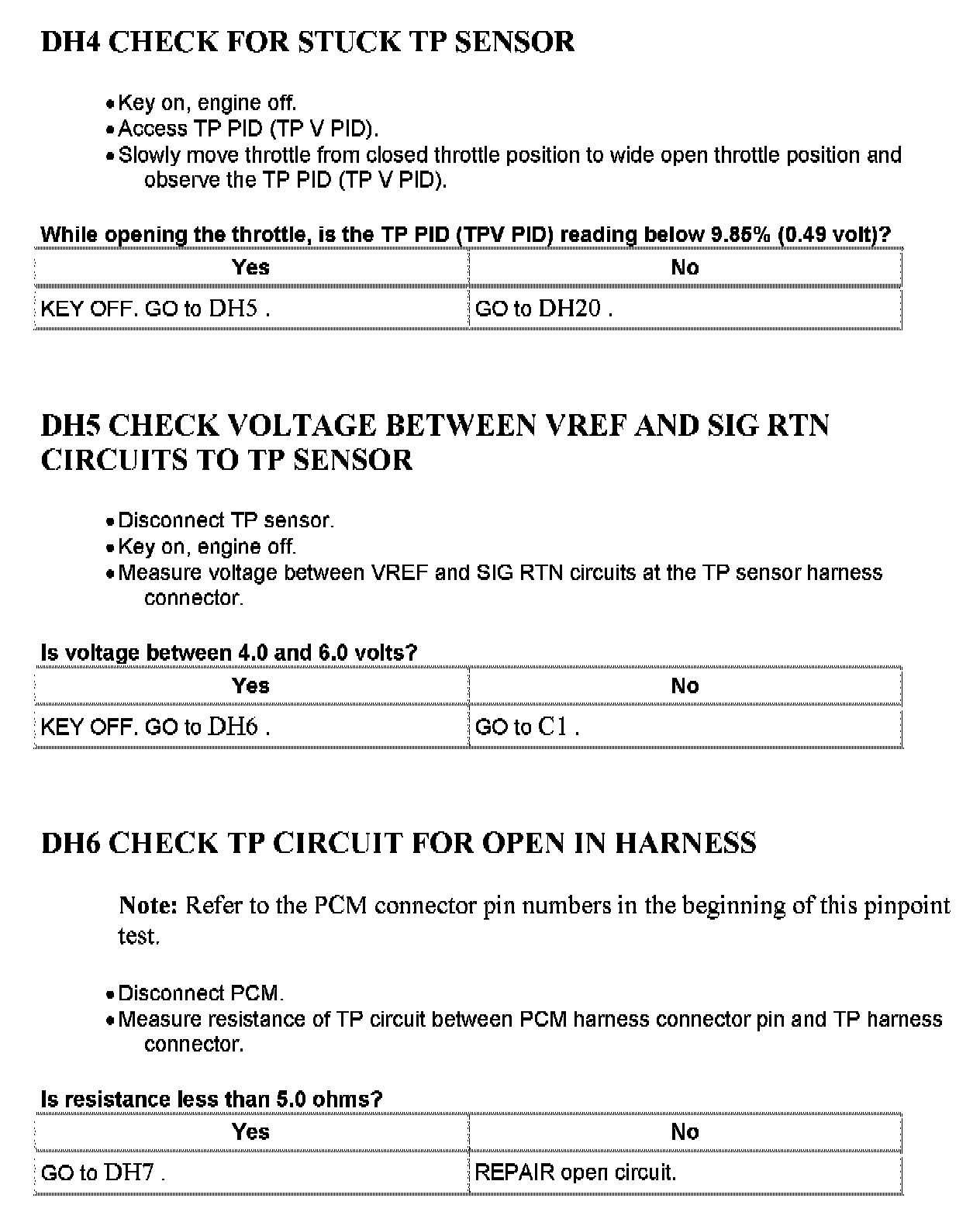

DH4 - DH6:

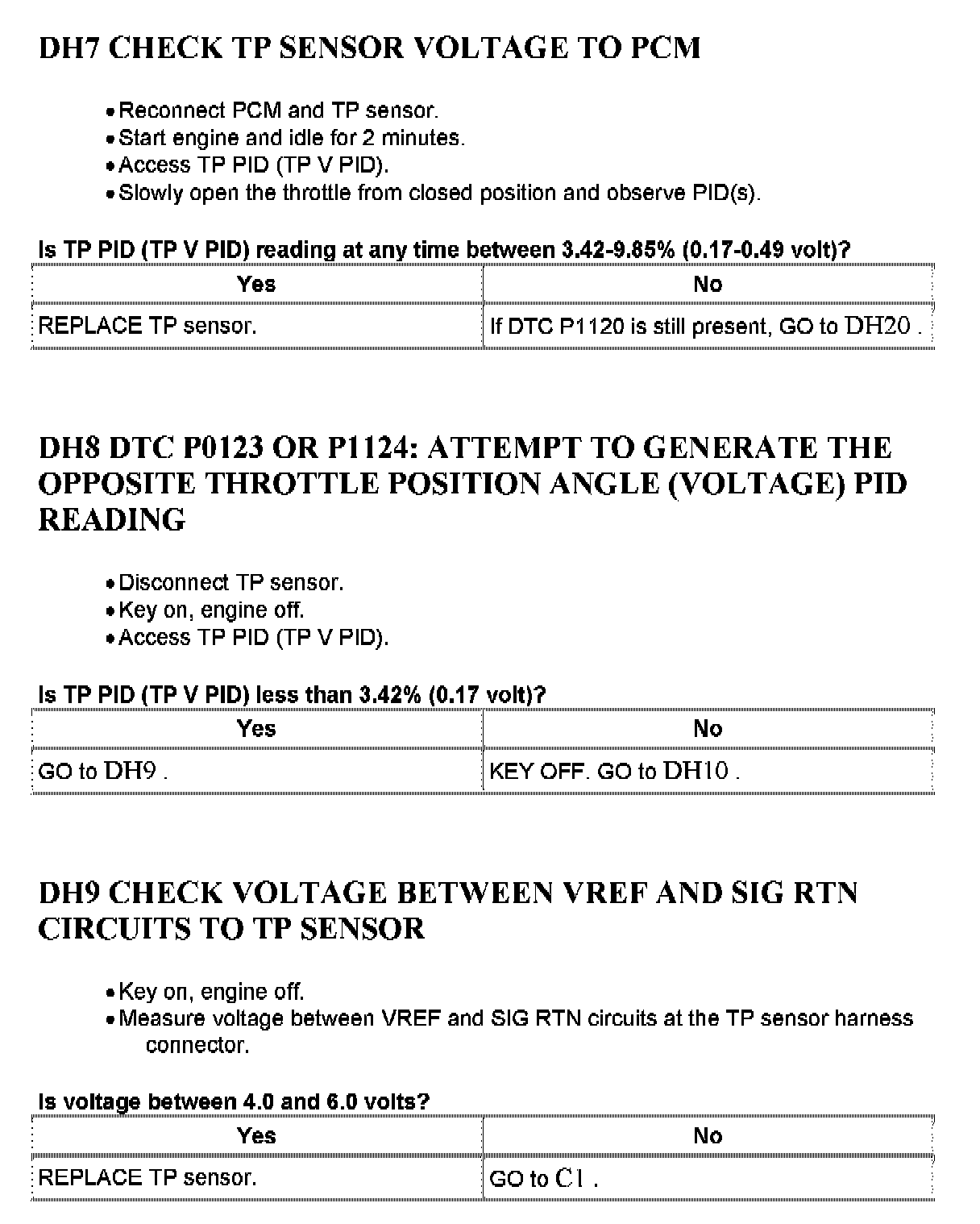

DH7 - DH9:

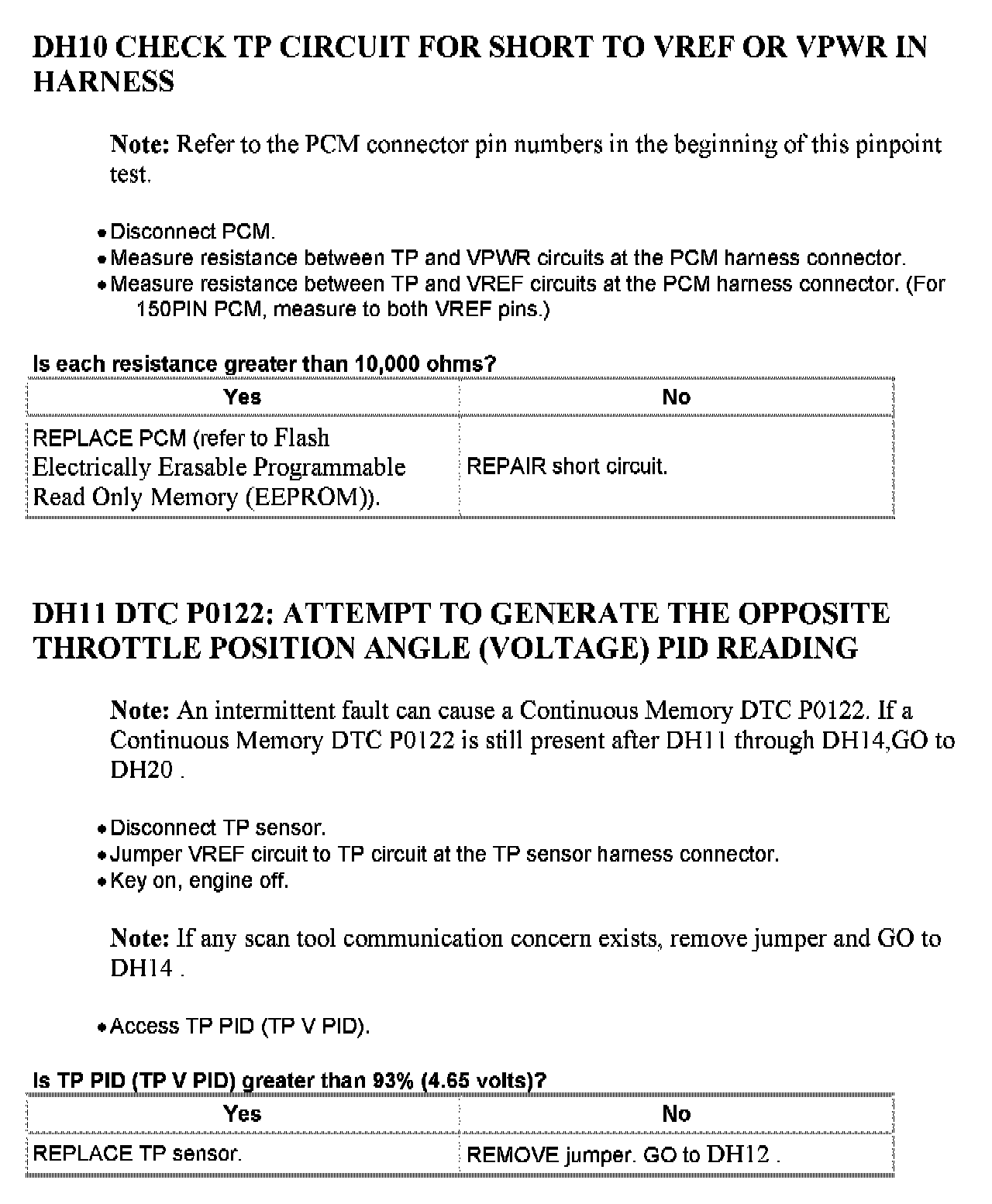

DH10 - DH11:

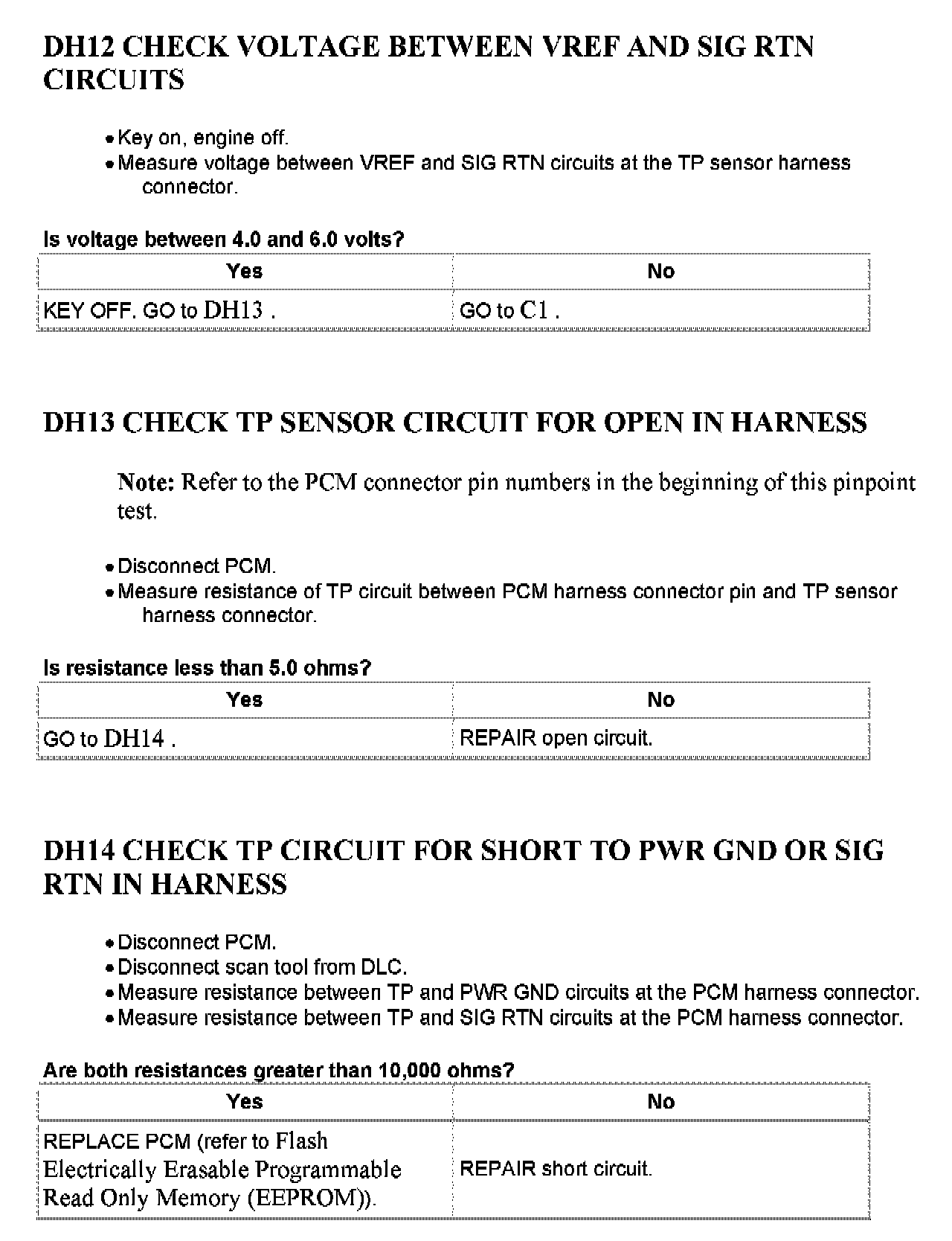

DH12 - DH14:

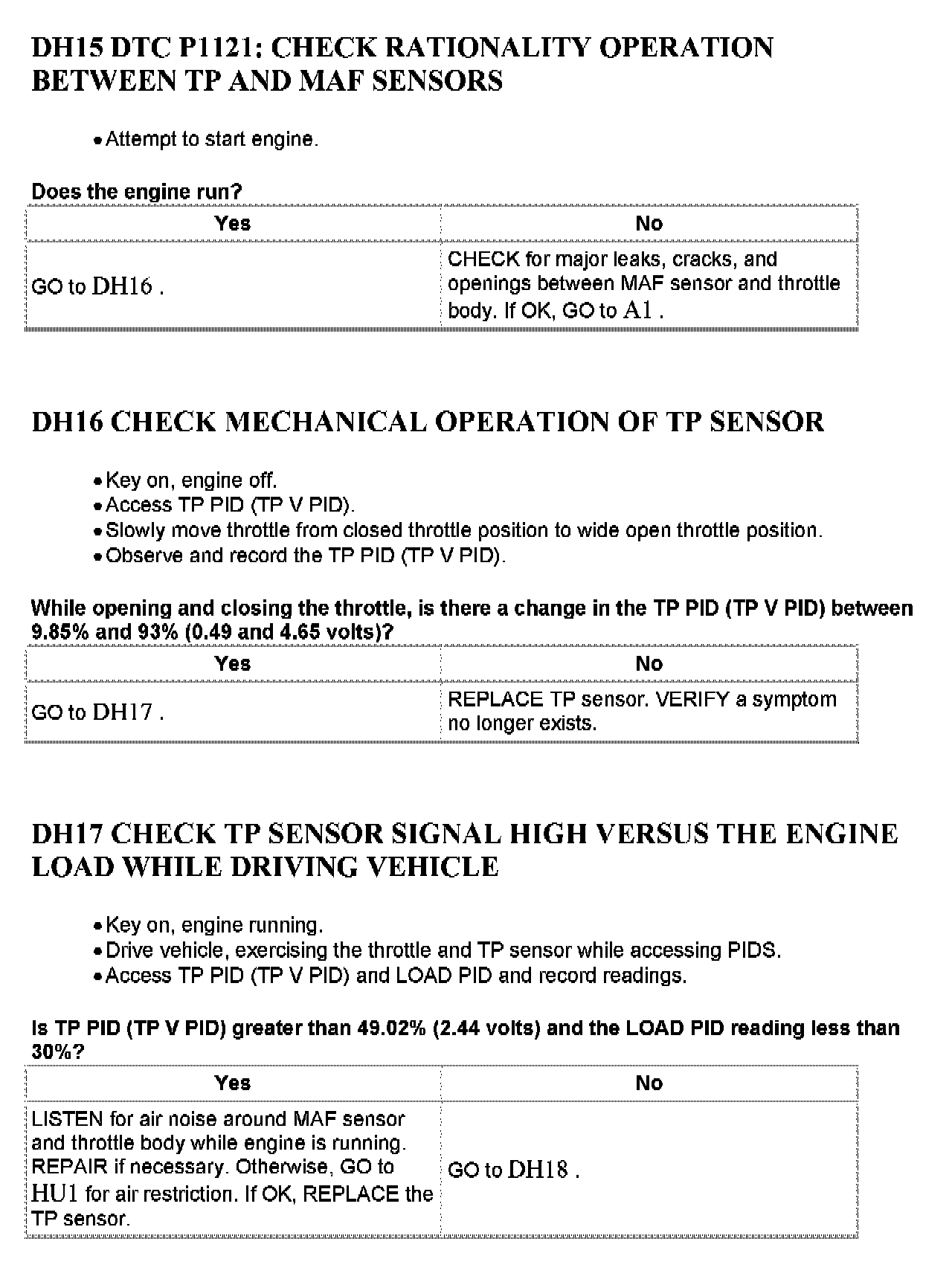

DH15 - DH17:

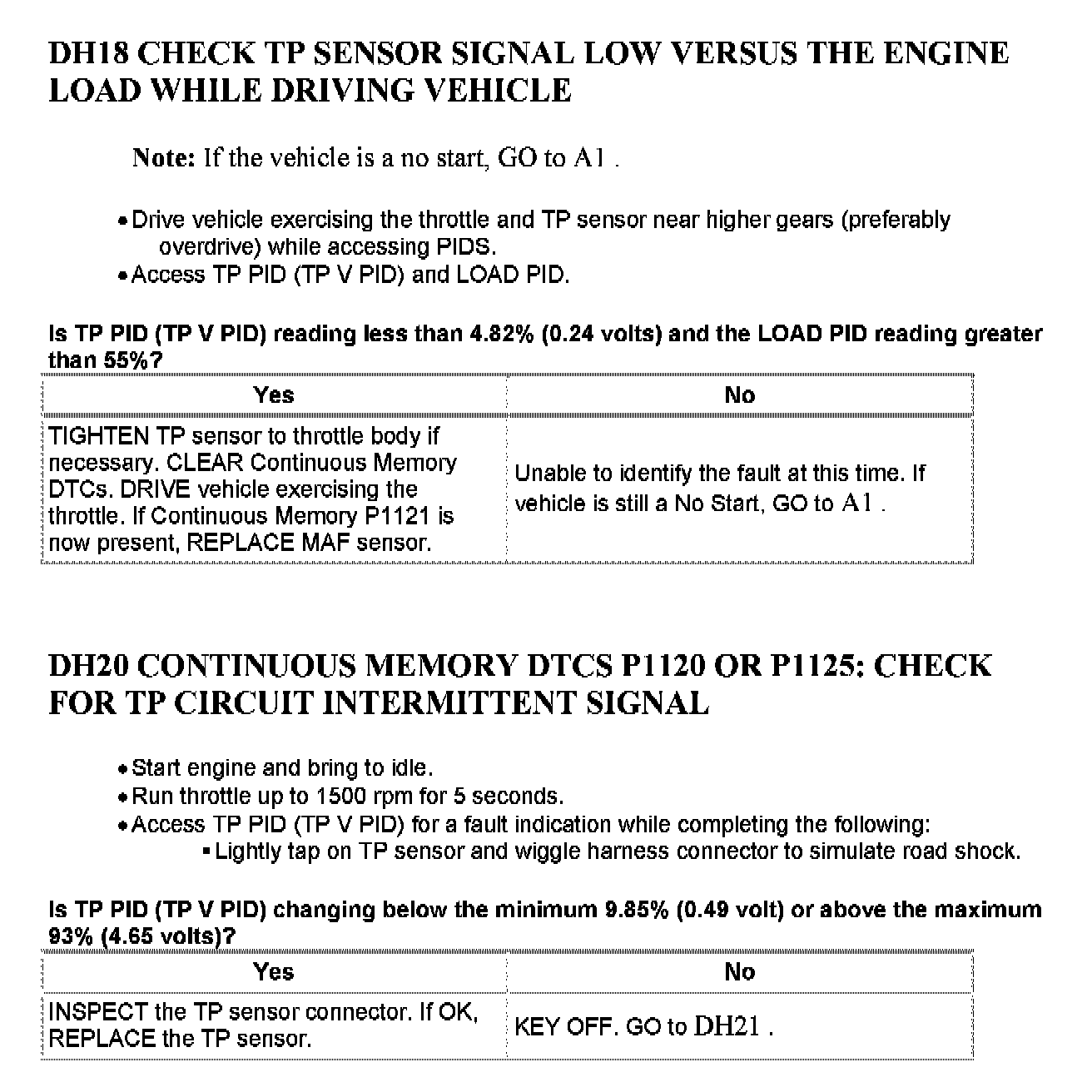

DH18 - DH20:

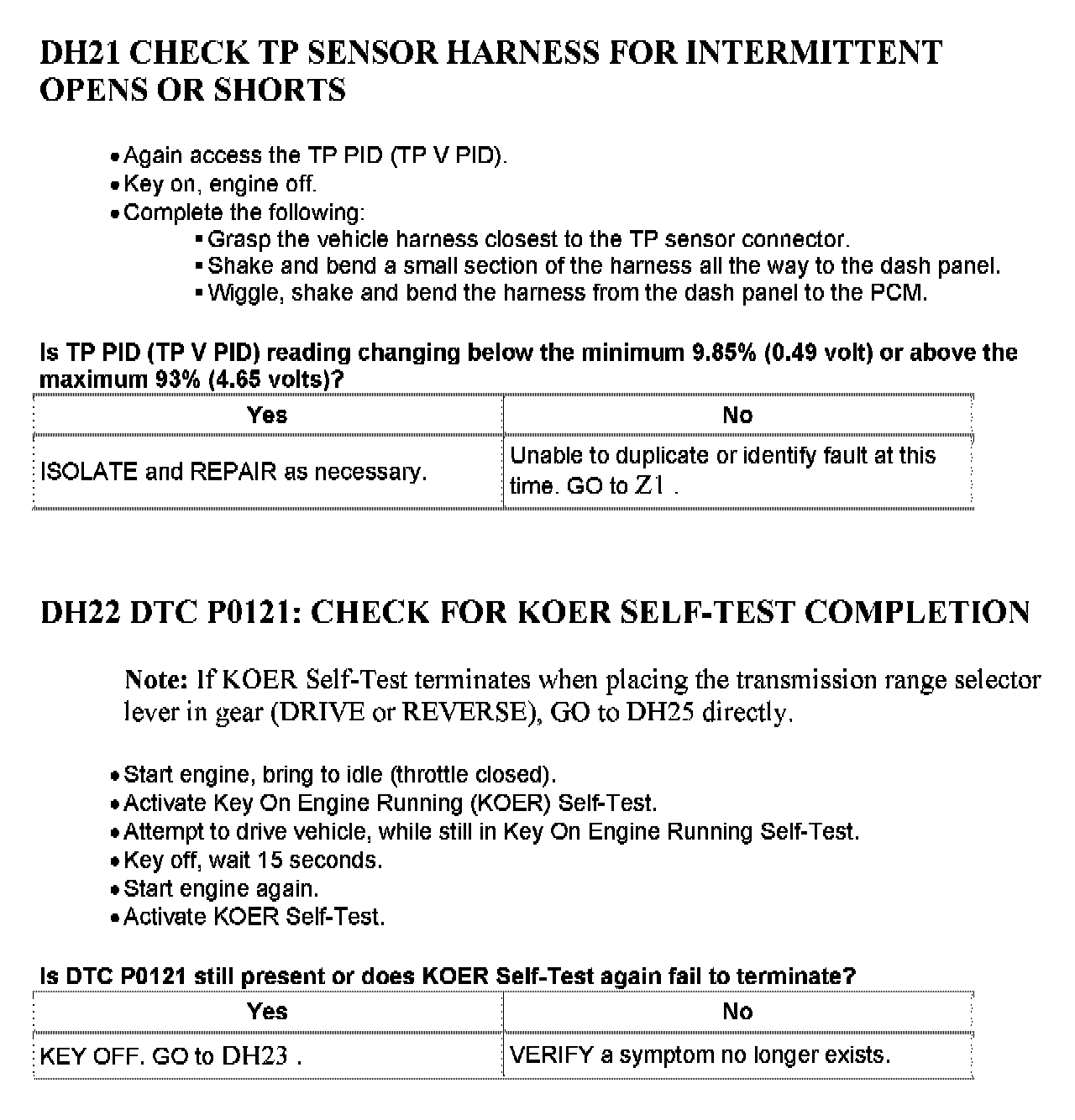

DH21 - DH22:

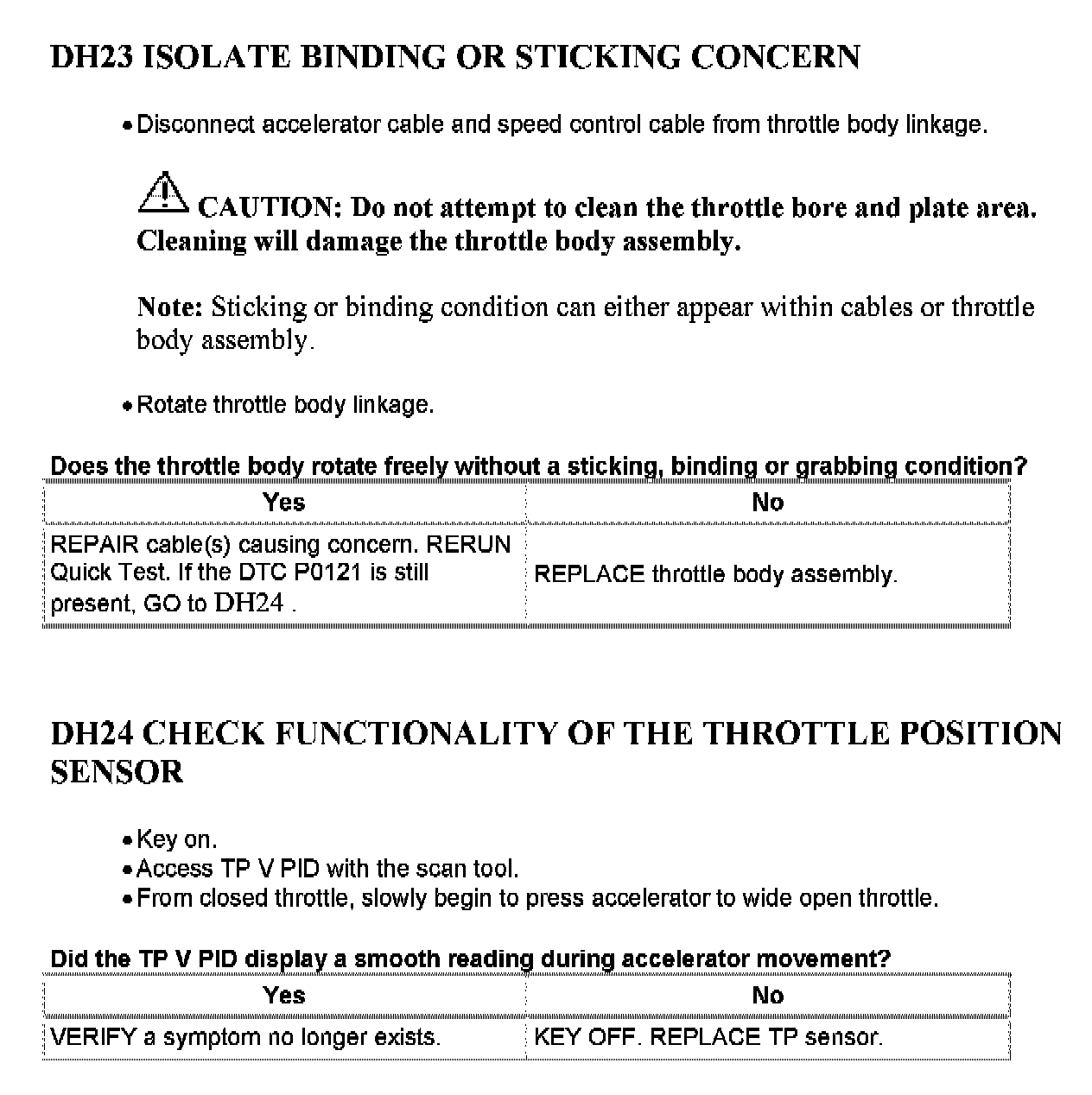

DH23 - DH24:

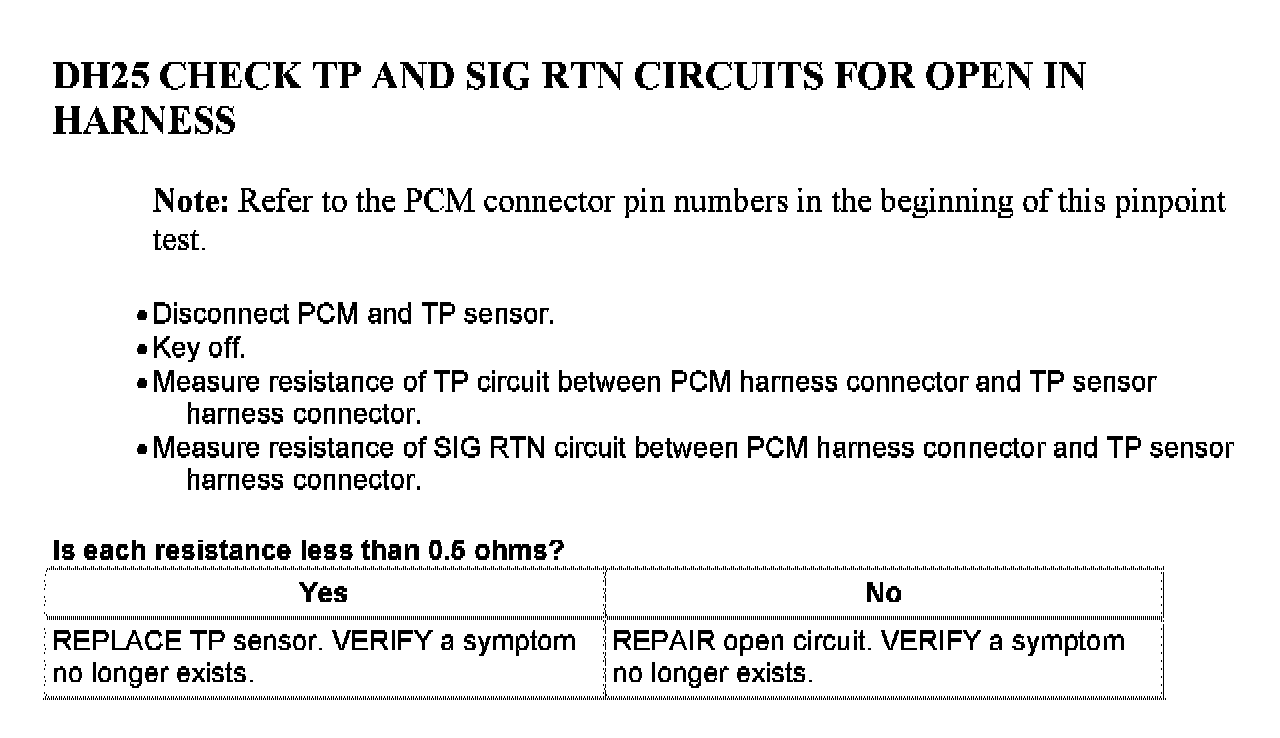

DH25:
