Torque Specifications

Torque Specifications

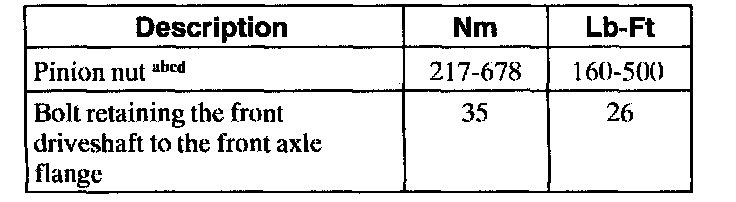

Part 1 of 2

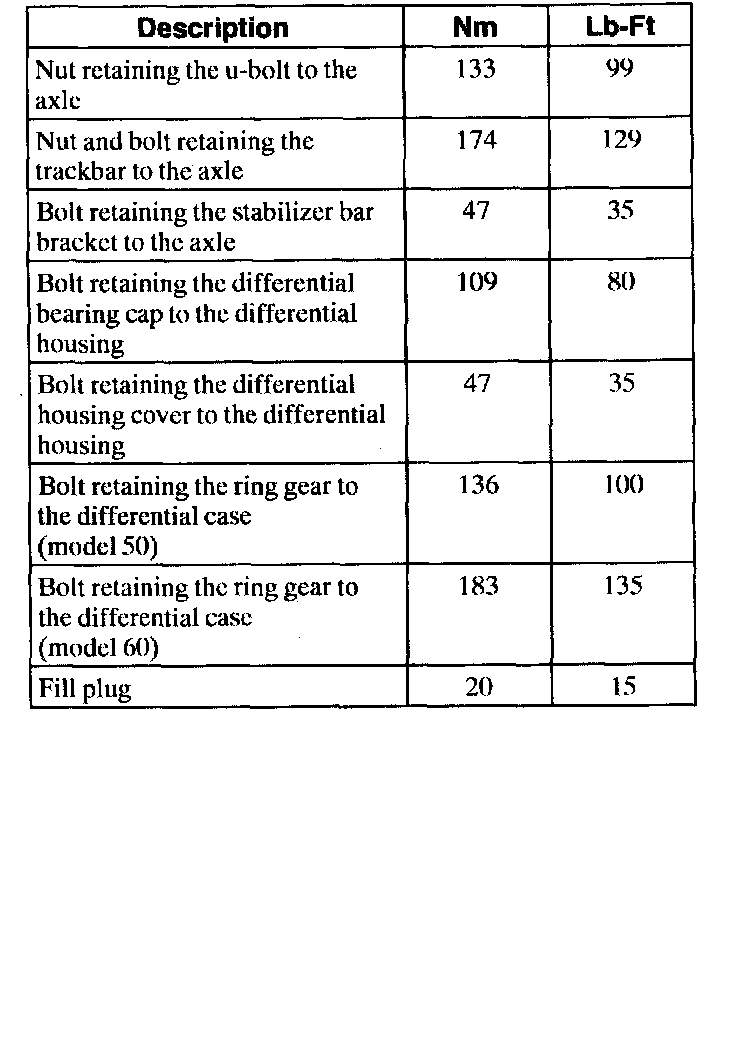

Part 2 of 2

a Never back off the pinion nut to reduce preload. If preload reduction is necessary, install a new collapsible spacer and pinion nut.
b Take frequent pinion bearing torque preload readings.
c For new pinion bearing installation on model 50 and 60 axles, tighten the pinion nut to a rotating torque of 1.7-3.4Nm (15-30 lb-in) (217-678 Nm[160-500 lb-ft]).
d For original pinion bearing installation, the reading must be 0.56 Nm (5 lb-in) more than the initial reading taken during the disassembly procedure.
