Catalytic Converter - 2.3L Manifold: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

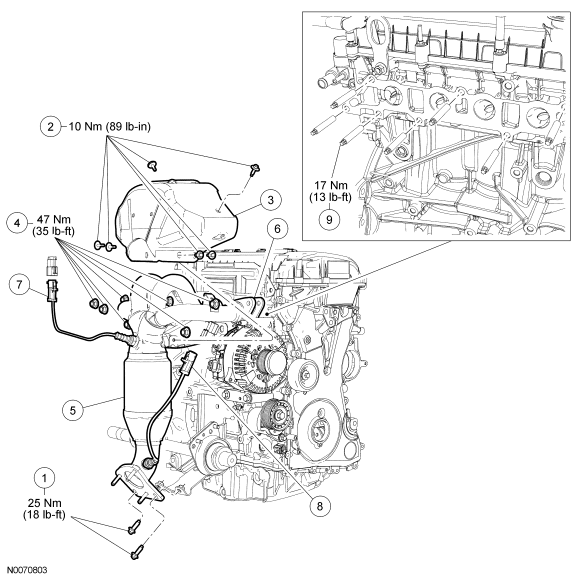

| Item | Part Number | Description |
|---|---|---|
| 1 | W712021 | Catalytic converter bracket bolts (2 required) |
| 2 | W503923 | Heat shield bolts (6 required) |
| 3 | 9N454 | Heat shield |
| 4 | W708176 | Catalytic converter manifold nuts (7 required) |
| 5 | 5G241 | Catalytic converter |
| 6 | 9448 | Catalytic converter manifold gasket |
| 7 | 14A464 | HO2S electrical connector |
| 8 | 14A464 | Catalyst monitor sensor electrical connector |
| 9 | W704474 | Catalytic converter manifold studs (7 required) |
