Shock Absorber and Spring Assembly - Front: Notes

WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the hex holding feature to prevent the stud from turning while removing or installing the stabilizer bar link nut.

With the vehicle in NEUTRAL, position on a hoist.
Remove the right upper shock mount cover, if equipped.
Remove the retainers and the left upper shock mount cover, if equipped.
Remove the parts in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

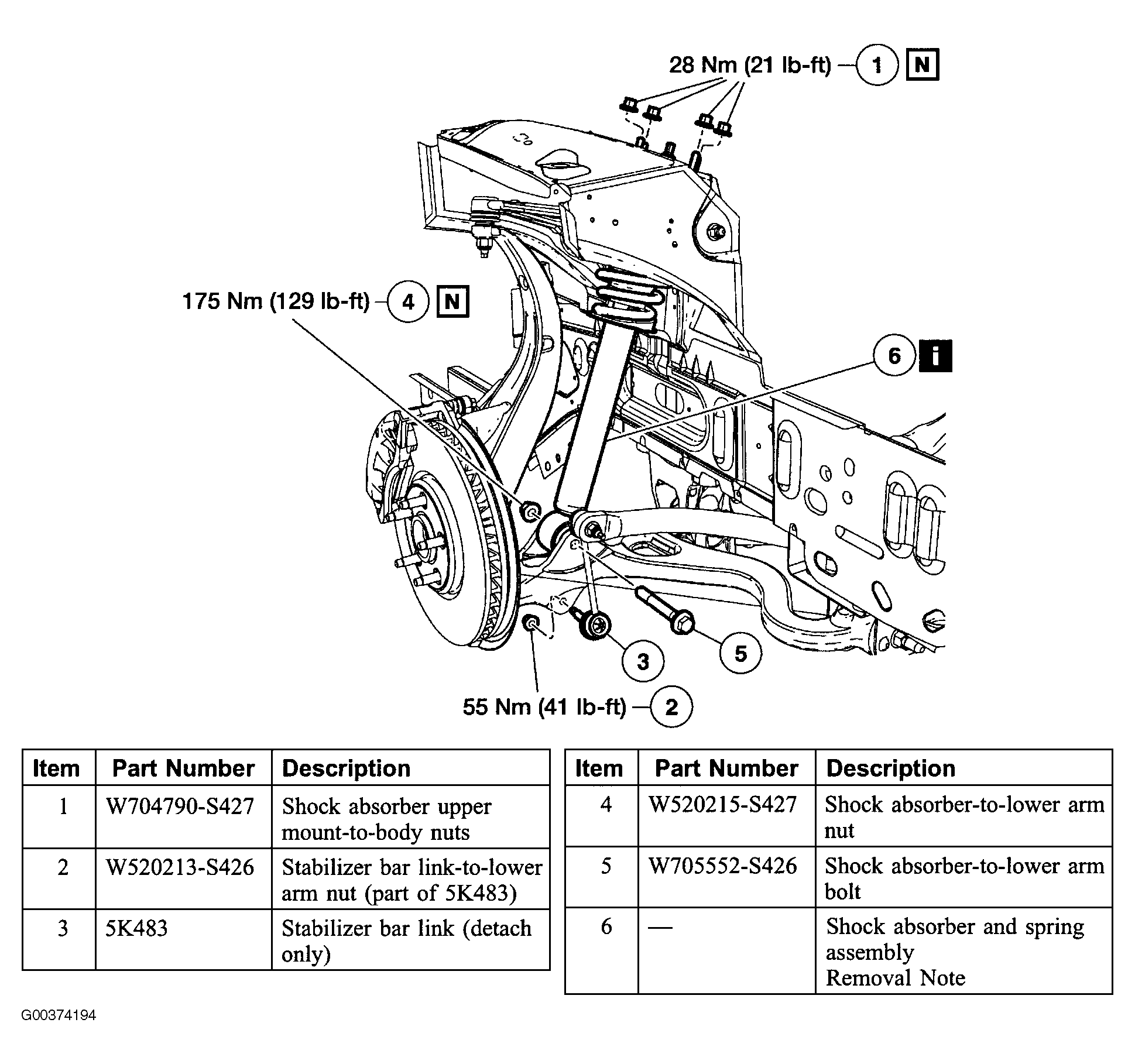

Fig 1: Shock Absorber & Spring

Courtesy of FORD MOTOR CO.
