Selector Lever Bezel: Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

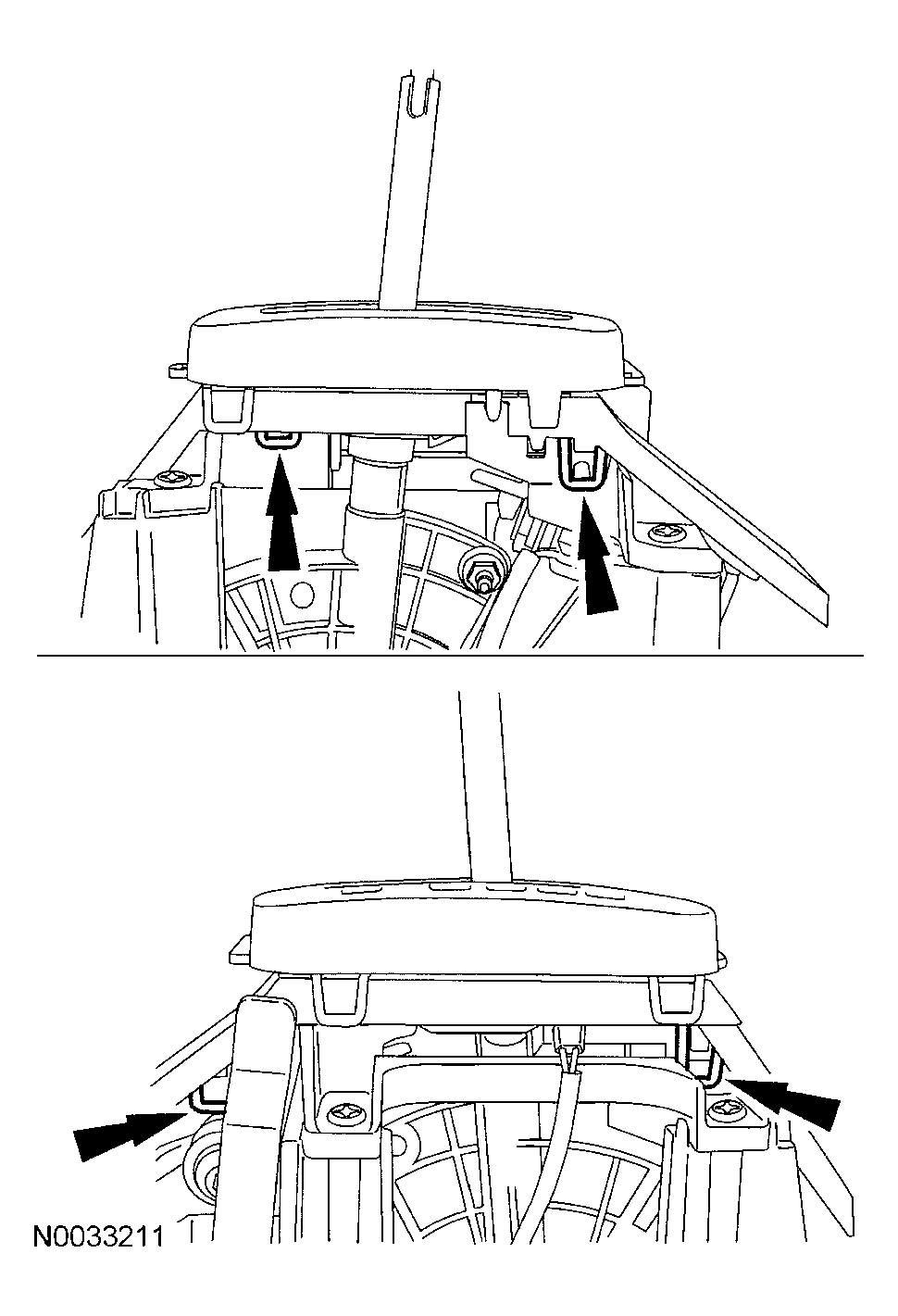

Install the PRNDL bezel.
- Make sure that the 4 locking tabs are snapped in place.

  Fig 1: Installing PRNDL Bezel
  Courtesy of FORD MOTOR CO.

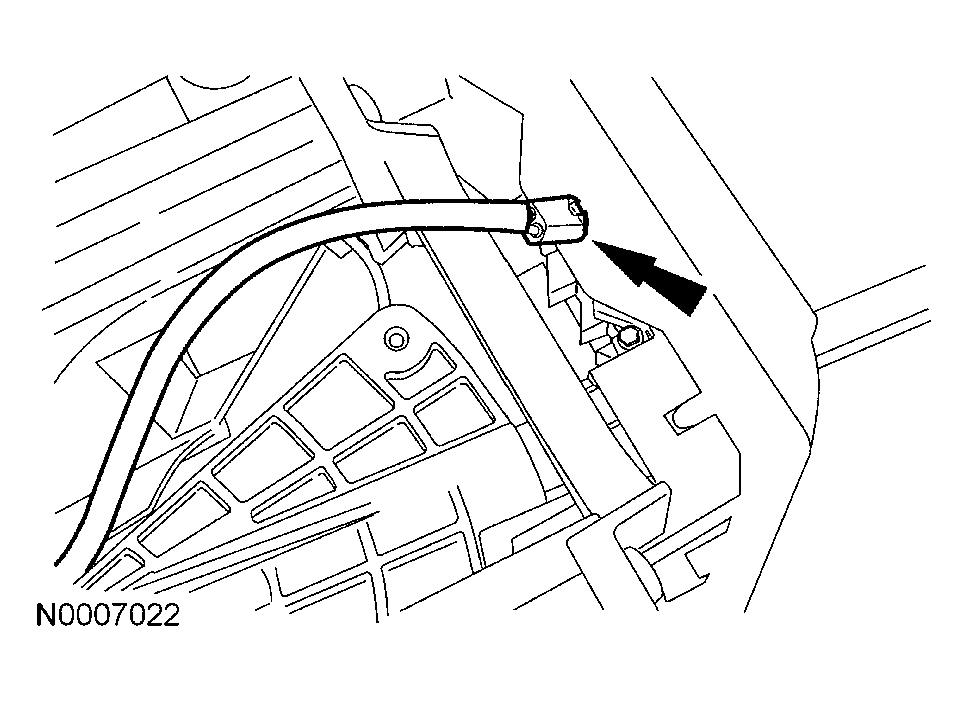

Connect the light bulb to the PRNDL bezel.

Fig 2: Connecting Light Bulb To PRNDL Bezel
Courtesy of FORD MOTOR CO.

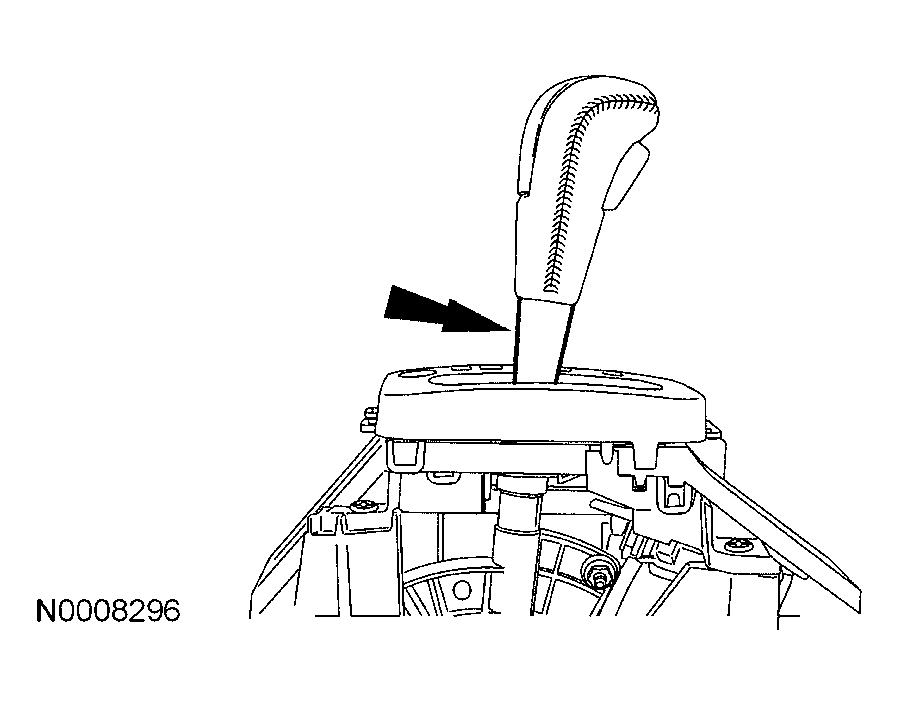

Install the lower shift knob bezel.

Fig 3: Installing Lower Shift Knob Bezel
Courtesy of FORD MOTOR CO.

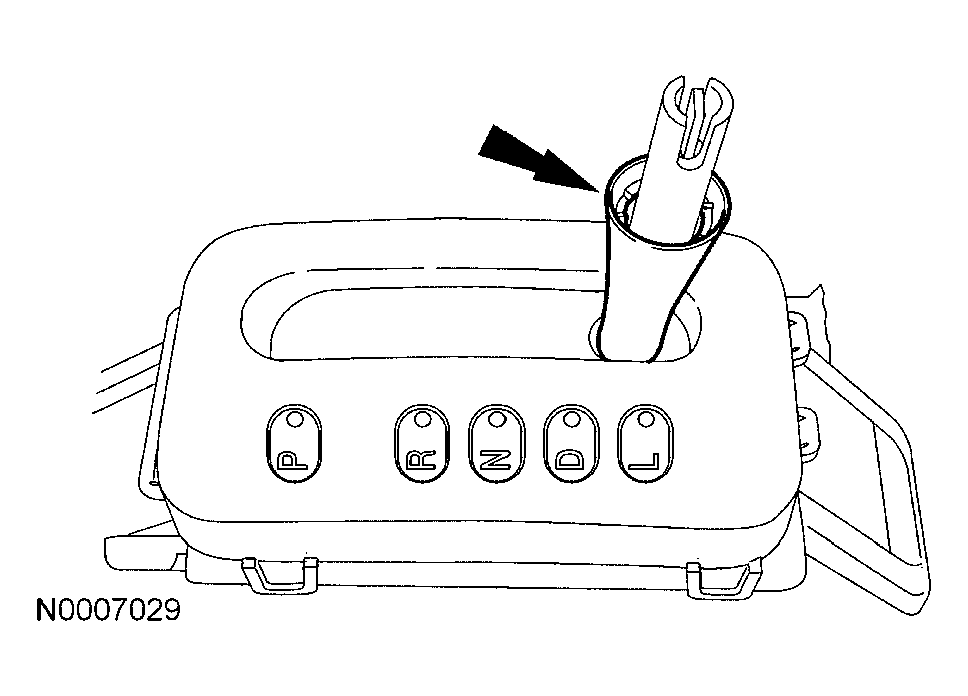

Install the shift knob and bolt.

Fig 4: Installing Shift Knob Bolt
Courtesy of FORD MOTOR CO.
Slide the lower shift knob bezel up and snap it into place.

Fig 5: Sliding Lower Shift Knob Bezel Up And Snap It Into Place
Courtesy of FORD MOTOR CO.

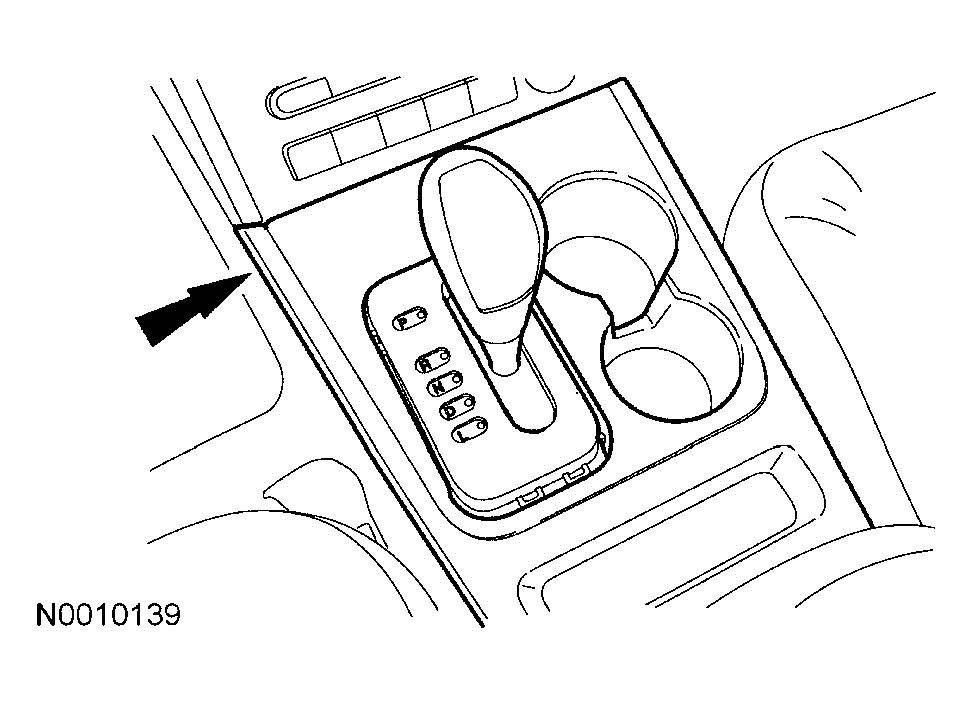

Install the upper console panel.

Fig 6: Installing Upper Console Panel
Courtesy of FORD MOTOR CO.

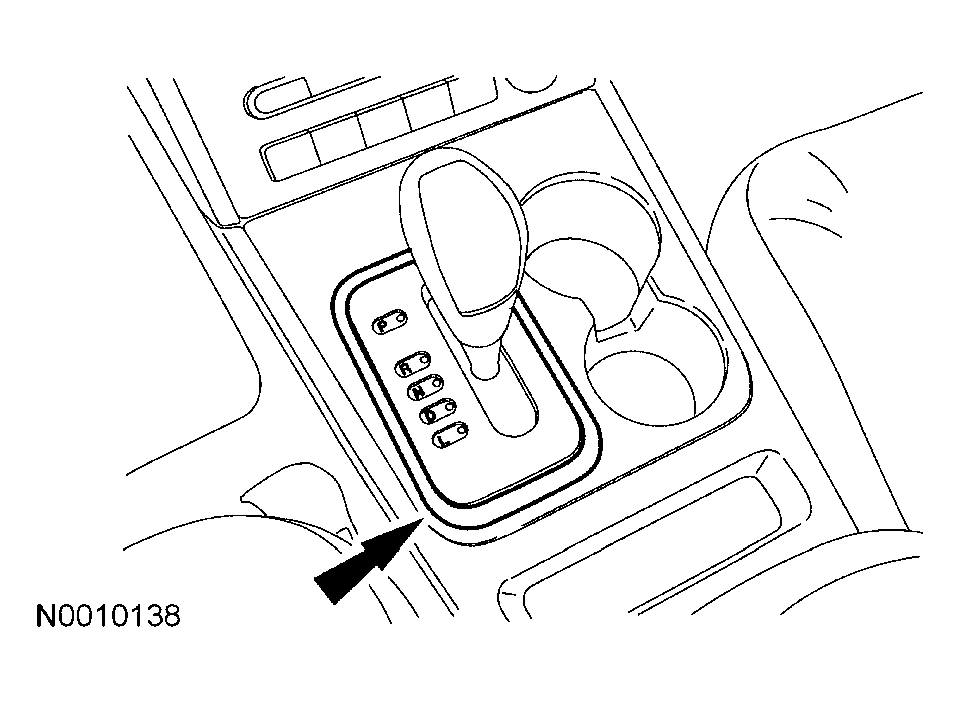

Install the PRNDL trim ring.

Fig 7: Installing PRNDL Trim Ring
Courtesy of FORD MOTOR CO.
