Selector Lever: Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Install the shifter and the 2 front bolts.
- Tighten to 11 Nm (8 lb-ft).

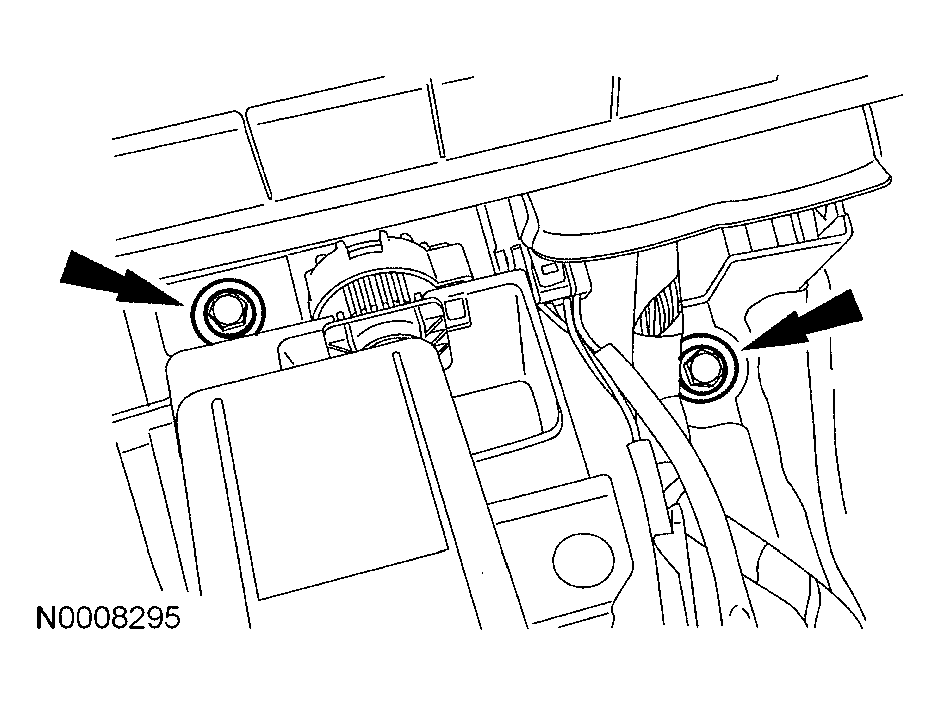

  Fig 1: Installing Shifter Front Bolts
  Courtesy of FORD MOTOR CO.
Install the 2 rear shifter bolts.
- Tighten to 11 Nm (8 lb-ft).

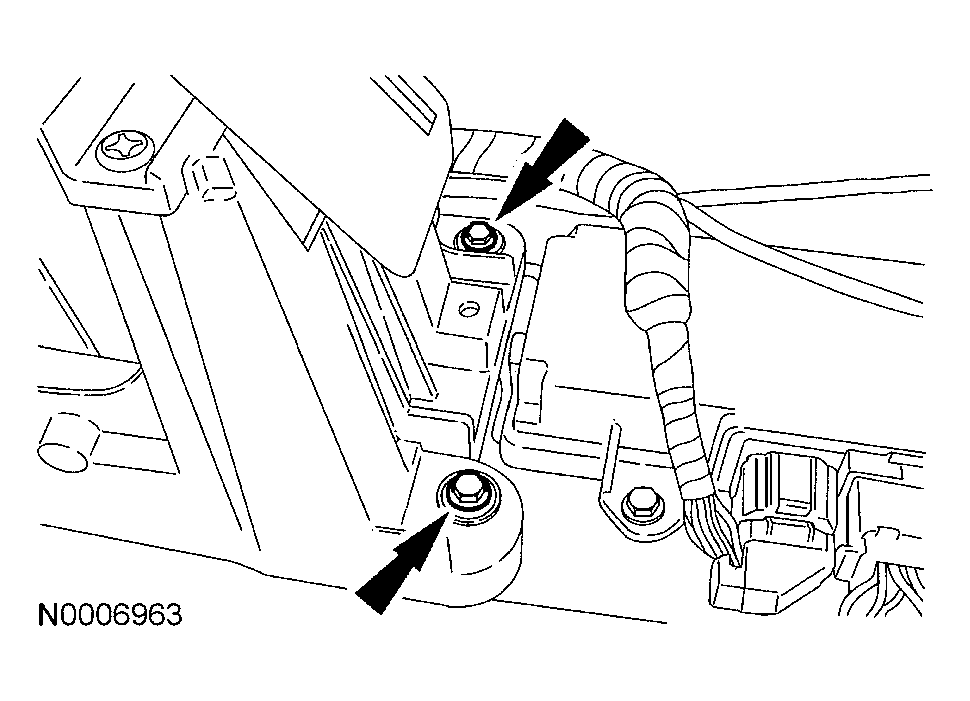

  Fig 2: Installing Rear Shifter Bolts
  Courtesy of FORD MOTOR CO.
Connect the wire harness to the shifter.

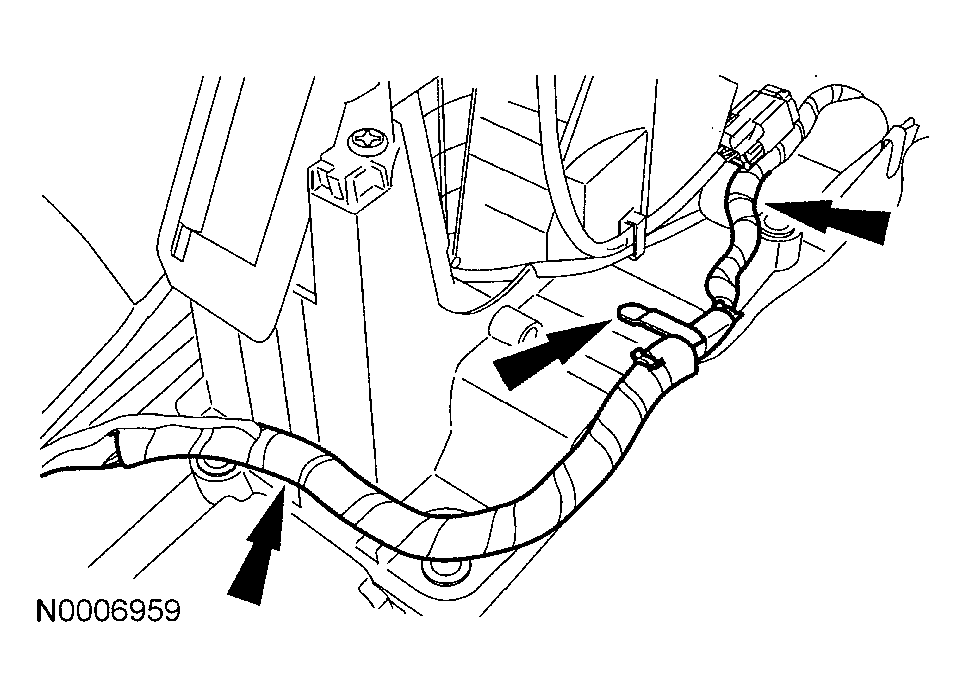

Fig 3: Connecting Wire Harness To Shifter
Courtesy of FORD MOTOR CO.
Connect the electrical connector.

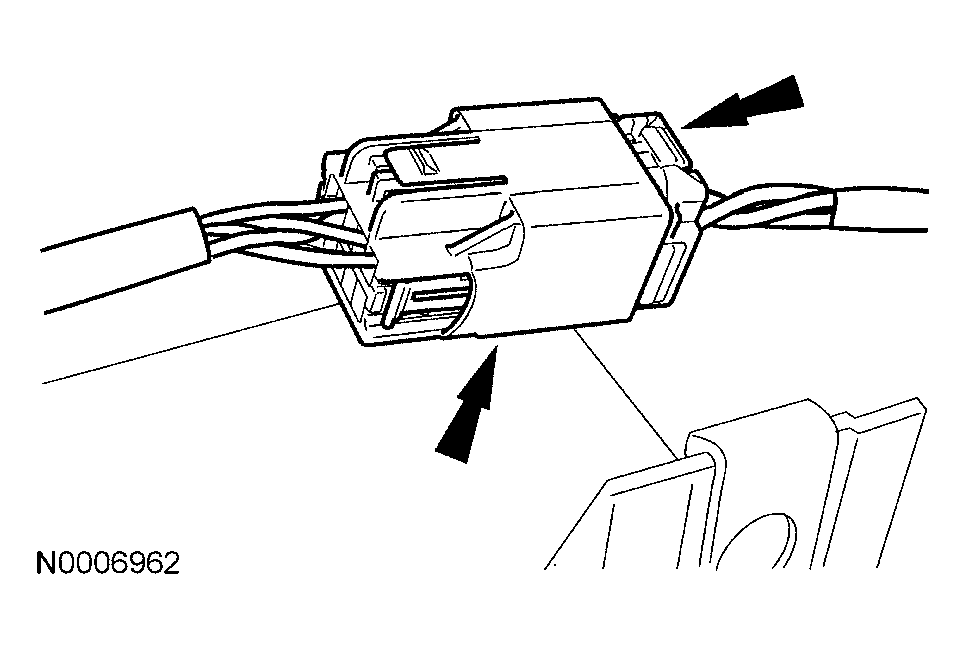

Fig 4: Connecting Electrical Connector
Courtesy of FORD MOTOR CO.
Install the LH plastic retaining clip for the carpet.

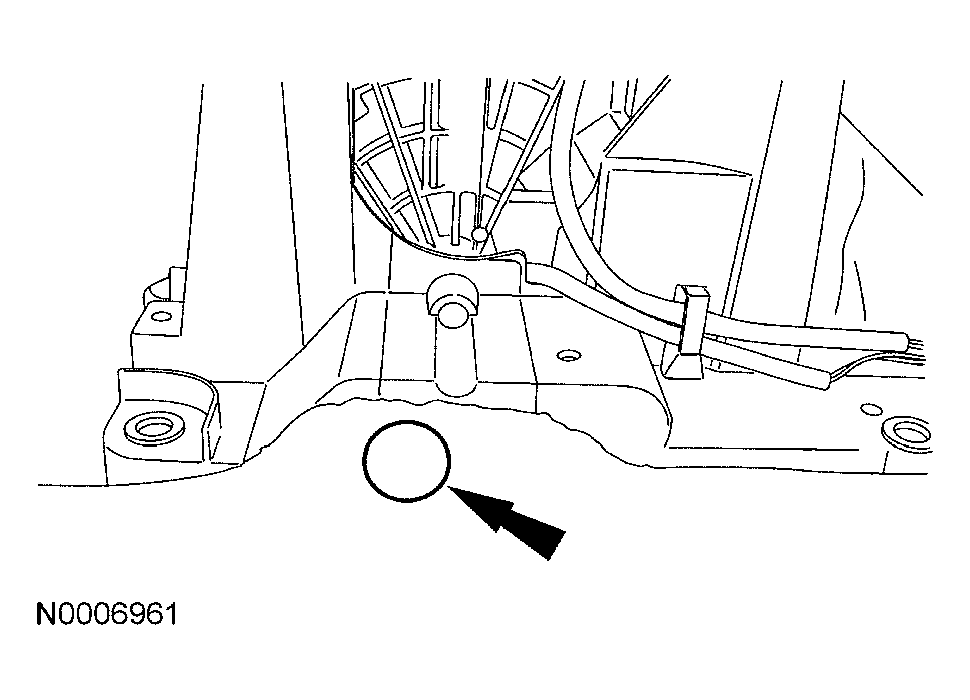

Fig 5: Installing LH Plastic Retaining Clip For Carpet
Courtesy of FORD MOTOR CO.
Install the RH plastic retaining clip for the carpet.

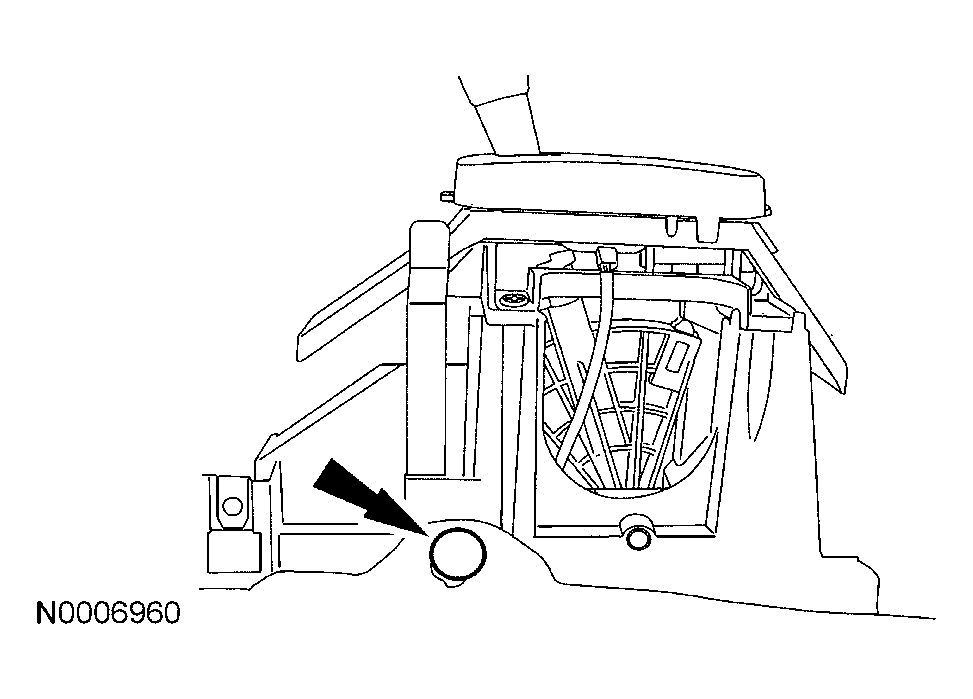

Fig 6: Installing RH Plastic Retaining Clip For Carpet
Courtesy of FORD MOTOR CO.
Push the shift cable into the housing. Make sure that the tab on the shift cable connector is locked in place. Pull up on the cable to make sure it is fully seated.

Fig 7: Identifying Tab On Selector Lever Cable Connector
Courtesy of FORD MOTOR CO.
Connect the selector lever cable end to the selector lever.

Fig 8: Connecting Selector Lever Cable End To Selector Lever
Courtesy of FORD MOTOR CO.
Install the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Check the shift cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. If an adjustment is necessary, refer to SELECTOR LEVER CABLE ADJUSTMENT .
