Seat Control Switch

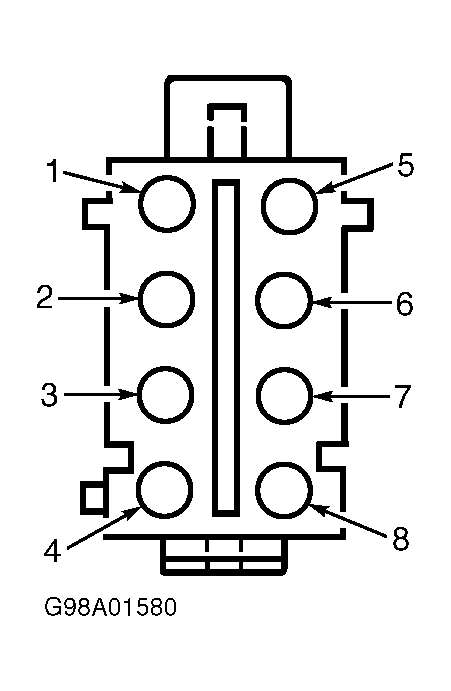

Remove seat control switch and disconnect harness connector. Measure resistance between seat control switch terminals with switch in appropriate position. See SEAT CONTROL SWITCH RESISTANCE table. See Fig 1 . If resistance is not as specified, replace seat control switch. See SEAT CONTROL SWITCH under REMOVAL & INSTALLATION.
SEAT CONTROL SWITCH RESISTANCE
| Switch Position | Between Terminals No. | Ohms |
|---|---|---|
| Entire Seat Down | 1, 4 & 7; 5, 6 & 2 | Less Than 5 |
| Entire Seat Up | 4, 5 & 6; 1, 2 & 7 | Less Than 5 |
| Forward | 3 & 4; 2 & 8 | Less Than 5 |
| Rearward | 4 & 8; 2 &3 | Less Than 5 |
| Front Down | 4 & 7; 2 & 5 | Less Than 5 |
| Front Up | 5 & 4; 2 & 7 | Less Than 5 |
| Rear Down | 1 & 4; 2 & 6 | Less Than 5 |
| Rear Up | 4 & 6; 1 & 2 | Less Than 5 |
