Starter Relay

  1. Remove starter relay from central junction box. Check relay continuity. Continuity should exist between relay terminals No. 1 and 2, and between relay terminals No. 3 and 4. See Fig 1 . Continuity should not exist between relay terminals No. 3 and 5. If continuity is as specified, go to next step. If continuity is not as specified, replace relay.
  2. Using a jumper wire, apply battery voltage to relay terminal No. 1. Using a second jumper wire, ground relay terminal No. 2. Continuity should now exist between relay terminals No. 3 and 5. If continuity is not as specified, replace relay. If continuity is as specified, relay is okay at this time.

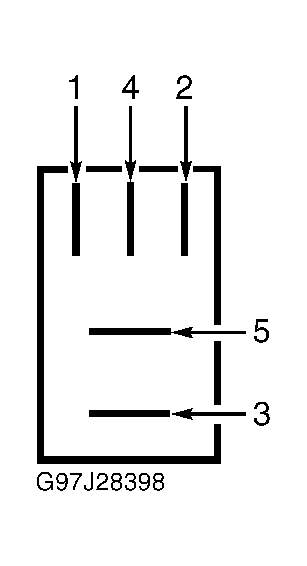

Fig 1: Identifying Starter Relay Terminals
G97J28398Courtesy of FORD MOTOR CO.
