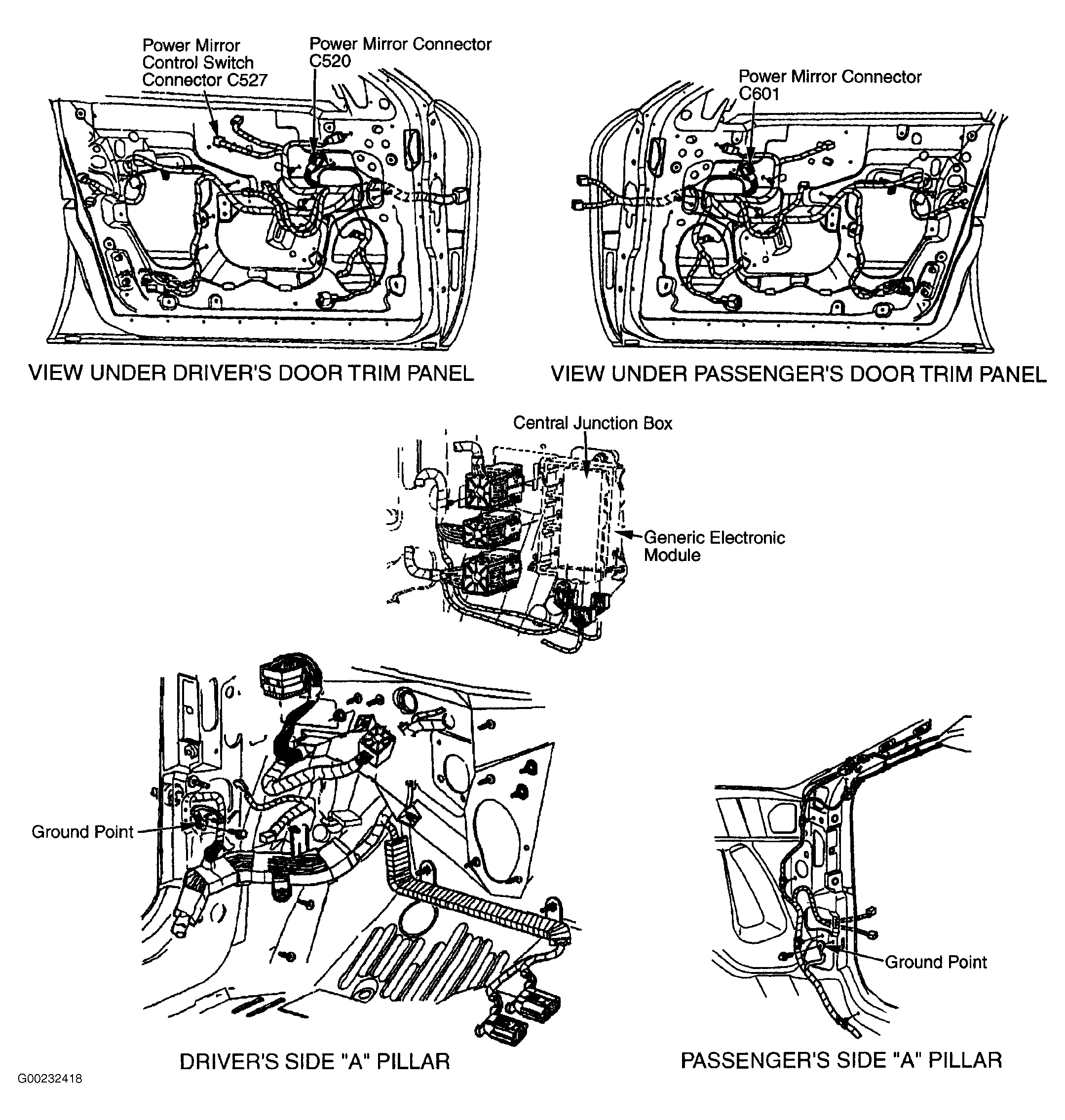

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Generic Electronic Module | Attached To Underside Of Central Junction Box |
| Interior Rear View Mirror | Center Of Windshield |
| Left Side Exterior Power Mirror | Driver's Door |
| Power Mirrors Control Switch | Driver's Door Trim Panel |
| Right Side Exterior Power Mirror | Passenger's Door |
