AX4S

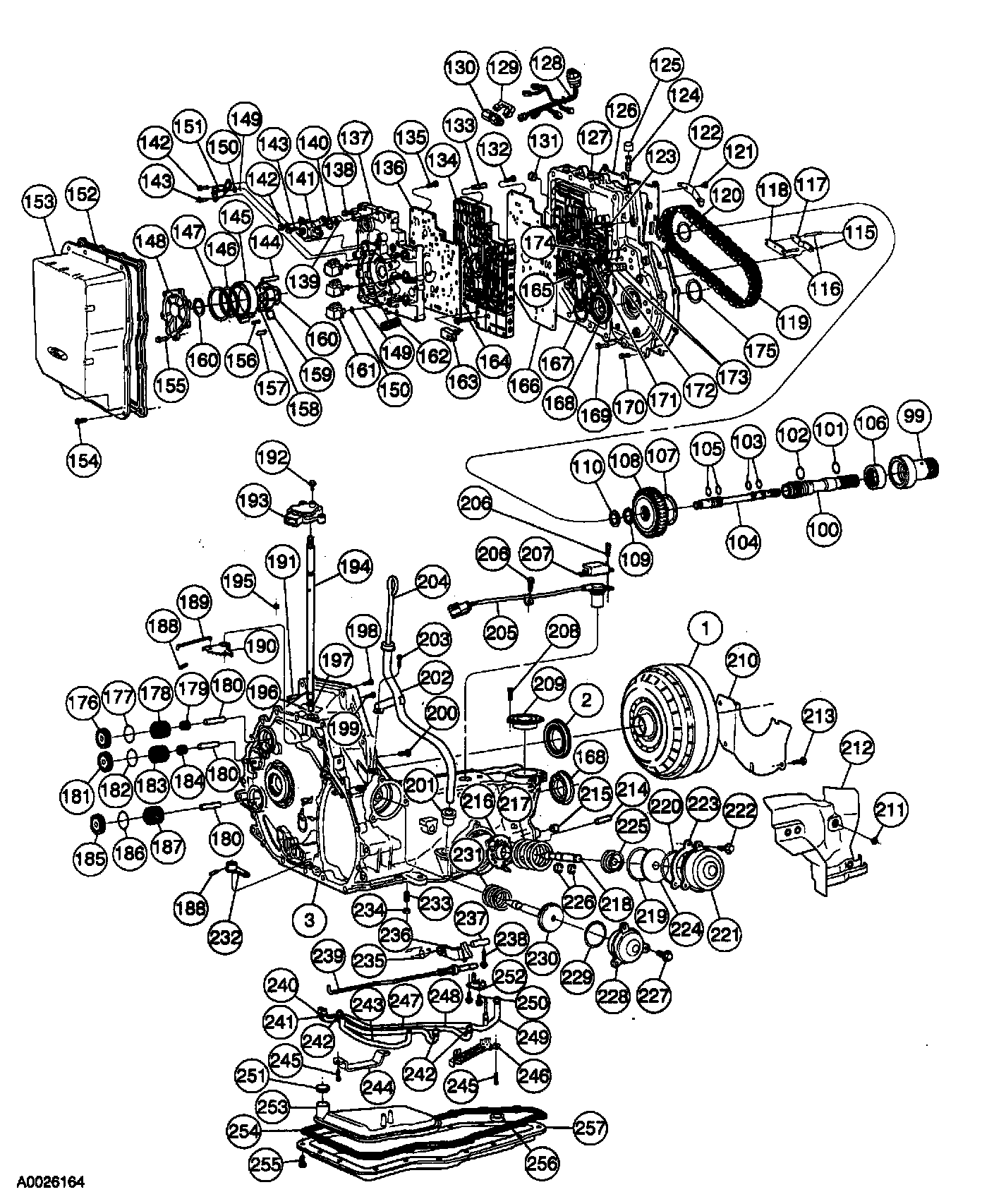

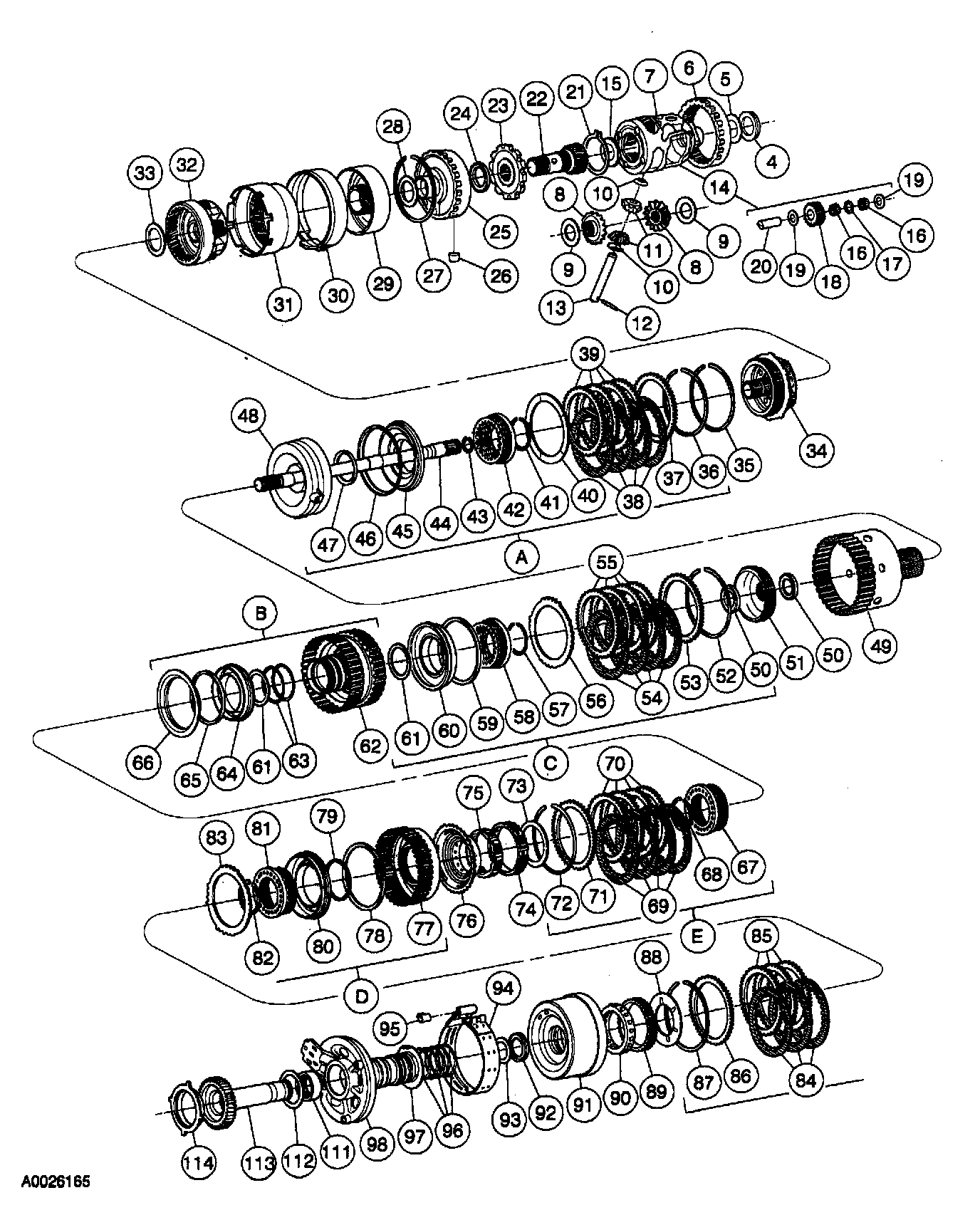

Disassembled Views

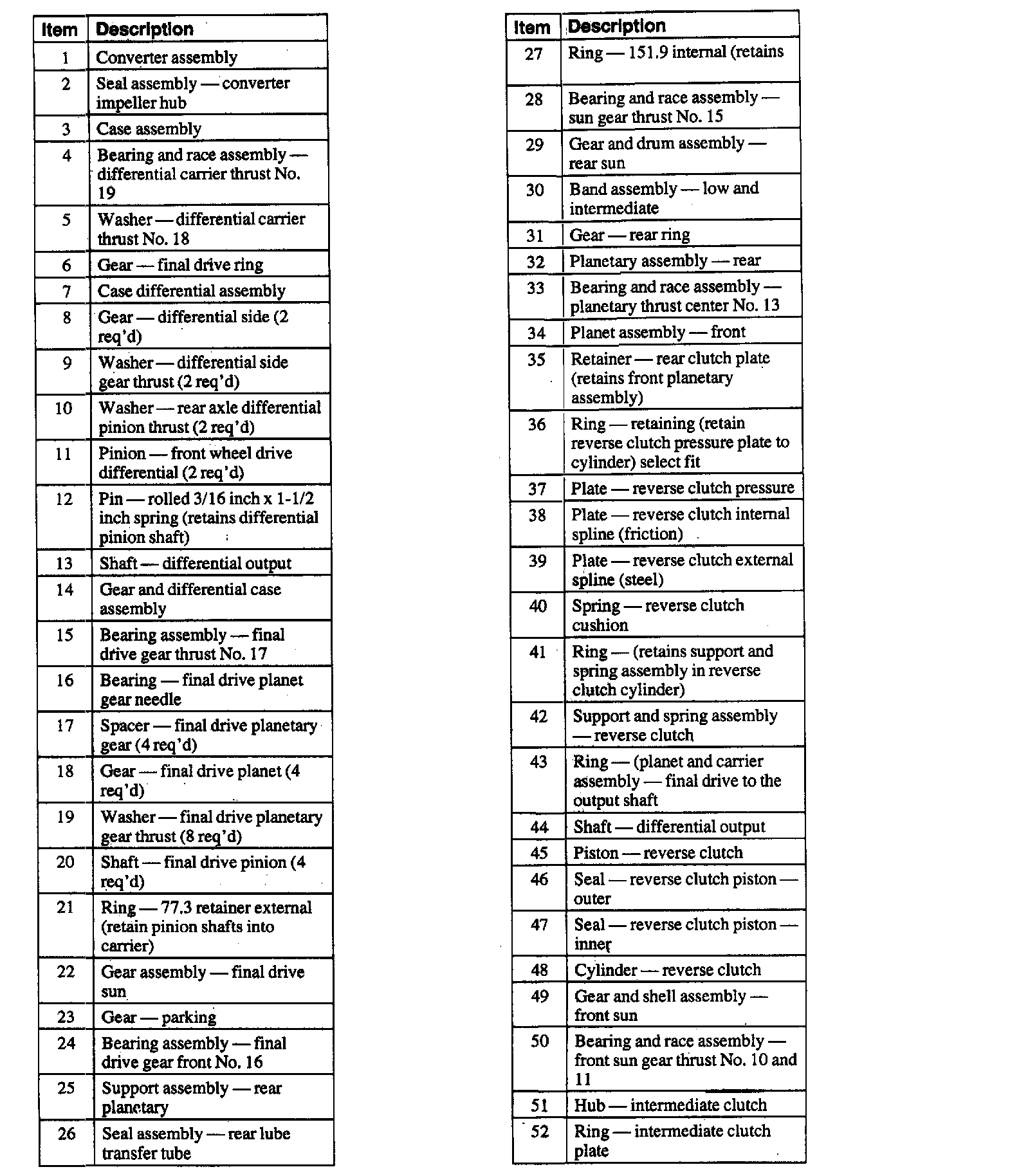

Part 1 of 7





Part 2 of 7





Part 3 of 7





Part 4 of 7





Part 5 of 7





Part 6 off 7





Part 7 of 7
