Component Tests

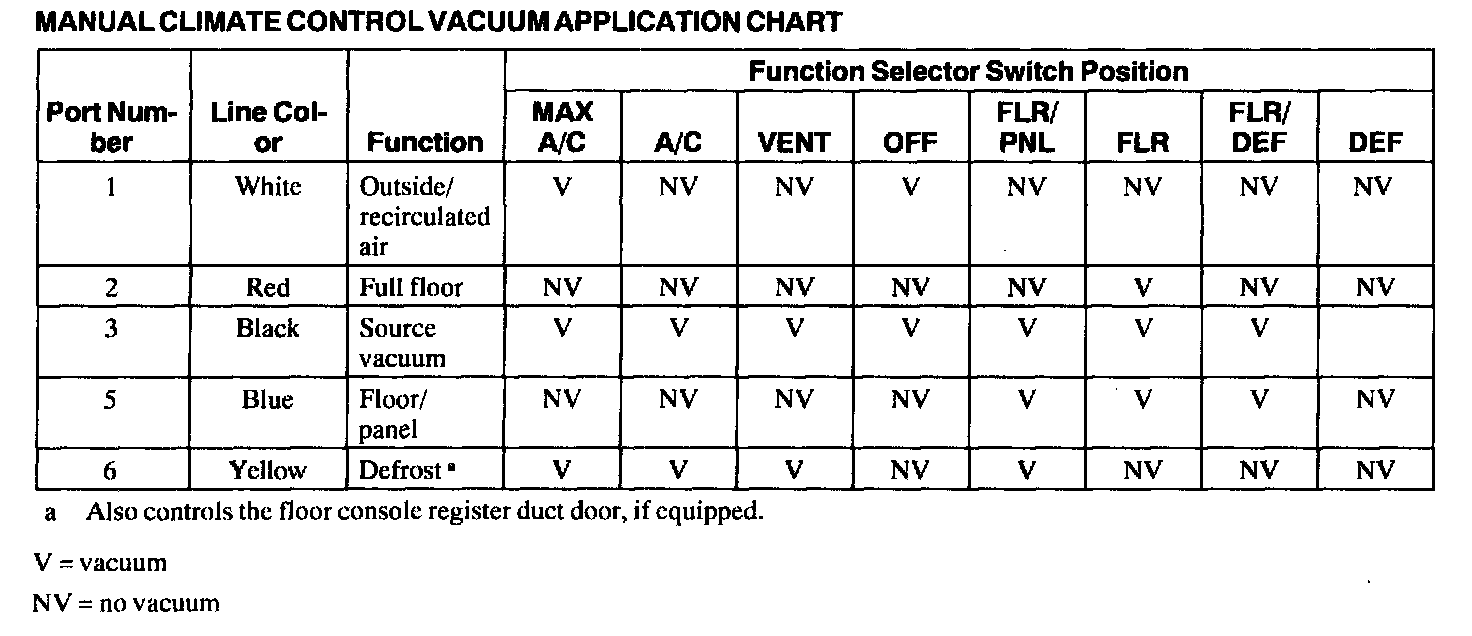

Manual Climate Control Vacuum Application Chart

Manual Climate Control Vacuum Application Chart:

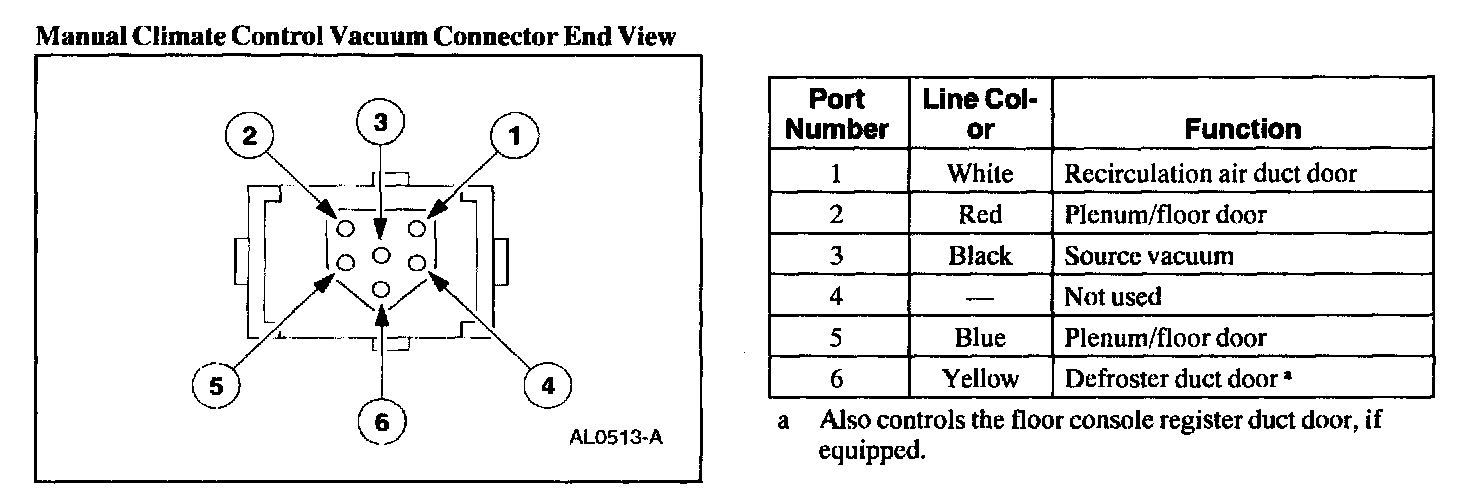

Manual Climate Control Vacuum Connector End View

Manual Climate Control Vacuum Connector End View:






Manual Climate Control Vacuum Schematic, Part 1

Manual Climate Control Vacuum Schematic, Part 1:






Manual Climate Control Vacuum Schematic, Part 2

Manual Climate Control Vacuum Schematic, Part 2:
