System Specifications

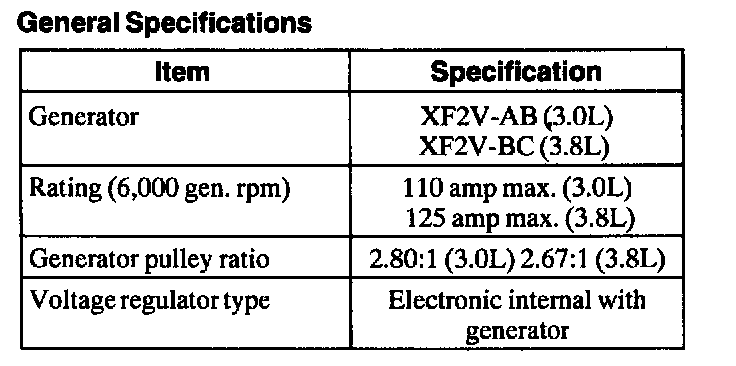

General Specifications:

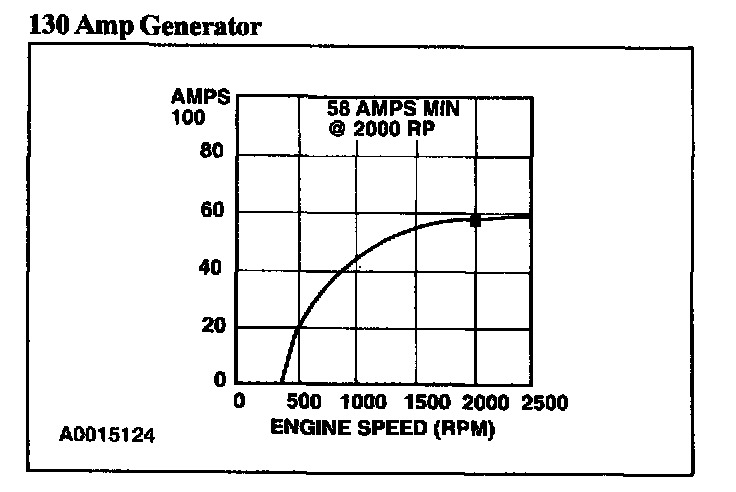

130 Amp Generator:

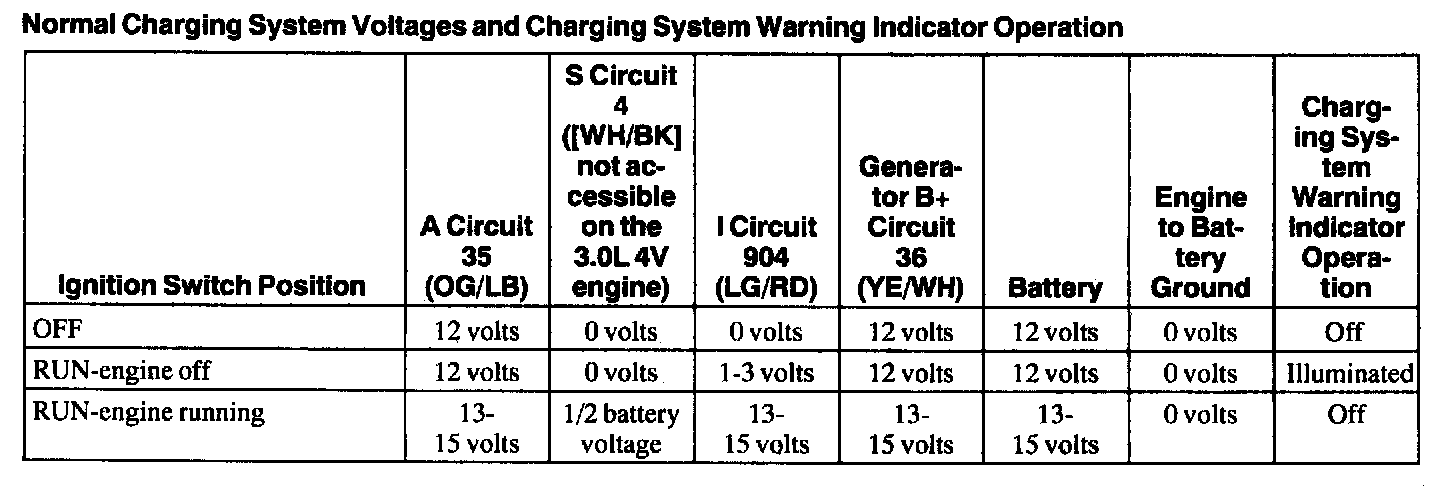

Normal Charging System Voltages and Charging System Warning Indicator Operation:
