General

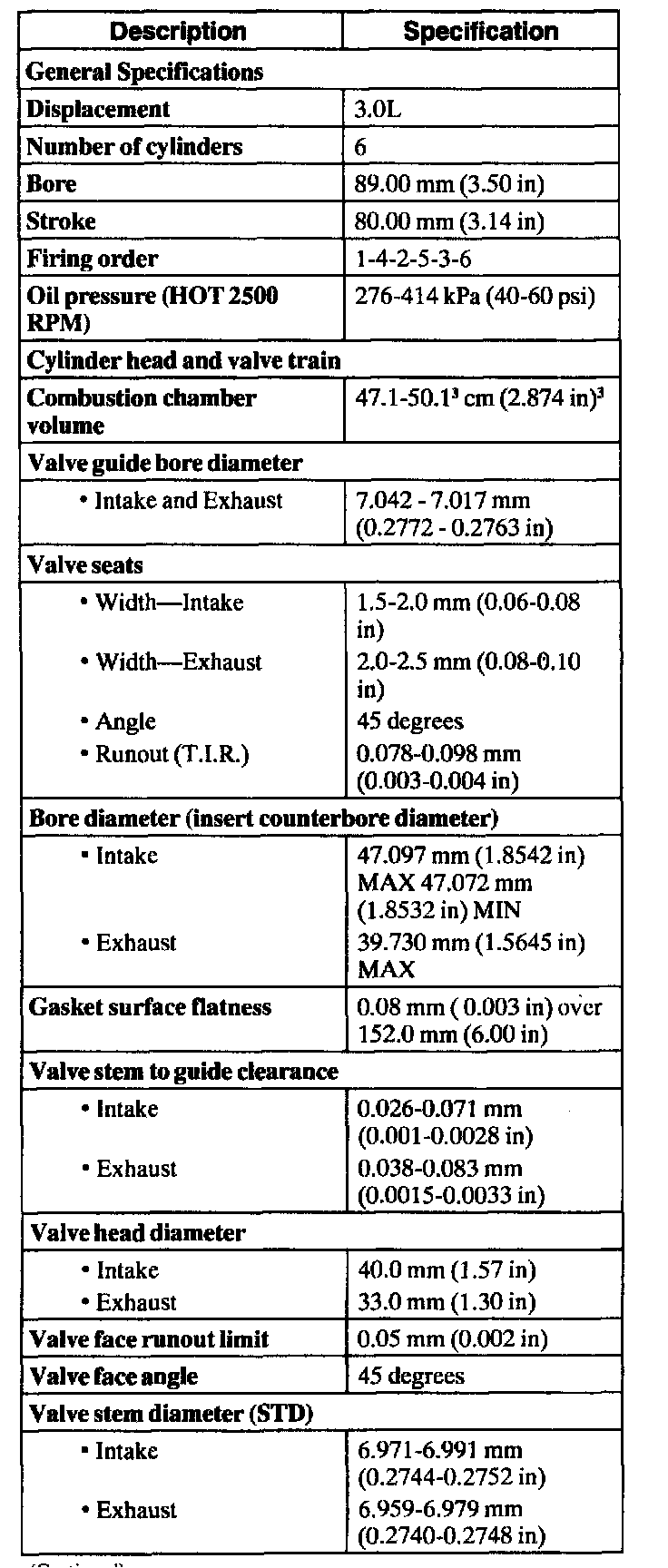

Part 1 Of 9:

Part 2 Of 9:

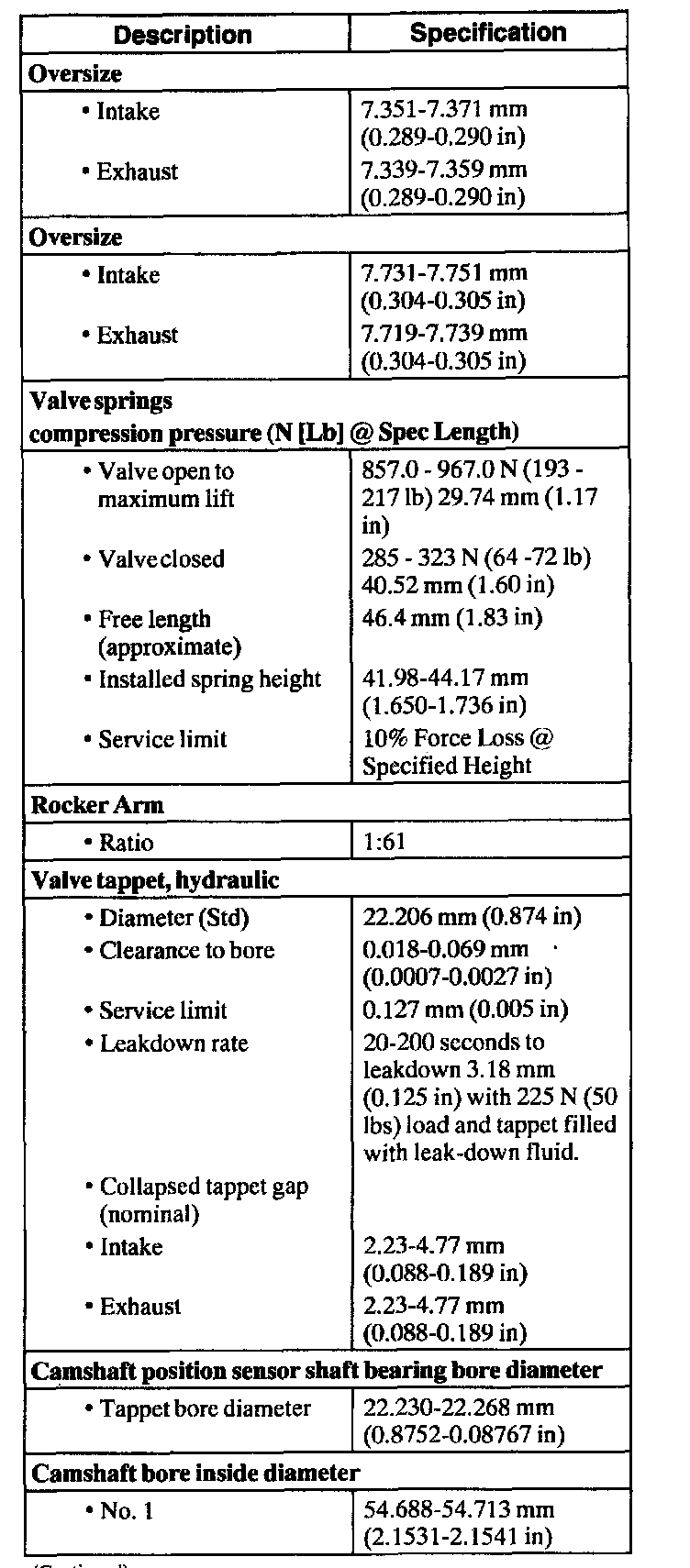

Part 3 Of 9:

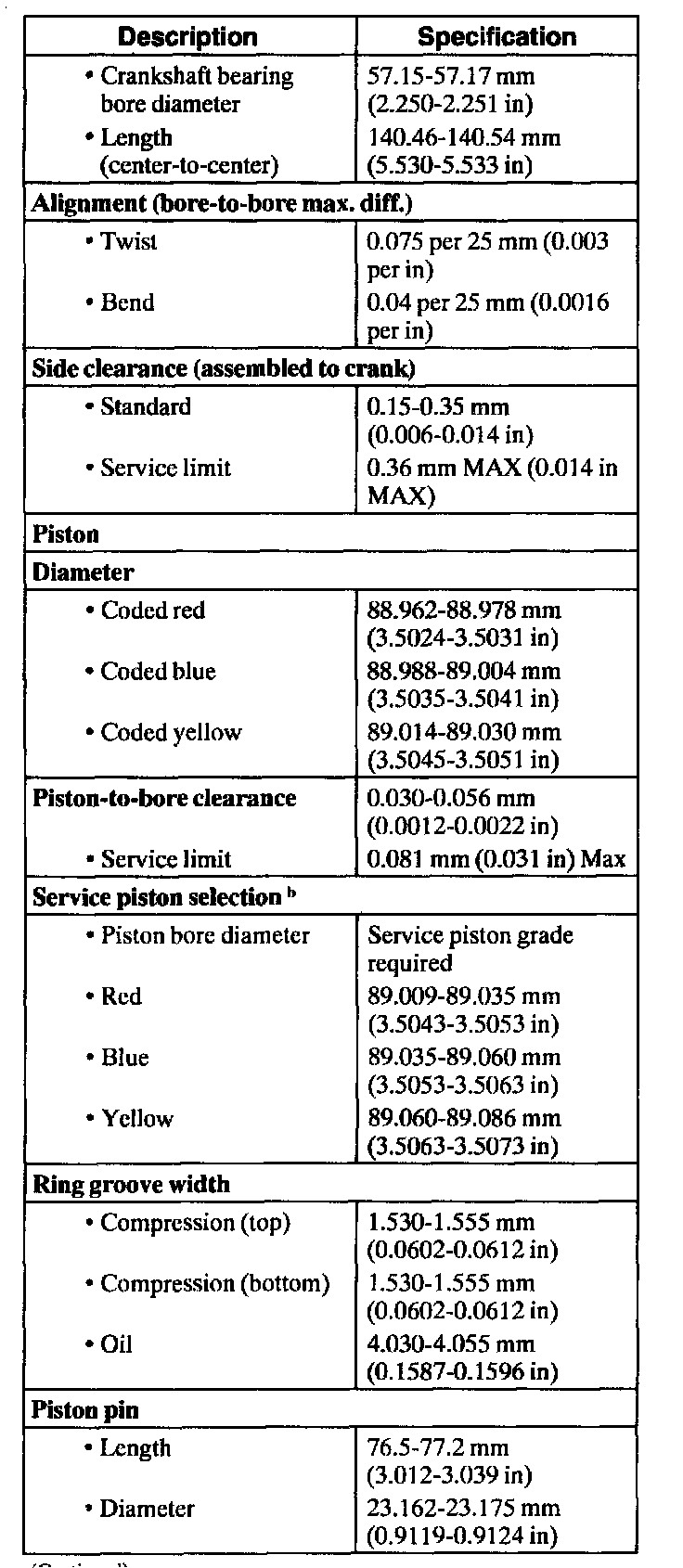

Part 4 Of 9:

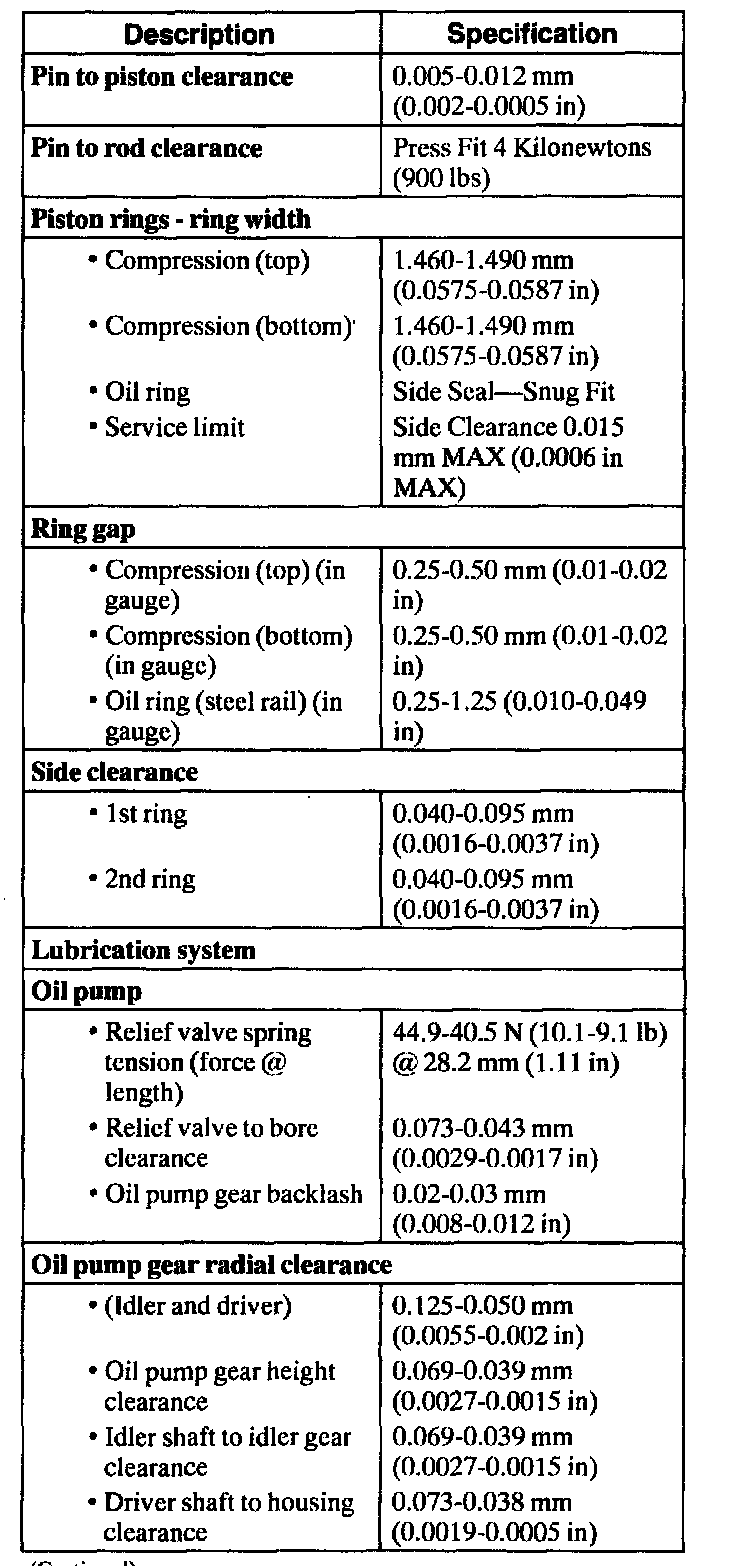

Part 5 Of 9:

Part 6 Of 9:

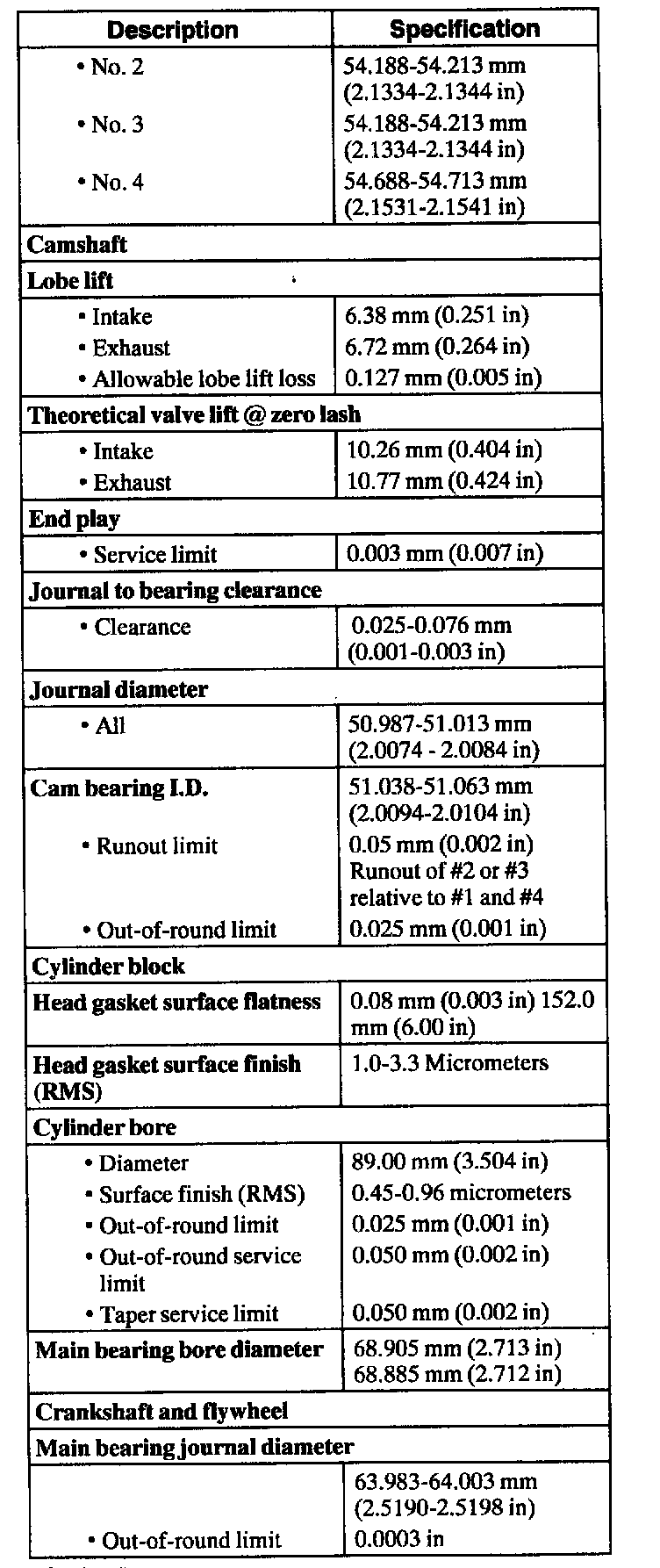

Part 7 Of 9:

Part 8 Of 9:

Part 9 Of 9:

Footnote

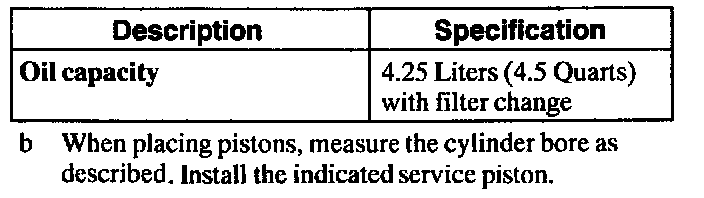

(b) When placing pistons, measure the cylinder bore as described. Install the indicated piston.
