Special Tools
Fig 1: Transaxle Assembly Special Tools (1 Of 6)
Fig 2: Transaxle Assembly Special Tools (2 Of 6)
Fig 3: Transaxle Assembly Special Tools (3 Of 6)
Fig 4: Transaxle Assembly Special Tools (4 Of 6)
Fig 5: Transaxle Assembly Special Tools (5 Of 6)

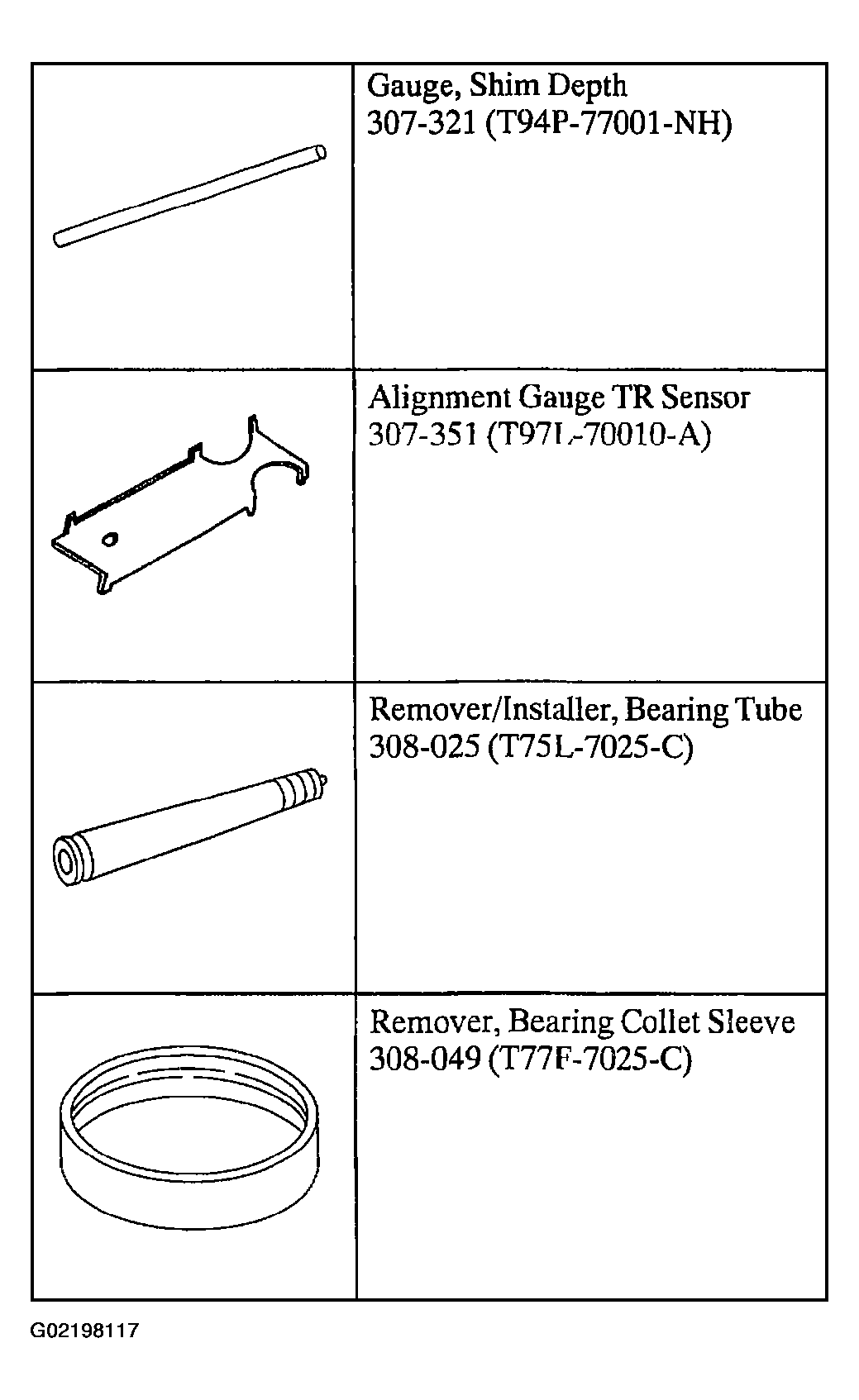

Fig 6: Transaxle Assembly Special Tools (6 Of 6)
