Disassembled Views: Kickdown

For maximum acceleration, the driver can force a downshift by pressing the accelerator pedal to the floor. A forced downshift into a lower gear is possible below calibrated speeds. Specifications for downshift speeds are subject to variations due to tire size, engine and transaxle calibration requirements.

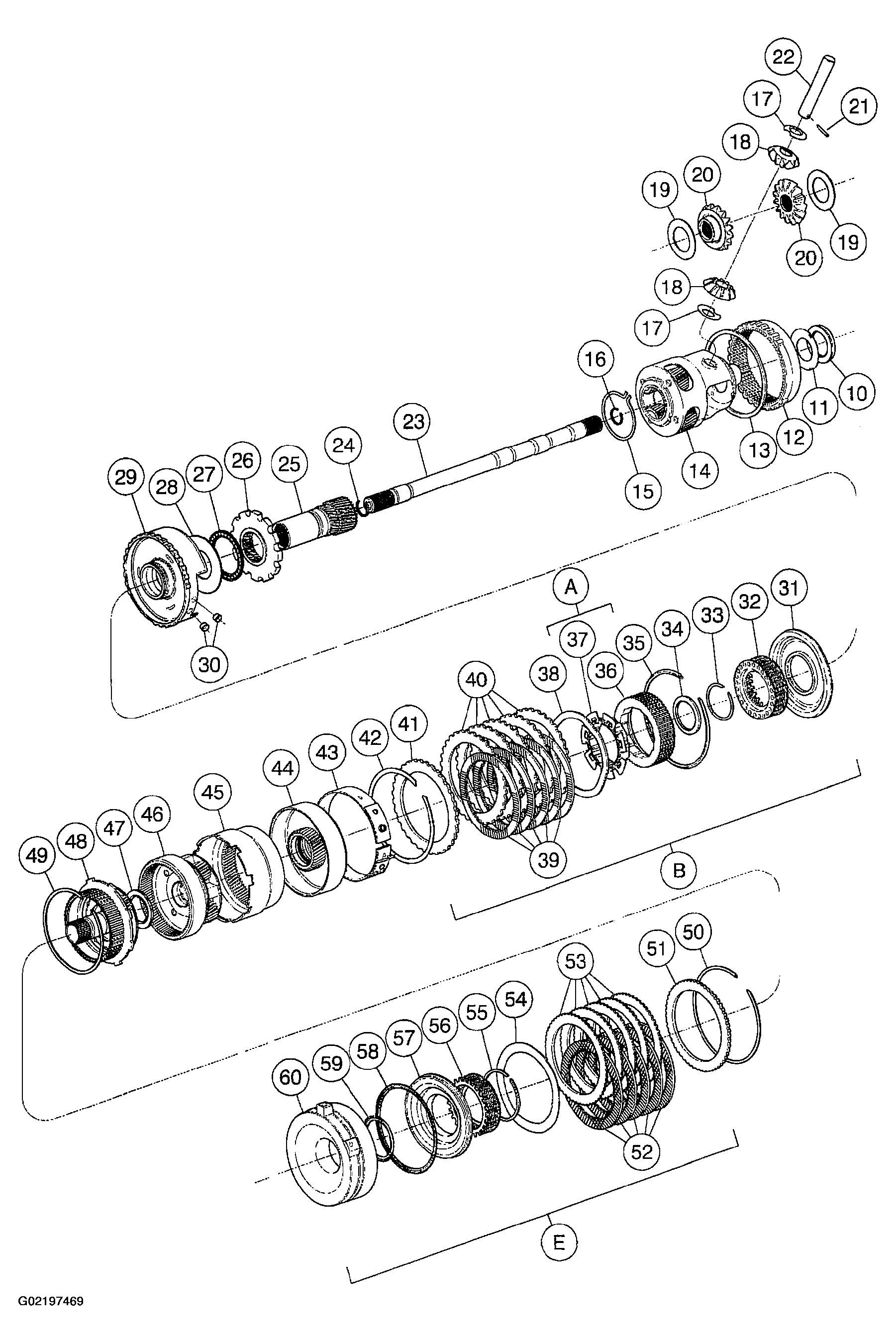

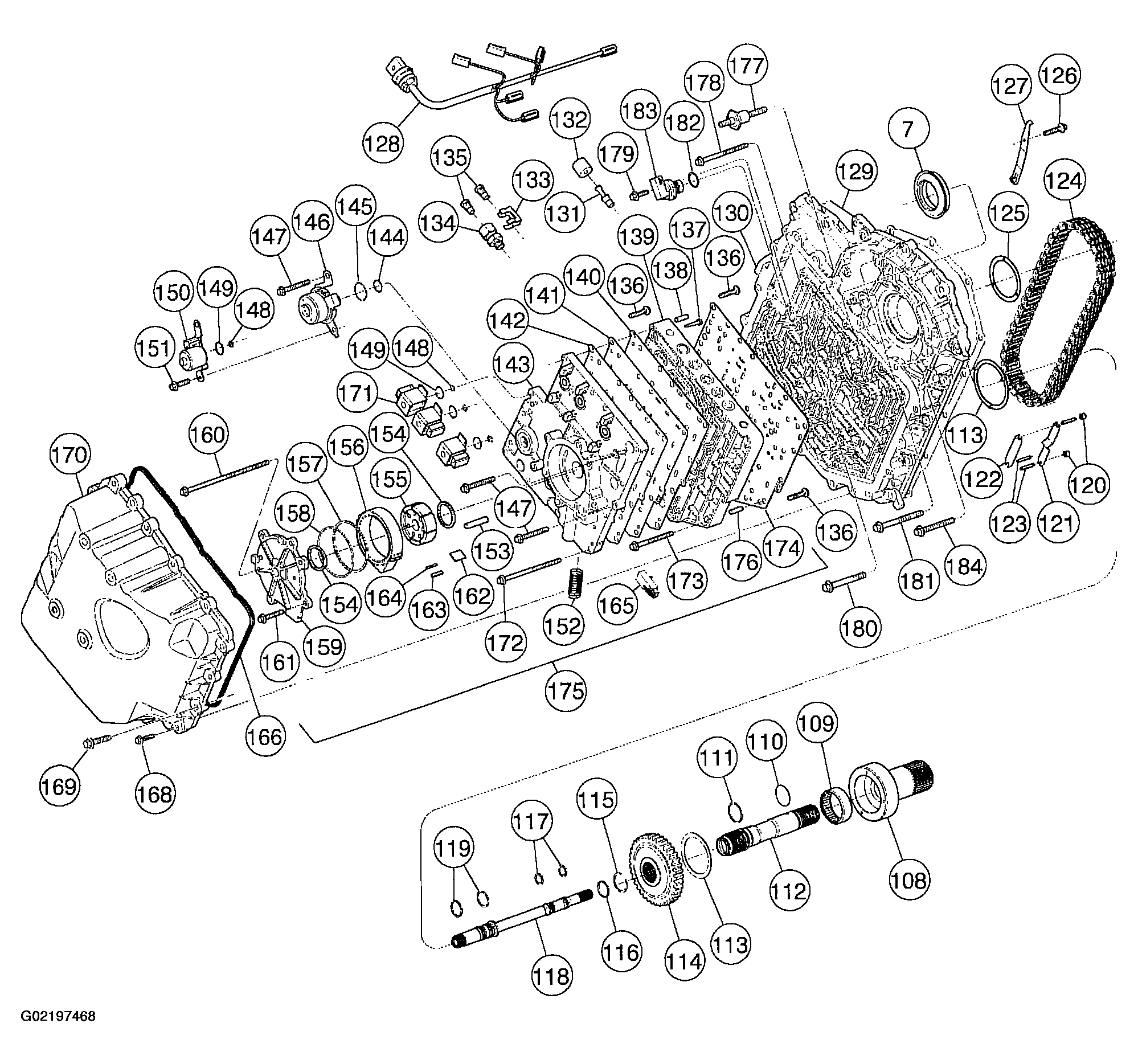

Fig 1: Disassembled View Of Transaxle (1 Of 4)

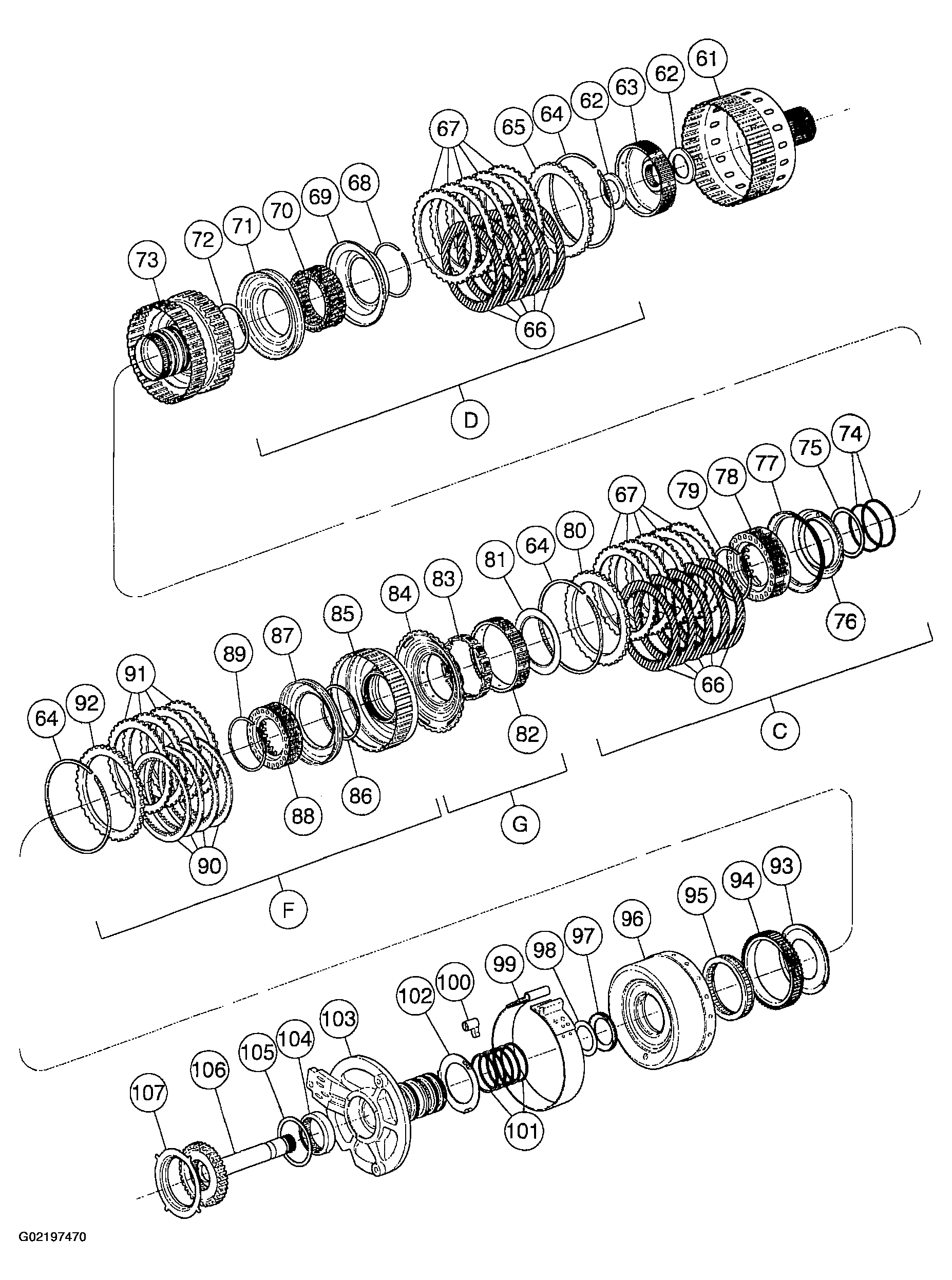

Fig 2: Disassembled View Of Transaxle (2 Of 4)

Fig 3: Disassembled View Of Transaxle (3 Of 4)

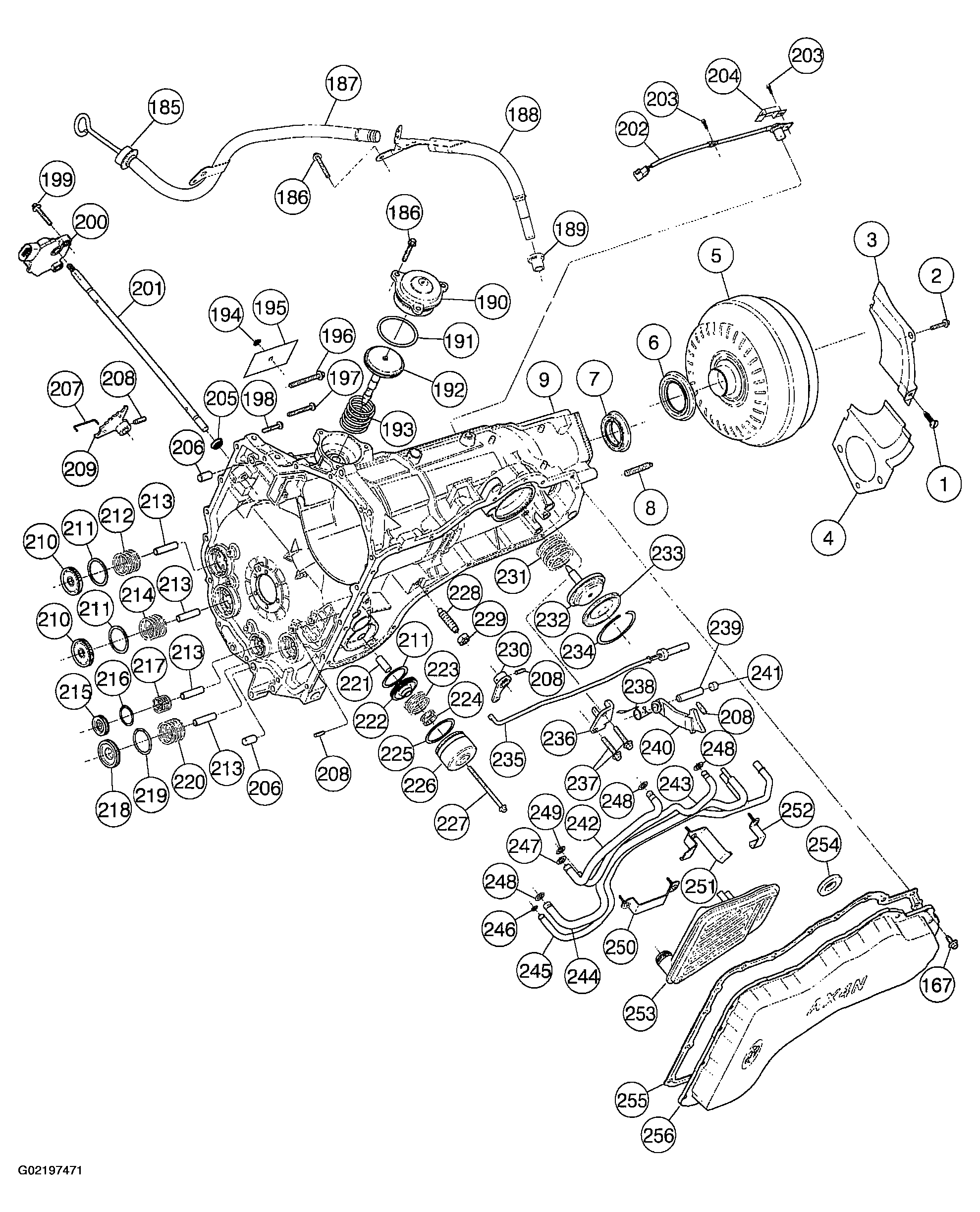

Fig 4: Disassembled View Of Transaxle (4 Of 4)

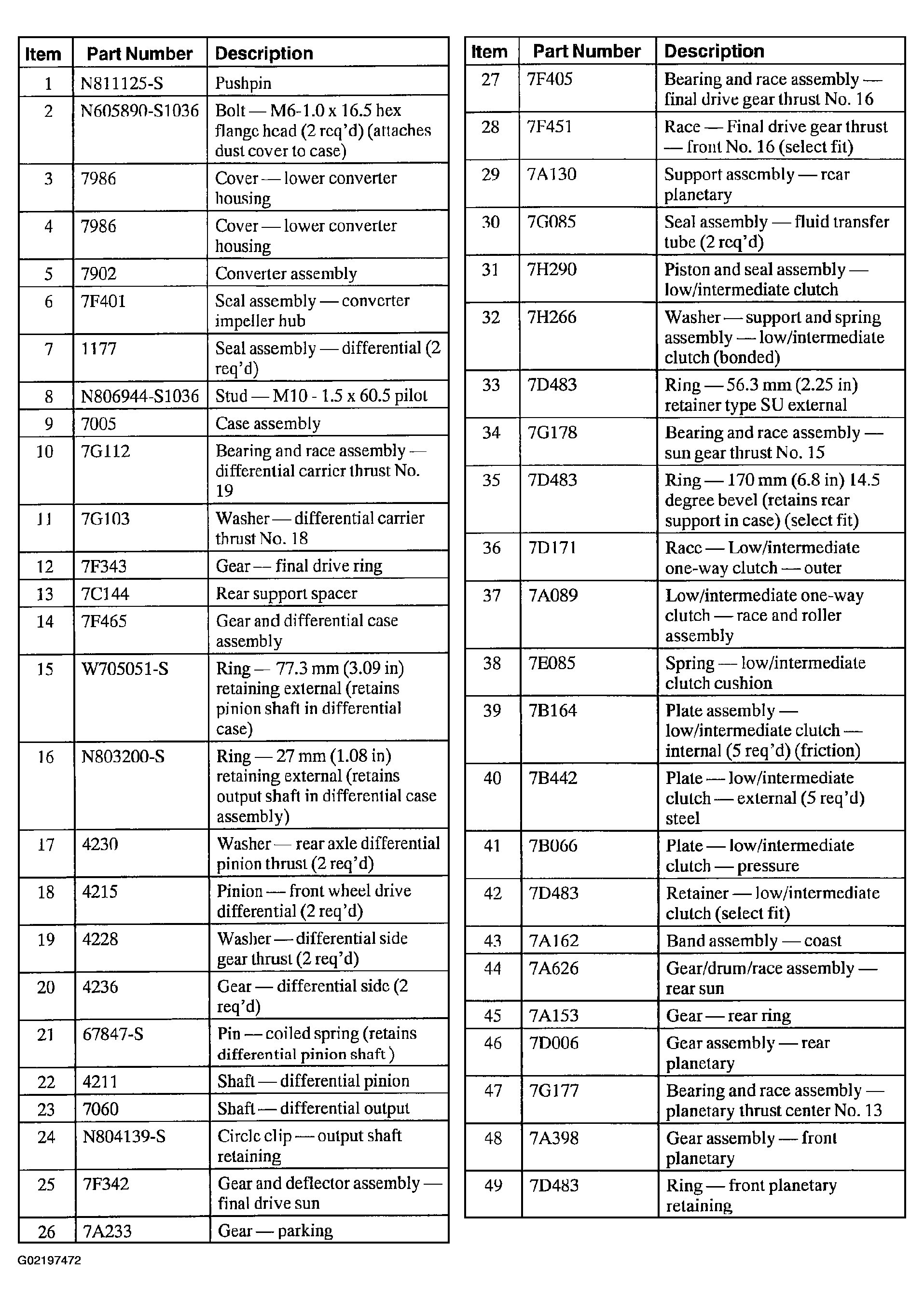

Fig 5: Disassembled Transaxle Components Legend (Items 1-49)

Fig 6: Disassembled Transaxle Components Legend (Items 50-93)

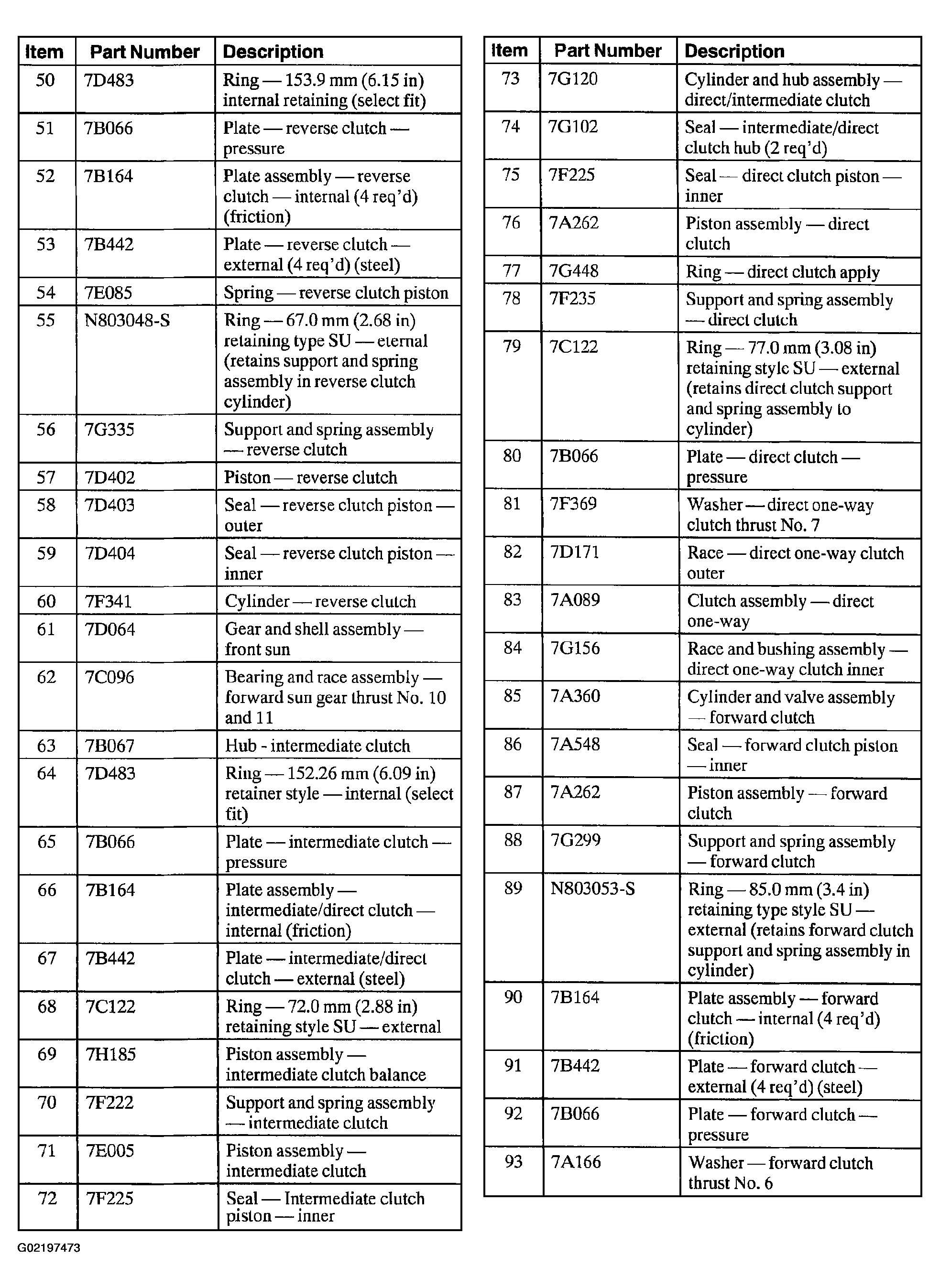

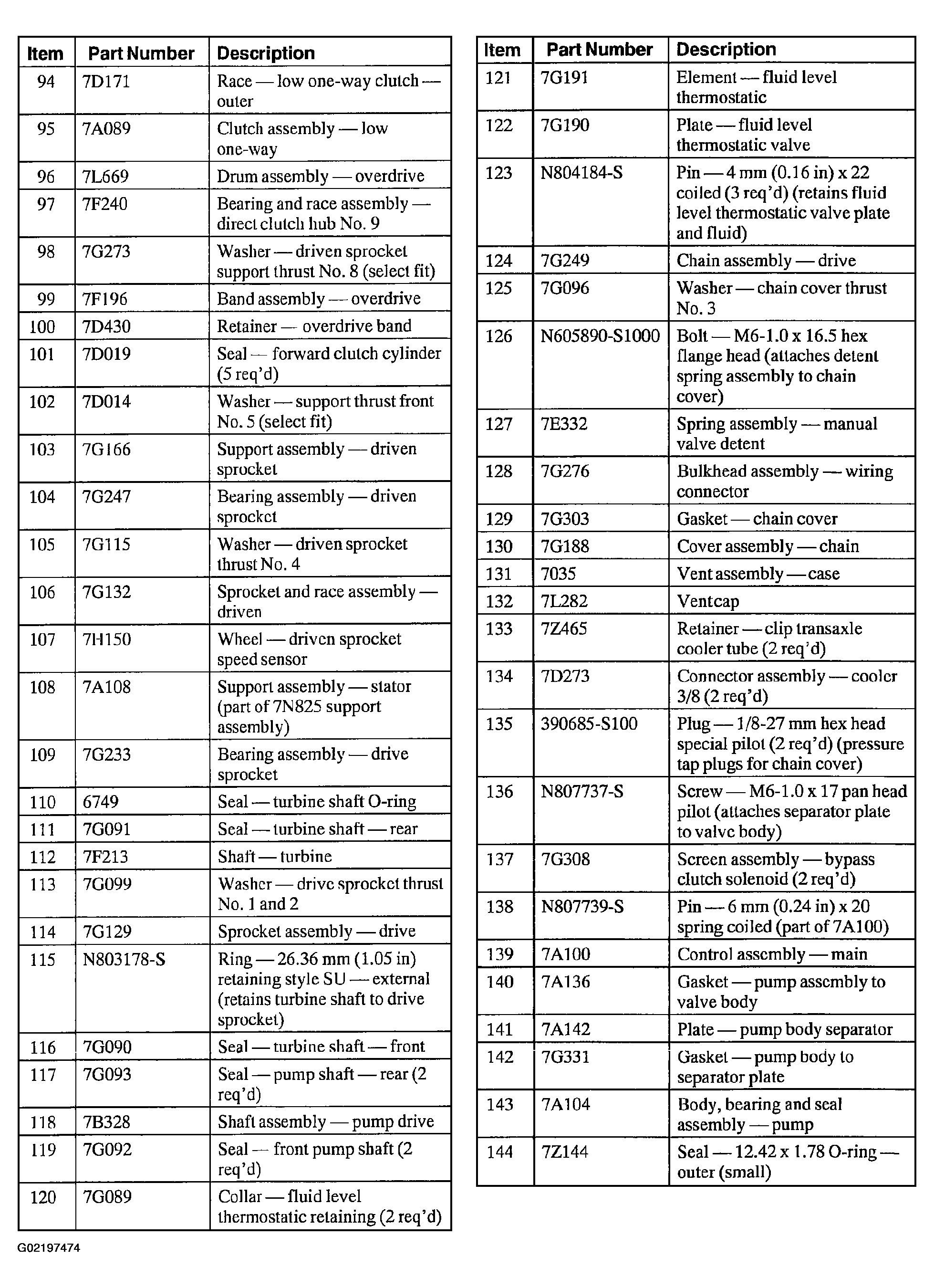

Fig 7: Disassembled Transaxle Components Legend (Items 94-144)

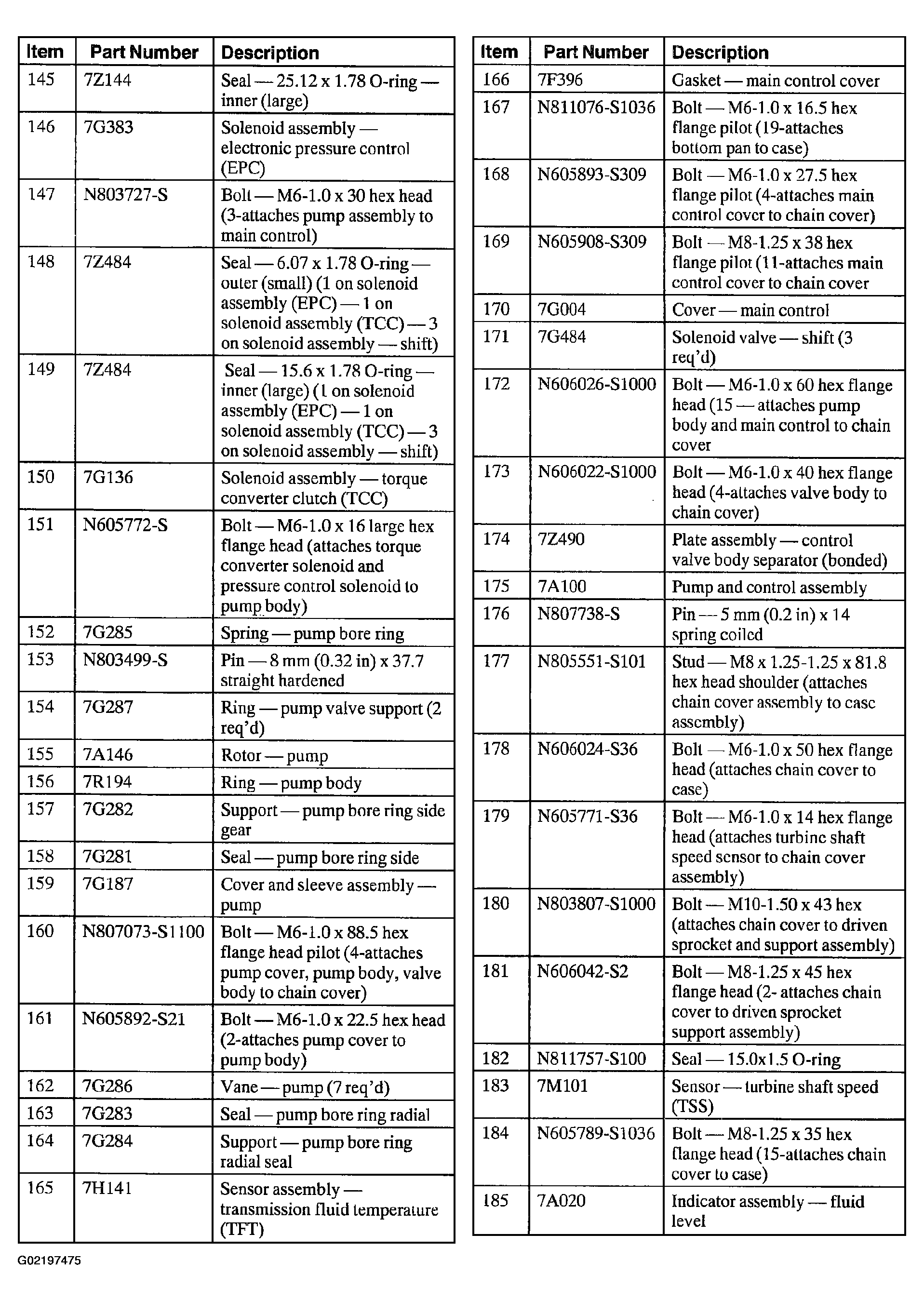

Fig 8: Disassembled Transaxle Components Legend (Items 145-185)

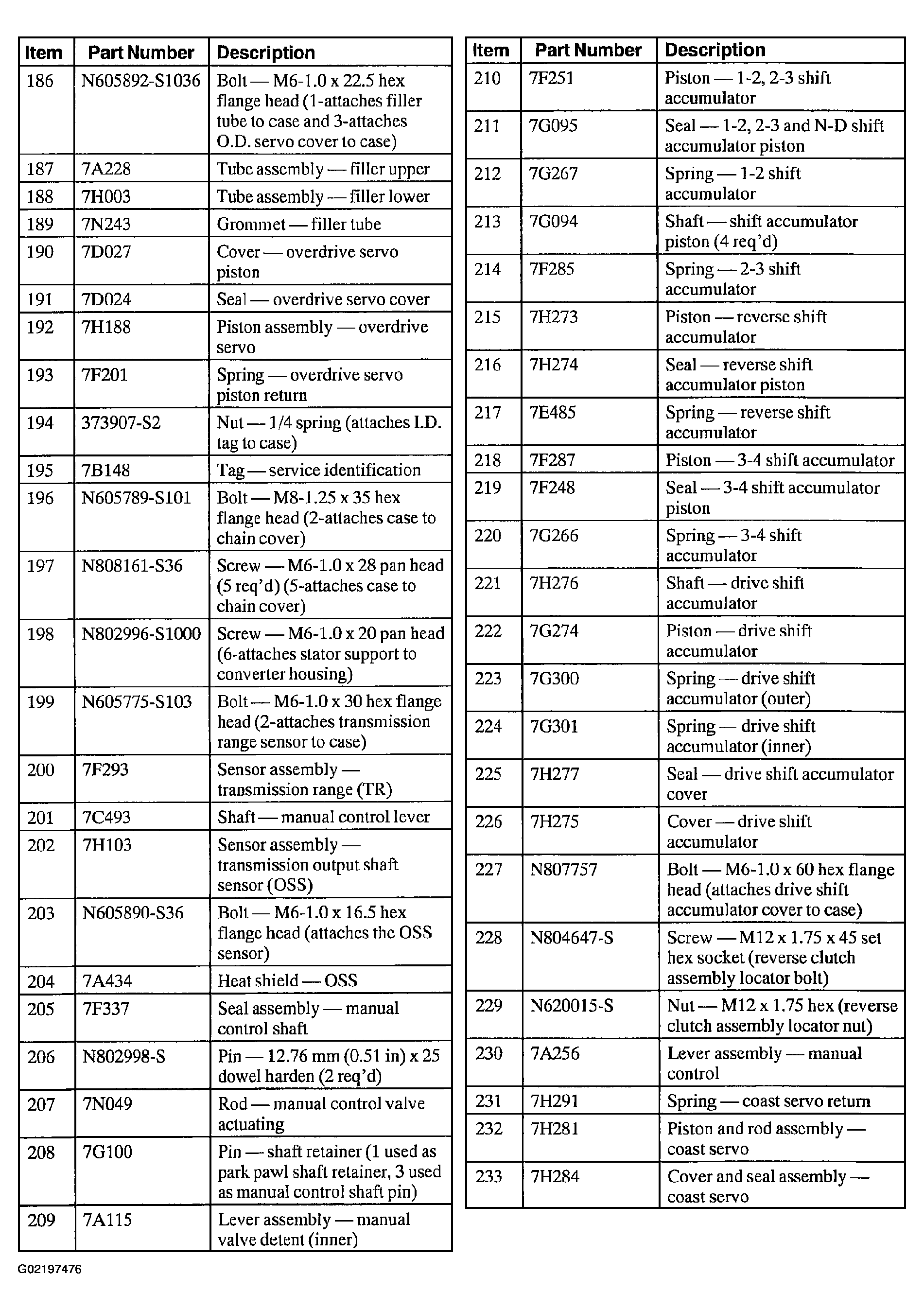

Fig 9: Disassembled Transaxle Components Legend (Items 186-233)

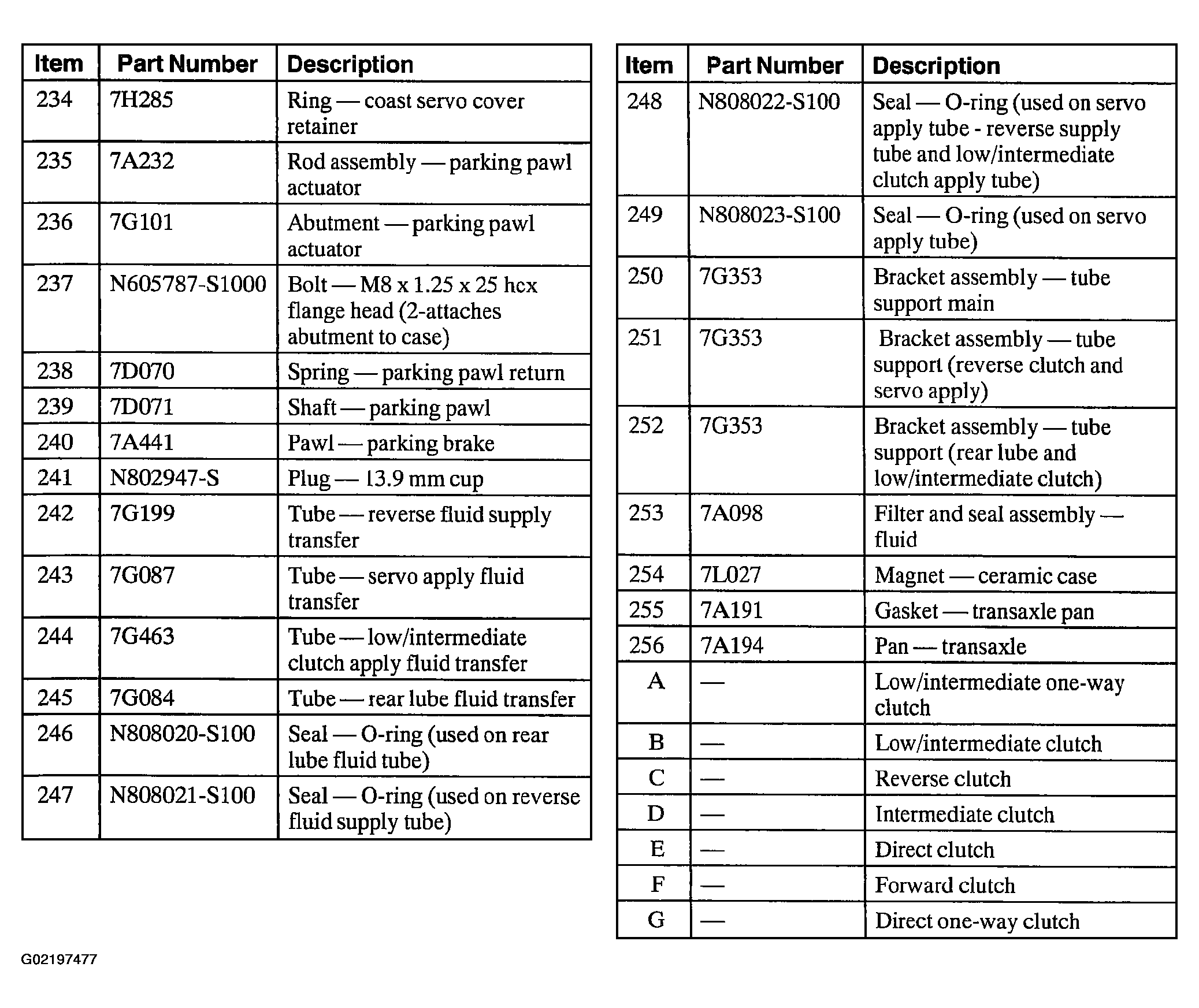

Fig 10: Disassembled Transaxle Components Legend (Items 234-256, A, B, C, D, E, F & G)
