Direct Clutch Cylinder: Assembly

    NOTE: The lip on the seal must face toward the bottom of the clutch cylinder.

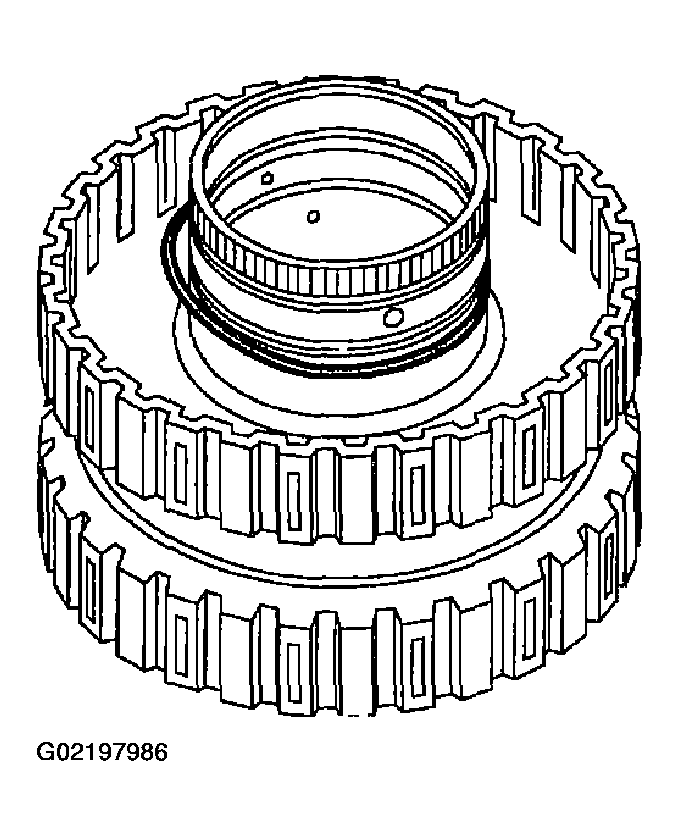

    Fig 1: Installing Inner Piston Seal
    G02197986
  1. Install the inner piston seal.
  2. NOTE: Make sure that the check ball is in place on the clutch piston. Lightly coat all the seals with petroleum jelly prior to installation.

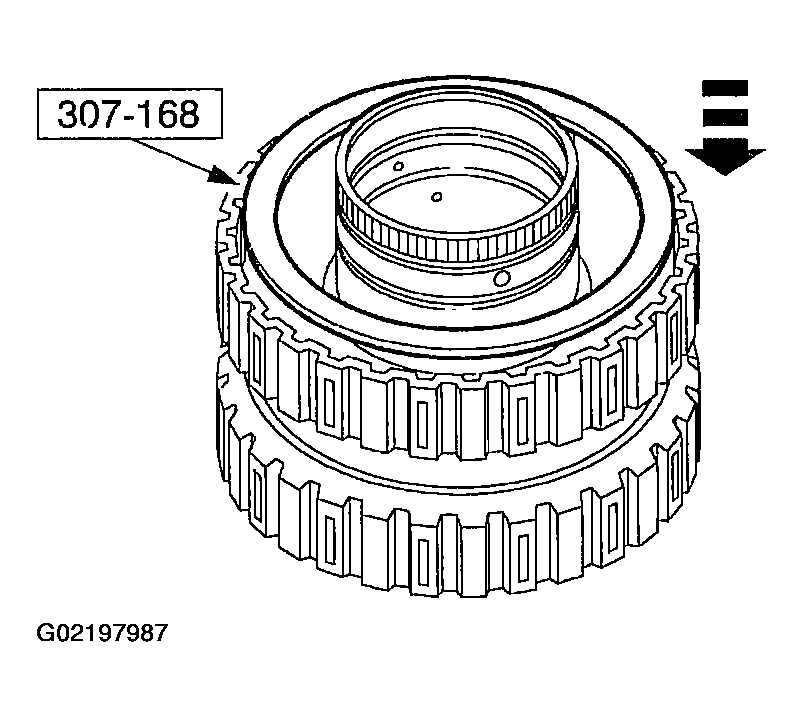

    Fig 2: Installing Direct Clutch Piston & Seal Assembly
    G02197987
  3. Using the special tool, install the direct clutch piston and seal assembly making sure that it is fully seated.
  4. Install the apply ring. Make sure that it is fully seated on the clutch piston.

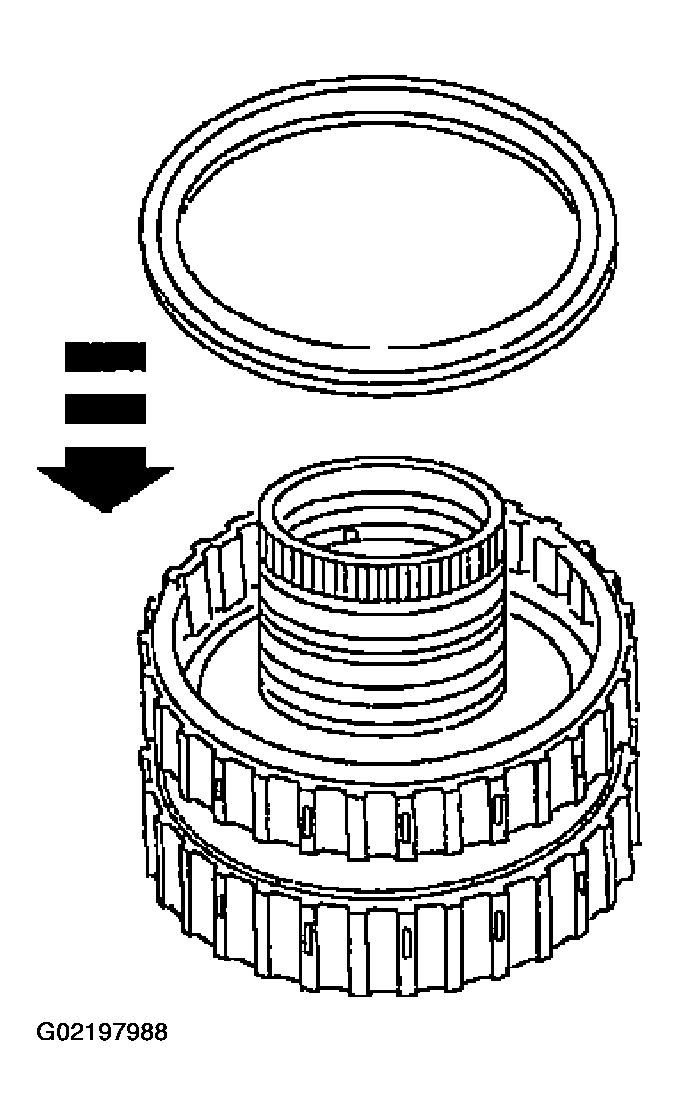

    Fig 3: Installing Apply Ring
    G02197988
  5. NOTE: The notch on the direct clutch return spring must line up with the check ball on the direct clutch piston.

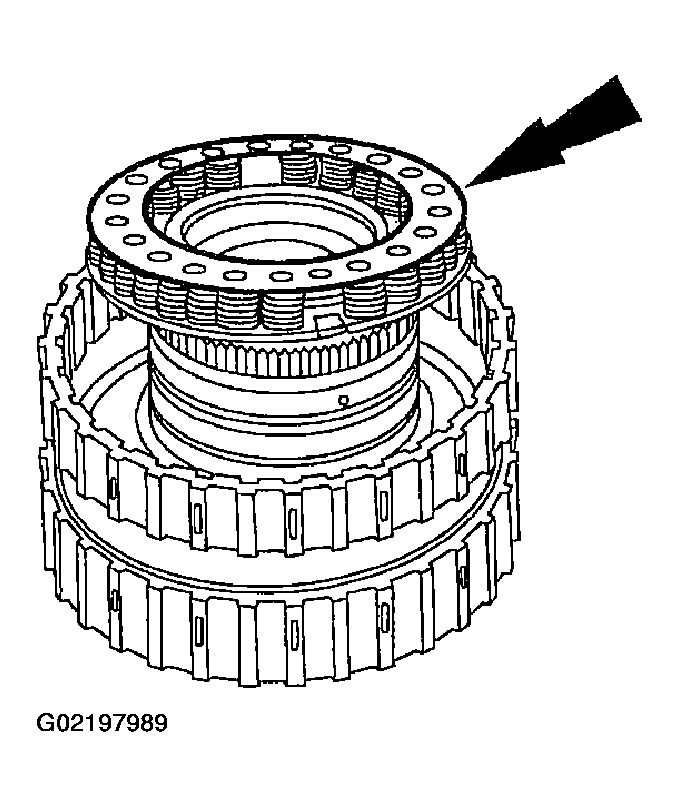

    Fig 4: Installing Direct Clutch Return Spring
    G02197989
  6. Install the direct clutch return spring.
  7. CAUTION: Do not allow the special tool to bottom out on the piston.

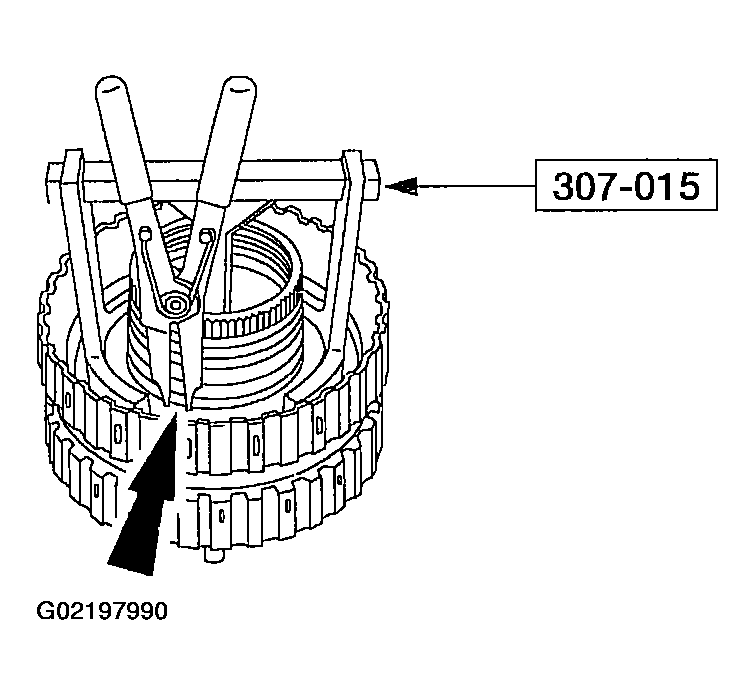

    Fig 5: Installing Clutch Spring Snap Ring
    G02197990
  8. Using the special tool, compress the clutch spring and install the snap ring.
  9. CAUTION: Check for wear on the inner splines of the friction plates. Install new plates if worn.
    NOTE: The clutch pressure plate must be installed with the chamfer edge facing up.

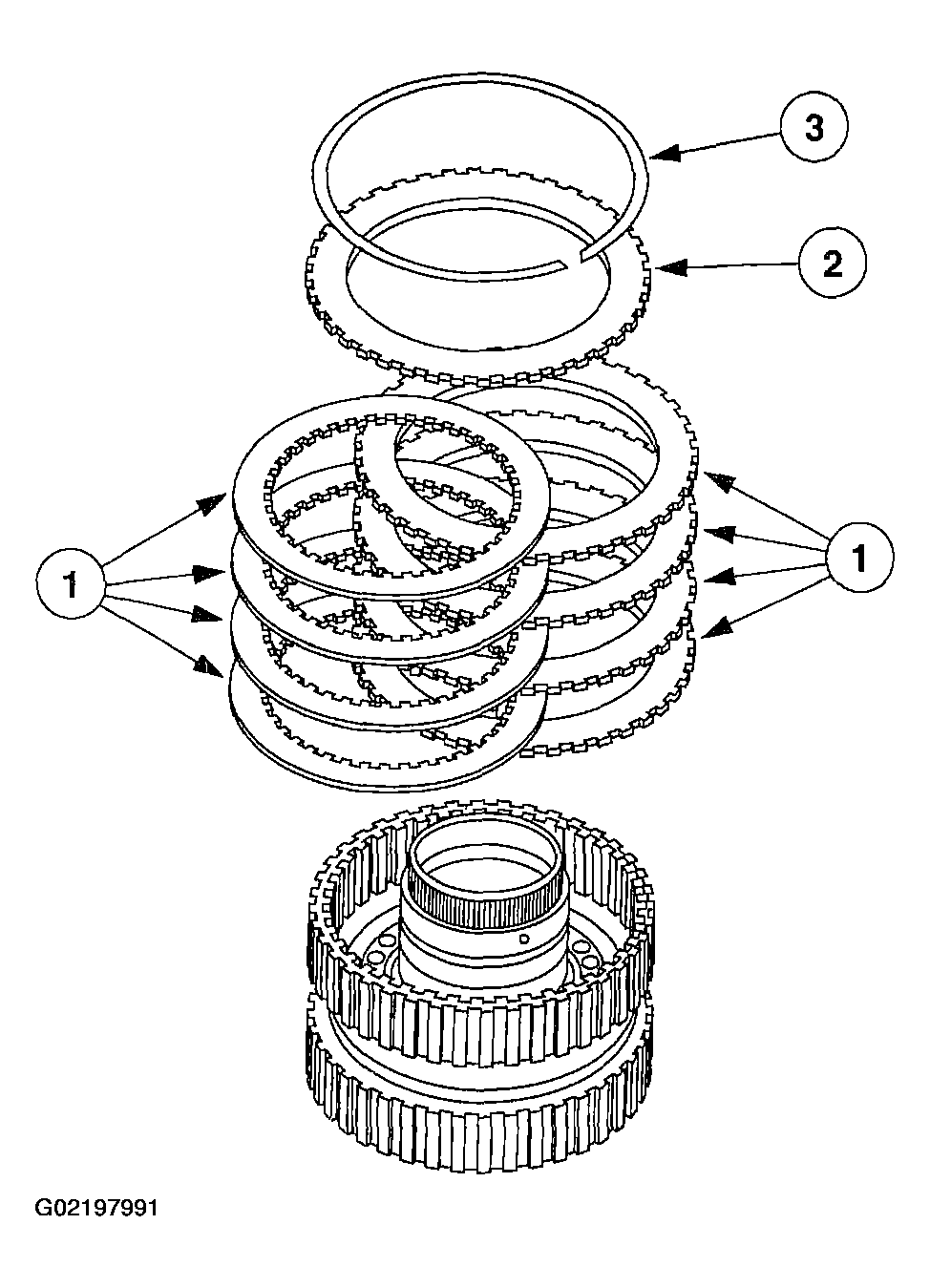

    Fig 6: Installing Intermediate Clutch Pack
    G02197991
  10. Install the intermediate clutch pack.
    1. Install the intermediate clutch pack.
    2. Install the clutch pressure plate.
    3. Install the snap ring.
  11. Using the special tool, measure the clearance between the retaining ring and the clutch cylinder lip.

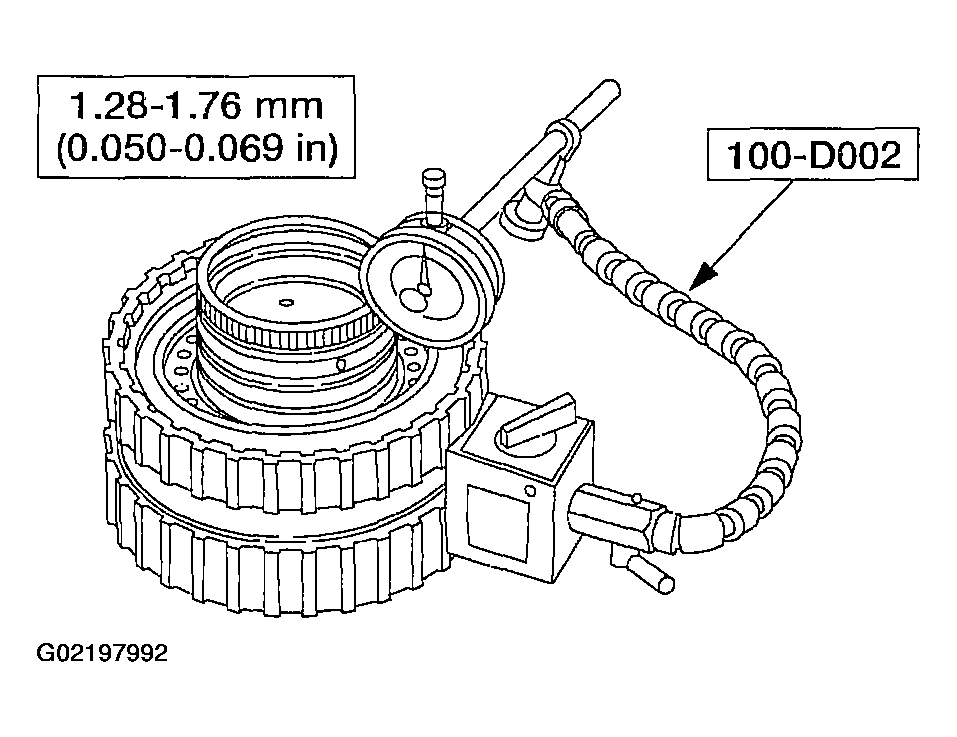

    Fig 7: Measuring Retaining Ring & Clutch Cylinder Lip Clearance
    G02197992
  12. If the clearance is not within specification, selective retaining rings are available. See Fig 8. Check the clearance after installing the correct selective retaining ring.

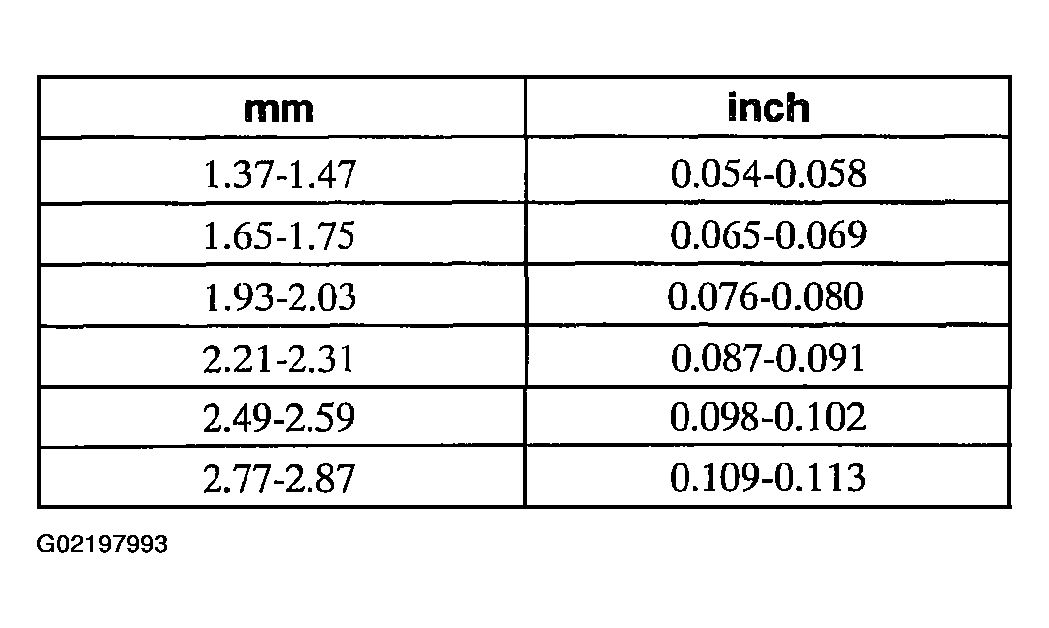

    Fig 8: Selective Retaining Ring Specifications Table
    G02197993
