Driven Sprocket Support: Assembly

  1. If removed, install a NEW driven sprocket bearing. Using the special tools and an arbor press install a new driven sprocket bearing.

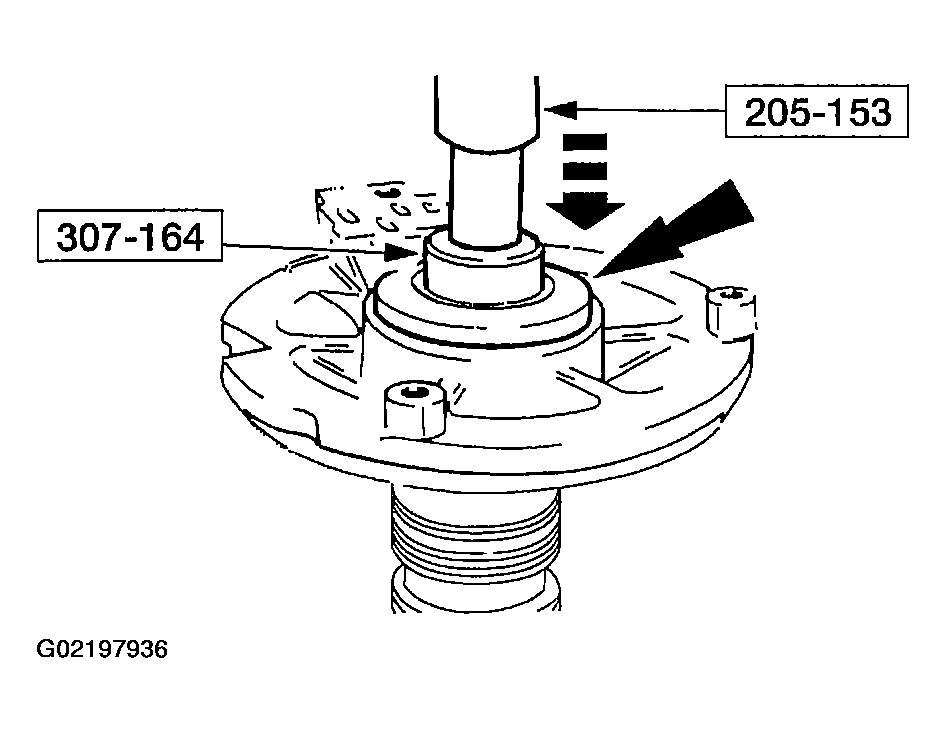

    Fig 1: Installing Driven Sprocket Bearing
    G02197936
  2. Make sure that the seals are mated correctly during installation.

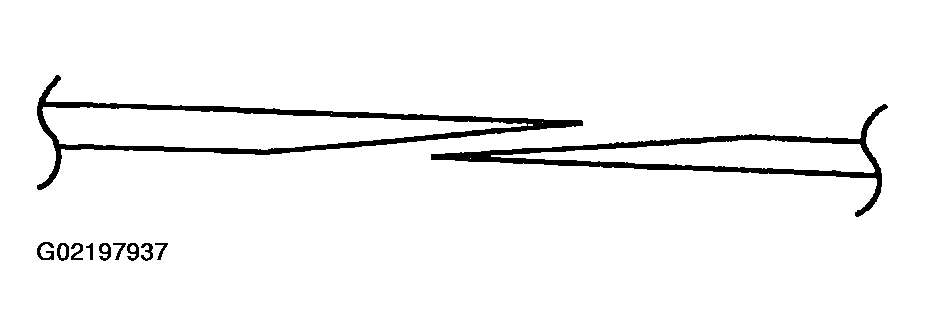

    Fig 2: Pump Shaft Seals Installed Position
    G02197937
    3. CAUTION: The seal rings must be installed correctly. Transmission failure could result.

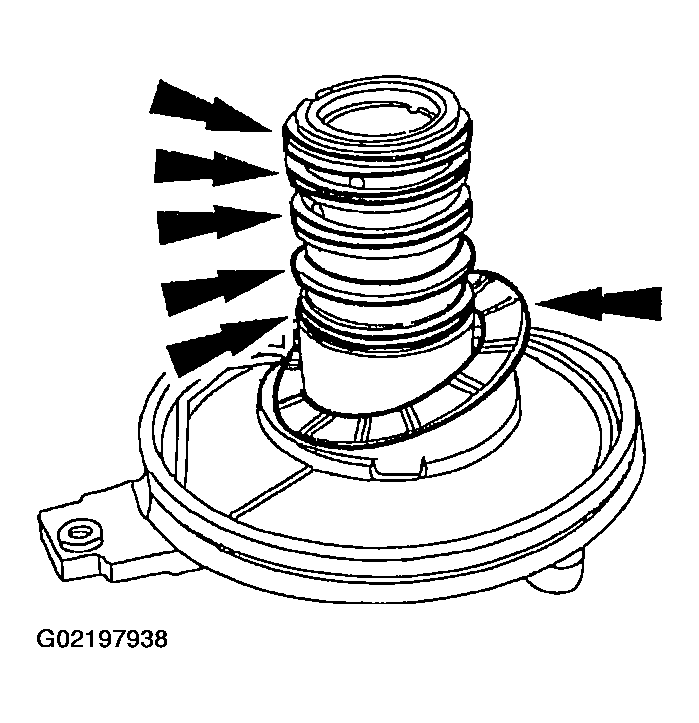

    Fig 3: Installing New Teflon® Seals & No. 5 Thrust Washer
    G02197938
  3. Install new Teflon® seals and the No. 5 thrust washer.
