Driven Sprocket Support: Disassembly

  1. Remove the Teflon® seal rings and the No. 5 thrust washer.

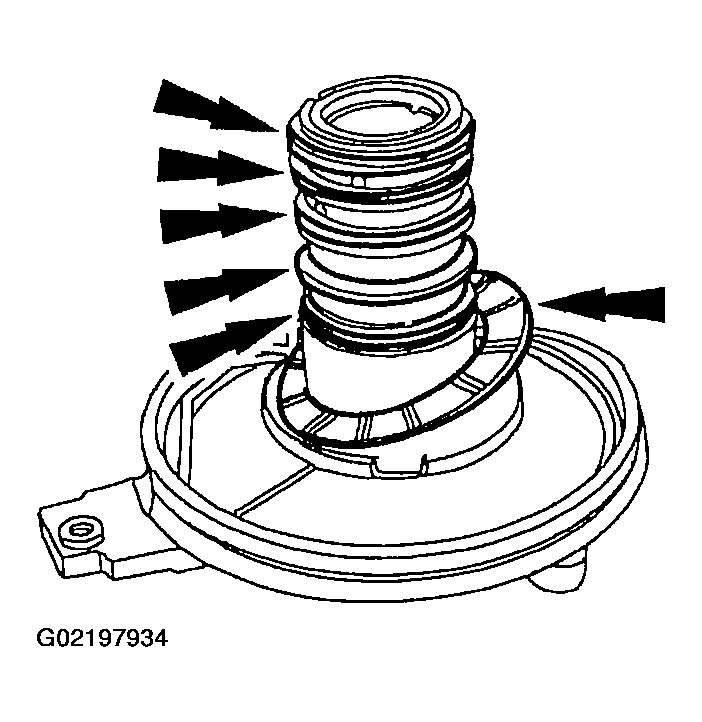

    Fig 1: Removing Seal Rings & No. 5 Thrust Washer
    G02197934
    2. NOTE: If the driven sprocket bearing is damaged it should be replaced.

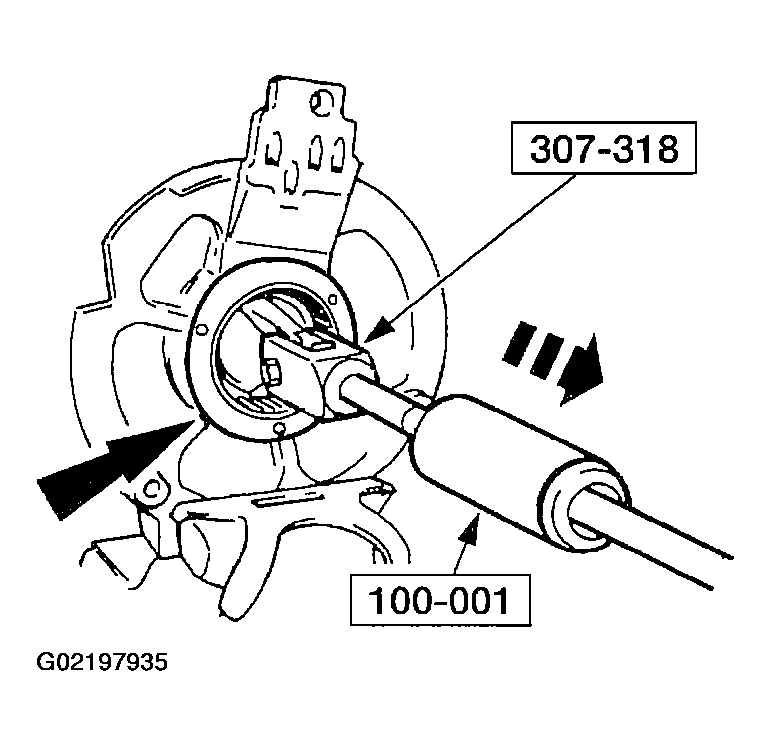

    Fig 2: Removing Driven Sprocket Bearing
    G02197935
  2. Using the special tools, remove the driven sprocket bearing.
