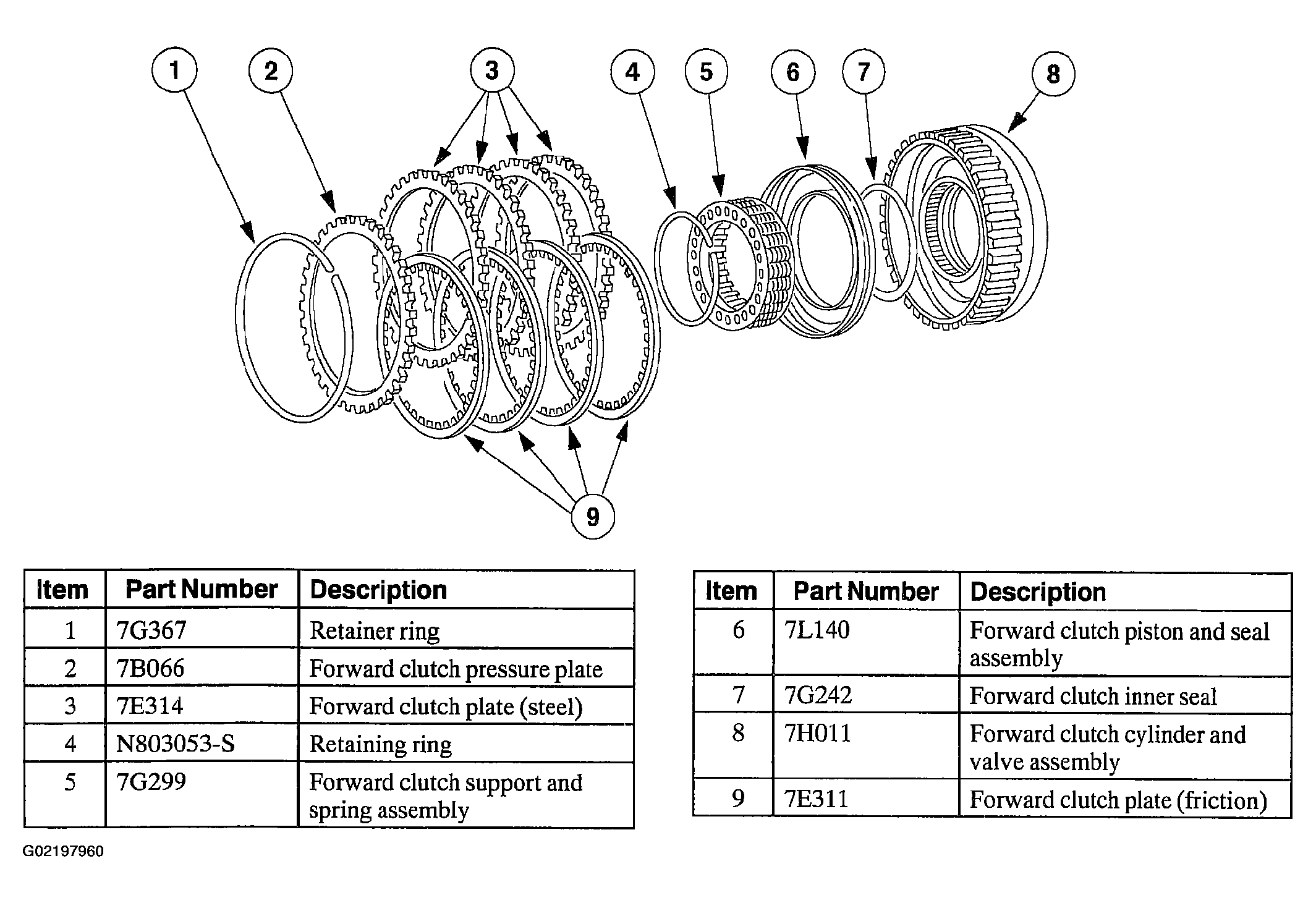

Forward Clutch Cylinder: Disassembly

Fig 1: Identifying Forward Clutch Cylinder

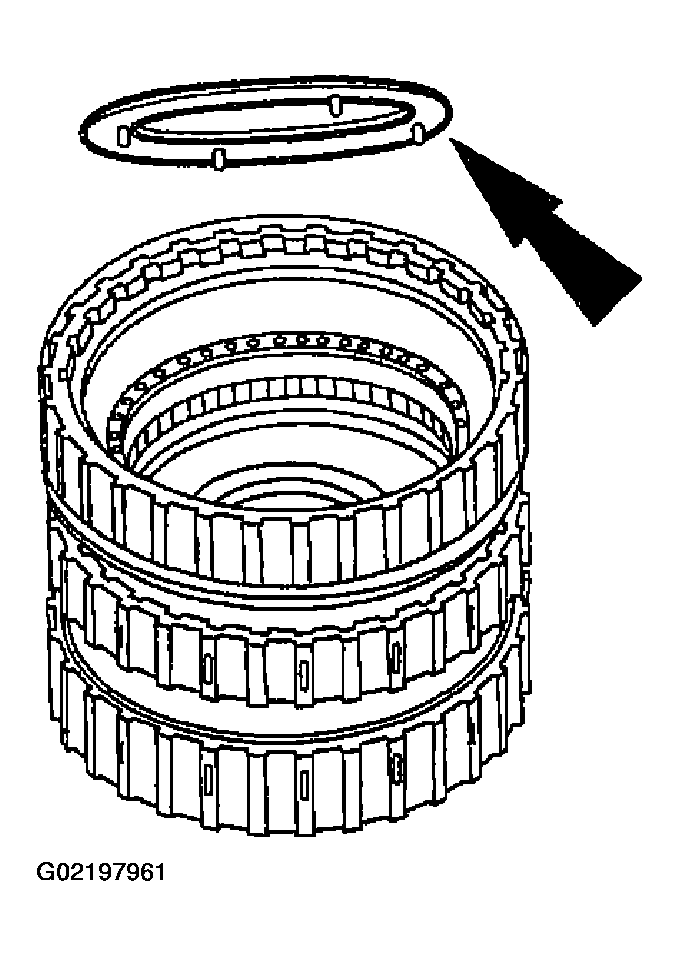

Remove the No. 6 forward clutch thrust washer.

Fig 2: Removing No. 6 Forward Clutch Thrust Washer

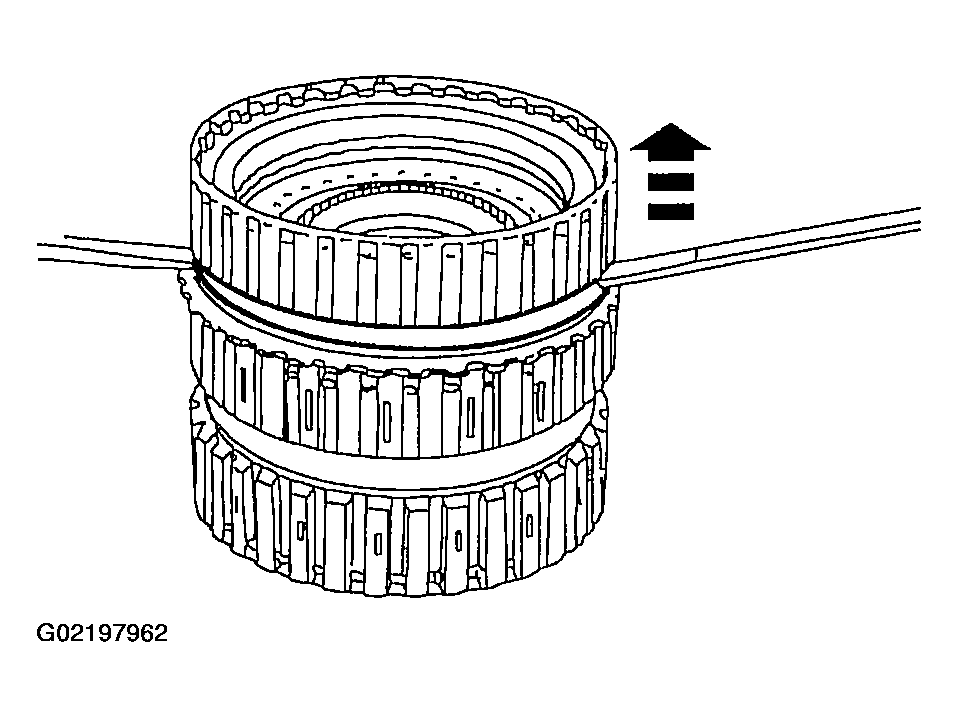

CAUTION: Pry evenly and do not locate screwdriver ends on or near forward clutch check ball to prevent component damage.

Fig 3: Removing Forward Clutch Assembly

Remove the forward clutch assembly.

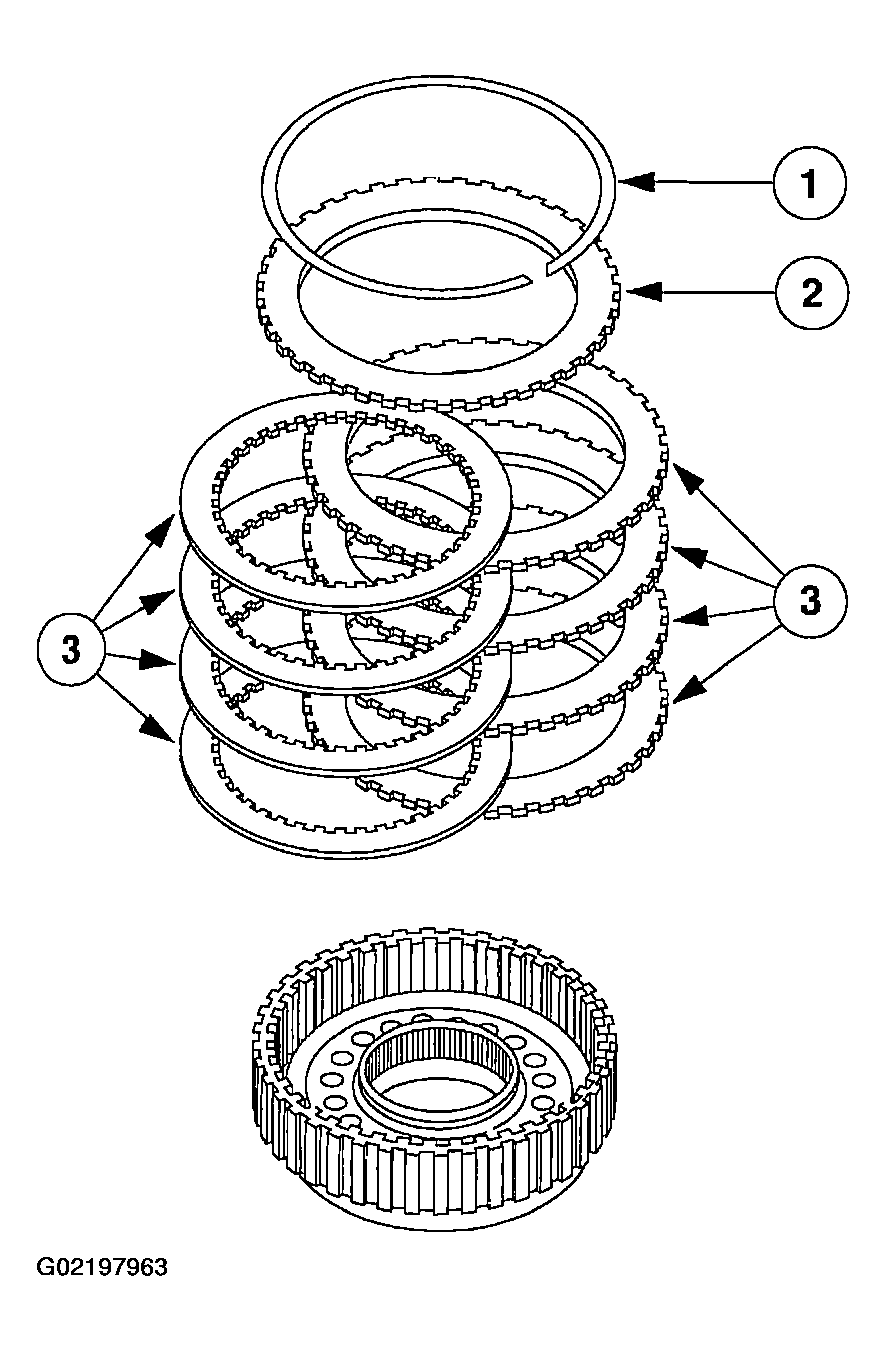

Remove the forward clutch plates.
1. Remove the retaining ring.
2. Remove the pressure plate.
3. Remove the clutch packs.
Fig 4: Removing Forward Clutch Plates

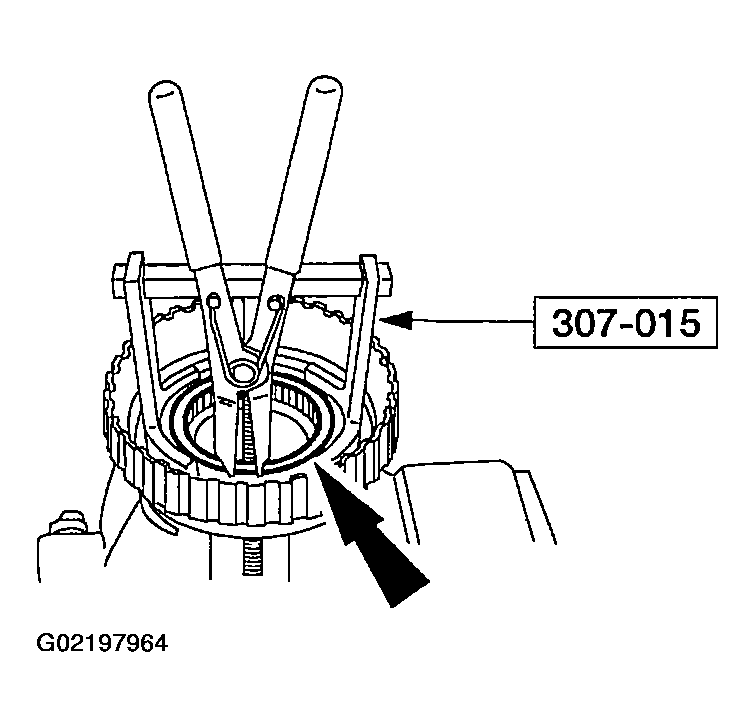

Using the special tool, disassemble the forward clutch cylinder.

Fig 5: Disassembling Forward Clutch Cylinder

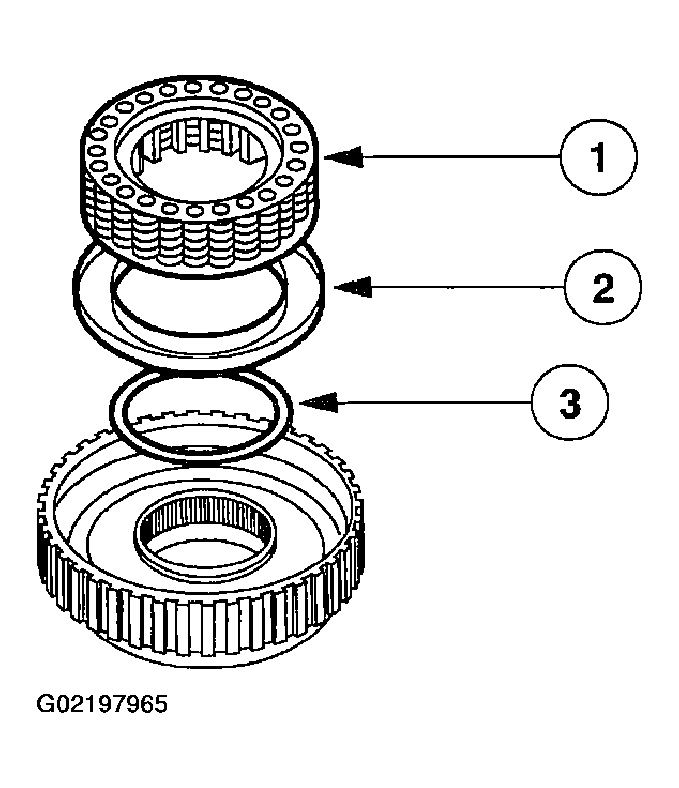

Clean and reseal the forward clutch.
1. Remove the clutch return spring.
2. Remove the clutch piston and seal assembly.
3. Remove the inner piston seal.
Fig 6: Cleaning & Resealing Forward Clutch
