Low-Intermediate Clutch Cylinder: Assembly

  1. Using the special tool, install the new rear lube oil transfer tube seals.

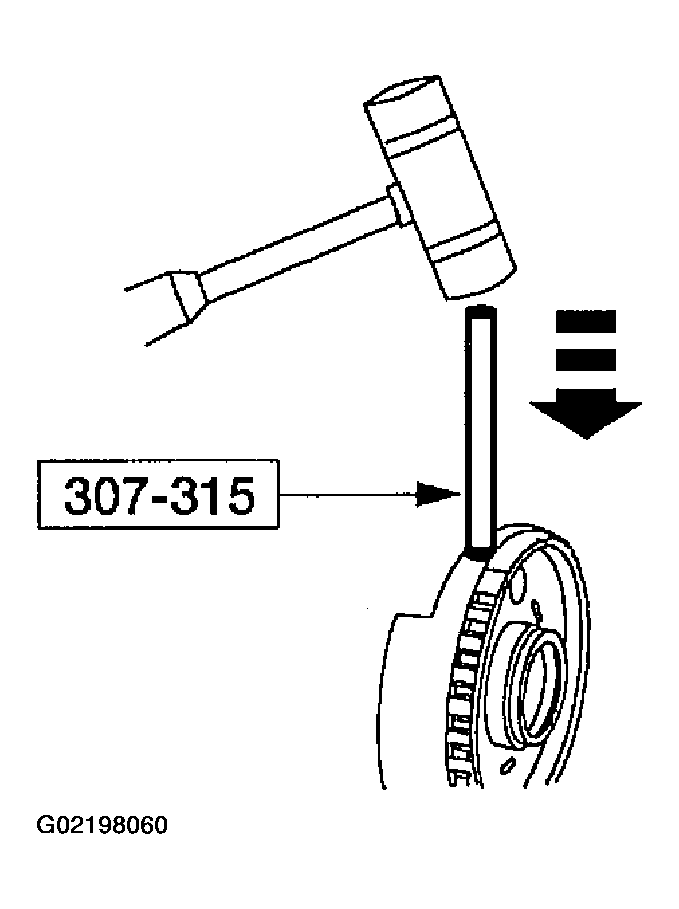

    Fig 1: Installing New Rear Lube Oil Transfer Tube Seals
    G02198060
    2. NOTE: Lightly coat all the seals and surfaces with petroleum jelly.

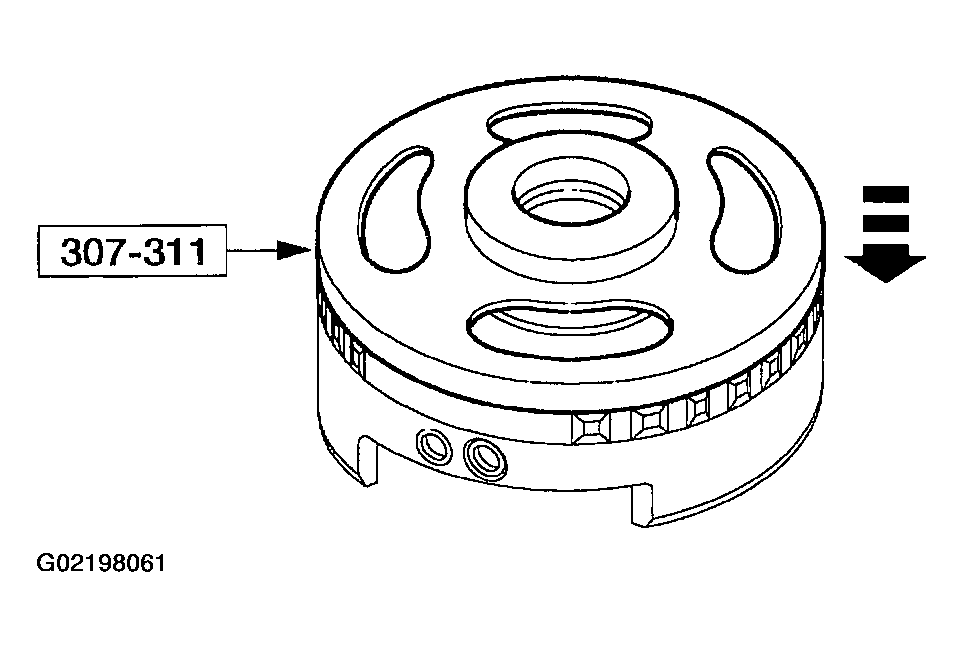

    Fig 2: Installing Low Intermediate Clutch Piston
    G02198061
  2. Install the low intermediate clutch piston and seal using the special tool.
  3. Install the low intermediate clutch support and spring assembly.

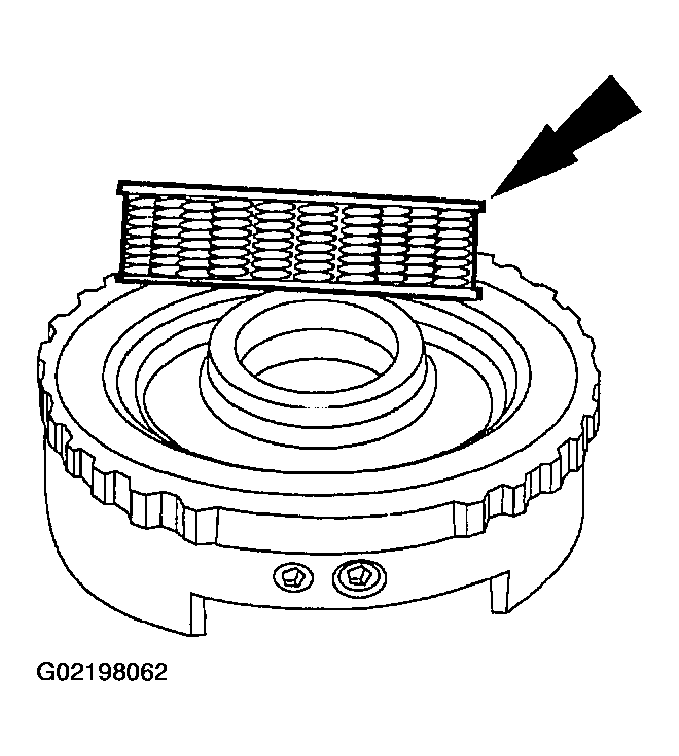

    Fig 3: Installing Low Intermediate Clutch Support & Spring Assembly
    G02198062
    4. CAUTION: Do not fully compress the clutch spring retainer.

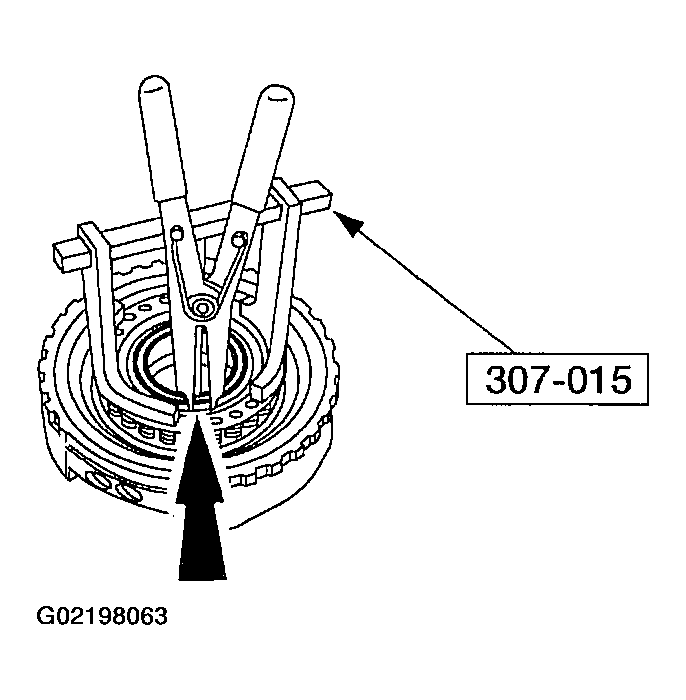

    Fig 4: Installing Snap Ring
    G02198063
  4. Use the special tool, install the snap ring.
    5. CAUTION: Make sure the locking tabs are snapped over the retainer.

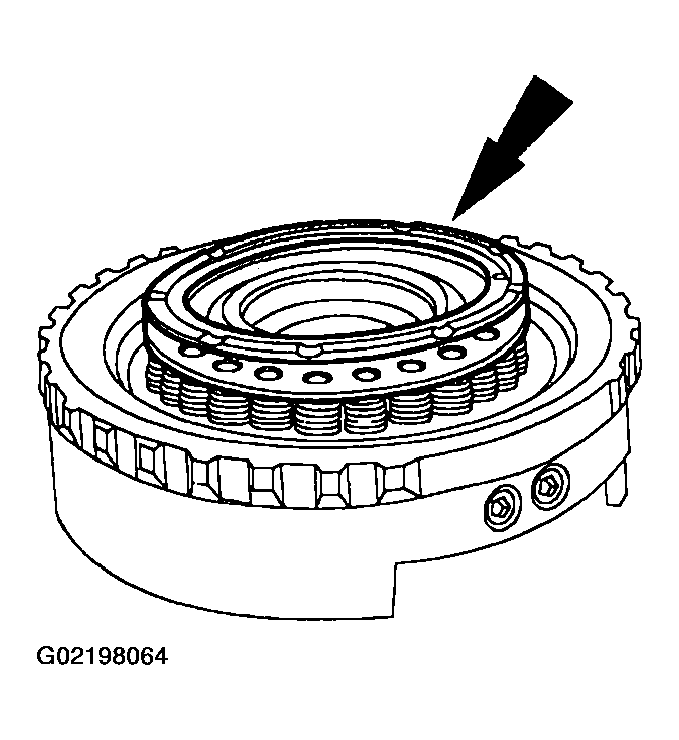

    Fig 5: Installing No. 15 Plastic Spring Retainer Washer
    G02198064
  5. Install the No. 15 plastic spring retainer washer.
    6. NOTE: The lip on the bearing goes over the hub. Use petroleum jelly to hold the bearing in place.

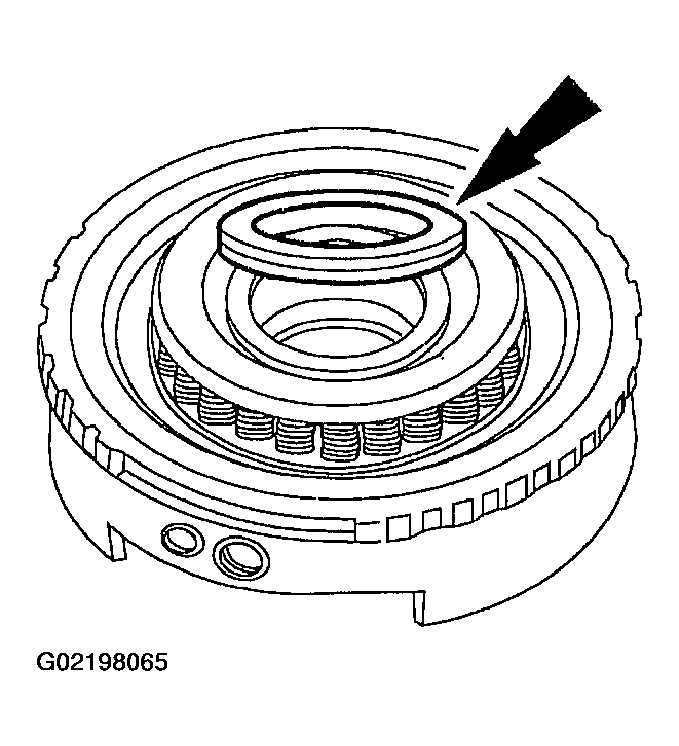

    Fig 6: Installing Rear Sun Gear Thrust Bearing & Race
    G02198065
  6. Install the rear sun gear thrust bearing and race.
  7. Install the No. 16 final drive gear thrust assembly.
