Transaxle Disassembly Special Tools

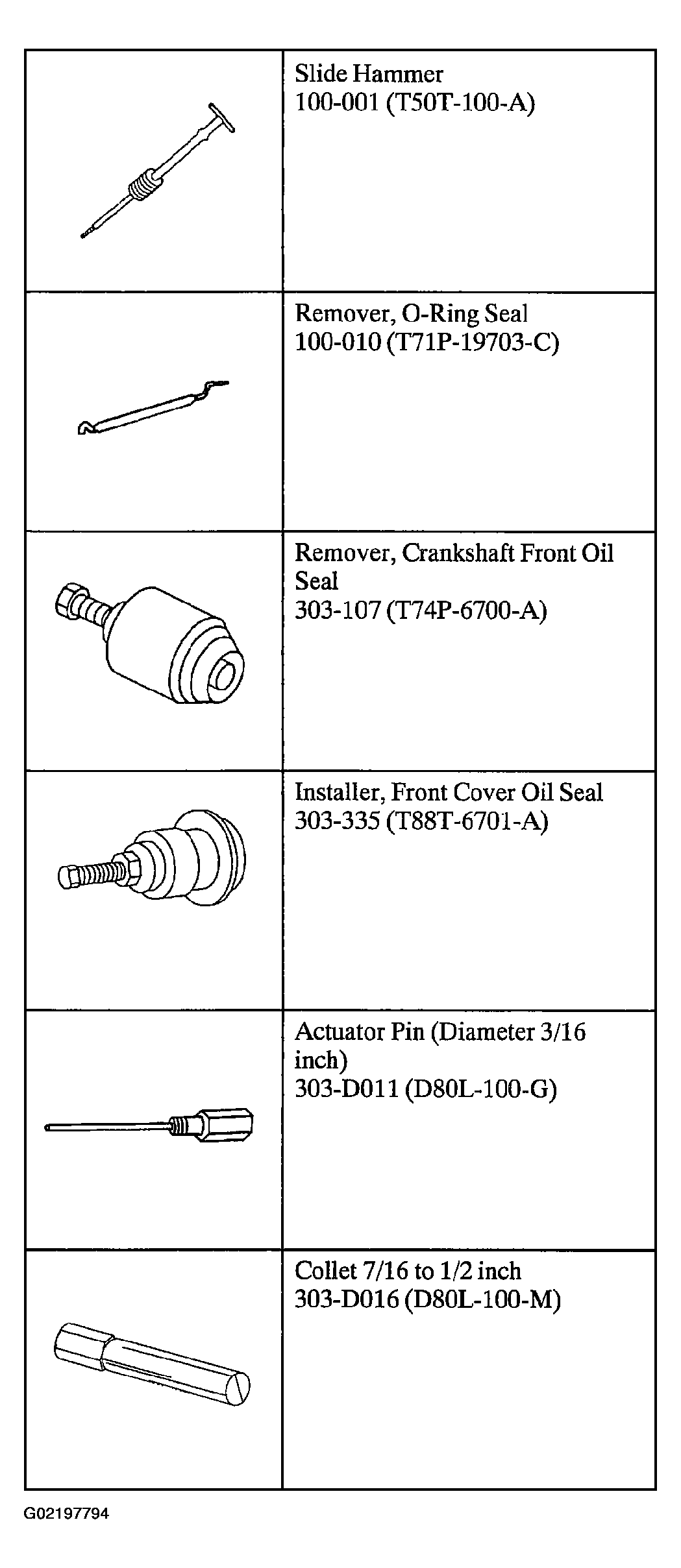

Fig 1: Transaxle Disassembly Special Tools (1 Of 4)
G02197794

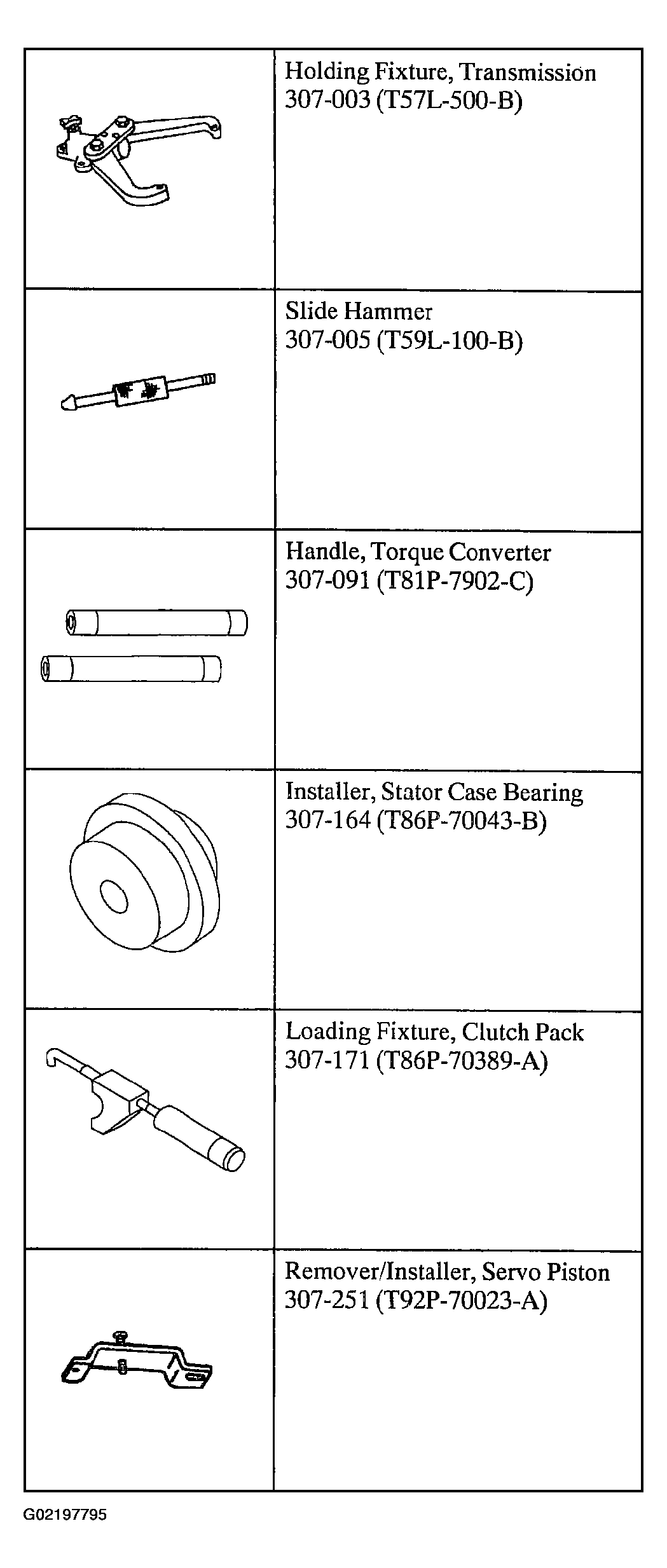

Fig 2: Transaxle Disassembly Special Tools (2 Of 4)
G02197795

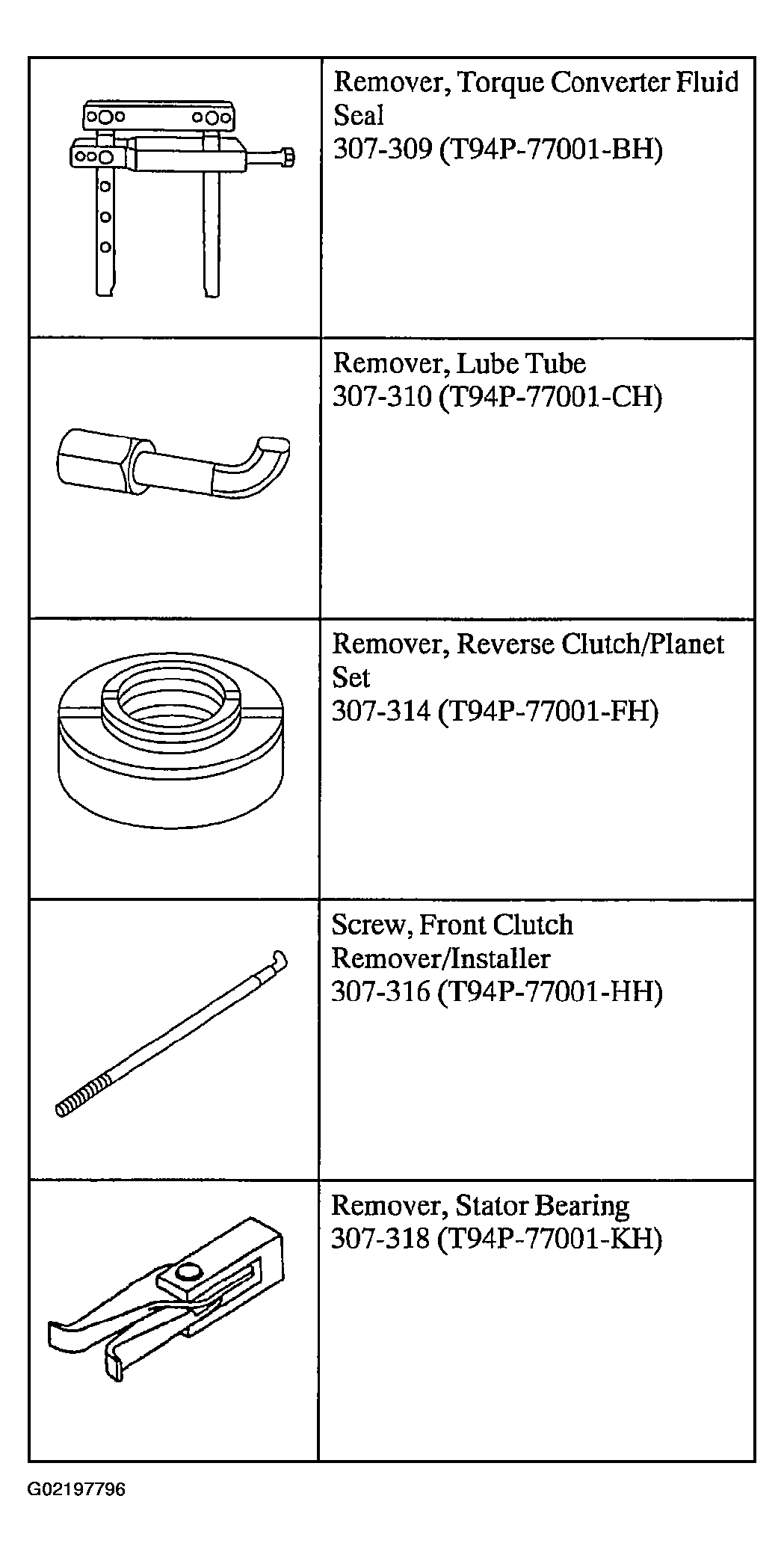

Fig 3: Transaxle Disassembly Special Tools (3 Of 4)
G02197796
Fig 4: Transaxle Disassembly Special Tools (4 Of 4)
G02197797
