Digital Transmission Range (Tr) Sensor: Installation

  1. Verify that the transaxle range selector lever is in NEUTRAL.
  2. Install the digital TR sensor and loosely install the bolts.

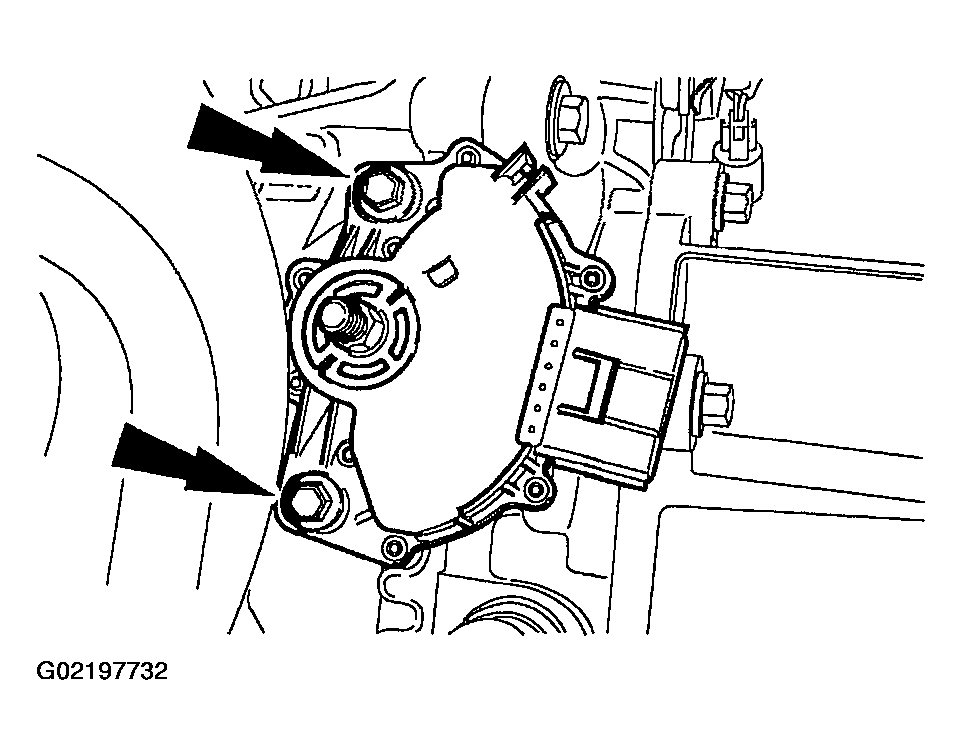

    Fig 1: Installing Digital TR Sensor
    G02197732
  3. Using the special tool, align the digital TR sensor.

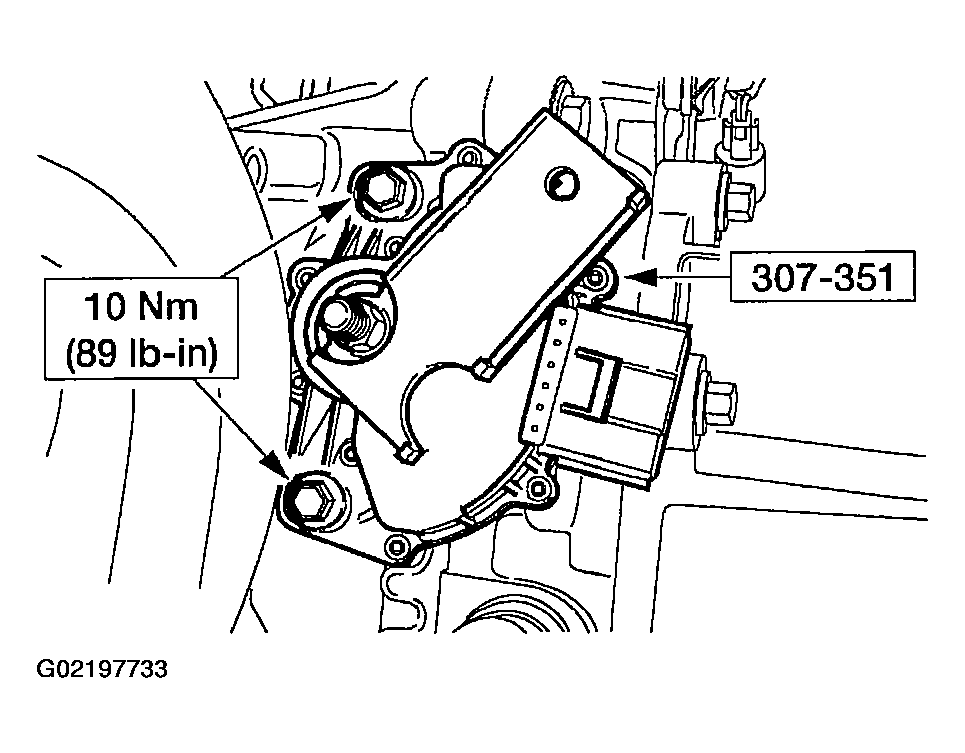

    Fig 2: Aligning Digital TR Sensor
    G02197733
  4. Install the manual control lever and nut.

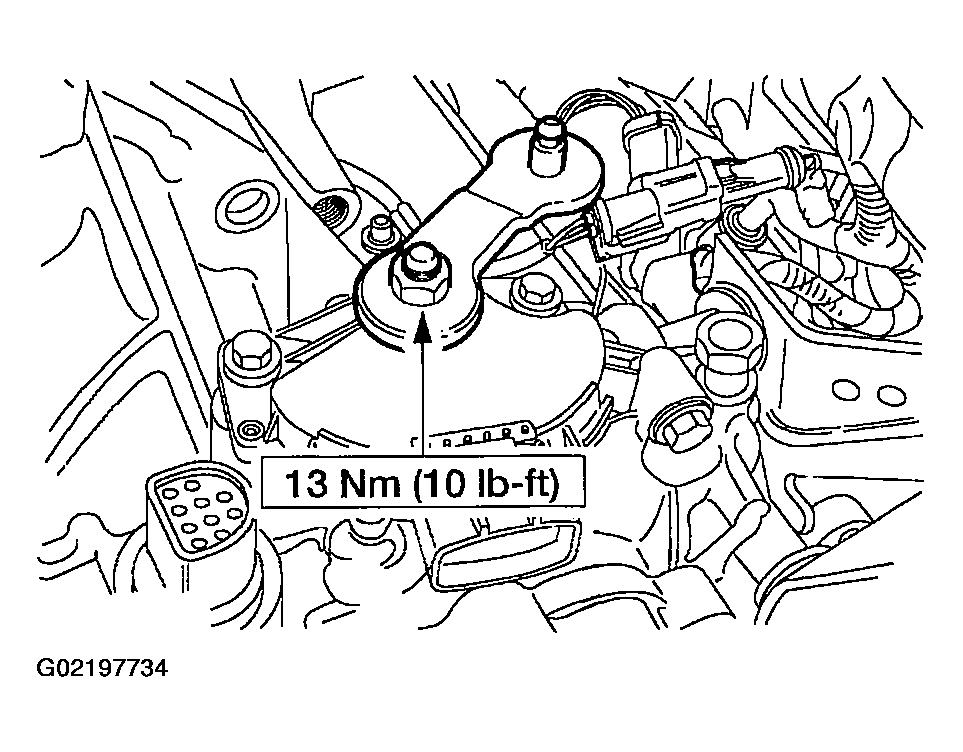

    Fig 3: Installing Manual Control Lever & Nut
    G02197734
  5. Connect the shift cable.

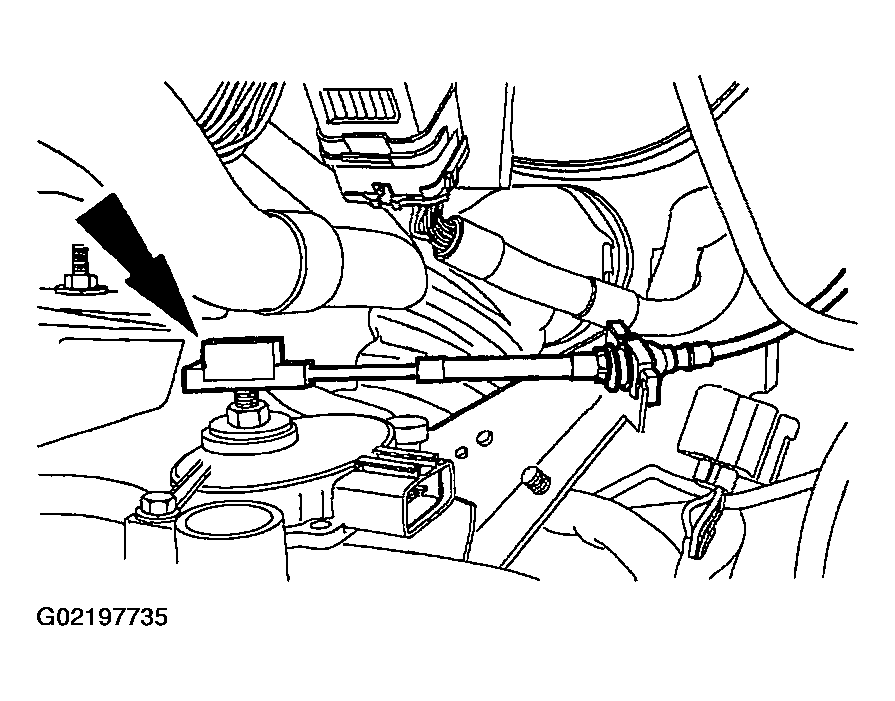

    Fig 4: Connecting Shift Cable
    G02197735
  6. Verify that the shift cable is correctly adjusted. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
  7. Connect the digital TR range sensor electrical connector.

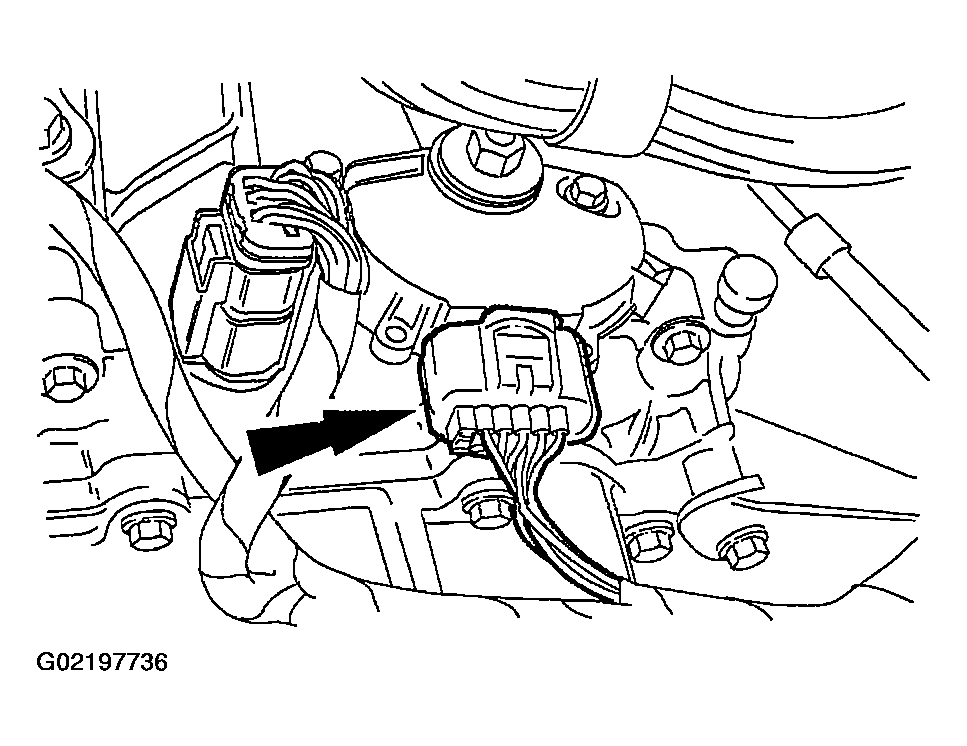

    Fig 5: Connecting Digital TR Range Sensor Electrical Connector
    G02197736
  8. Install the engine air cleaner assembly.
  9. Check for correct vehicle operation.
