Digital Transmission Range (Tr) Sensor: Removal

Set the parking brake.
Place the transaxle range selector lever in NEUTRAL.

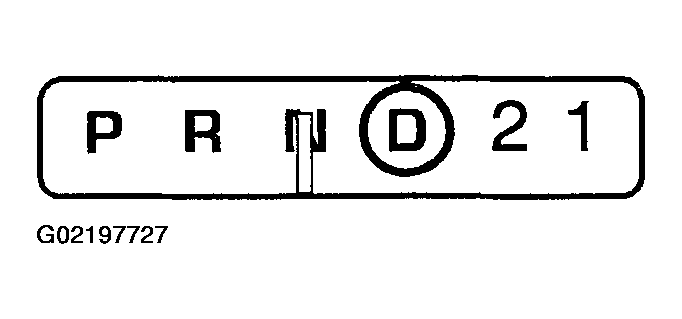

Fig 1: Identifying Selector Lever Neutral Position
Remove the engine air cleaner assembly.
Disconnect the digital transmission range (TR) sensor electrical connector.

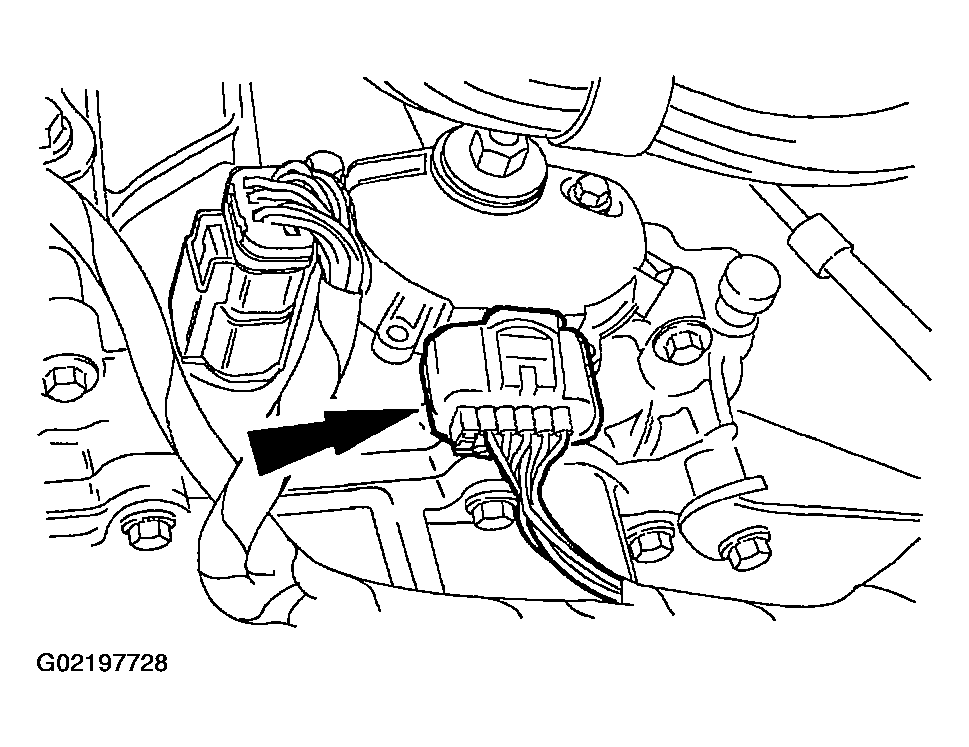

Fig 2: Disconnecting Digital Transmission Range (TR) Sensor Electrical Connector
Disconnect the shift cable from the manual control lever.

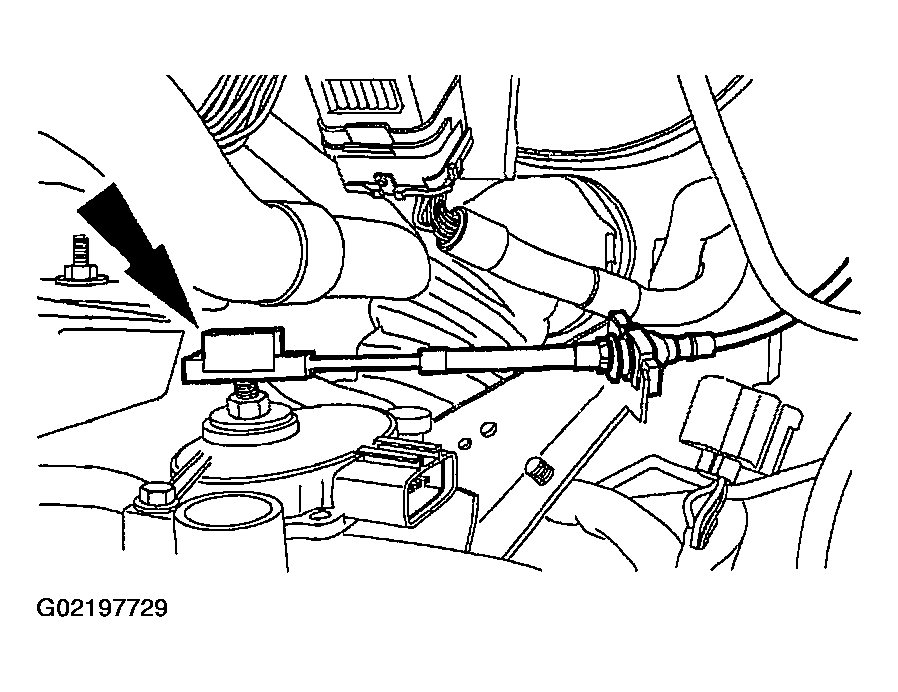

Fig 3: Disconnecting Shift Cable From Manual Control Lever
Remove the manual control lever.

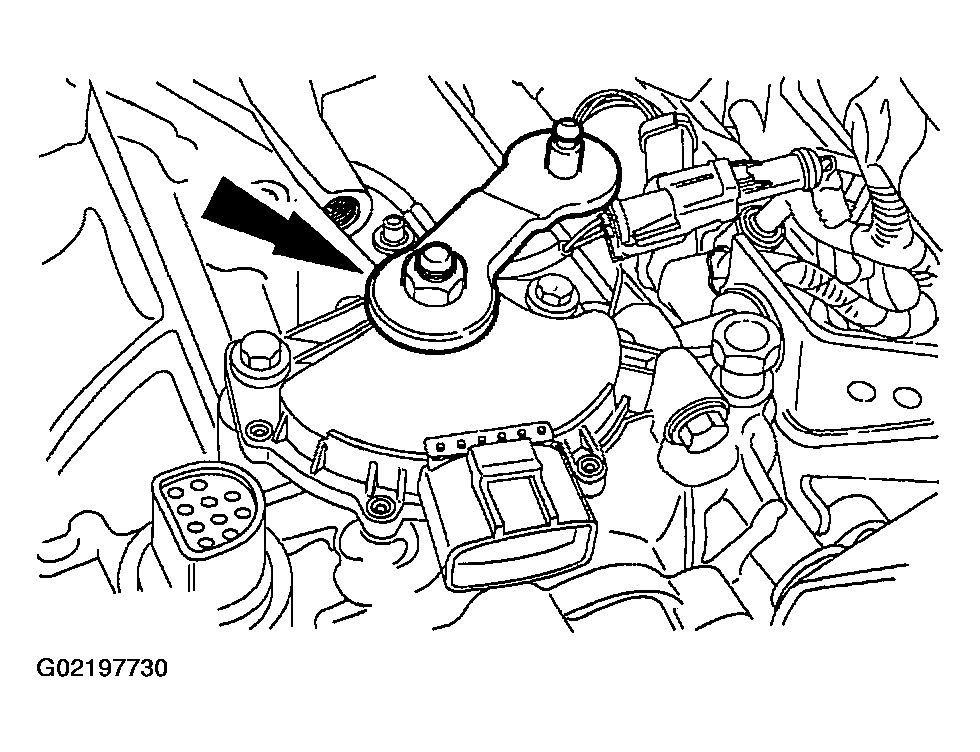

Fig 4: Removing Manual Control Lever
Remove the digital TR sensor.

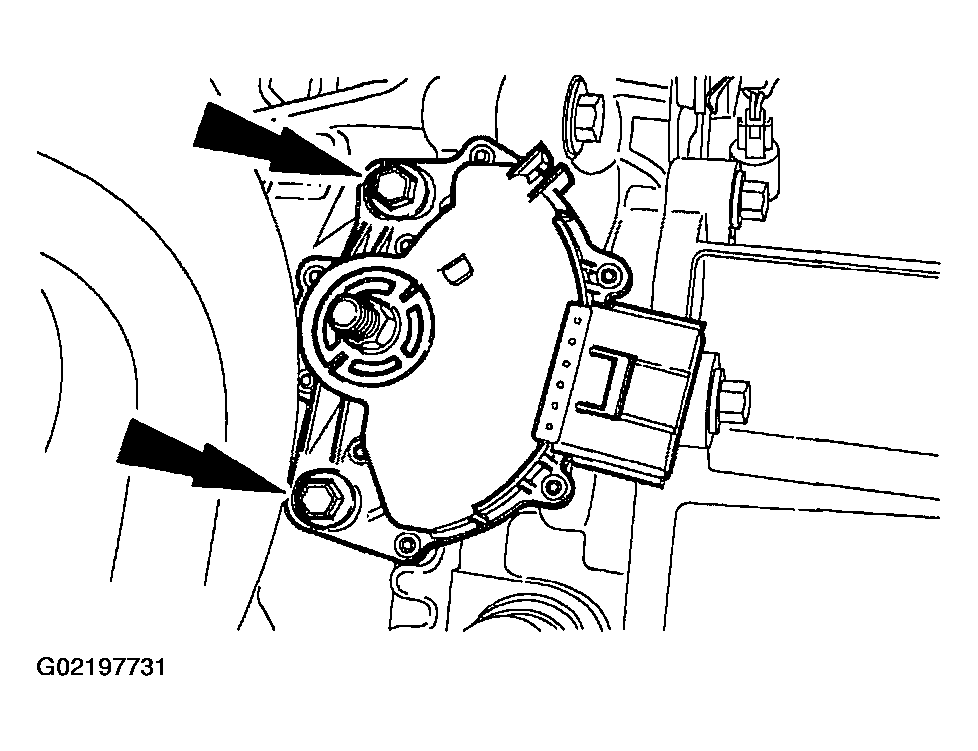

Fig 5: Removing Digital TR Sensor
