Transaxle Support Insulator: Removal

  1. Raise the vehicle.
  2. Remove the LH wheel and tire.
  3. Place the high lift transmission jack under the transaxle.

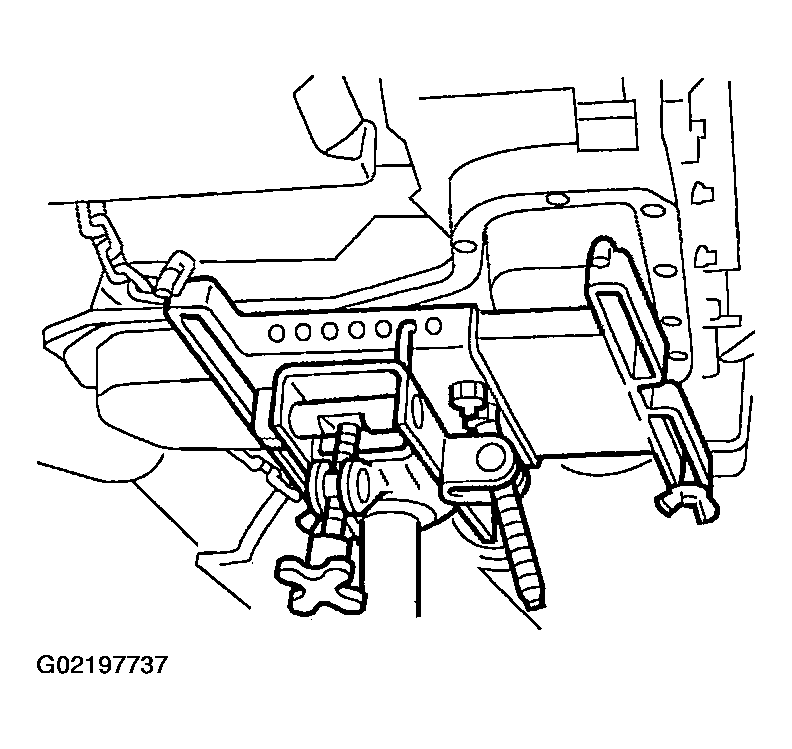

    Fig 1: Positioning High Lift Transmission Jack
    G02197737
  4. Remove the engine and transaxle upper support insulator nut.

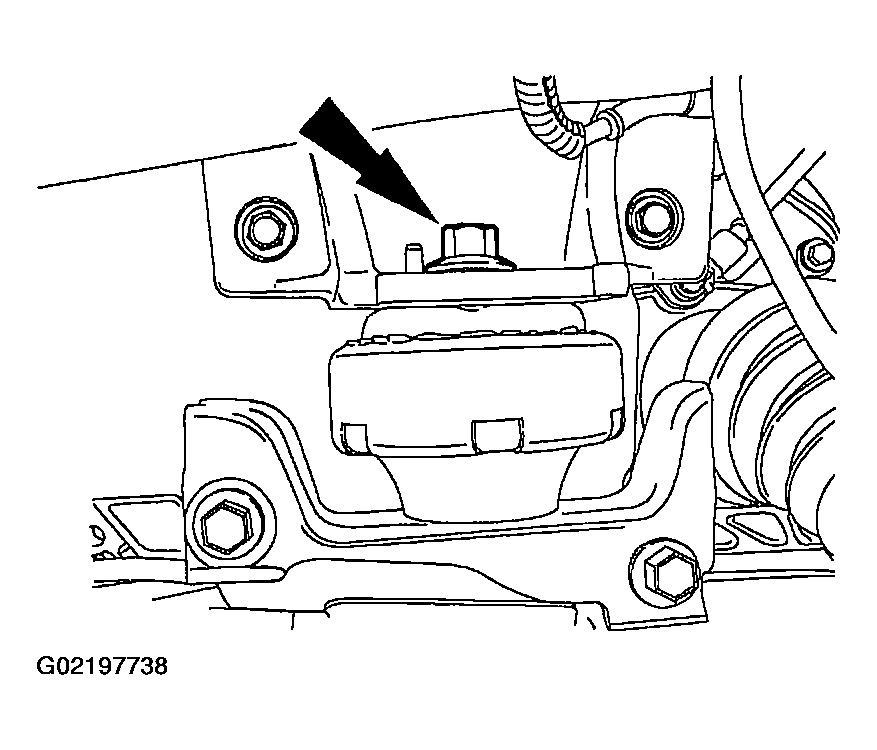

    Fig 2: Removing Engine & Transaxle Upper Support Insulator Nut
    G02197738
  5. Remove the engine and transaxle upper support bracket bolts and bracket.

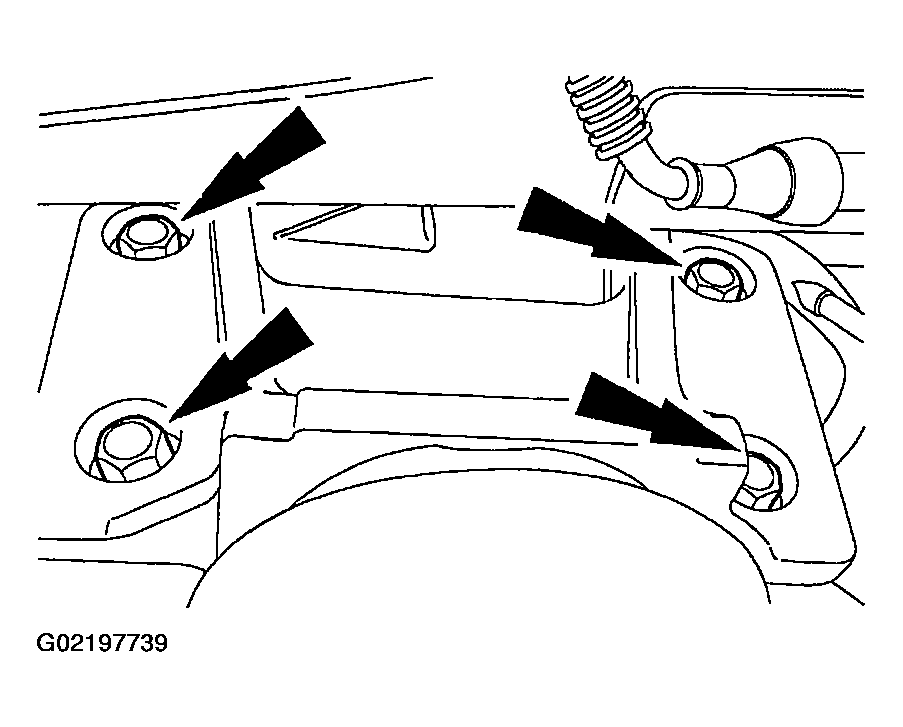

    Fig 3: Removing Engine & Transaxle Upper Support Bracket
    G02197739
  6. Remove the engine and transaxle upper support insulator bolts and insulator.

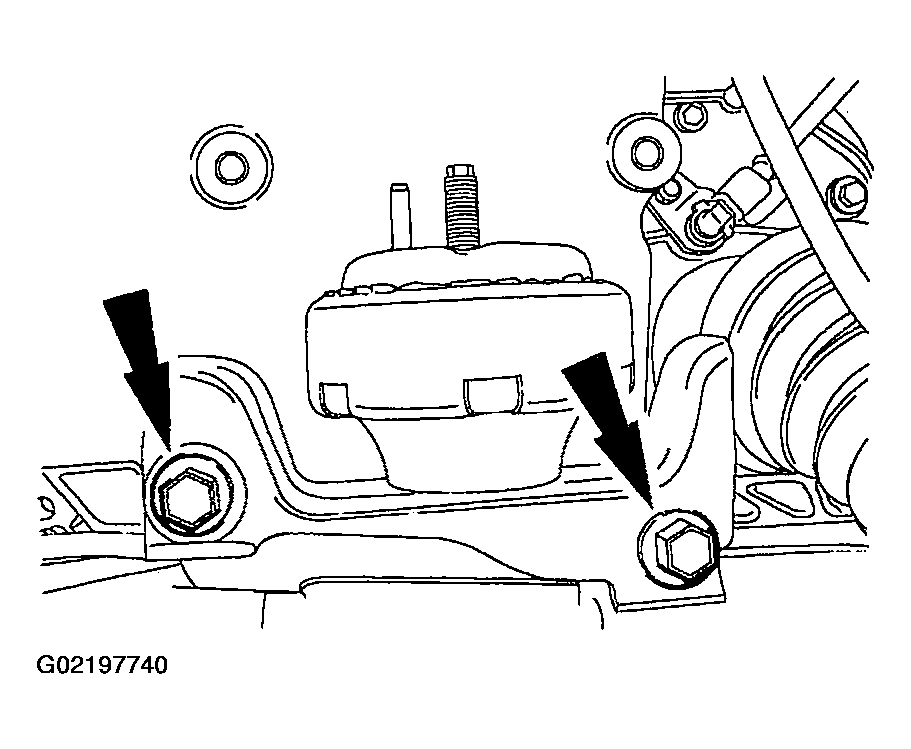

    Fig 4: Removing Engine & Transaxle Upper Support Insulator
    G02197740
