Components

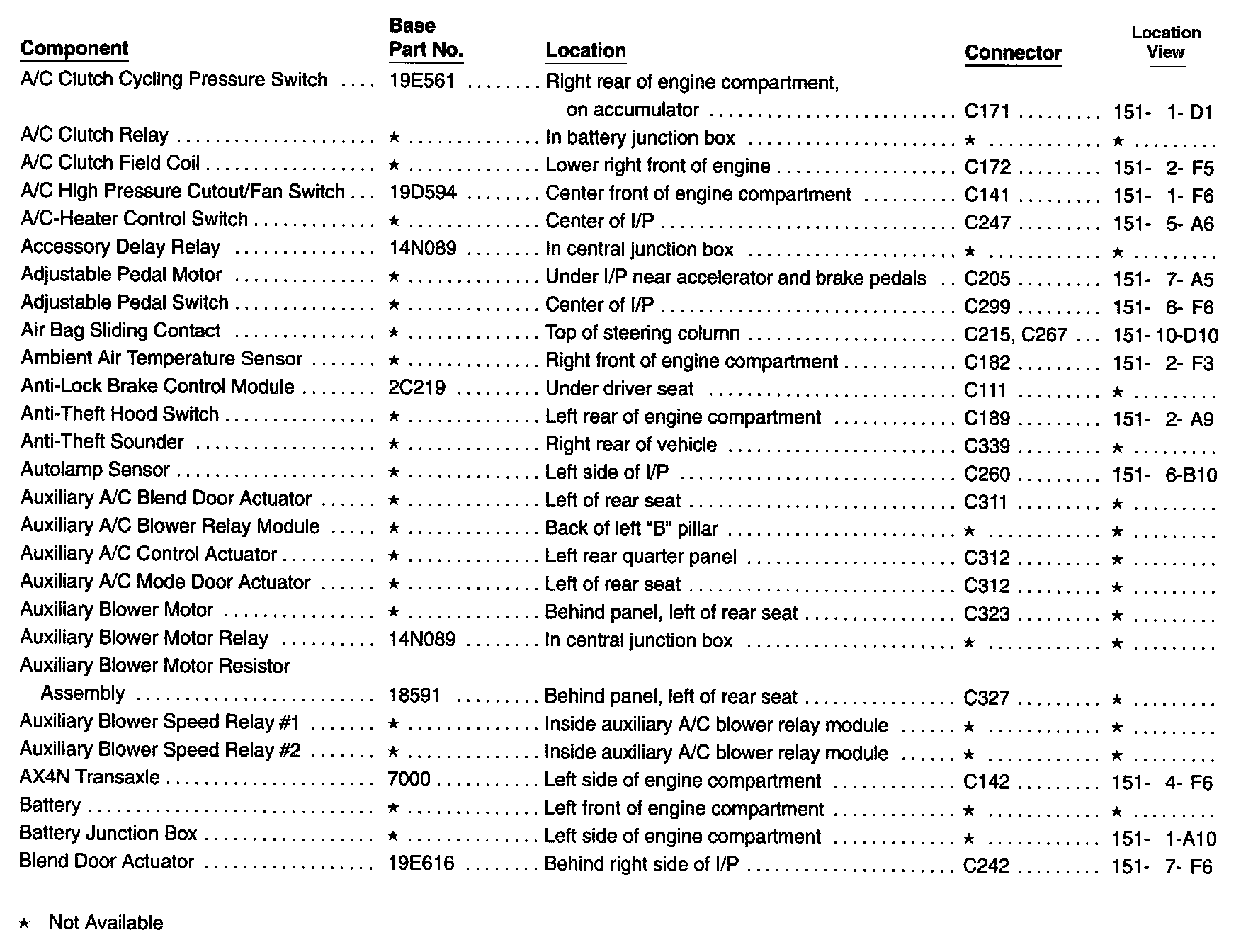

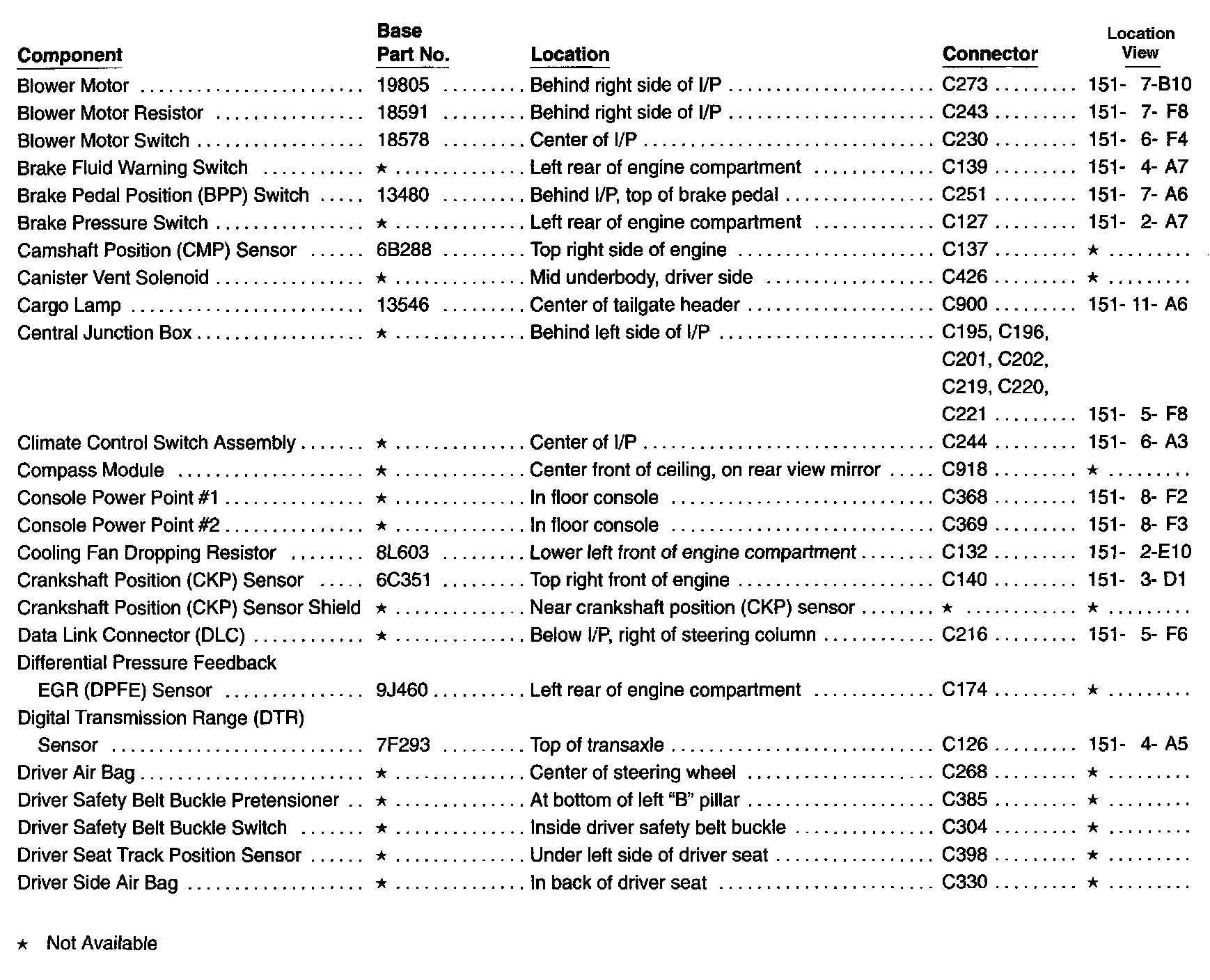

A/C - Bl:






Bl - Dr:

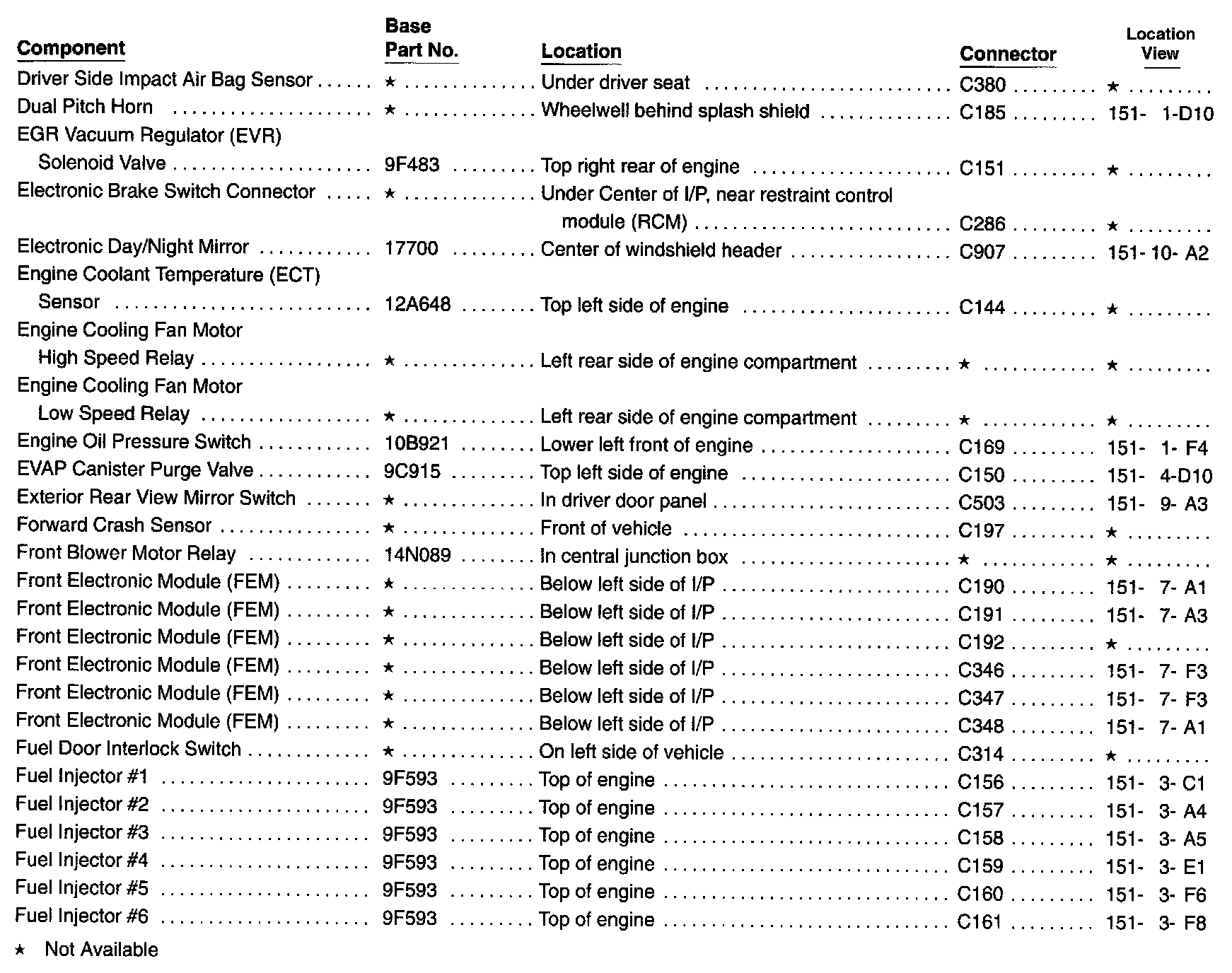

Dr - Fu:

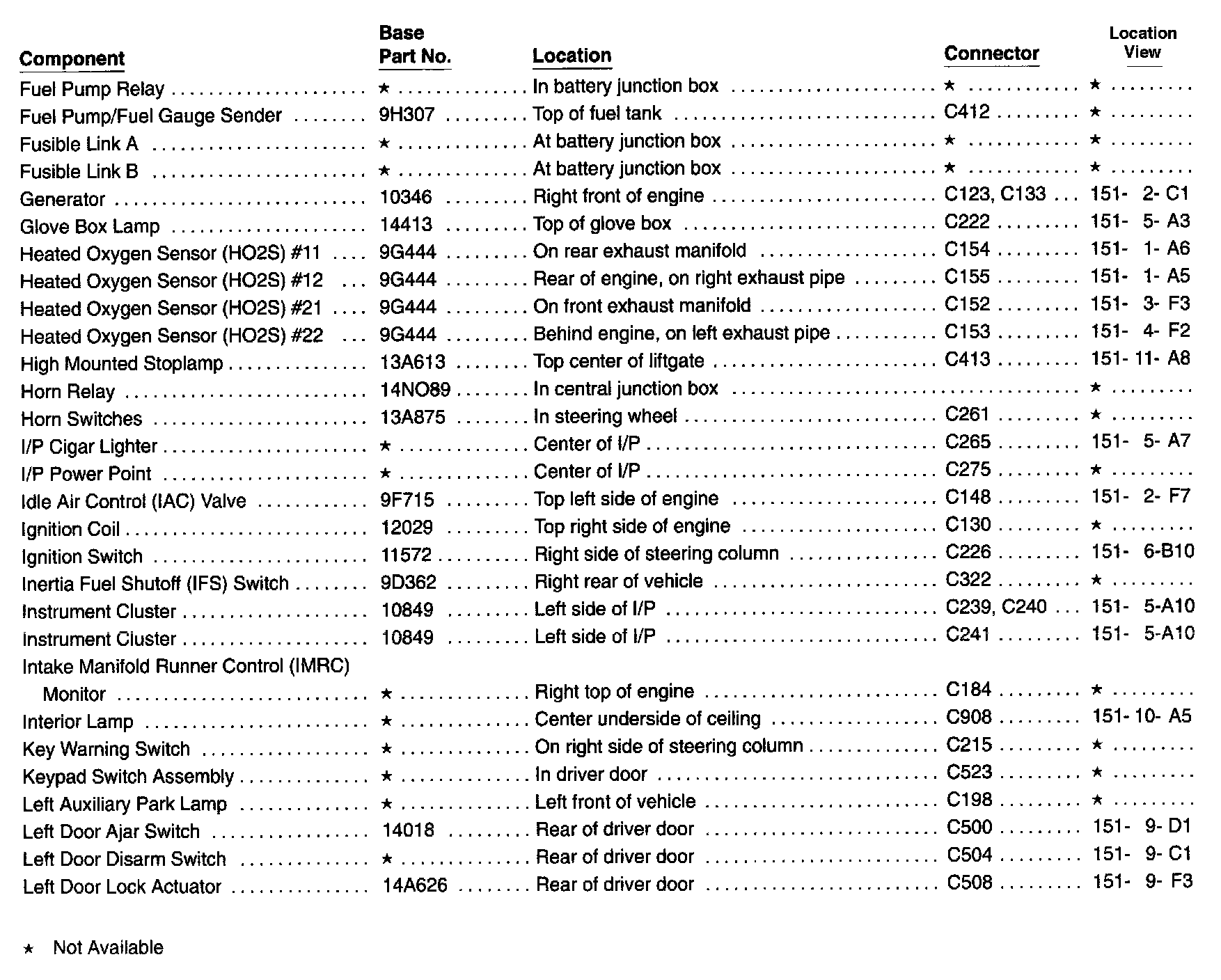

Fu - Le:

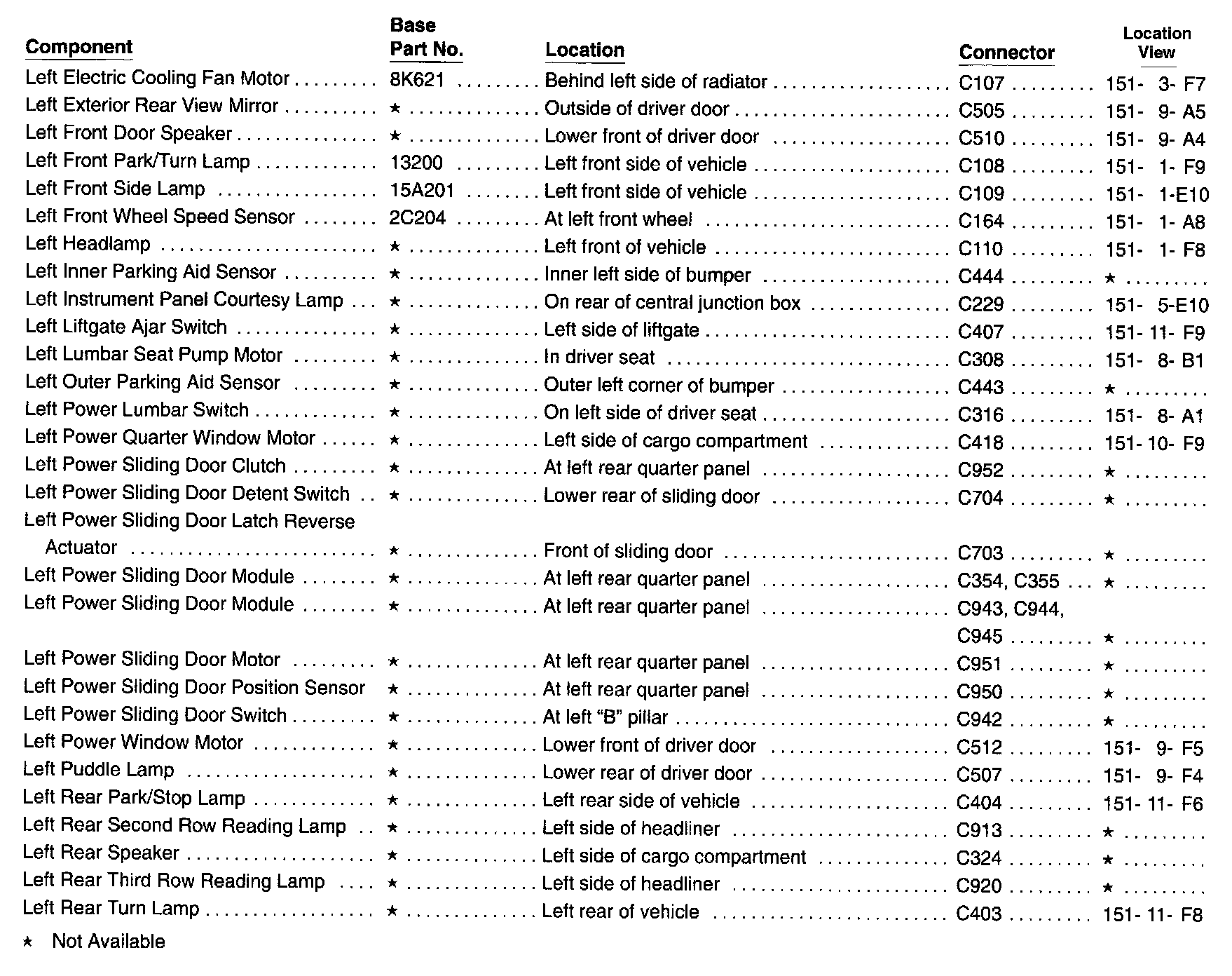

Left Electric - Left Rear:

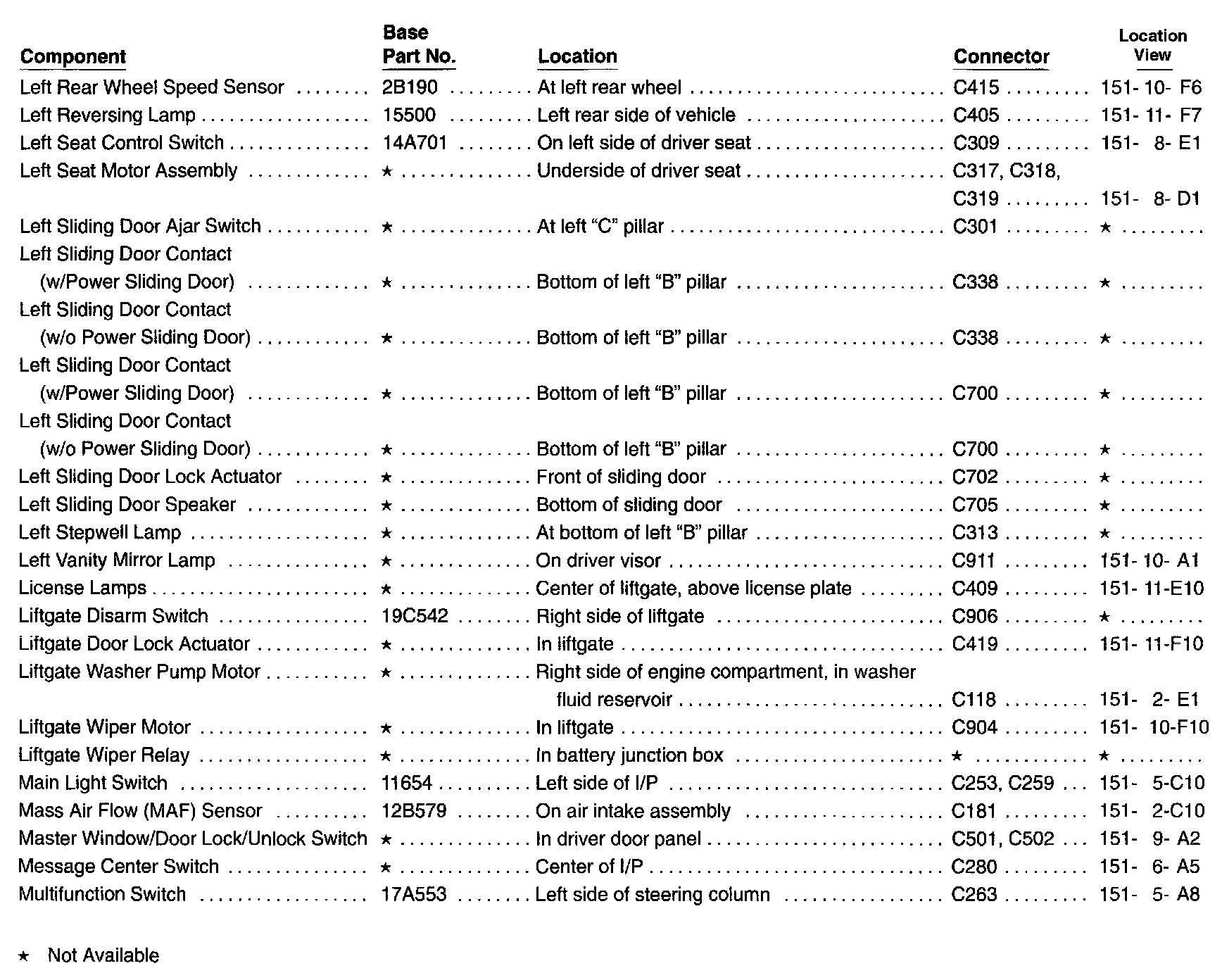

Le - Mu:

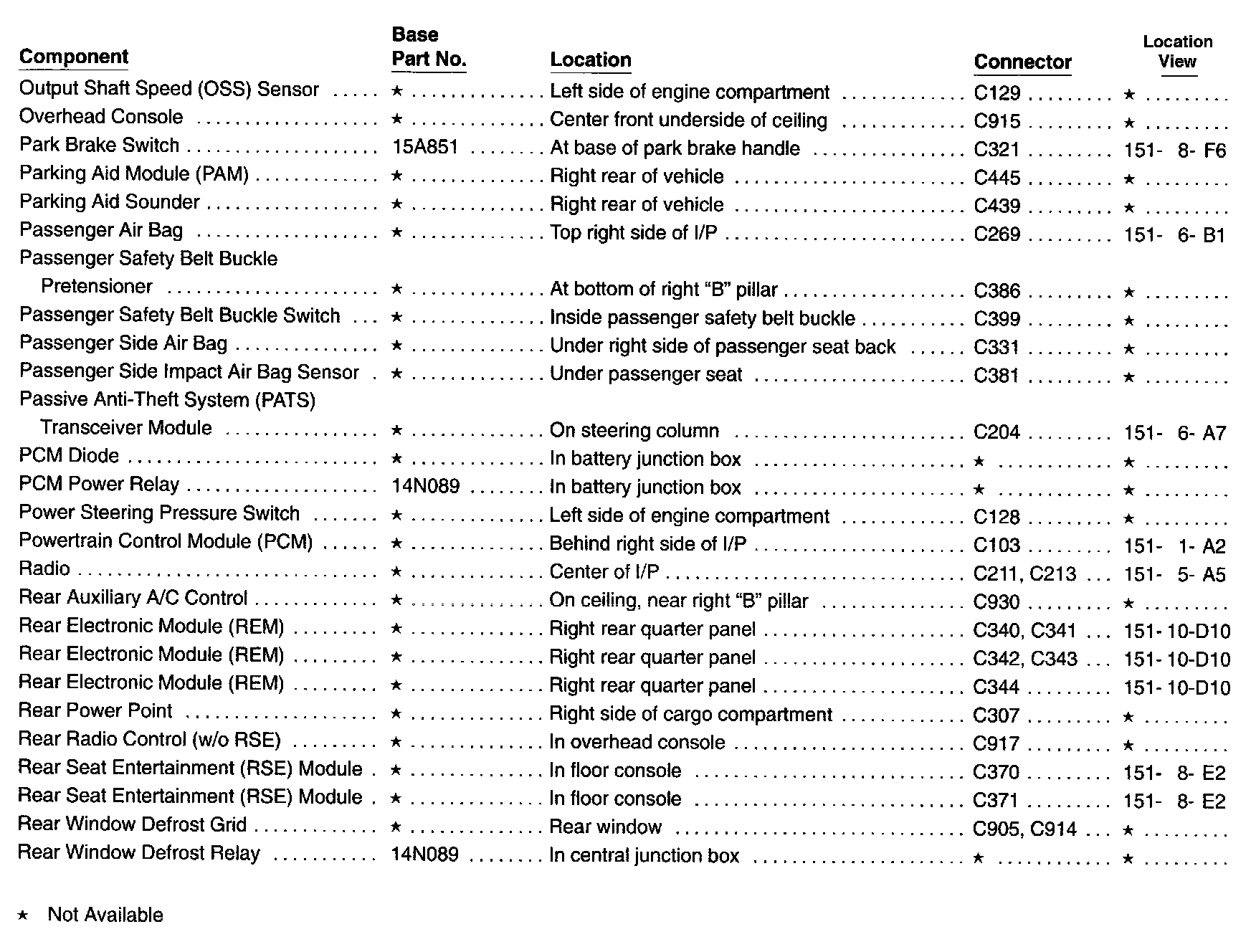

Ou - Re:

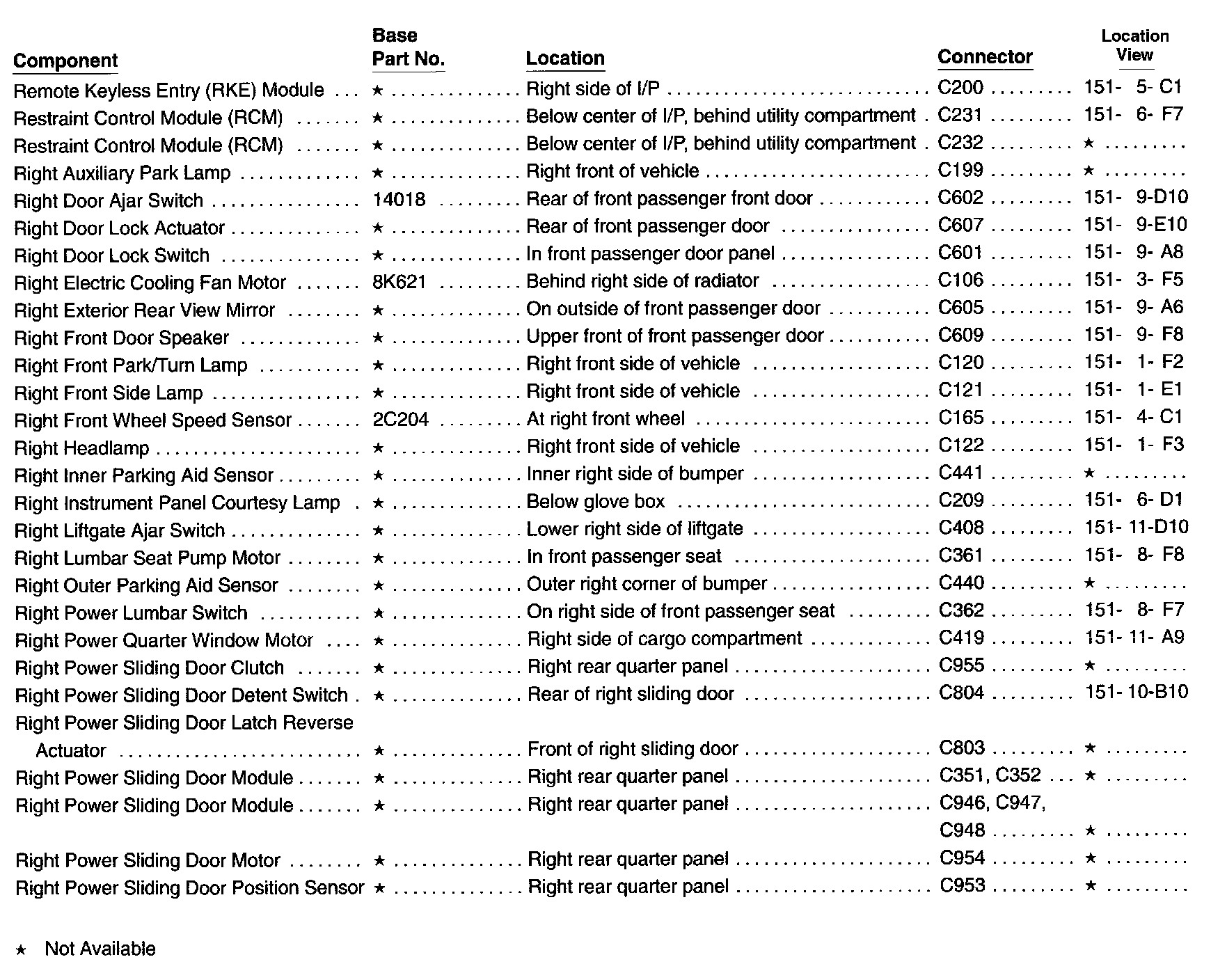

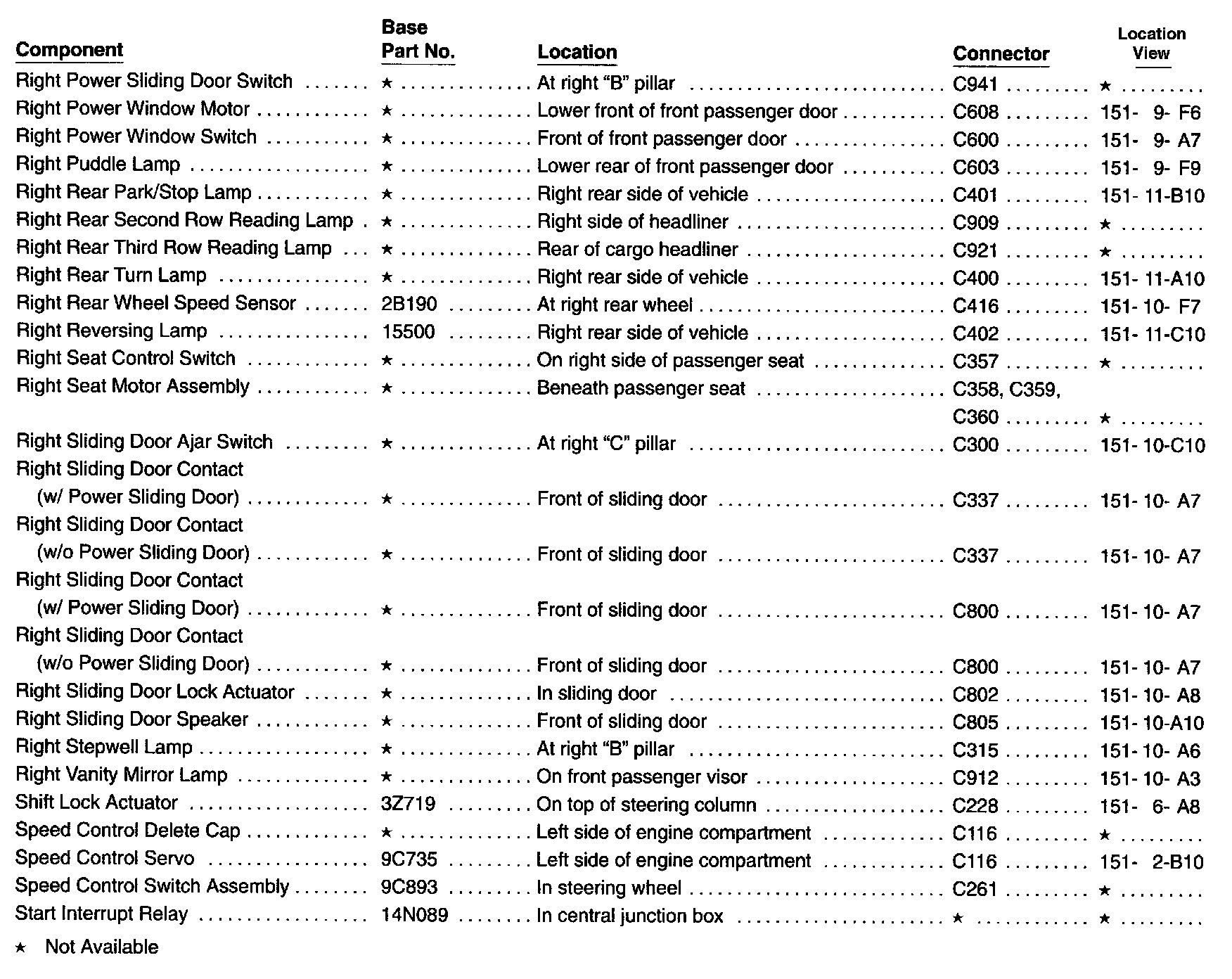

Re - Ri:






Ri - St:

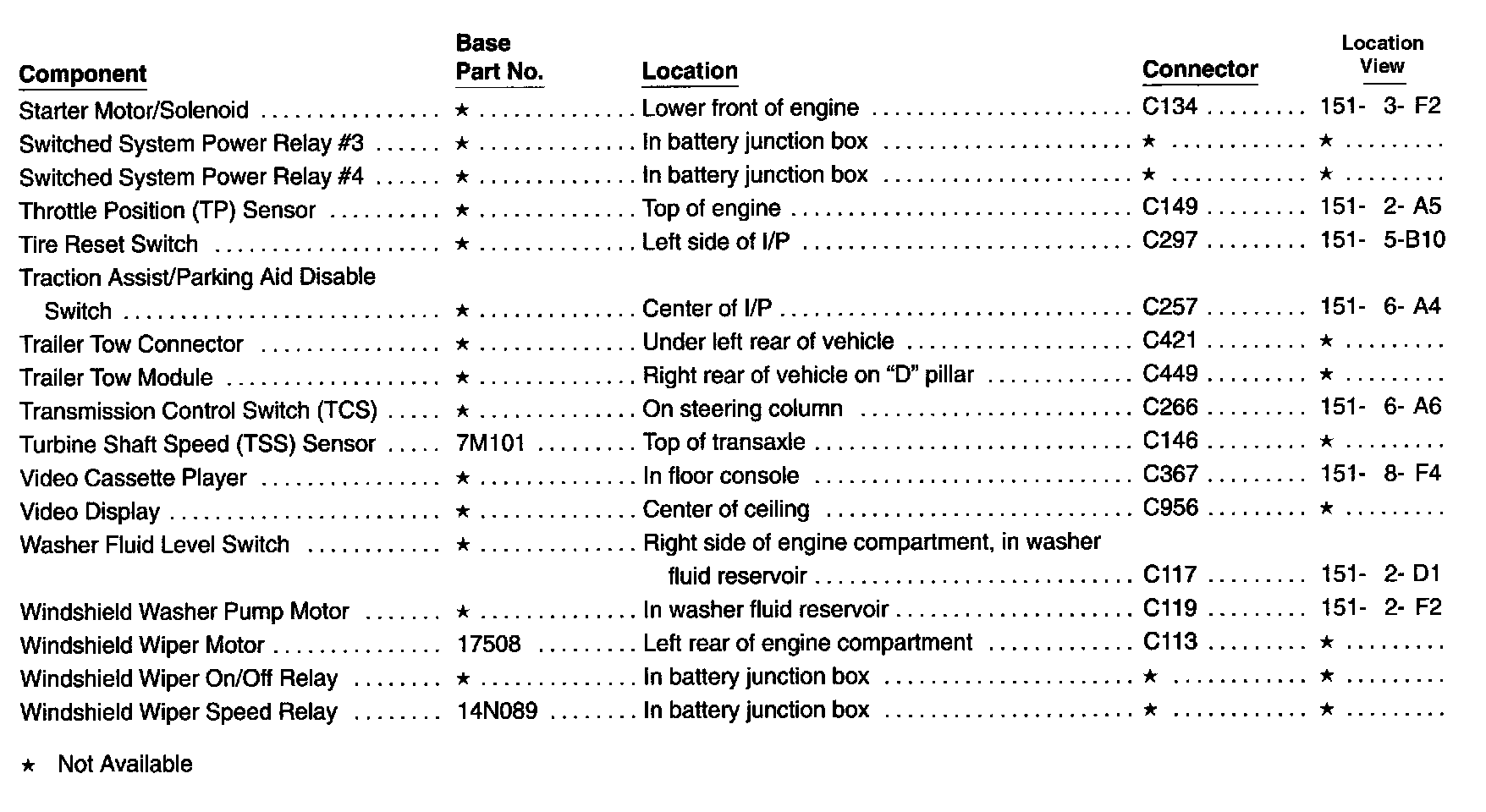

St - Wi:
