Home >> Ford >> 2001 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Engine Control Module

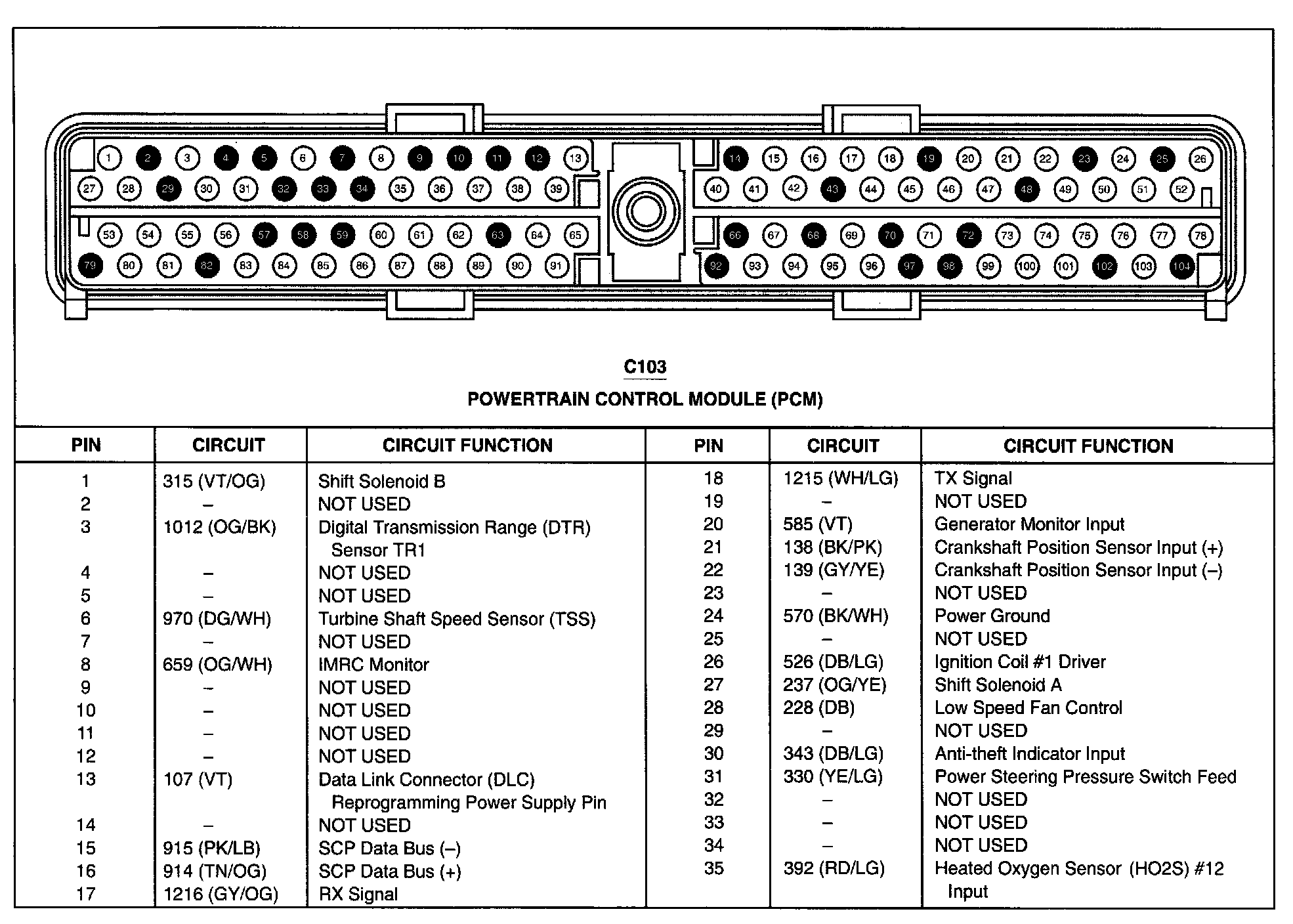

Part 1:

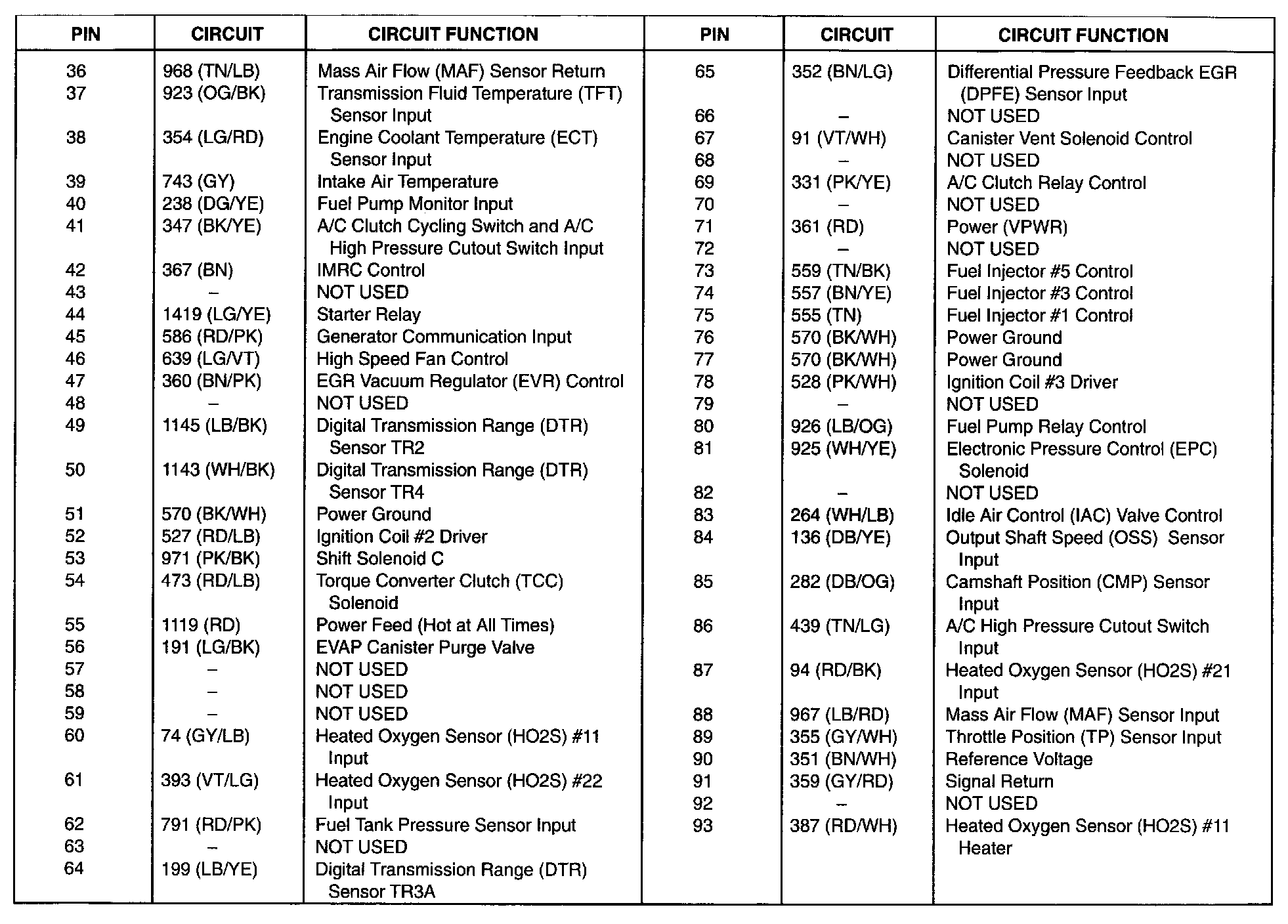

Part 2:

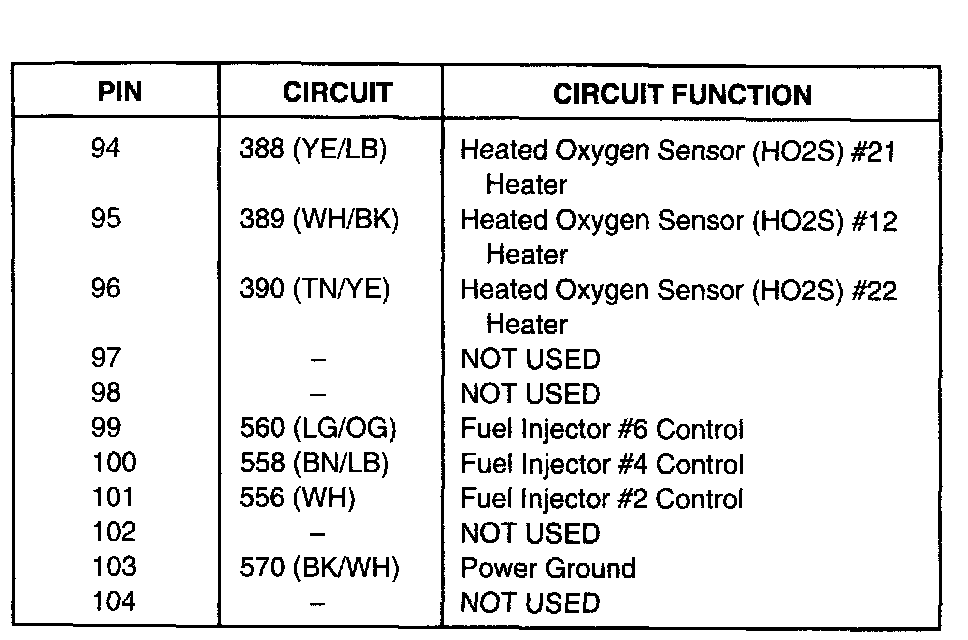

Part 3:
