Control Module HVAC: Locations

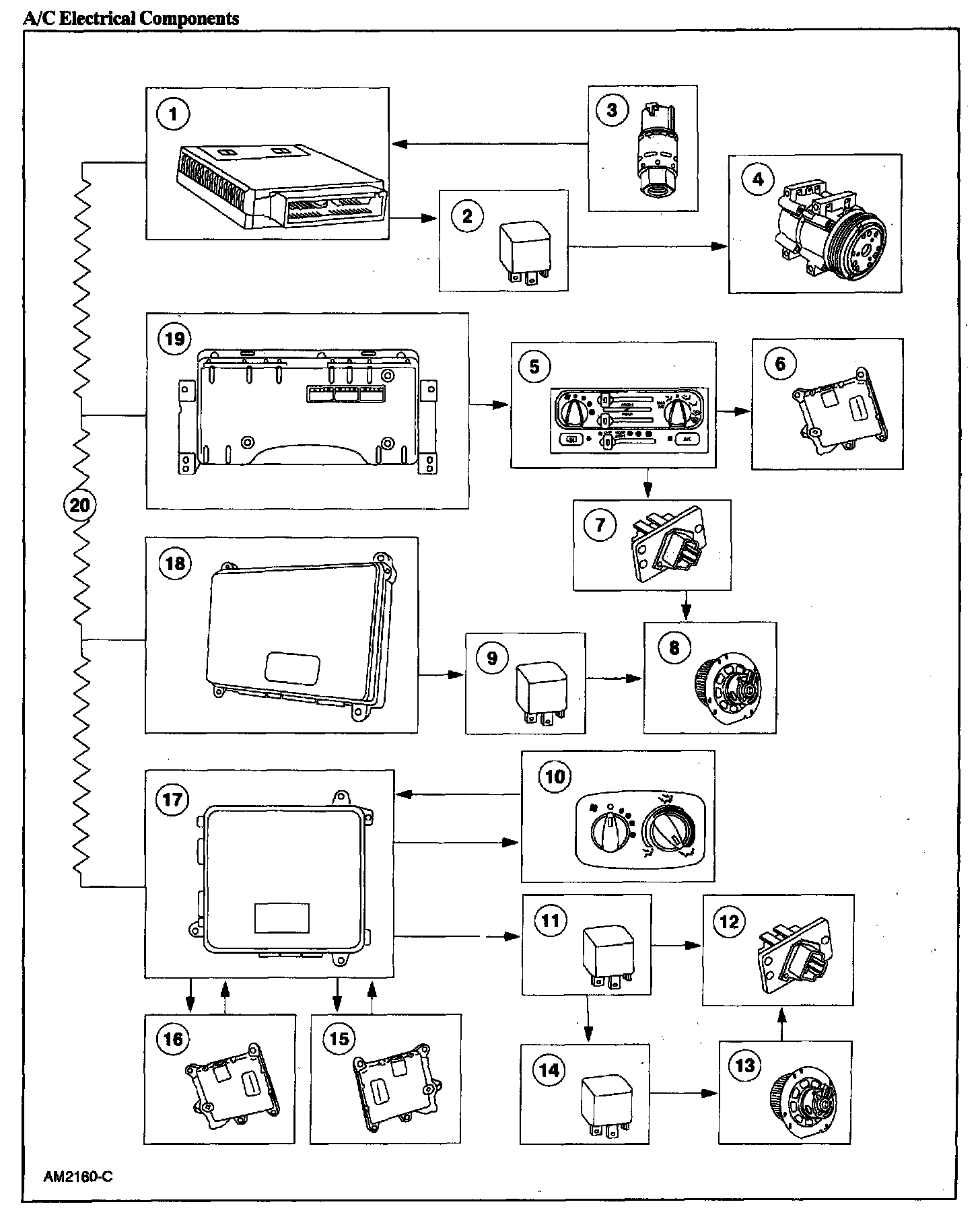

A/C Electrical Components, Part 1:

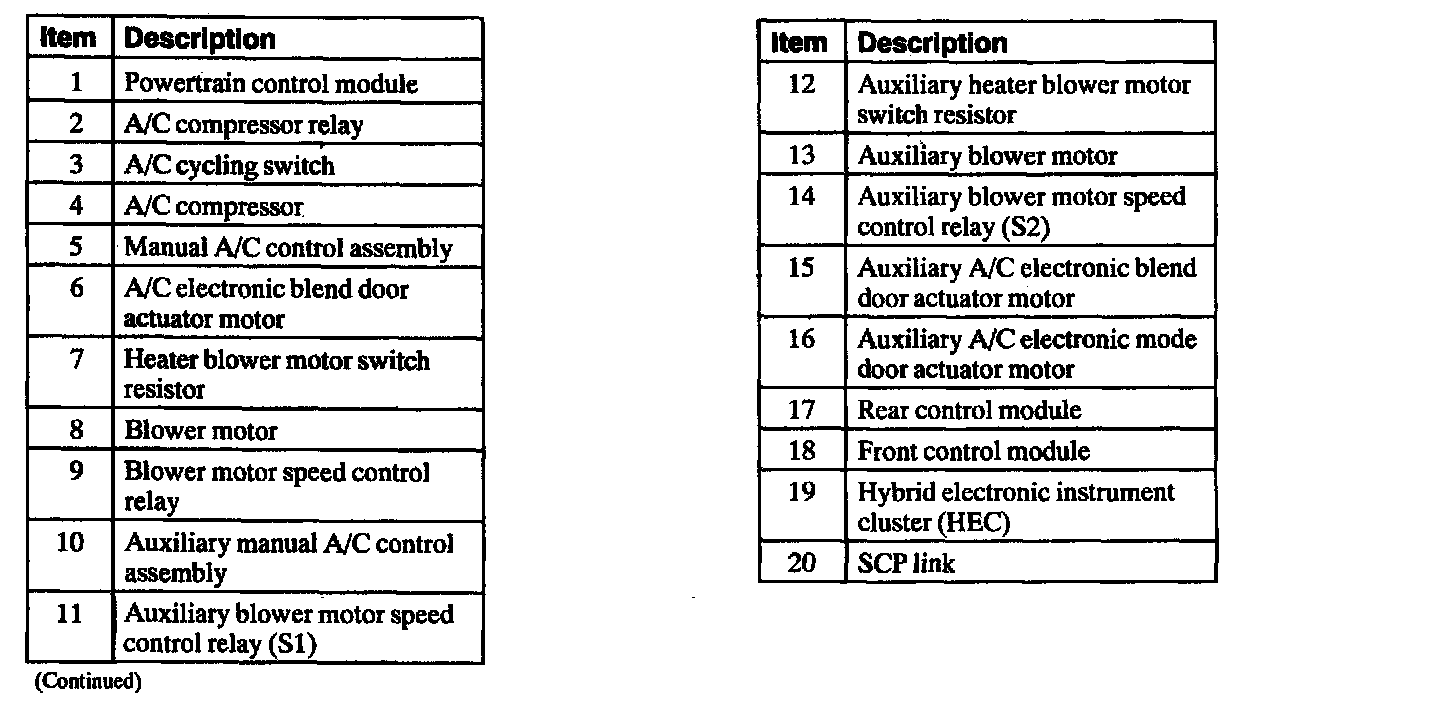

A/C Electrical Components, (Legend) Part 2:
