PCM Relay Location




PCM Power Relay is located in battery junction box.

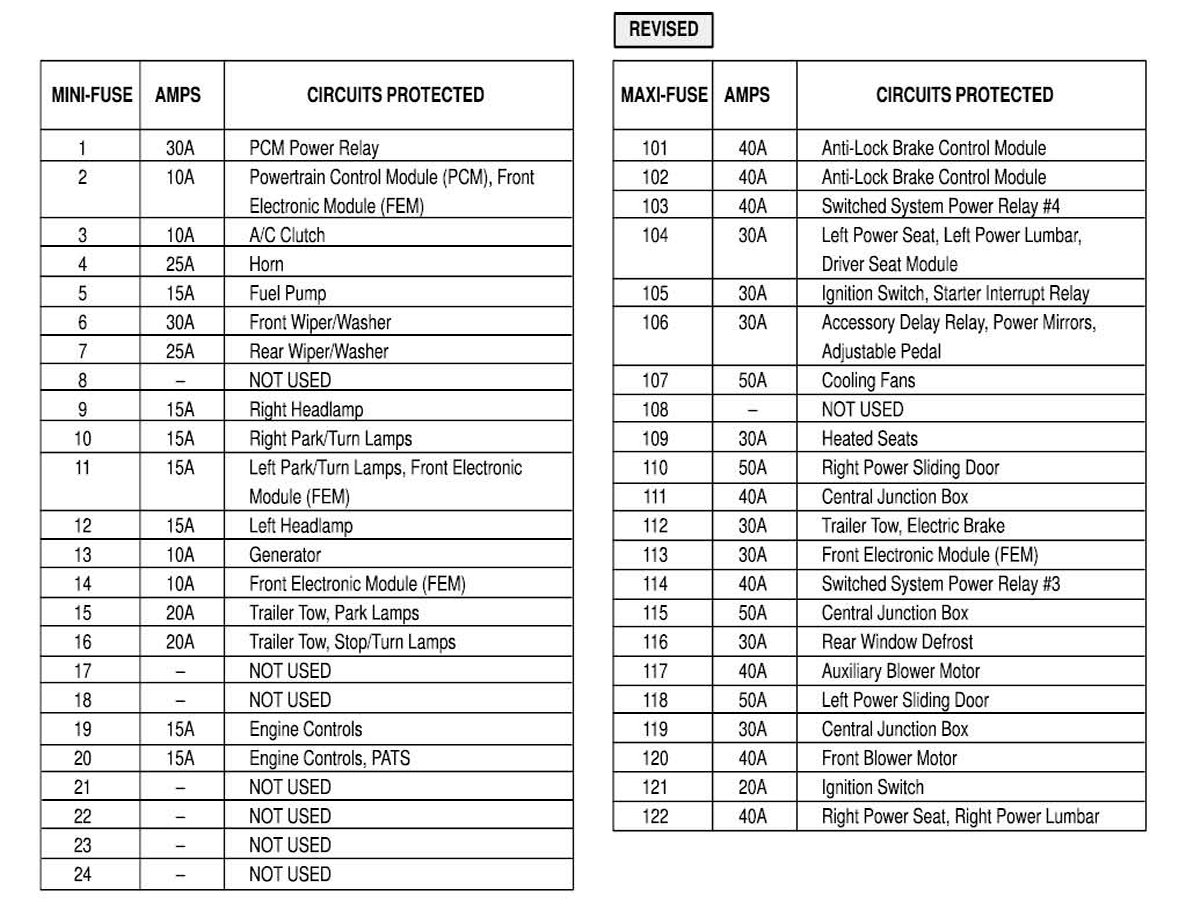

Battery Junction Box (1 Of 2):

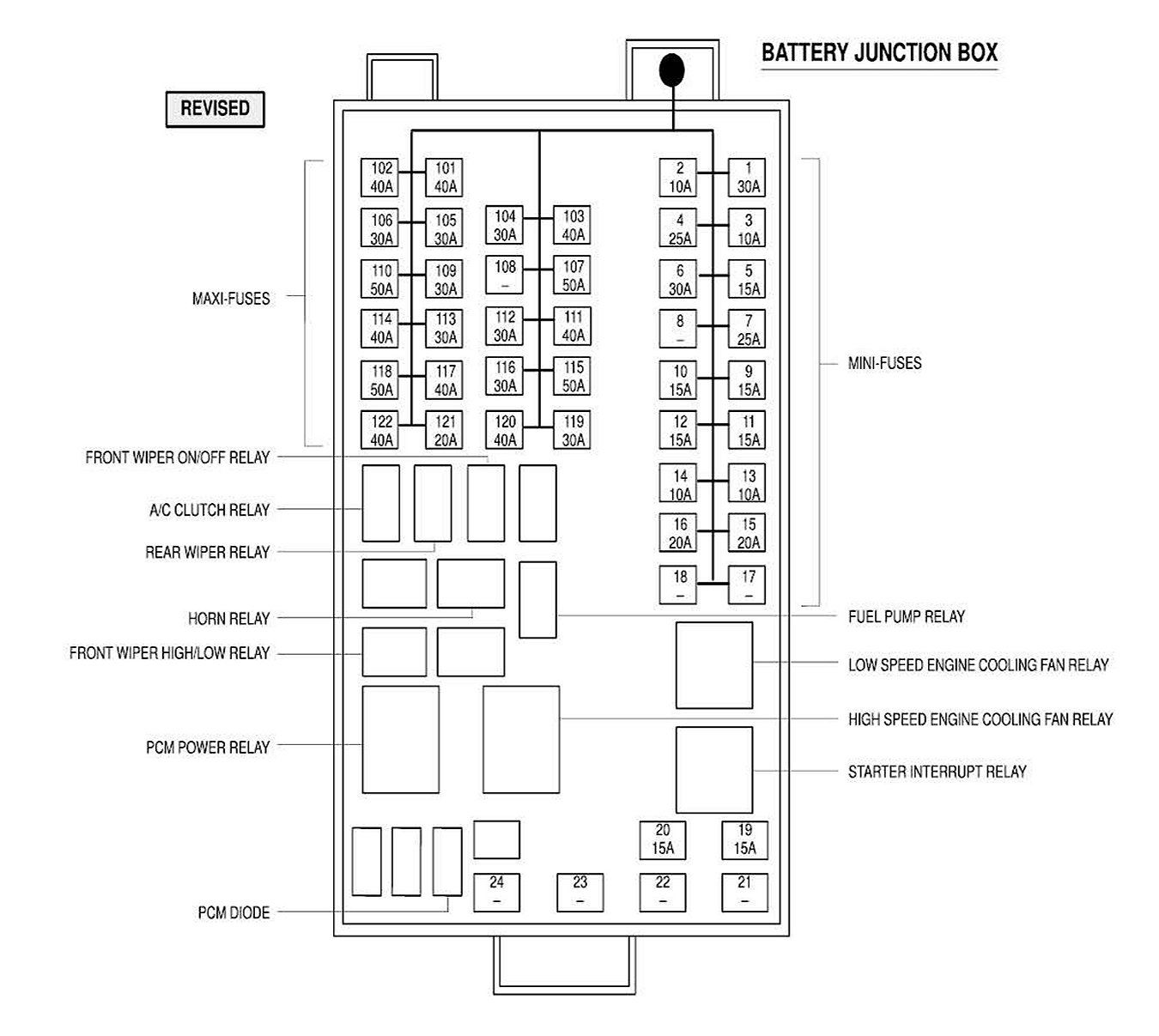

Battery Junction Box (2 Of 2):
