Transmission Position Sensor/Switch: Service and Repair

Digital Transmission Range (TR) Sensor

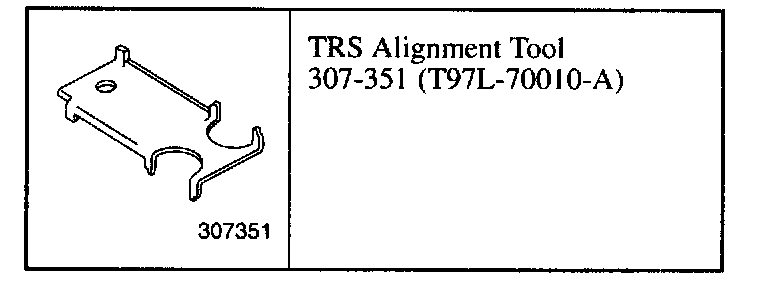

Special Tools:

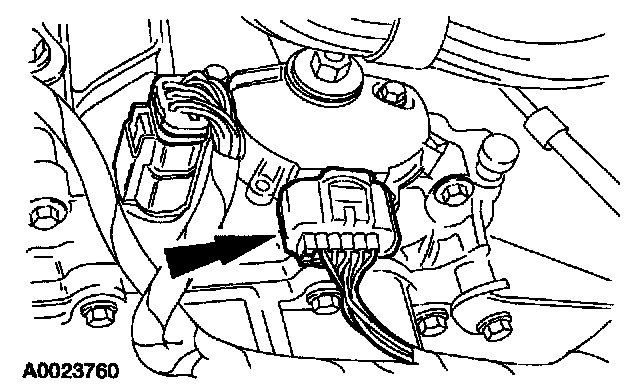

Special Tool(s)
Removal
1. Set the parking brake.





2. Place the transaxle range selector lever in NEUTRAL.
3. Remove the engine air cleaner assembly.





4. Disconnect the digital transmission range (TR) sensor electrical connector.

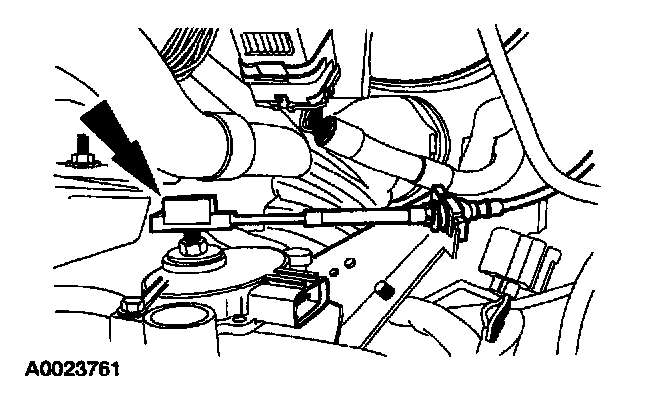

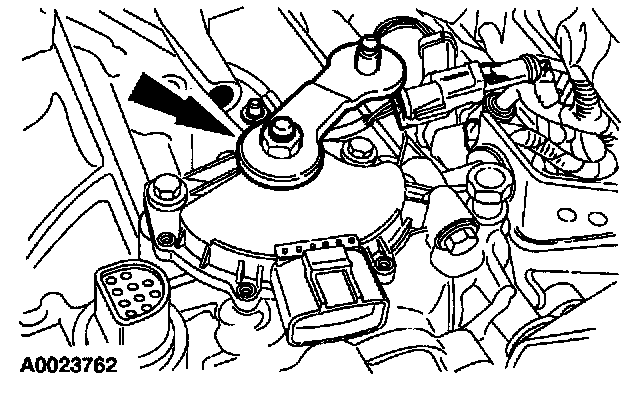

5. Disconnect the shift cable from the manual control lever.





6. Remove the manual control lever.

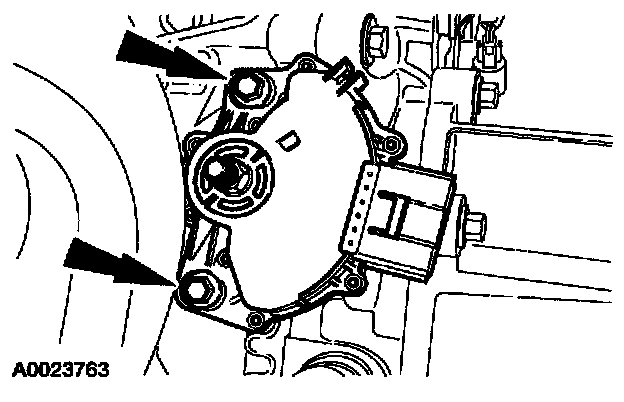

7. Remove the digital TR sensor.

Installation

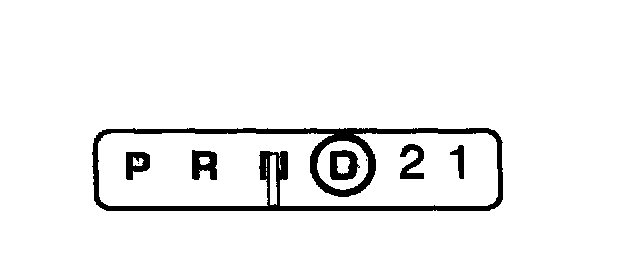

1. Verify that the transaxle range selector lever is in NEUTRAL.

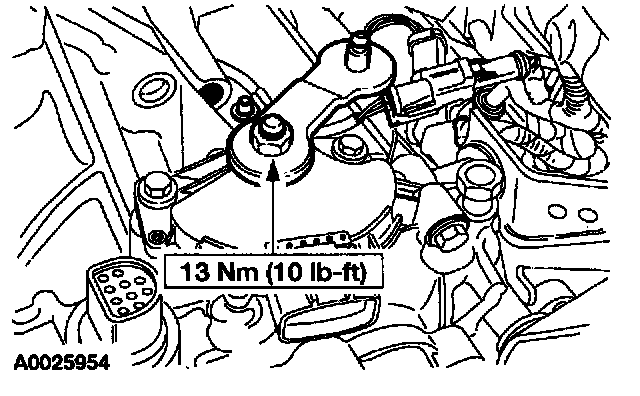

2. Install the digital TR sensor and loosely install the bolts.

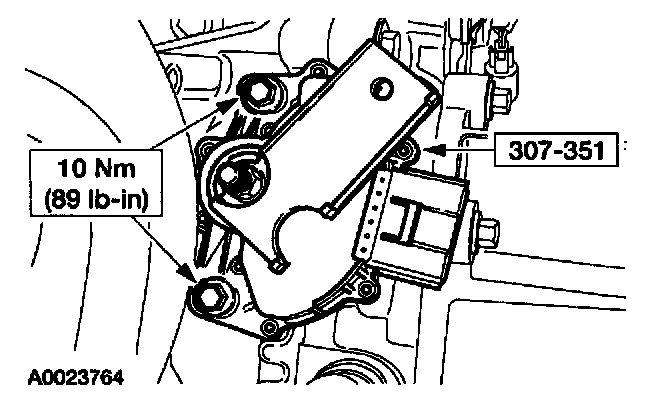

3. Using the special tool, align the digital TR sensor.





4. Install the manual control lever and nut.





5. Connect the shift cable.
6. Verify that the shift cable is correctly adjusted.





7. Connect the digital TR range sensor electrical connector.
8. Install the engine air cleaner assembly.
9. Check for correct vehicle operation.
