Intake Manifold

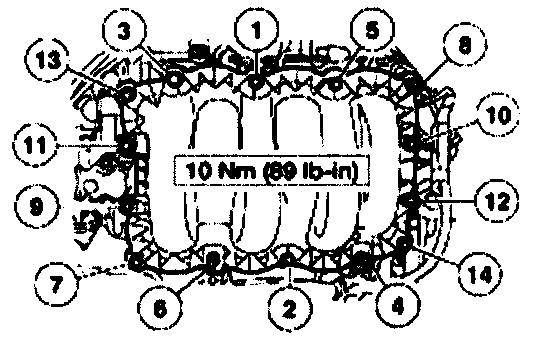

Upper Intake Manifold Torque Specification






1. Make sure to tighten the bolts in two stages following the sequence shown.
- Stage 1: Tighten to 10 Nm (89 inch lbs.).

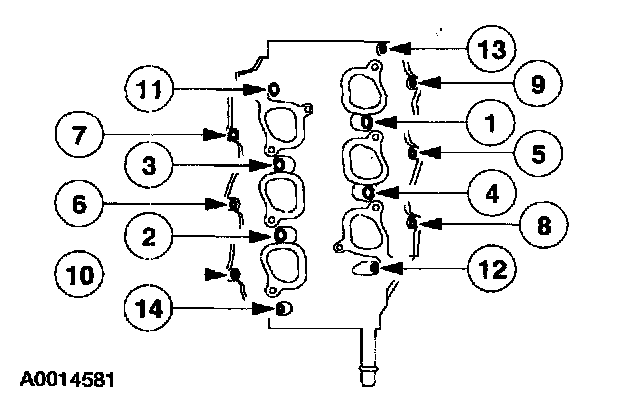

Lower Intake Manifold Torque Specification






1. Make sure to tighten the bolts in two stages following the sequence shown.
- Stage 1: Tighten to 5 Nm (44 inch lbs.).
- Stage 2: Tighten to 10 Nm (89 inch lbs.).
