In-Vehicle Repair: Camshafts: Installation

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Working in several stages, install the camshaft bearing caps in the indicated sequence, tighten the bolts evenly one half turn at a time.

Install the camshafts.
- Tighten the bolts in the sequence shown.

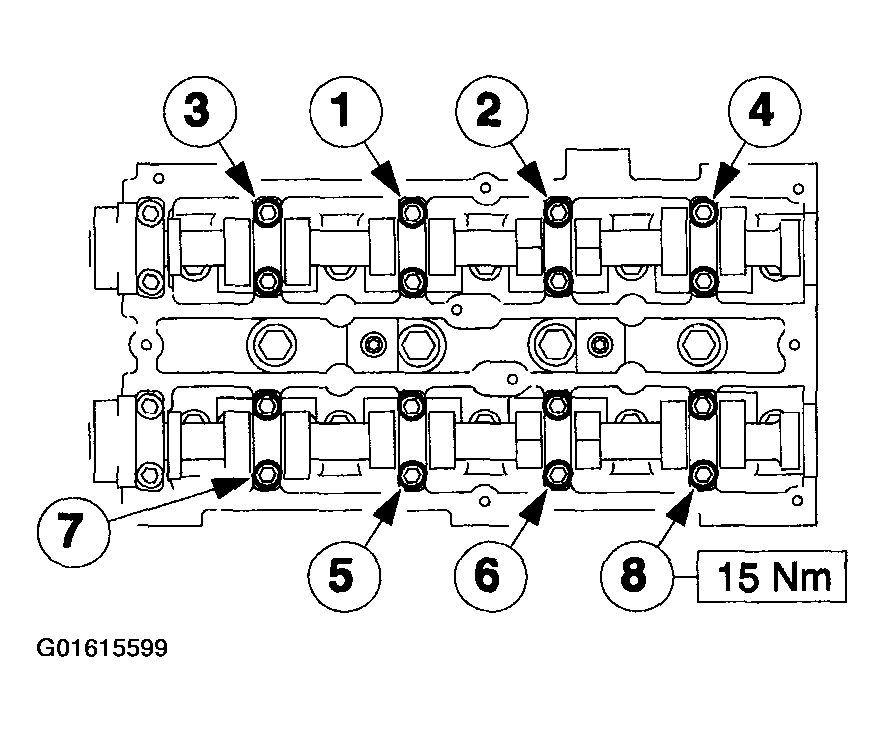

  Fig 1: Camshafts Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.

NOTE: Install a new oil feed flange seal.

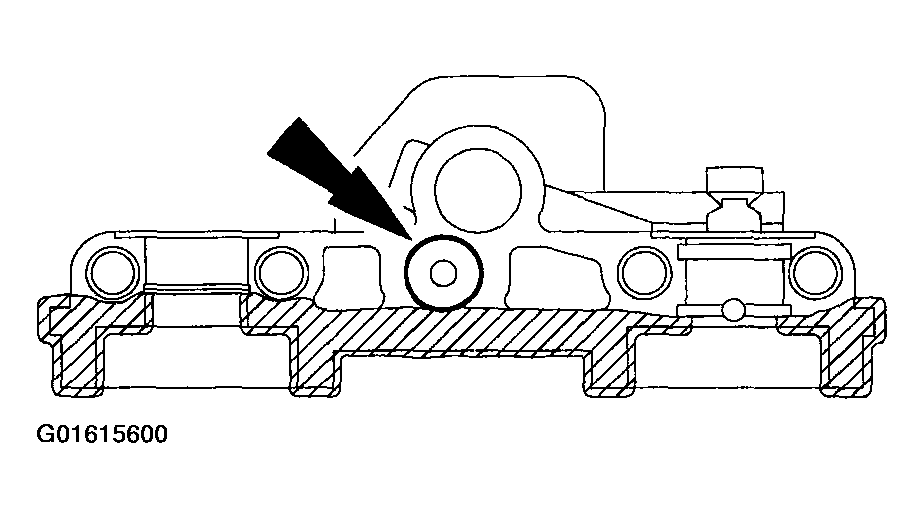

Fig 2: Applying Sealant To Marked Areas On Oil Feed Flange

Courtesy of FORD MOTOR CO.

Apply sealant to the marked areas on the oil feed flange.
Install the oil feed flange.

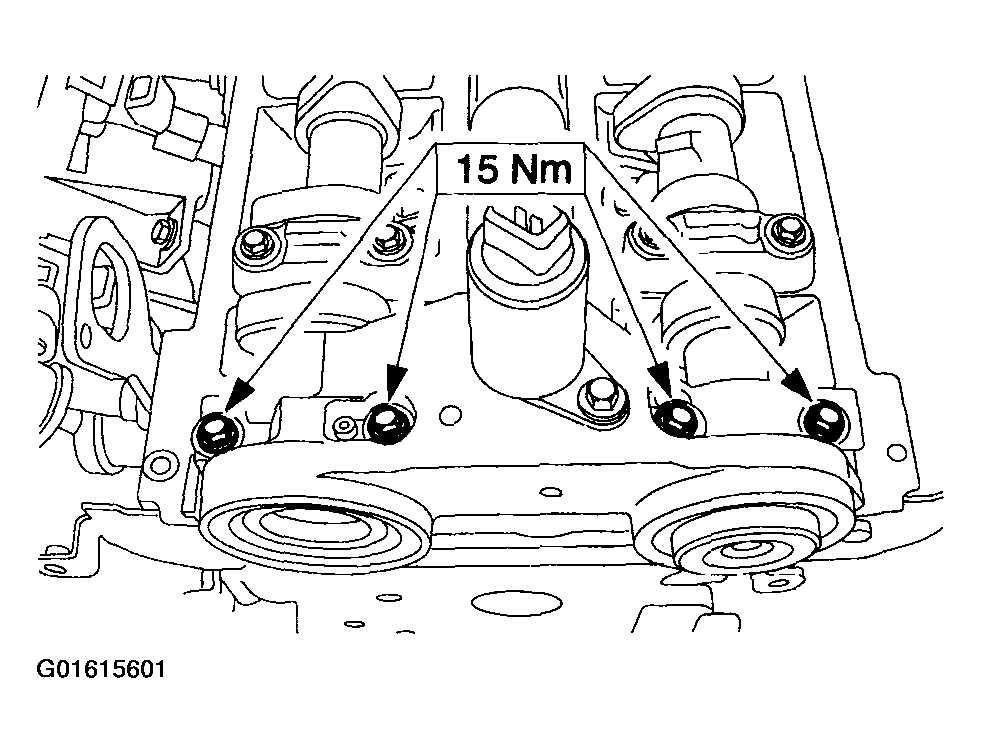

Fig 3: Installing Oil Feed Flange
Courtesy of FORD MOTOR CO.
Using the special tool, install the exhaust camshaft oil seal.
- Lubricate the camshaft and oil seal lip with clean engine oil.
Fig 4: Installing Camshaft Oil Seal
Courtesy of FORD MOTOR CO.
Install the intake camshaft oil seal.
Install the camshaft pulleys.

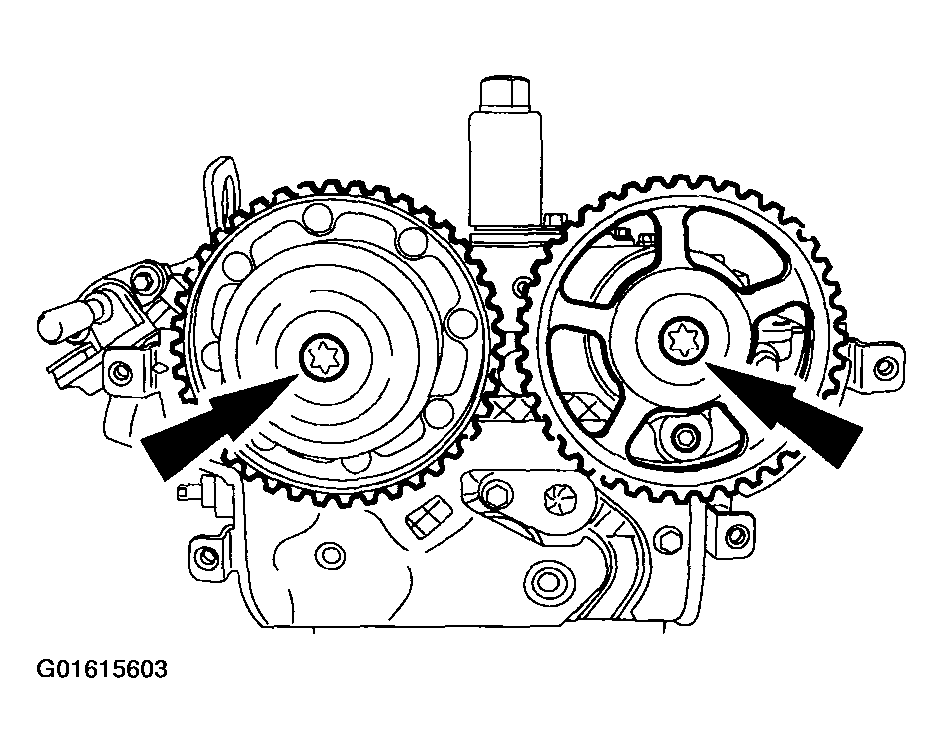

Fig 5: Installing Camshaft Pulleys
Courtesy of FORD MOTOR CO.

NOTE: Do not tighten the camshaft pulley retaining bolts at this stage.

Install the timing belt. For additional information, refer to TIMING BELT .
